Ltd-P Mechanical Wire Rope Pulling Hoist

Customization:	Available
After-sales Service:	Engineer Oversea Service, Online
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

LTD-P

Application

Man-Riding

Type

Electric Hoist

Sling Type

Wire Rope

Lift Speed

9/18m/Min

Certification

CE, TUV

Voltage

380V (415V/220V)

Frequency

50Hz/60Hz

HS Code

8425110000

Production Capacity

1000 pieces/Month

Product Description

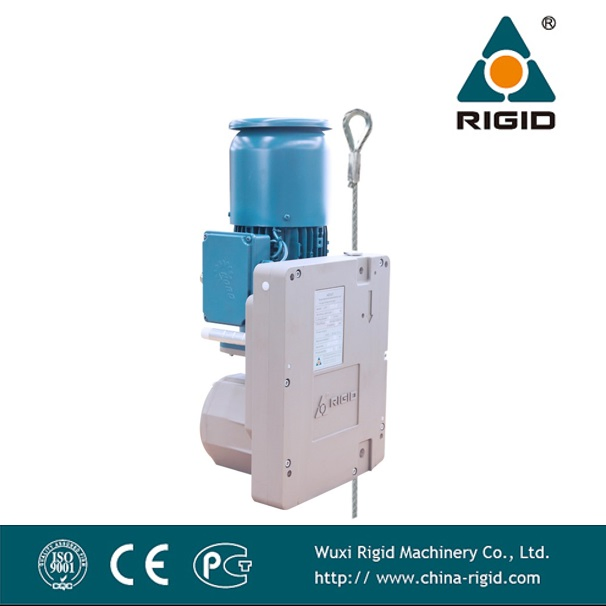

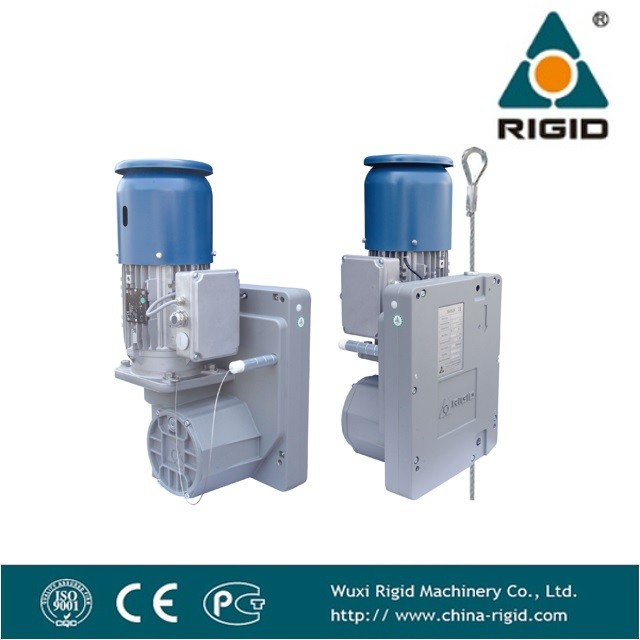

LTD-P Mechanical Wire Rope Pulling Hoist

Endless passenger elevation (man-riding) hoist designed to be used with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is a versatile solution suitable for unlimited applications. The rope is not connected, which makes it compact, lightweight, and very easy to handle. The unrestricted wire rope lengths capability makes it possible to utilize unlimited lifting heights and traction lengths.

Features and Benefits

The robust, precisely machined housing of die-cast aluminium ensures low dead-weight and outstanding rigidity.
Gearing and drive sheave is fabricated from hardened steel.
Universal attachment via central 16mm load pin or two M10 screws.
Motor protection: IP55 standard.
Control Voltage: 24V for mobile units and 42V for stationary models.
Thermal overload protection device fitted as standard.
Special nitrided steel drive sheave and pressure rollers (70 HRC) for low wear.
Fully-synthetic special oil ensures efficiency in temperatures from -40°C to 70°C.

Technical Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808 requirements, each hoist for passenger elevation must feature a safety system on an independent safety rope. Two different safety fall arresters are available, both approved for passenger elevation and complying with DIN EN 1808 standards, certified by TUV.

Flexible Attachment Points

Safety Lowering Mechanism

Overspeed Safety Fall Arrester (OSL)
Trips when speed exceeds 30m/min.

Anti-tilting Safety Fall Arrester (LSF)
Trips when the angle exceeds 5°.

Dimensional Specifications

Frequently Asked Questions

What is the weight capacity of the LTD-P hoist series?

The series offers a lifting capacity ranging from 500kg up to 1000kg, depending on the specific model selected.

Is this hoist suitable for personnel lifting?

Yes, the LTD-P is specifically designed as a man-riding hoist for passenger elevation, complying with DIN EN 1808 safety requirements.

What safety mechanisms are included in the event of a power failure?

The hoist features an electric-mechanical brake that can be released manually to ensure a safe and controlled lowering of the load.

What are the lifting speeds available?

Standard lifting speeds are either 9 meters per minute or 18 meters per minute.

Does the system protect against overloading?

Yes, it includes a thermal overload protection device for the motor and an internal mechanism that stops the hoist from rising if the load limit is exceeded.

What types of safety fall arresters can be used?

The hoist can be equipped with either an Overspeed Safety Fall Arrester (OSL) or an Anti-tilting Safety Fall Arrester (LSF).
