Ltd-P Mechanical Wire Rope Suspended Platform Hoist

1 / 5

Ltd-P Mechanical Wire Rope Suspended Platform Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

Basic Information

Model NO.

LTD-P

Sling Type

Wire Rope

Lift Speed

9/18m/Min

Maximum Lifting Height

Customer's Request

Certification

CE, TUV

Condition

New

Color

Customized

Voltage

380V (415V/220V)

Frequency

50Hz/60Hz

HS Code

8425110000

Production Capacity

1000 pieces/Month

Transport Package

Cardboard Box

Product Description

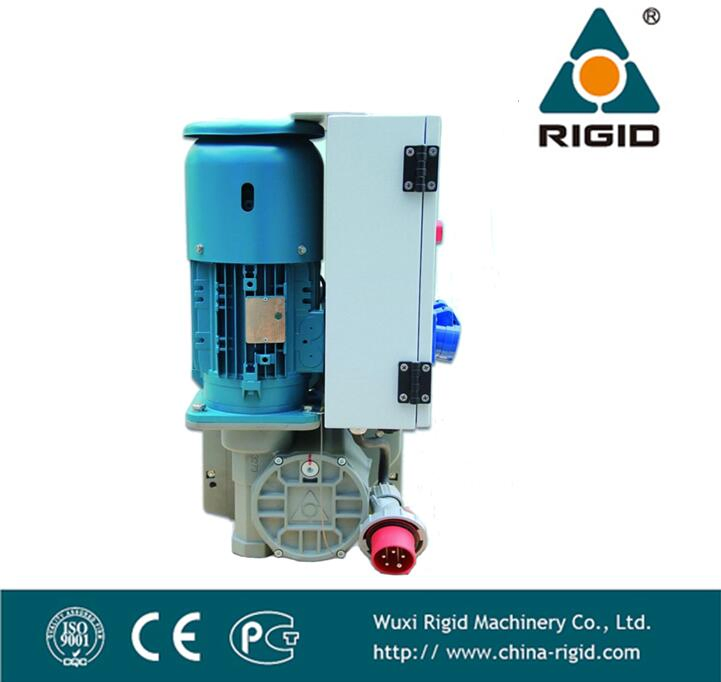

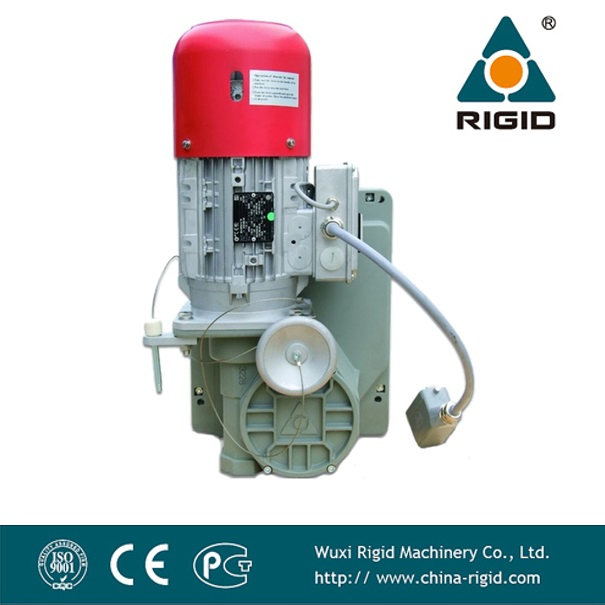

LTD-P Mechanical Wire Rope Suspended Platform Hoist

Endless passenger elevation (man-riding) hoist designed for use with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min. The LTD-P Series is versatile, compact, lightweight, and easy to handle, making it suitable for unlimited lifting heights and traction lengths.

Features and Benefits

✓ Robust precisely machined die-cast aluminium housing for low dead-weight.

✓ Gearing and drive sheave fabricated from hardened steel.

✓ IP55 Standard motor protection.

✓ Universal attachment via central 16mm load pin or M10 screws.

✓ 24V/42V Control voltage for enhanced safety.

✓ Integrated thermal overload protection for the hoist motor.

✓ Nitrided steel drive sheave (70 HRC) ensuring low wear.

✓ Synthetic special oil for efficiency in temperatures from -40°C to 70°C.

✓ TUV certified for passenger elevation.

✓ Standardized components for easy maintenance and parts access.

Main Parameters of LTD Series Hoist

Model	Capacity (kg)	Lifting Speed (m/min)	Nominal Rope Dia (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

* Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808 requirements, each passenger elevation hoist features independent safety systems. Fall arresters are TUV certified and comply with standard DIN EN 1808.

Overspeed Fall Arrester (OSL)

Trips automatically when lowering speed exceeds 30m/min. Hardened steel jaws stop movement within centimeters.

Anti-tilting Fall Arrester (LSF)

Trips automatically if the platform tilt angle exceeds 5°, immediately clamping the rope.

Optional Equipment

● Radio remote control

● Limit switch for upward travel

● Double control for multiple hoists

● Operating hour counters

● Shackle fitting adaptors

● Custom operating voltages

Frequently Asked Questions

What is the maximum lifting capacity of the LTD-P series?

The LTD-P series hoists offer a range of capacities from 500kg up to 1000kg, depending on the specific model selected.

Is this hoist suitable for personnel lifting?

Yes, the LTD-P is specifically designed as an endless passenger elevation (man-riding) hoist and complies with standard DIN EN 1808 safety requirements.

Can the hoist handle unlimited lifting heights?

Yes, because it uses an endless wire rope system, it is not restricted by rope length, allowing for unlimited lifting heights.

What safety devices are included for passenger safety?

Standard safety features include an overspeed safety fall arrester (OSL), an anti-tilting safety fall arrester (LSF), and a manual release mechanism for safe lowering during power failures.

What voltages are available for the LTD-P hoist?

The standard operating voltage is 380V, 3ph, 50Hz. However, other voltages such as 415V or 220V and different frequencies are available upon request.

What are the environmental limits for operation?

The hoist uses fully-synthetic special oil which ensures high efficiency and quiet running within a wide temperature range of -40°C to 70°C.
