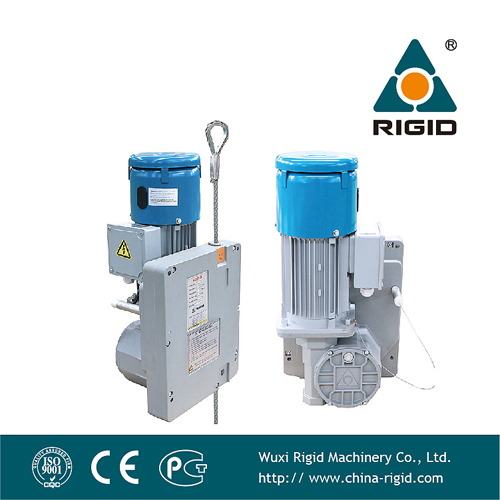

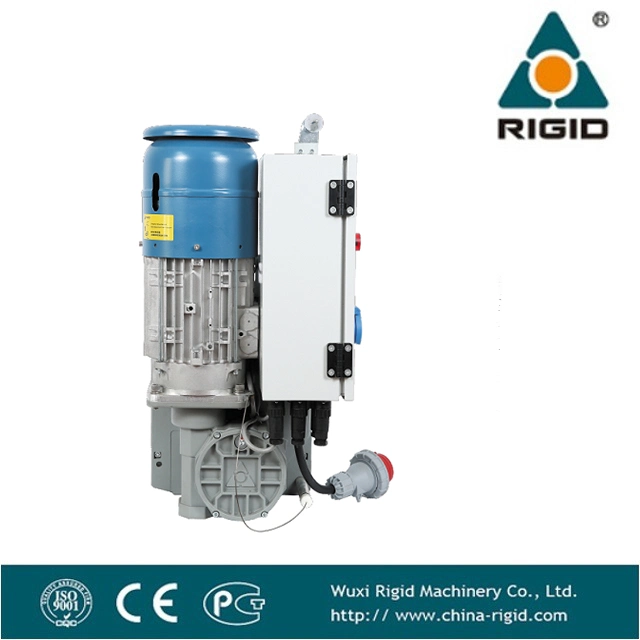

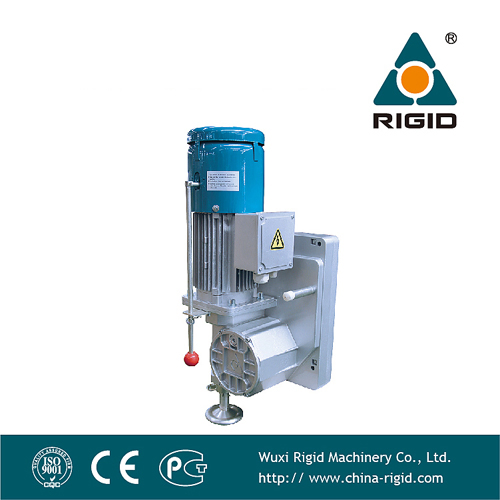

Ltd-P Mechanical Wire Rope Traction Hoist
Ltd-P Mechanical Wire Rope Traction Hoist
Ltd-P Mechanical Wire Rope Traction Hoist
Ltd-P Mechanical Wire Rope Traction Hoist
Ltd-P Mechanical Wire Rope Traction Hoist
1 / 5
Ltd-P Mechanical Wire Rope Traction Hoist
Ltd-P Mechanical Wire Rope Traction Hoist
Ltd-P Mechanical Wire Rope Traction Hoist
Ltd-P Mechanical Wire Rope Traction Hoist
Ltd-P Mechanical Wire Rope Traction Hoist

Ltd-P Mechanical Wire Rope Traction Hoist

Customization: Available
Application: Man-Riding
Type: Electric Hoist
Send Inquiry

Product Description

Basic Specifications
Model NO.
LTD-P
Sling Type
Wire Rope
Lift Speed
9/18m/Min
Maximum Lifting Height
Customer's Request
Certification
CE, TUV
Condition
New
Color
Customized
Voltage
380V(415V/220V)
Frequency
50Hz/60Hz
Transport Package
Cardboard Box
HS Code
8425110000
Production Capacity
1000pieces/Month
Product Overview

LTD-P Mechanical Wire Rope Traction Hoist

Endless passenger elevation (man-riding) hoist designed to be used with unlimited rope lengths for lifting and lowering personnel. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is a versatile solution suitable for unlimited applications. The rope is not connected which makes it compact, lightweight and very easy to handle. The unrestricted wire rope lengths capability makes it possible to utilise unlimited lifting heights and traction lengths.

LTD-P Mechanical Wire Rope Traction Hoist
Features and Benefits
  • Robust, precisely machined housing of die-cast aluminium for low dead-weight and rigidity.
  • Gearing and drive sheave fabricated from hardened steel.
  • Universal attachment via central 16mm load pin or two M10 screws.
  • Motor protection: IP55 as standard.
  • Standard operating voltage: 380V, 3ph, 50Hz (customizable).
  • Control Voltage: 24V for mobile units and 42V for stationary models.
  • Phase monitoring standard on mobile application models.
  • Hoist motor fitted with thermal overload protection device.
  • Certified by independent inspection institute (TUV).
  • Special nitrided steel drive sheave (70 HRC) for low wear.
  • Fully-synthetic oil for efficiency in temperatures from -40°C to 70°C.
  • Standardised components for easy access to wearing parts.
Main Parameters of LTD Series
Model Capacity (kg) Lifting Speed (m/min) Rope Diameter (mm) Motor (kW) Weight (kg)
LTD50-8P950098.31.146
LTD50-8P18500188.32.047
LTD63-8P960098.31.548
LTD63-8P18600188.32.249
LTD80-9P9800991.850
LTD80-9P188001893.053
LTD100-10P91000910.22.251
LTD100-10P1810001810.24.062

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808, each hoist used for passenger elevation must feature a safety system on an independent safety rope. We offer two different safety fall arresters approved for passenger elevation, complying with standard DIN EN 1808 and certified by TUV.

Flexible Attachment
Safety Mechanism
Flexible Attachment Points

Attachment points in the corners of the housing are available for flexible attachment of the winch with screws or pins.

Safety Lowering Mechanism

In the event of a power failure, the electric-mechanical brake can be released manually for safe and controlled lowering.

Inner Mechanism Overload

When the load exceeds the limit, the hoist will stop rising or only descend to ensure safety.

Counters

Records operating hours and number of starts for maintenance tracking.

Safety Devices
OSL
Overspeed Fall Arrester (OSL)

Trips automatically when lowering speed exceeds 30m/min. Hardened steel clamping jaws stop the rope within centimeters.

LSF
Anti-tilting Fall Arrester (LSF)

Trips automatically when the angle of the rope or platform exceeds 5°, immediately stopping movement.

Dimensional Specifications
Dimensional Specifications
Frequently Asked Questions
What is the maximum capacity of the LTD-P hoist?
The LTD-P series offers capacities ranging from 500kg to 1000kg, depending on the specific model selected.
Can this hoist be used for lifting people?
Yes, the LTD-P is specifically designed for passenger elevation (man-riding) and complies with DIN EN 1808 safety requirements.
What happens if there is a power failure during operation?
The hoist features a safety lowering mechanism that allows the electric-mechanical brake to be released manually for a controlled descent.
Is the lifting height limited?
No, the LTD-P is an endless traction hoist, meaning it can be used with unlimited wire rope lengths for any lifting height.
What safety devices are included?
Standard safety features include thermal overload protection, and it can be equipped with overspeed (OSL) or anti-tilting (LSF) fall arresters.
What are the available operating voltages?
The standard voltage is 380V/50Hz, but other voltages such as 415V or 220V and 60Hz frequencies are available upon request.
