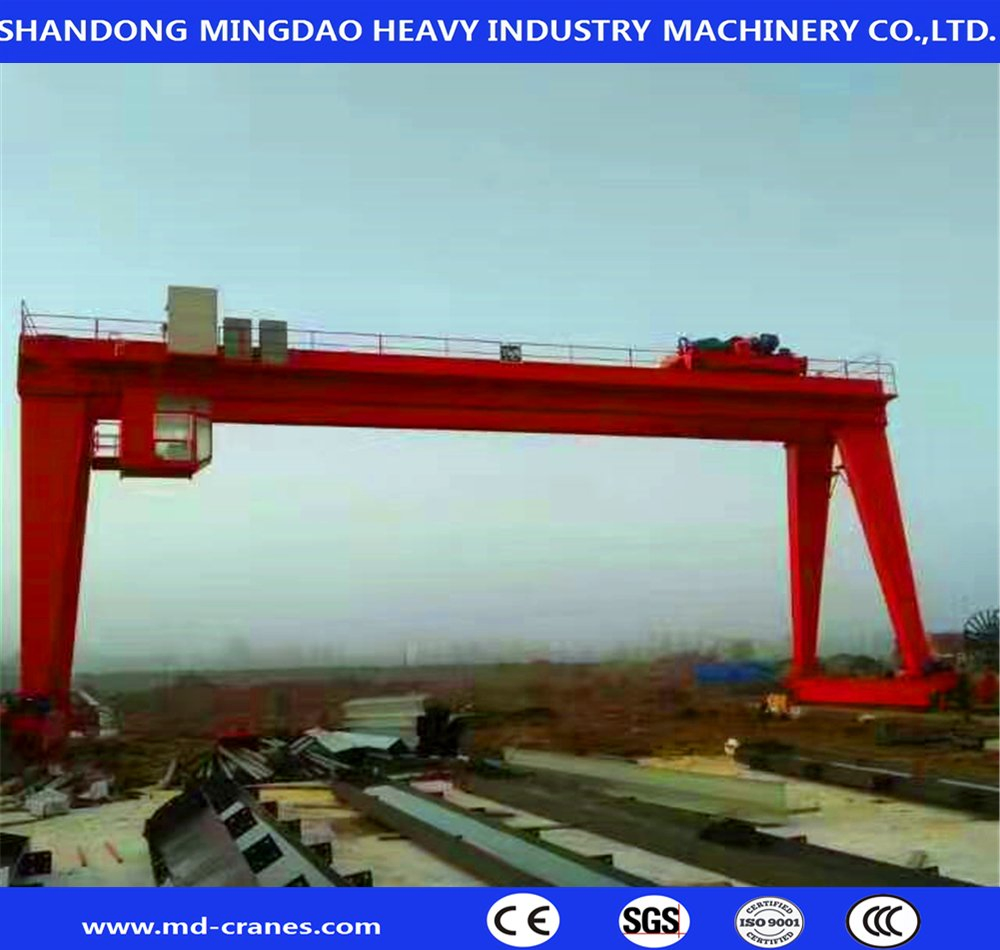

Light Duty Single Girder Gantry Crane (3t 5t 10t 15t 20t)

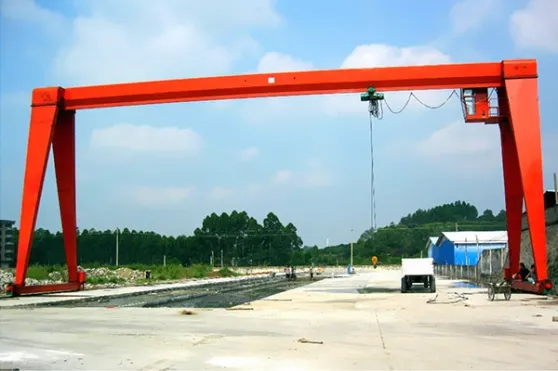

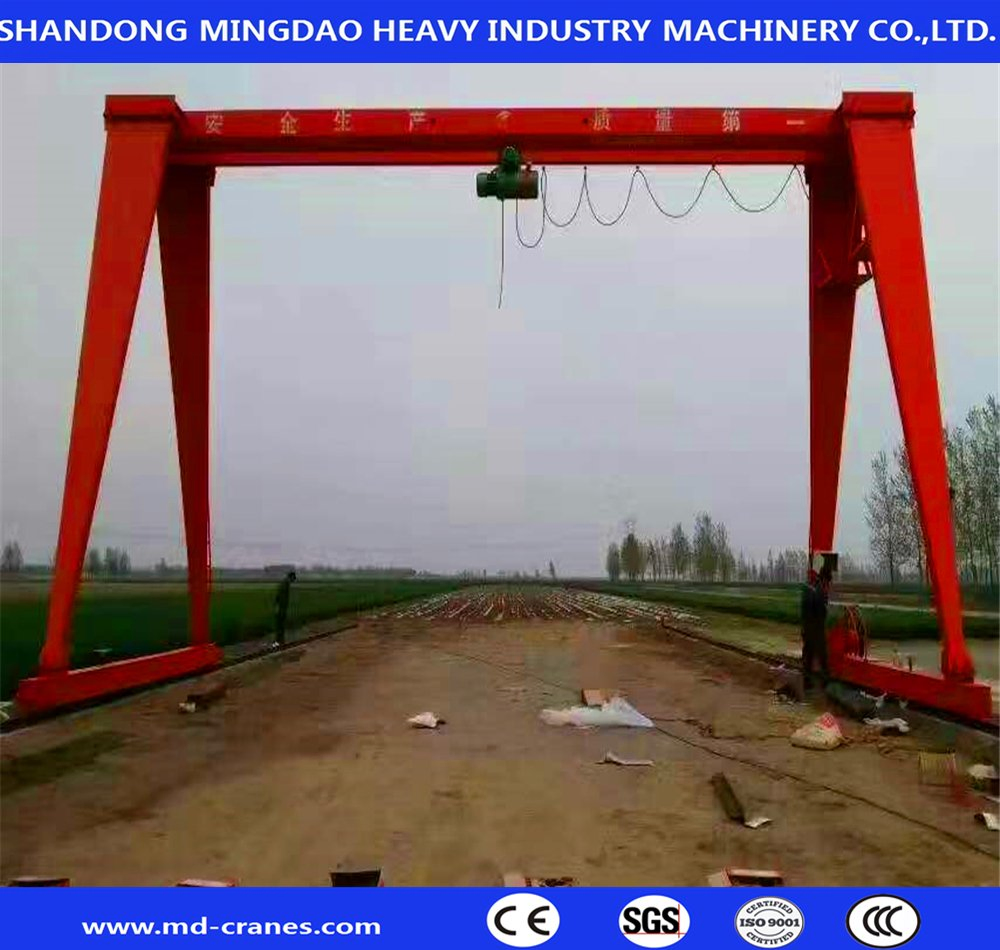

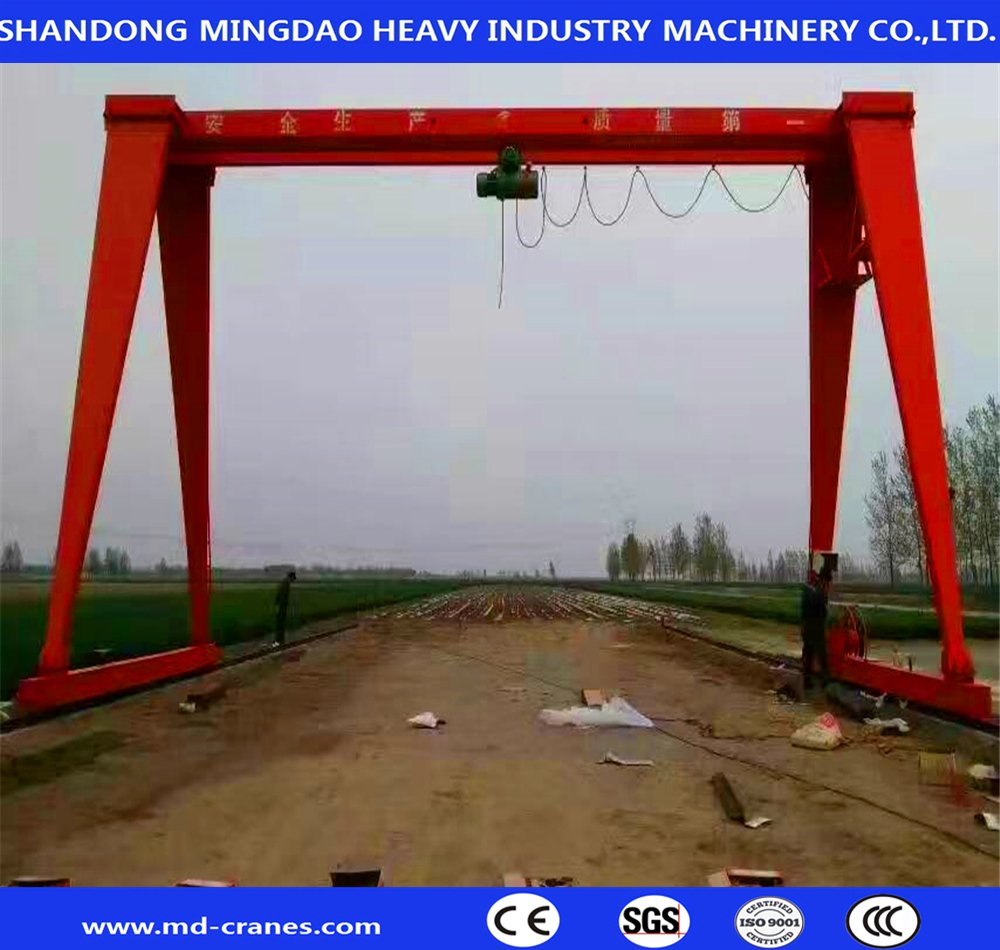

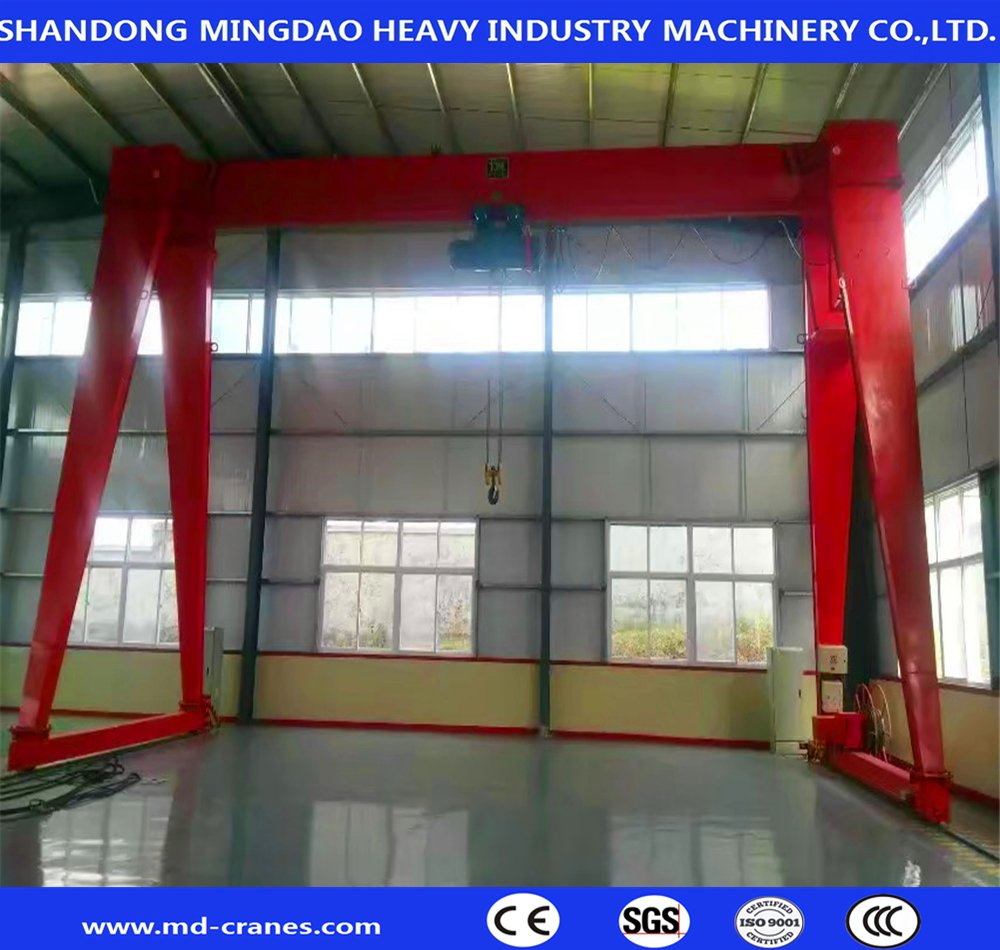

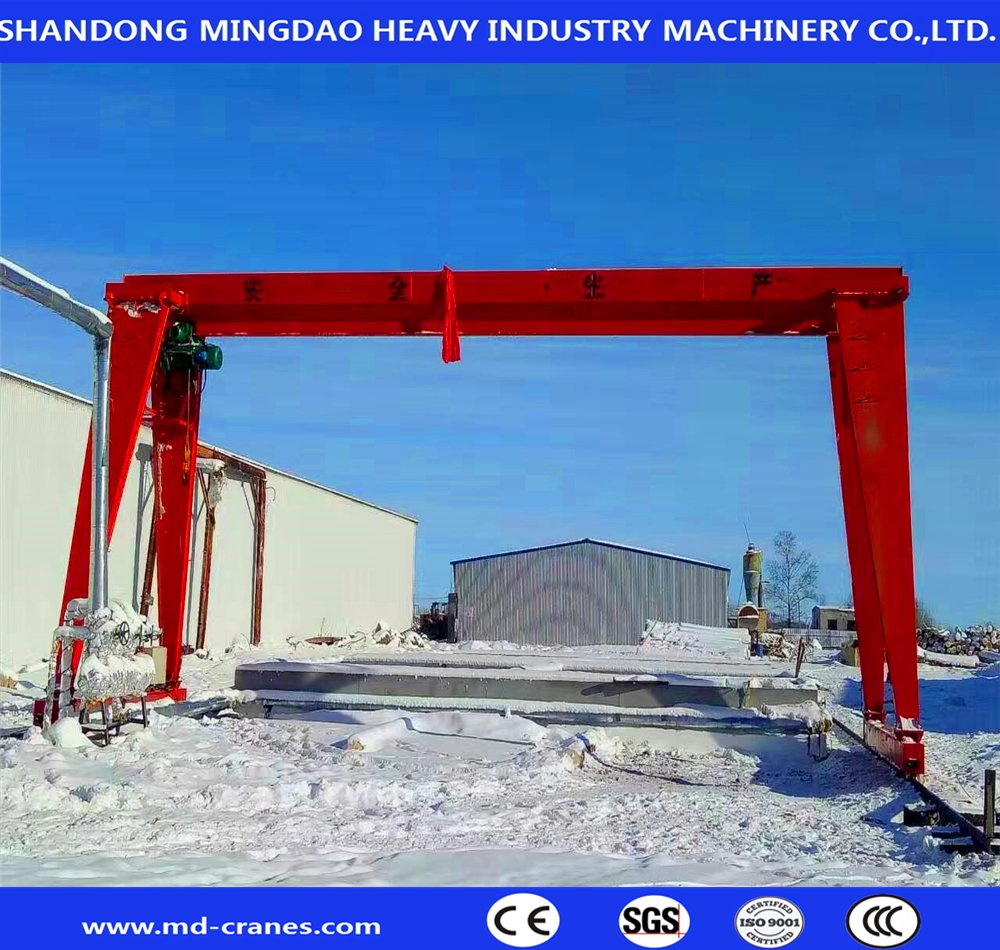

MH single girder gantry crane is the most commonly used light duty crane, widely applied for indoor and outdoor workplaces, such as storage yards, warehouse, workshop, freight yards, and dock. It is a typical A-frame gantry crane and the lifting capacity of this equipment is in a range of 3 ton to 16 ton to handle small and medium-sized materials.

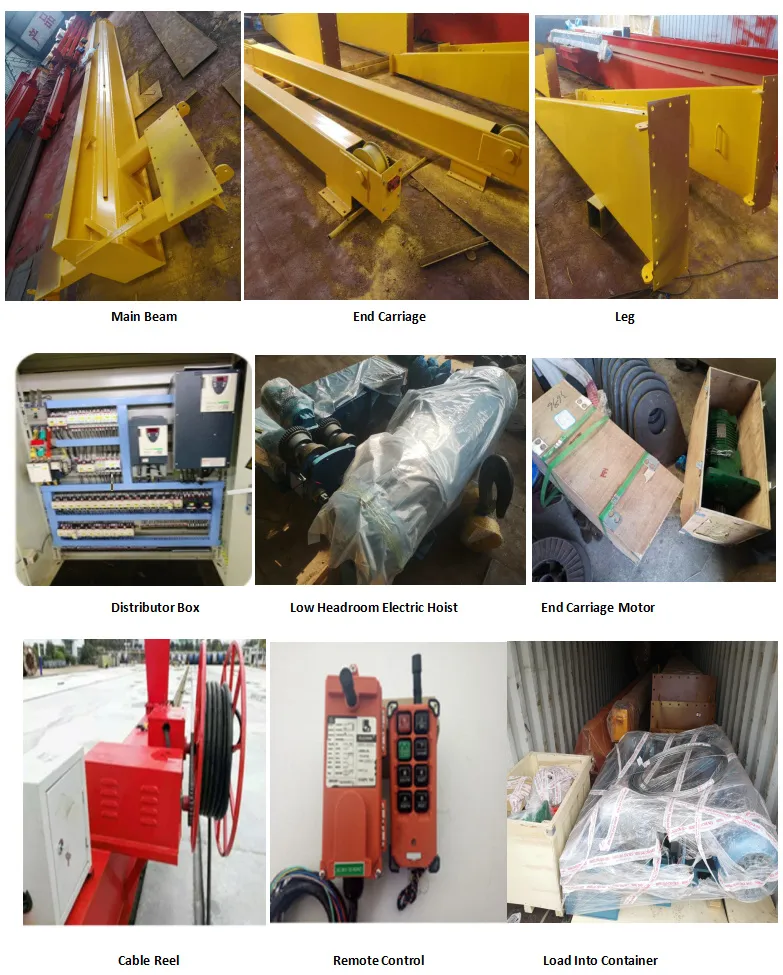

The metal structure of this lightweight gantry crane is usually designed with box type. For outdoor working environments with strong wind, truss gantry crane is more often used to reduce wind resistance. This crane is ideal for lifting and transferring loads to boost productivity, widely applied in construction sites, railways, ports, workshops, and shipyards.
| Parameter Item | Specification Details | |
|---|---|---|
| Traveling Mechanism | Traveling Speed | 20 m/min |
| Motor Type | Cone Squirrel-cage (ZDY21-4/0.8X2) | |
| Lifting Mechanism | Hoist Model | CD1, MD1, HC |
| Lifting Speed | 8 or 0.8/8 m/min | |
| Lifting Capacity | 3 - 32 Ton | |

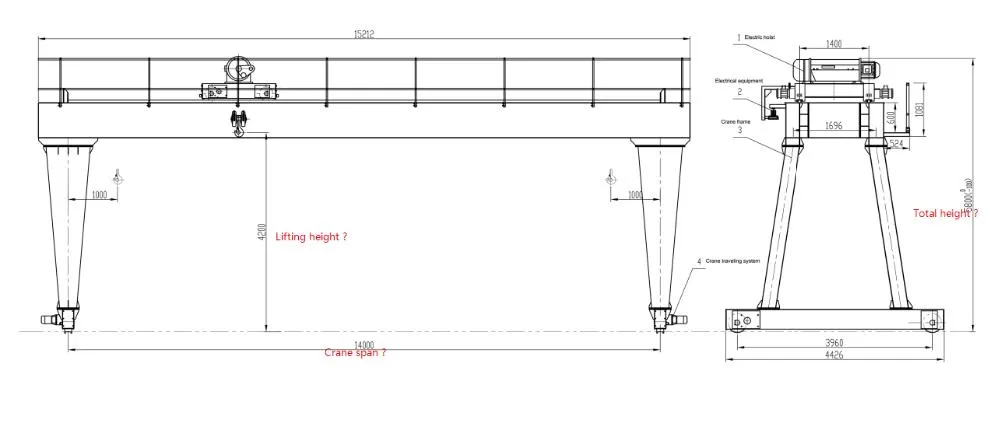

| Lifting Height | 6m, 9m (Customizable) | |
| Span Length | 12 - 30 m | |
| Work Duty | Intermediate Jc=25% | |
| Power Supply | 380V 50Hz 3P | |
Box Type: Features a slim body and strong lifting capacity. Ideal for general workshop use.
Trussed Type: Features a small windward surface, light self-weight, and strong lifting capacity. Perfect for outdoor environments with high wind speeds.
