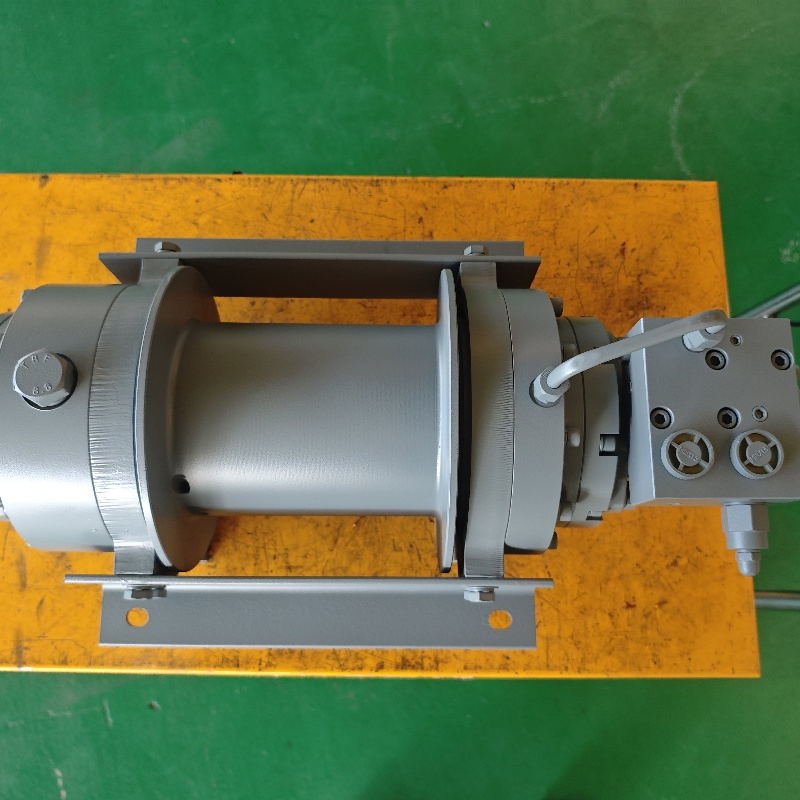

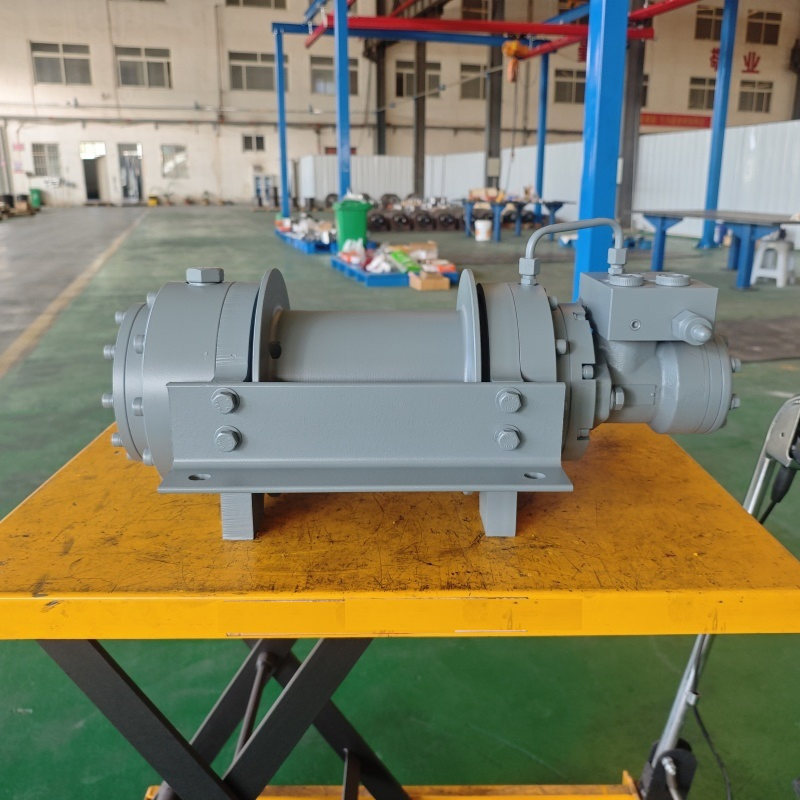

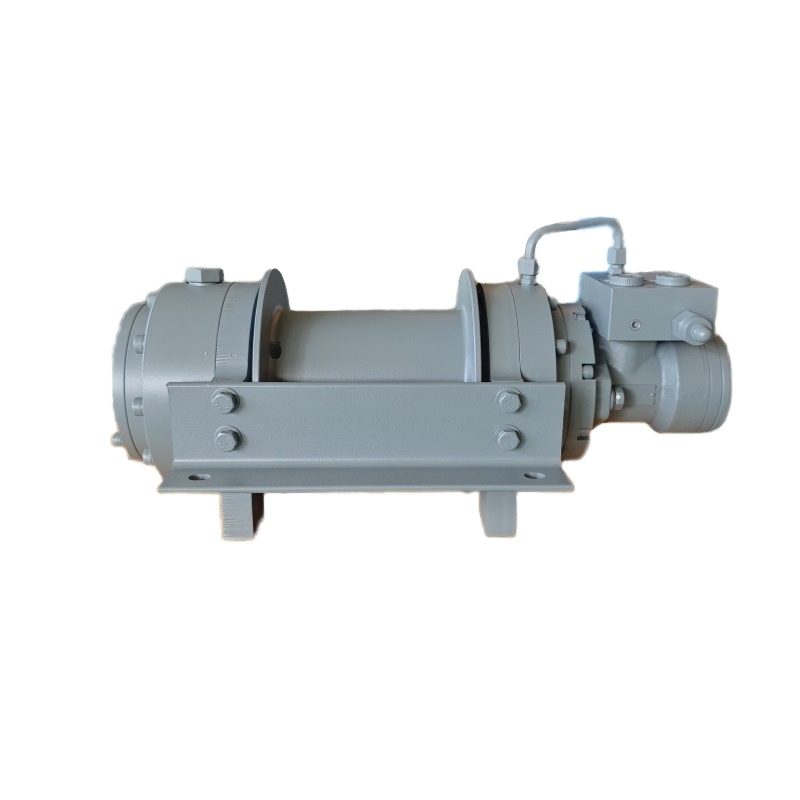

Vertical & Horizontal Installation for Tow Trucks

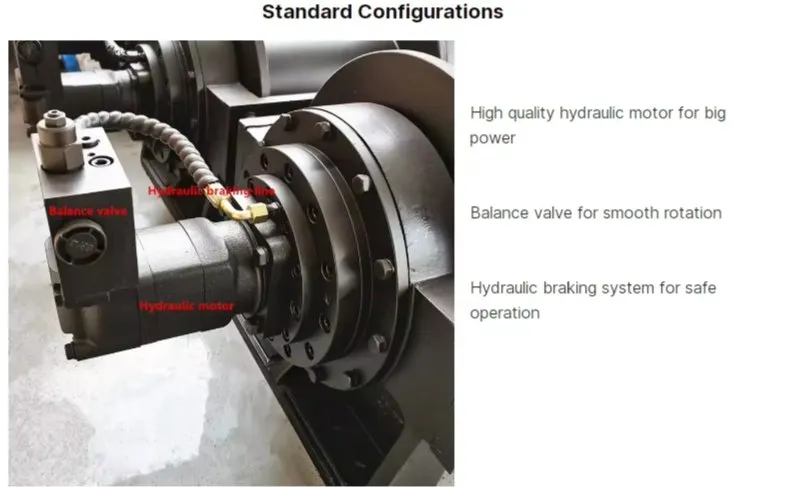

Hydraulic winch is converted into mechanical energy by the hydraulic energy obtained by the hydraulic motor through the hydraulic system, and it is decelerated by the planetary reducer to increase the torsion, which produces a great torque on the drum, and achieves the purpose of dragging heavy objects by winding the steel wire rope on the drum.

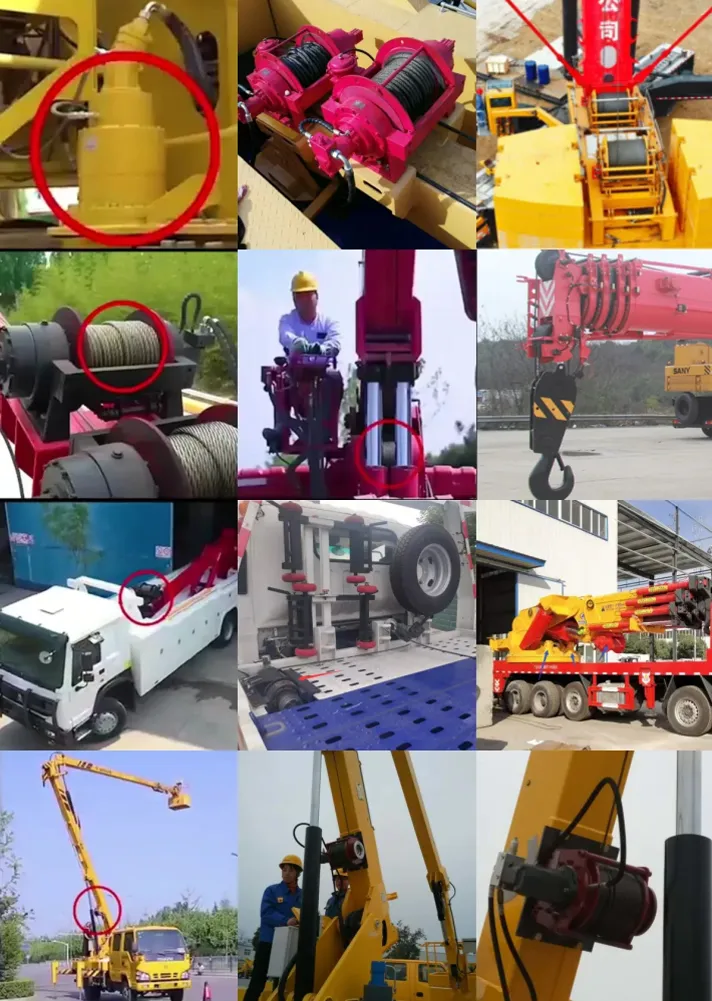

Hydraulic cable pulling winch plays an important role in various lifting and pulling applications due to their high efficiency, reliability and adaptability in harsh environments. It is widely used in various mechanical equipment, including ships, cranes, trucks, tractors, loaders, bulldozers, and oil drilling equipment.
| Model | HRJ1.5P | ||
| Rated Torque | 1000 N.m | Associated Motor | BMR-60 |
| Reduction Ratio | 16 | Motor Speed | 296 rpm |
| Pulling Force | 13.7 KN | Motor Torque | 64 N.m |
| Rope Speed | 7 m/min | Brakes Torque | 100 N.m |
| Wire Diameter | 8 mm | Opening Pressure | 1.8-2.0 Mpa |
Established in 2008, we specialize in R&D of planetary transmission technology. Our primary focus includes 8-100 ton hoisting and slewing mechanisms, walking mechanisms for crawler cranes, and hydraulic winches ranging from 1.5 to 30 tons. Our products are widely utilized in obstacle clearing, marine engineering, and petroleum machinery industries.
