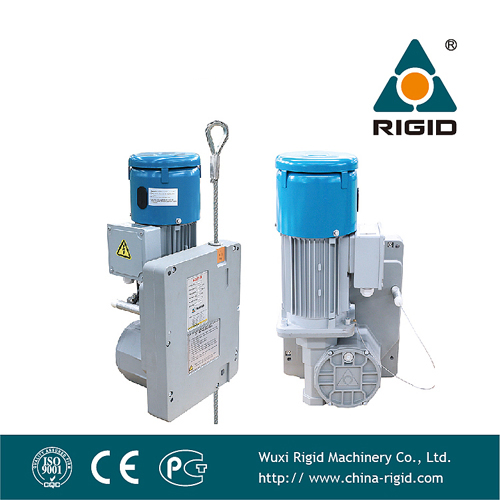

Ltd-P Hanging Wire Rope Building Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Basic Information

Model NO.

LTD-P

Sling Type

Wire Rope

Lift Speed

9/18m/Min

Certification

CE, TUV

Condition

New

Voltage

380V (415V/220V)

Frequency

50Hz/60Hz

Transport Package

Cardboard Box

HS Code

8425110000

Production Capacity

1000 pieces/Month

Product Description

Endless passenger elevation (man-riding) hoist designed for unlimited rope lengths. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable passenger lifting hoist is versatile and suitable for unlimited applications. The rope is not connected which makes it compact, lightweight and very easy to handle. Unrestricted wire rope lengths capability makes it possible to utilise unlimited lifting heights and traction lengths.

Features and Benefits

The robust, precisely machined housing of die-cast aluminium ensures low dead-weight and outstanding rigidity.
Gearing and drive sheave fabricated from hardened steel.
Universal attachment via central 16mm load pin or two M10 screws.
Motor protection: IP55 standard.
Standard operating voltage: 380V, 3ph, 50Hz (customizable).
Control Voltage: 24V for mobile units and 42V for stationary models.
Thermal overload protection device fitted as standard.
Certified by TUV independent inspection institute.
Special nitrided steel drive sheave (70 HRC) guaranteeing low wear.
Fully-synthetic special oil for efficiency and quiet running (-40°C to 70°C).

The Main Parameters of LTD Series Hoist

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808, each hoist used for passenger elevation must feature a safety system on an independent safety rope. We offer two different safety fall arresters compliant with DIN EN 1808 and certified by TUV.

Flexible Attachment Points

Attachment points in the corners of the housing are available for flexible attachment with screws or pins.

Safety Lowering Mechanism

In power failure, the electric-mechanical brake can be released manually for safe, controlled lowering.

Inner Mechanism Overload

When the load exceeds the limit, the hoist will stop rising or only descend.

Counters

Record operating hours and number of starts for maintenance tracking.

Safety Devices Details

Overspeed Safety Fall Arrester (OSL)

Trips automatically when lowering speed exceeds 30m/min. Stops movement within centimeters using hardened steel jaws.

Anti-tilting Safety Fall Arrester (LSF)

Trips automatically when the angle of the rope or platform exceeds 5°, immediately stopping movement.

Dimensional Specifications

Frequently Asked Questions (FAQ)

What is the maximum lifting capacity of the LTD-P series?

The LTD-P series offers capacities ranging from 500kg up to 1000kg, depending on the specific model chosen.

What certifications do these building hoists hold?

Our hoists are CE and TUV certified, complying with standard DIN EN 1808 safety requirements for suspended access equipment.

How does the hoist handle power failures?

The hoist is equipped with an electric-mechanical brake that can be manually released to ensure a safe and controlled lowering of the load during a power outage.

Can the operating voltage be customized?

Yes, while the standard voltage is 380V (3 phase, 50Hz), other operating voltages and frequencies are available upon request to meet specific site requirements.

What safety devices are included for passenger elevation?

For passenger safety, we provide Overspeed (OSL) and Anti-tilting (LSF) fall arresters, thermal overload protection, and manual lowering mechanisms.

What are the lifting speed options?

The LTD-P series hoists are available with two standard lifting speeds: 9 meters per minute or 18 meters per minute.
