Precision Jib Cranes for Accurate and Safe Material Positioning

Customization:	Available
After-sales Service:	Provided
Warranty:	2 Years

Basic Specifications

Model NO.

BZ

Certification

GS, CE, ISO9001

Condition

New

Application

Workshop, Warehouse

Anchor

Removable

Structure

Solid Web

Material

Steel Q235B/Q345B

Type

Jib Crane

Rated Loading Capacity

5ton (on Request)

Power Source

3-phase, 380V 50Hz

Lifting Mechanism

Electric Hoist

HS Code

8426300000

Product Description

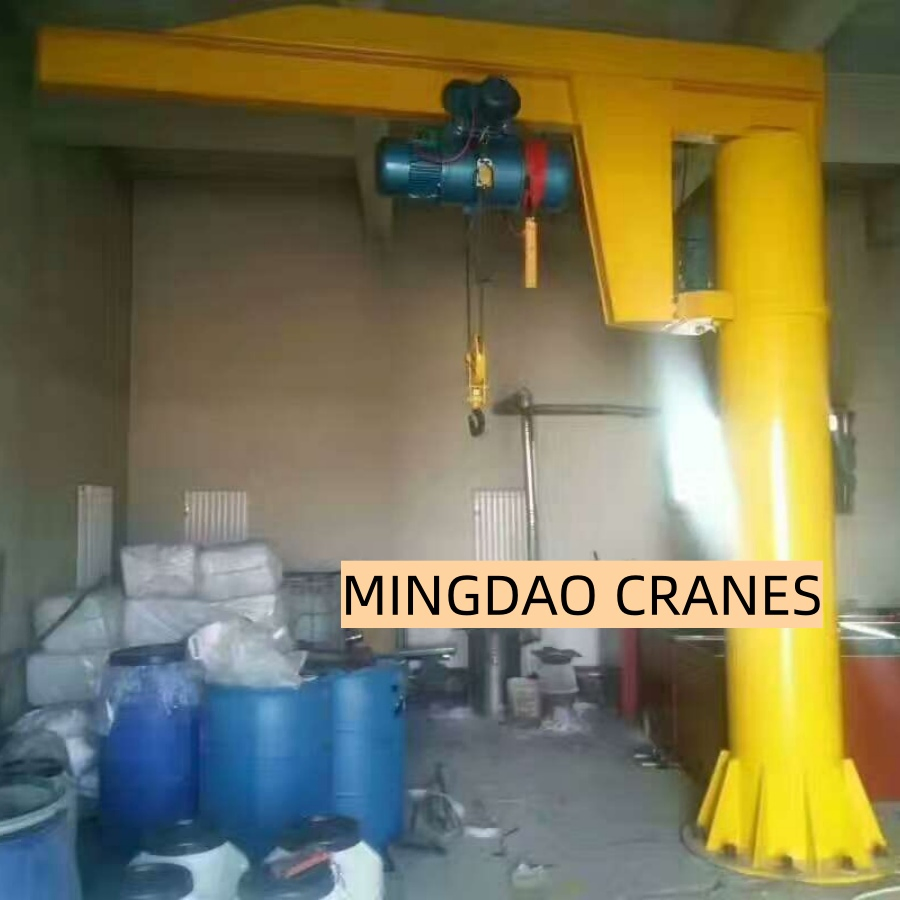

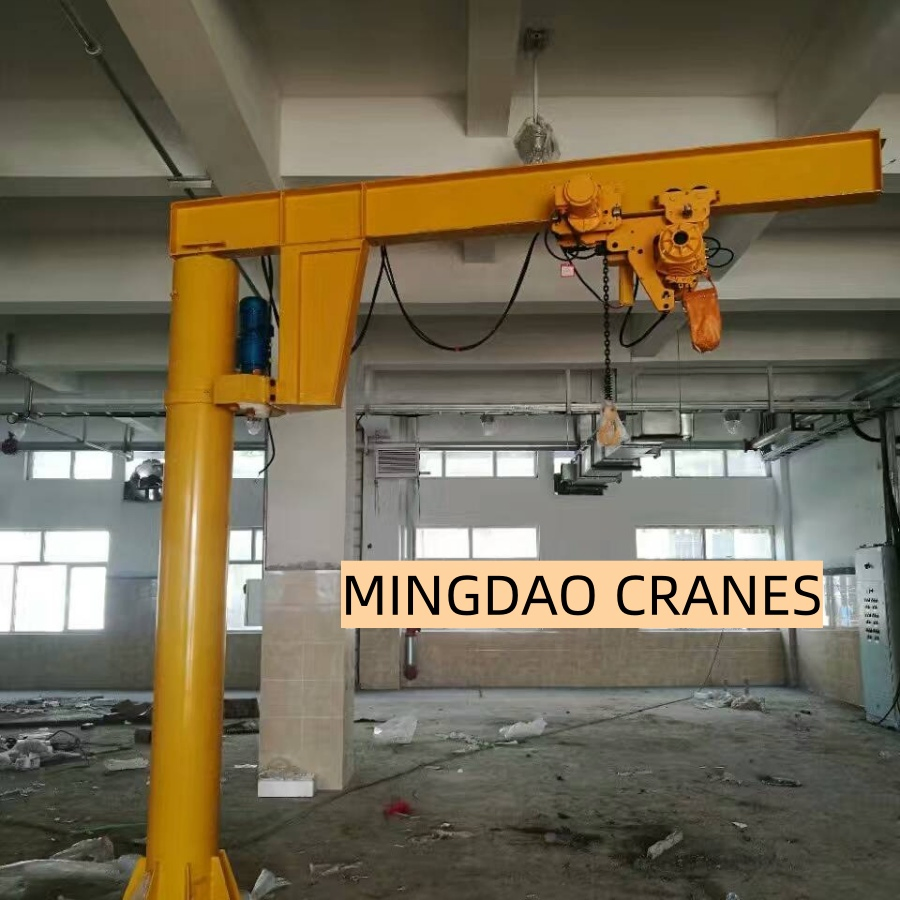

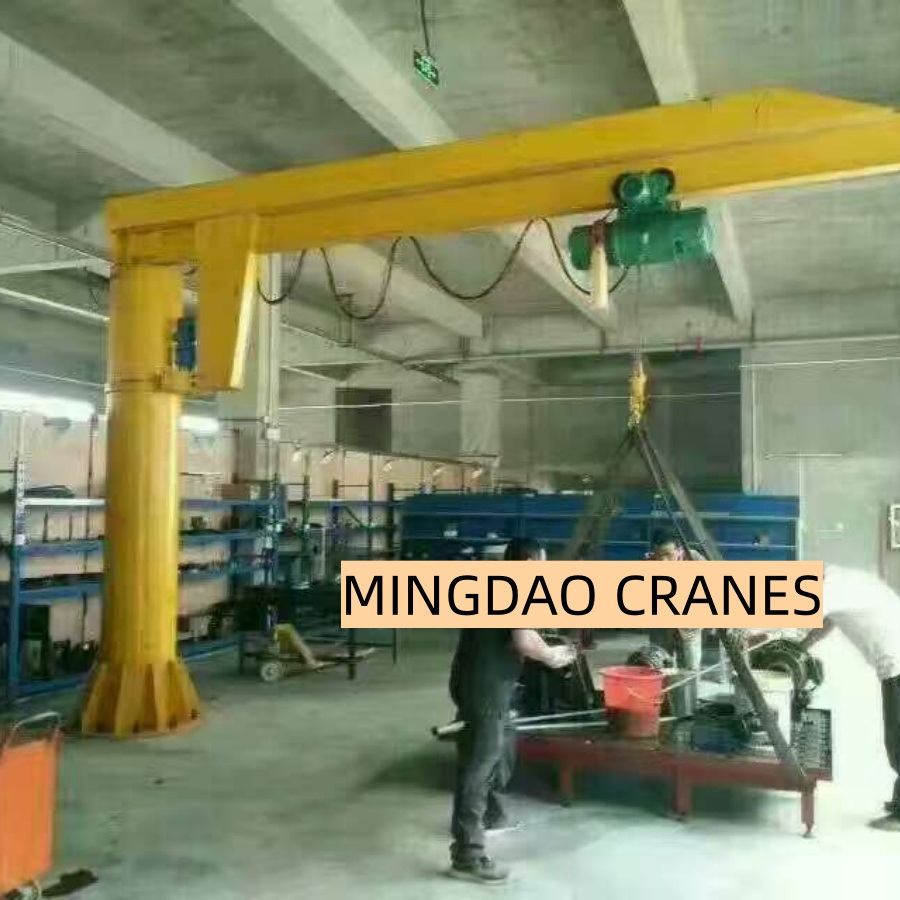

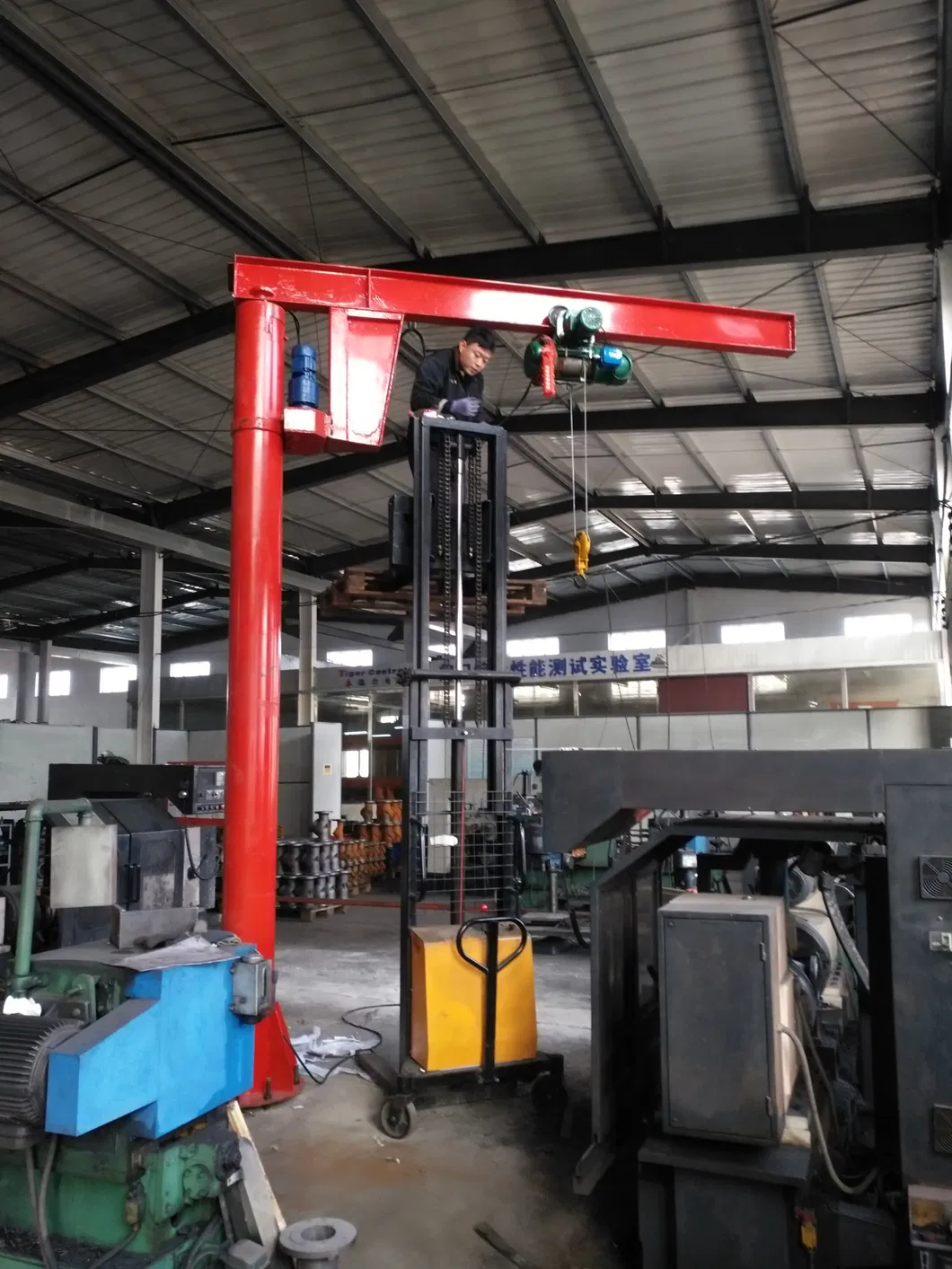

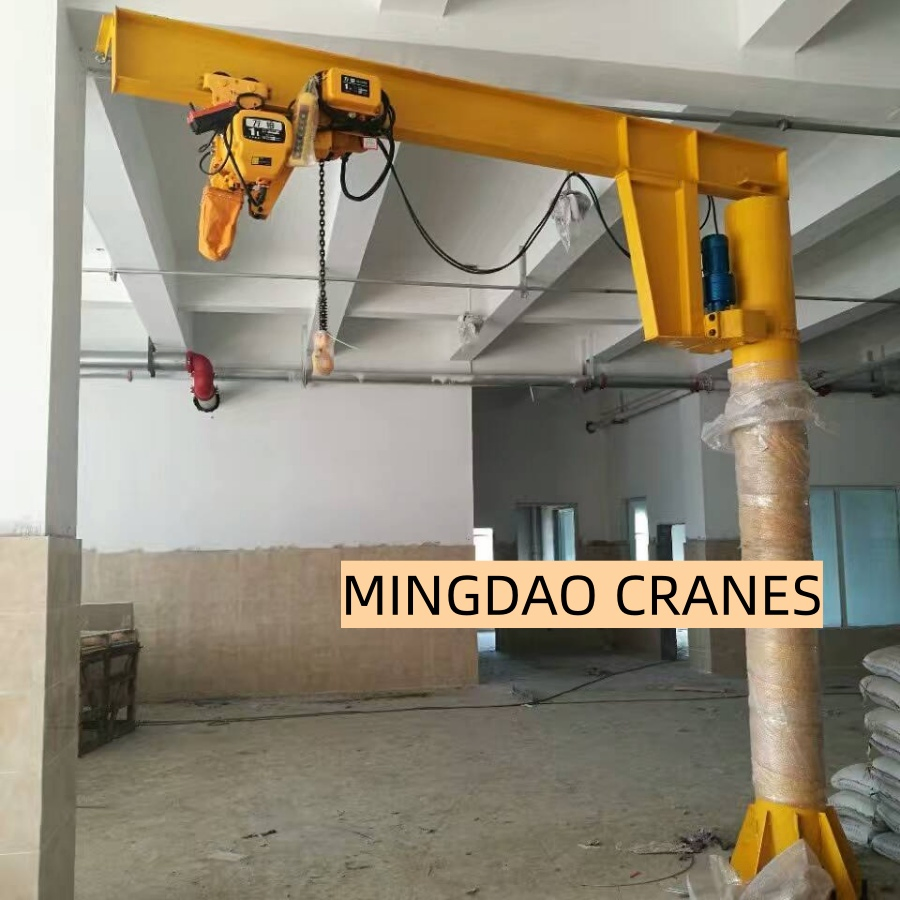

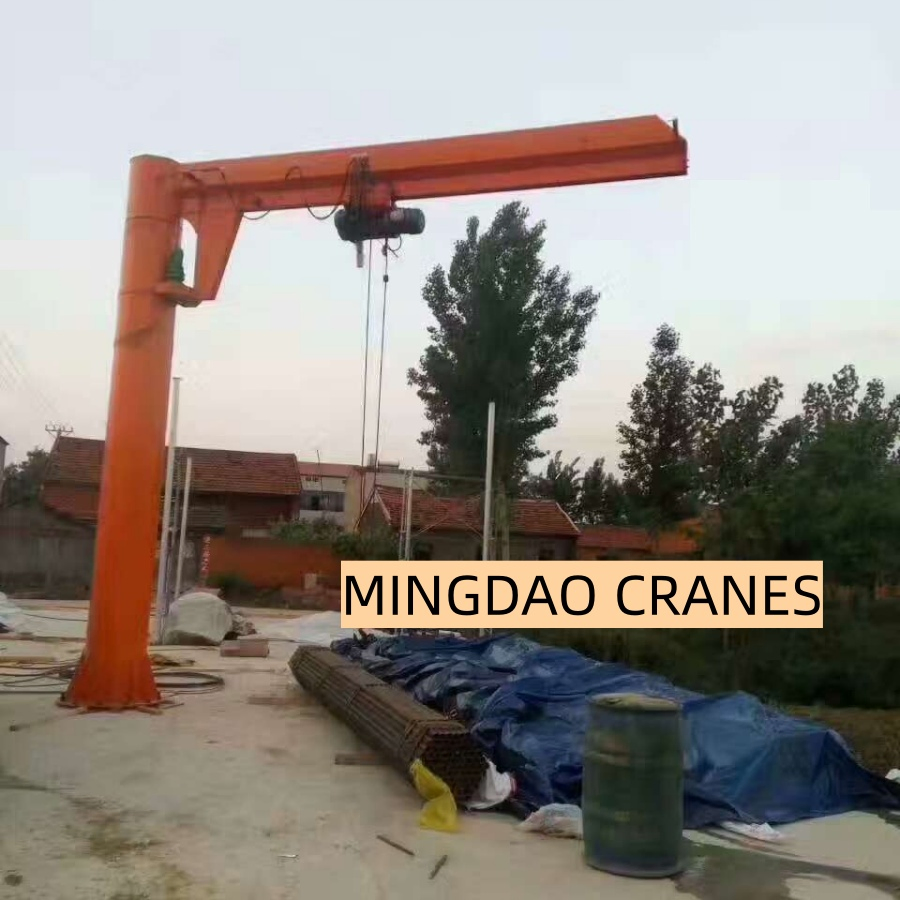

Slewing Arm Lifting 5T Jib Crane with Fixed Column

Features of Floor Mounted Jib Crane:

Expertly engineered to lift loads from 0.5T up to 5T, ensuring reliability.
Box-type welded main girder optimized for minimized weight and stellar performance.
Compact structure and lightweight components for impressive lifting heights.
Ideally suited for workshops, metallurgy, warehouses, and assembly shops.

Mechanism Details:

Premium carbon steel Q235B and Q345B construction.
X-ray and ultrasound testing on welding seams for quality guarantee.
Forged wheels and compact trolley for effortless maneuverability.
Safety disc brake and hardened gears for flawless performance.
Epoxy zinc-rich primer coating for enduring protection (140μ thickness).

Technical Specifications

ITEM	Units	Specifications
Capacity	t	0.5	1	2	3	5
Arm length	m	1.2 ~ 20
Lifting height	m	1 ~ 15
Travelling speed	m/min	20 / 30
Rotate speed	r/min	0.7
Rotate angle	degree	360°

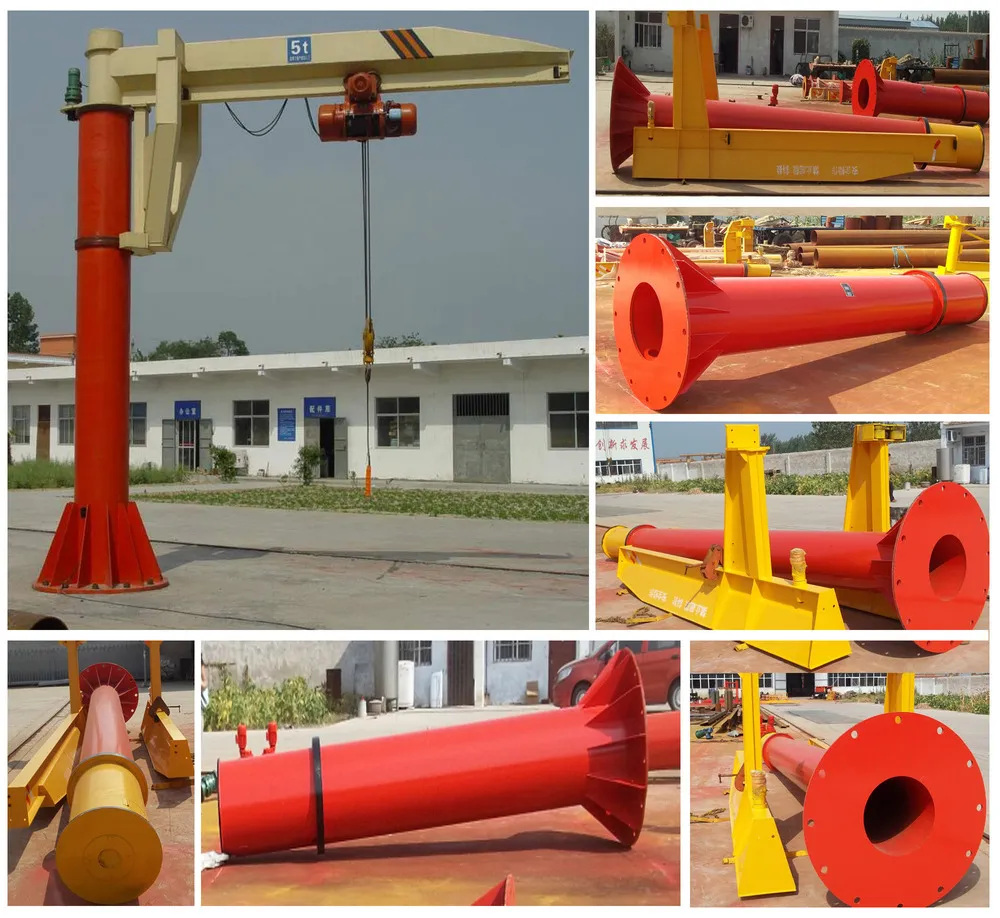

Safety & Operation

Comprehensive Safety Devices:

Overload Limit Switch for precise load management.
Emergency Stop System for immediate cessation of operations.
Resilient Rubber Buffers for absorbing impacts.
Voltage Lower Protection and Current Overload System.
Lifting Height Limit Device to prevent overextension.

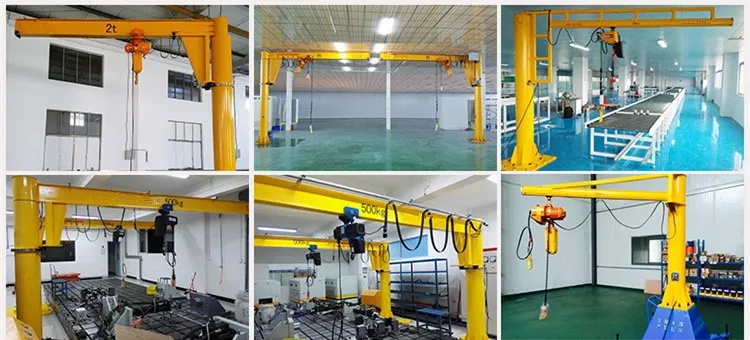

Application & Delivery

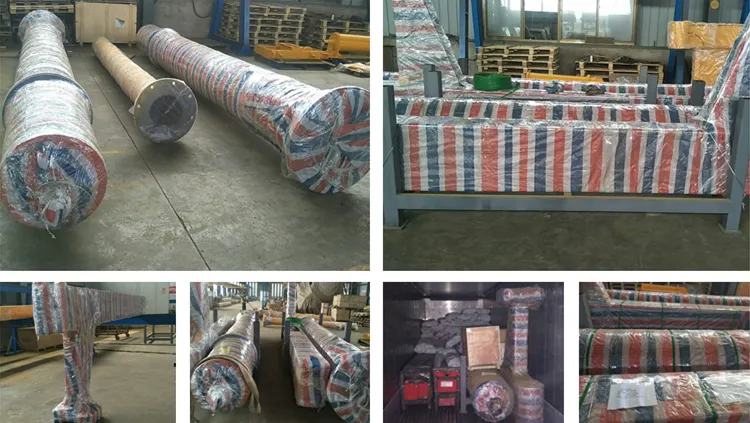

Our electrical components are packaged in premium plywood crates to prevent shipping distortion. Larger structural components are protected with sturdy plastic woven cloth. We optimize shipping strategies via container or bulk ships to minimize costs and maximize safety.

Quality Assurance

Frequently Asked Questions

Is crane customization available?

Without a doubt! We understand that each operational condition is unique, and we tailor our products to meet specific demands based on your detailed requirements.

What operation methods can I choose from?

We offer a variety of choices including pendant controllers with push-buttons, remote control, or cabin control.

Can this be installed in a workshop with low headroom?

Yes, we offer custom solutions for low headroom environments. Our engineers can design a solution specifically for your space constraints.

Do you provide additional lifting tools?

Yes, we provide a range of lifting tools including hooks, electromagnets, and grab buckets to accommodate various lifting needs.

What details are needed for a design solution?

Please provide the required lifting capacity, span length, lifting height, power supply voltage, and a description of the working conditions (materials lifted and ambient temperature).

How are the cranes protected during international shipping?

Electric parts are packed in plywood crates, while main beams are wrapped in woven plastic cloth to mitigate abrasion and moisture during transit.
