Reliable Rubber Tyred Gantry Crane for Maximum Port Productivity

Customization:	Available
After-sales Service:	Online
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.

Double Beam Tire Gantry Crane

Certification

CE, ISO9001

Condition

New

Maximum Lifting Weight

150-200t

Maximum Lifting Height

30-40m

Operation Form

Air Operation+Ground Operation

Type

Common Gantry Crane

Main Girder Form

Double Girder

Weight (Kg)

9800 Kg

Control Method

Wireless Remote Control

Material

Q235B/Q345b

Span

Customized

Travelling Speed

20m/Min

Core Components

Gearbox, Motor

Applicable Industries

Energy & Mining

Production Capacity

5/Month

Packaging & Delivery

Package Size

1000.00cm * 1000.00cm * 1200.00cm

Package Gross Weight

1000.000kg

Transport Package

Wooden Case

Product Description

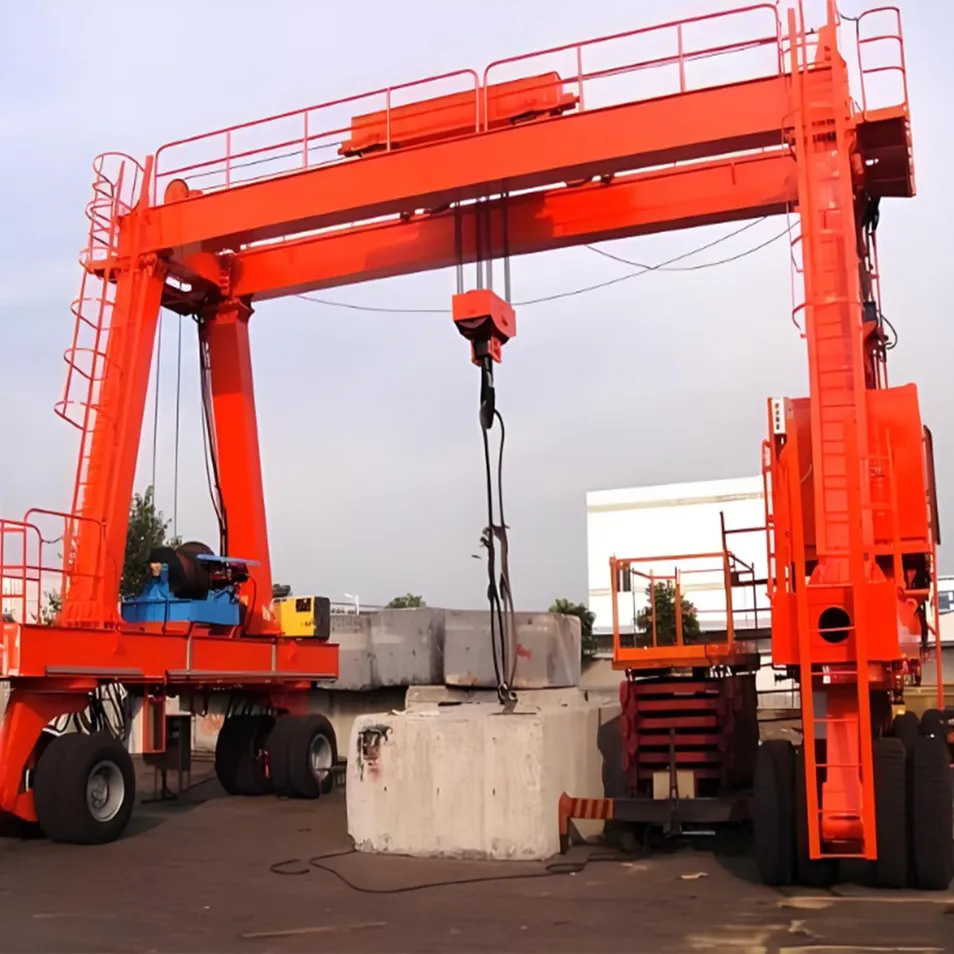

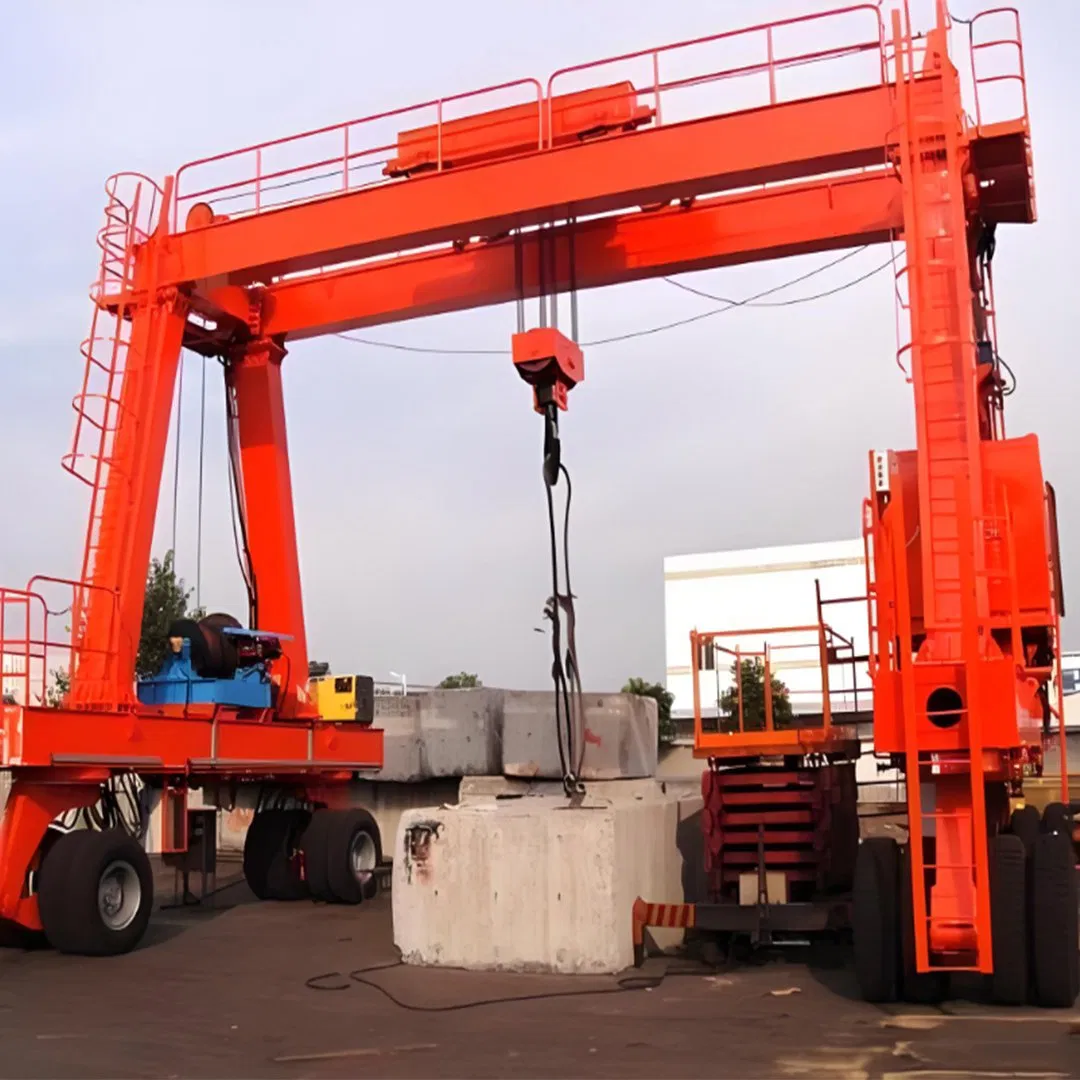

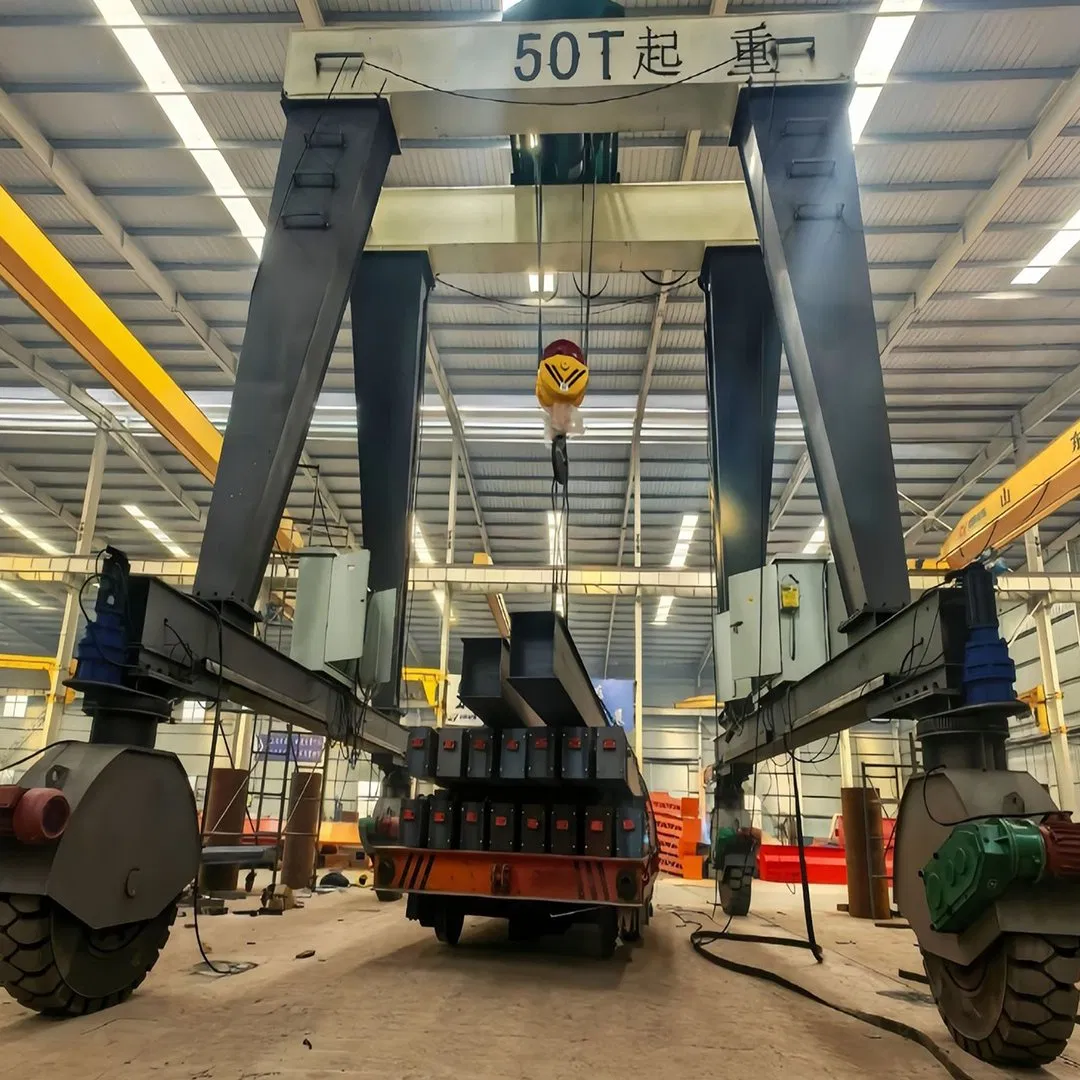

Double Beam Tire Gantry Crane is a movable gantry crane equipment featuring 4-8 large engineering tires at the base. It includes a horizontally movable lifting trolley and a telescopic lifting device, designed for high-efficiency operations.

Key Features

1
FEM Design Standard: Performs finite element analysis to ensure design and structural safety.
2
Electric Hoist: Cost-effective and economical lifting solution.
3
Free Walking: Multiple steering modes, operable via remote control or cab.
4
Space Saving: Small turning radius conserves workspace.

Technical Specifications

(Custom configurations available upon request.)

Model	KE-5T	KE-10T	KE-20T	KE-30T	KE-40T
Lifting Capacity	5t	10t	20t	30t	40t
Effective inner width(ODM)	3100mm	4000mm	4000mm	5000mm	6000mm
Lifting Height	3000mm	3000mm	4000mm	4000mm	5000mm
Power type	diesel engine/cable/Battery
Walking device	Hydraulic /Motor
Steering mode	Diagonal Running/Straight Running
Lifting Tools	Hook, Lifting beam, lifting magnet, permanent magnet

Applications

✔

Port container terminals: Facilitates rapid loading and unloading between ships and storage yards.

✔

Railway freight terminals: Supports efficient container transfer from trains to yards.

✔

Logistics parks: Handles stacking, destacking, and short-distance container movement.

✔

Inland waterway hubs: Flexible alternative to rail-mounted cranes, cutting infrastructure costs.

Specialized Crane Models

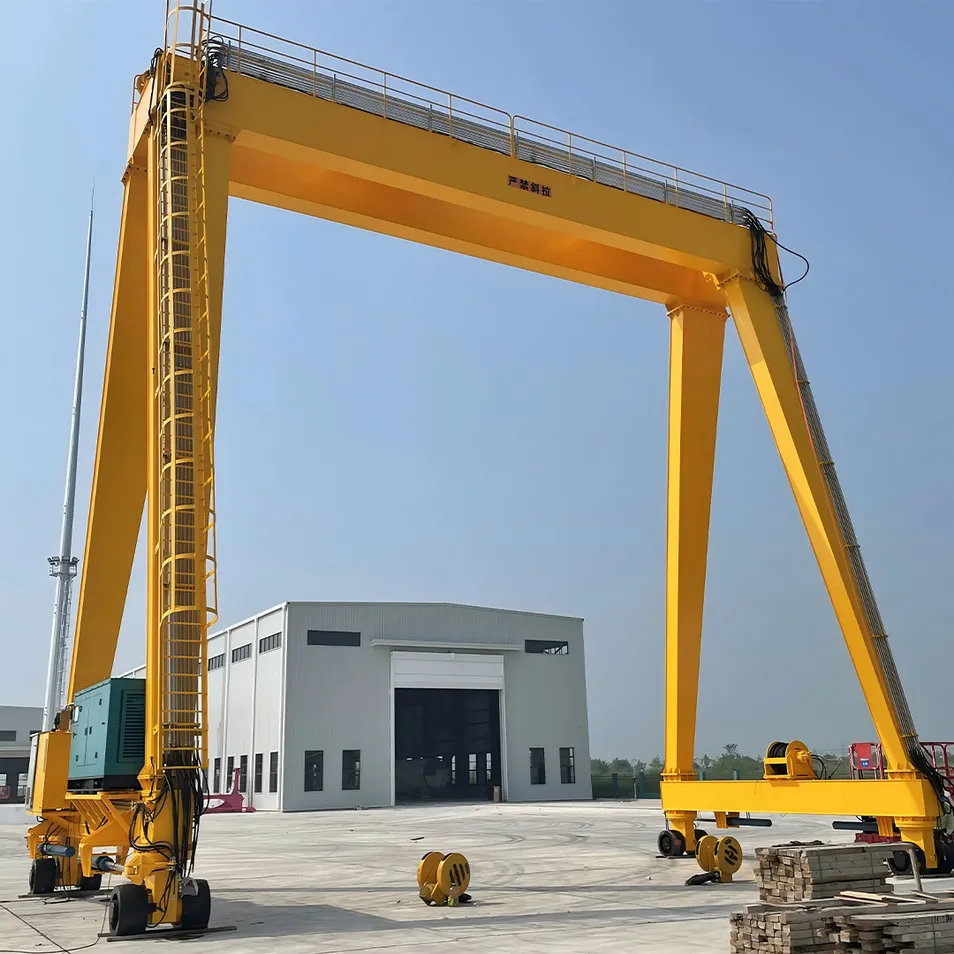

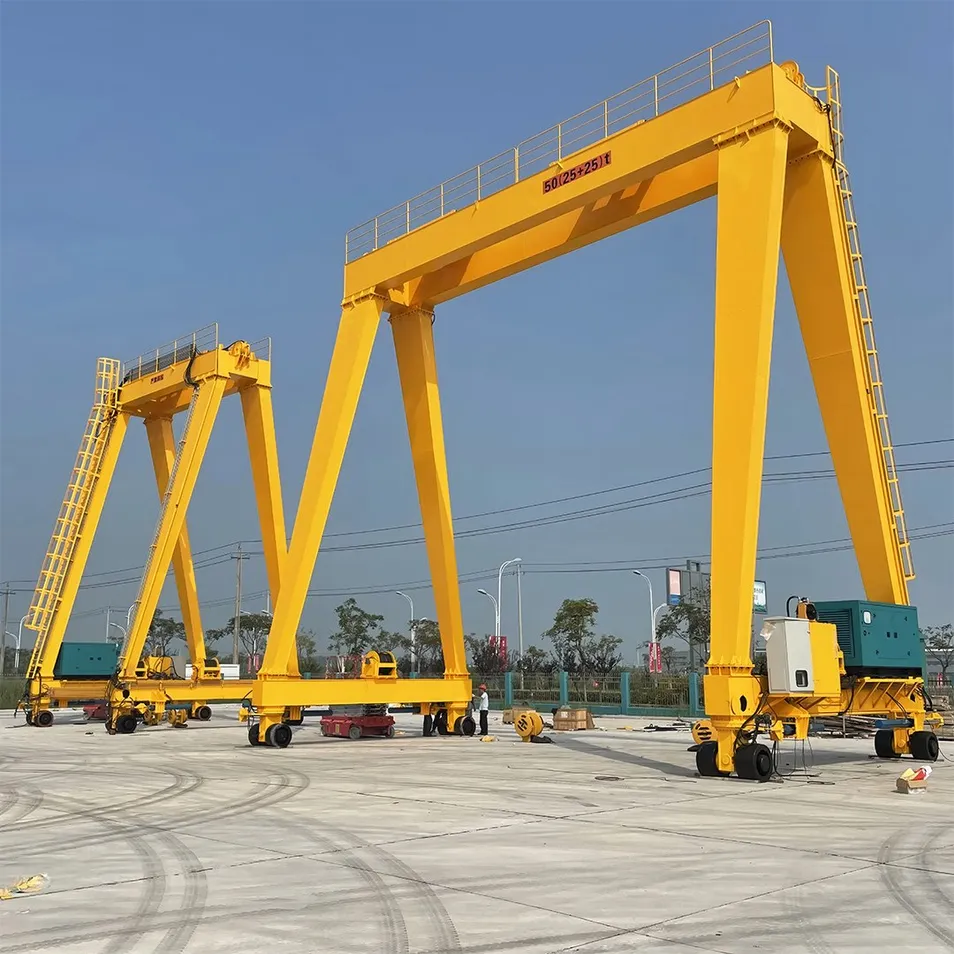

Single Beam Rubber Tyred Gantry

Designed for light loads, compact, and economical. Ideal for precast yards and small construction sites.

Capacity: 10-150t
Span: 5-20m
Height: 6-12m

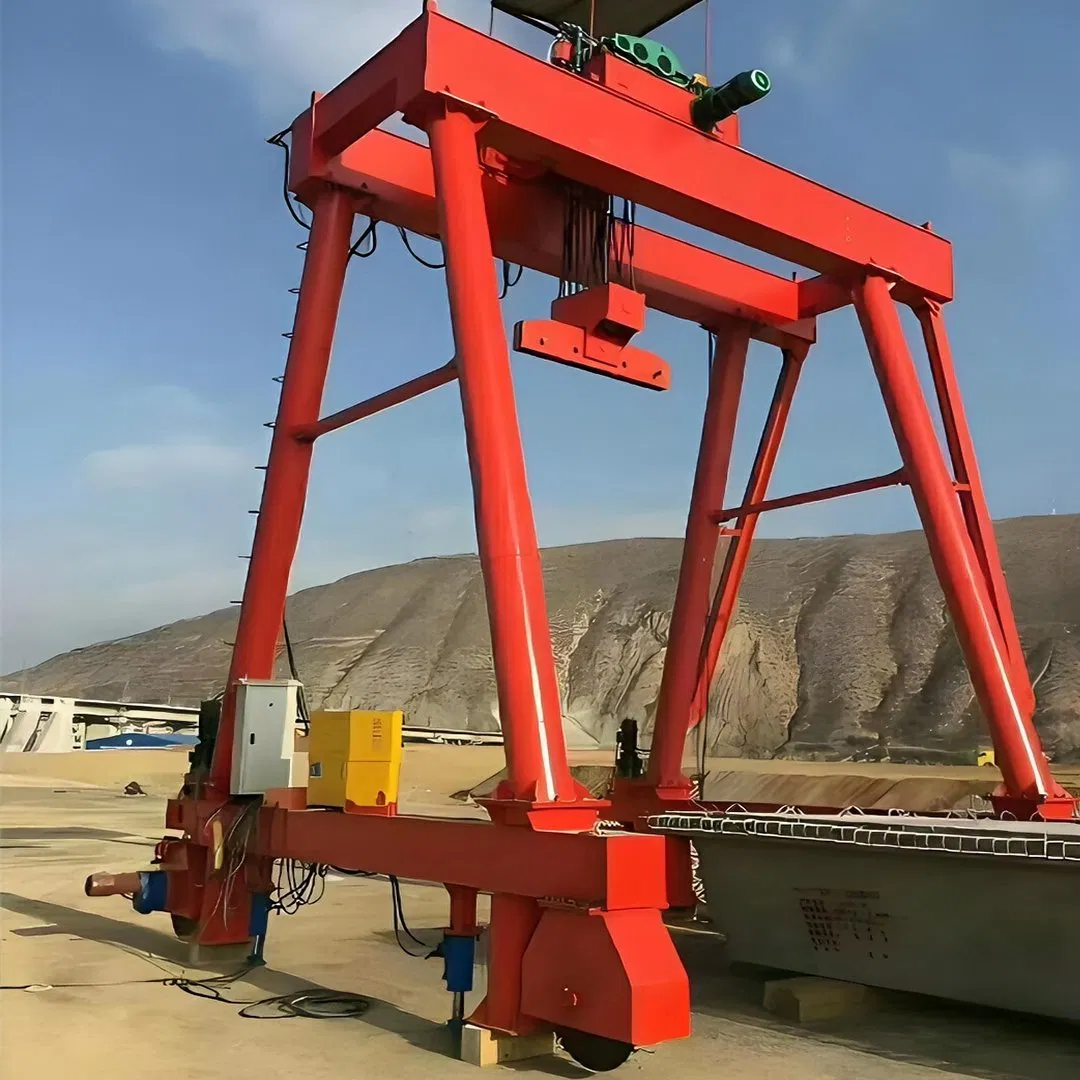

U Type Subway Turn Slag Hook

Heavy-duty specialized crane for subway construction and slag handling.

Capacity: 16~75t
Working Class: M6
Power: 380V 50Hz

Frequently Asked Questions

1. What is the maximum lifting capacity of these cranes?

The Double Beam Tire Gantry Crane can handle weights ranging from 150 to 200 tons, while specialized models like the RTG can handle over 60 tons.

2. What power supply options are available for the gantry cranes?

The cranes can be powered by diesel engines, cable connections, or battery systems depending on the specific model and site requirements.

3. Are the span and lifting height customizable?

Yes, both the span and lifting height are fully customizable to meet the specific needs of your port, yard, or construction site.

4. What steering modes does the rubber-tyred gantry crane support?

The cranes support multiple steering modes, including straight running and diagonal running, allowing for high maneuverability in tight spaces.

5. What are the core components of the crane?

The core components include high-quality gearboxes and motors, ensuring reliable and long-term operation in demanding environments.

6. Which industries benefit most from using tire gantry cranes?

These cranes are ideal for energy and mining, port container terminals, railway freight terminals, and logistics parks due to their mobility and high capacity.
