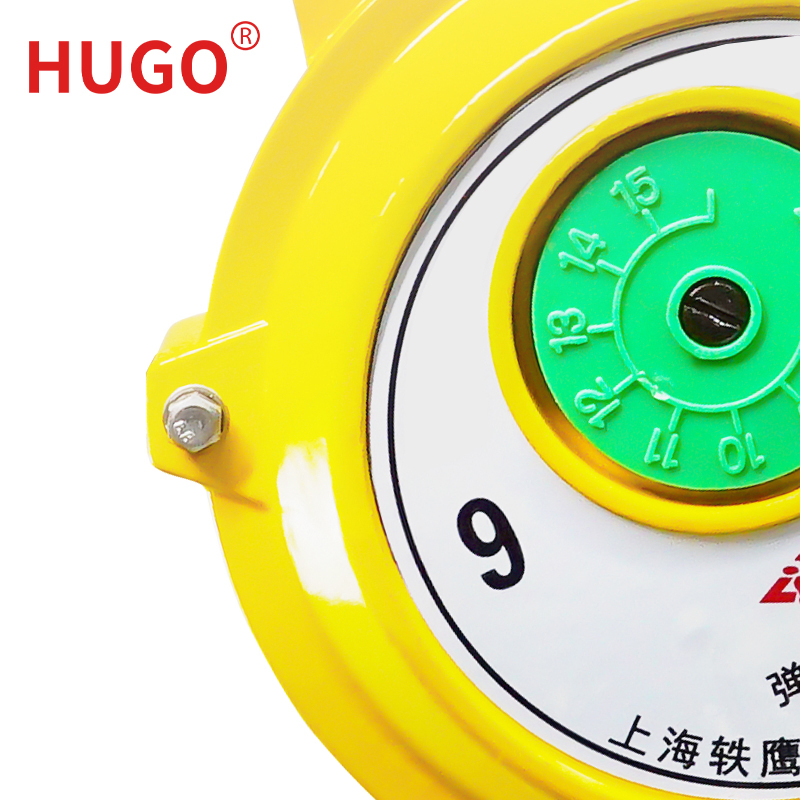

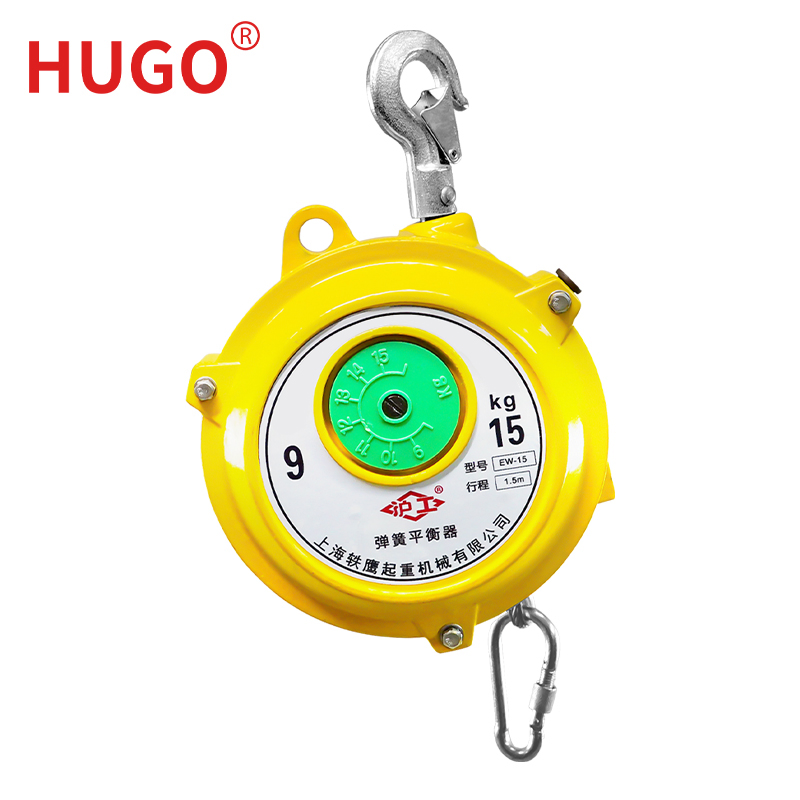

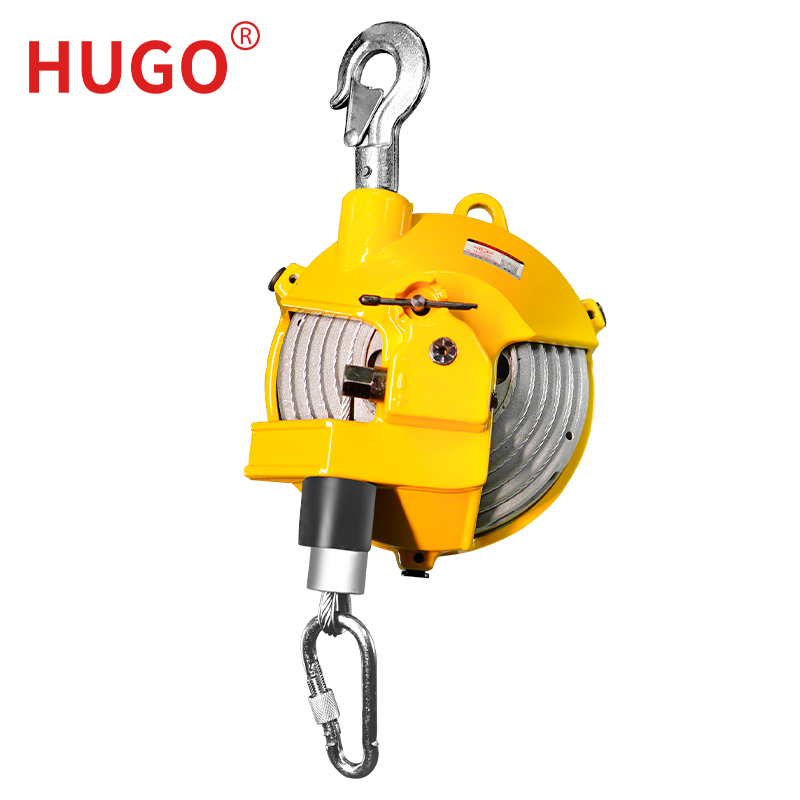

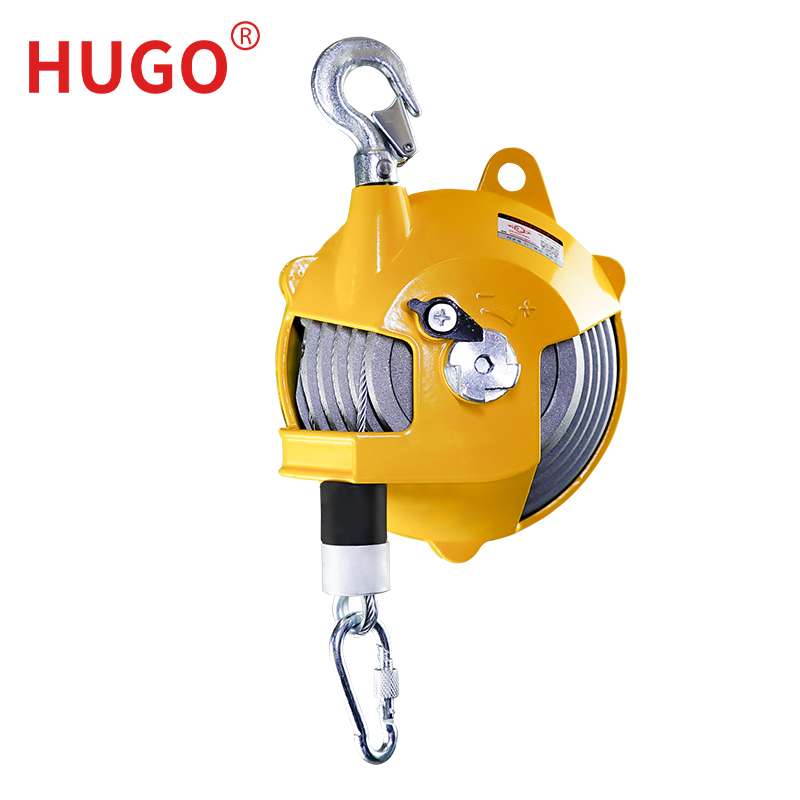

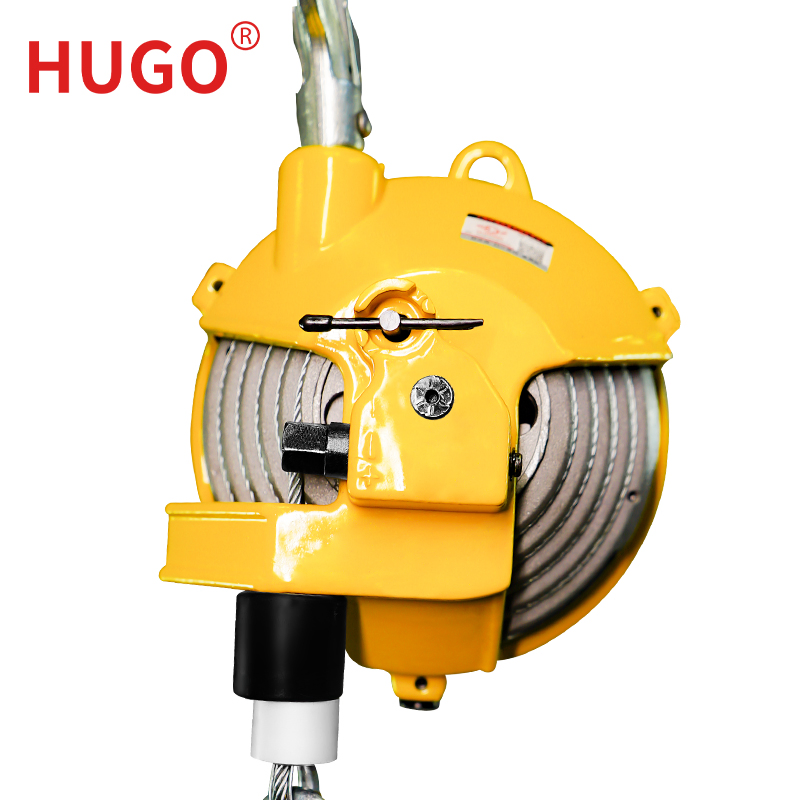

The Spring Balancer is an essential accessorial tool designed specifically for suspending electrical machinery and other heavy tools. By balancing the weight of the tools, it allows operators to move suspended objects up or down with very little effort, achieving a modern and civilized production environment.
Capacity Range: 1kg, 3kg, 5kg, 9kg, 15kg, 22kg, 30kg, 40kg, 50kg, 60kg, 70kg, 80kg, 100kg, 120kg, 140kg, 160kg, 180kg, 200kg.
| Model Range | Min. Capacity | Max. Capacity | Working Length | Net Weight (N.W.) |
|---|---|---|---|---|
| 1-3kg | 1kg | 3kg | 1.3m | 1.7kg |
| 3-5kg | 3kg | 5kg | 1.3m | 1.8kg |
| 4.5-9kg | 4.5kg | 9kg | 1.3m | 3.6kg |
| 9-15kg | 9kg | 15kg | 1.3m | 4.0kg |
| 15-22kg | 15kg | 22kg | 1.5m | 7.4kg |
| 22-30kg | 22kg | 30kg | 1.5m | 7.8kg |
| 30-40kg | 30kg | 40kg | 1.5m | 10kg |
| 40-50kg | 40kg | 50kg | 1.5m | 10.5kg |
| 50-60kg | 50kg | 60kg | 1.5m | 11.5kg |
| 60-70kg | 60kg | 70kg | 1.5m | 12kg |
| 70-80kg | 70kg | 80kg | 1.5m | 12.5kg |
| 80-100kg | 80kg | 100kg | 1.5m | 18kg |
| 100-120kg | 100kg | 120kg | 1.5m | 19kg |
| 120-140kg | 120kg | 140kg | 1.5m | 20kg |
| 140-160kg | 140kg | 160kg | 1.5m | 22kg |
| 160-180kg | 160kg | 180kg | 1.5m | 24kg |
| 180-200kg | 180kg | 200kg | 1.5m | 36kg |
