Product Description

Basic Information

Model NO.

HW-1

Display Type

Mechanical Hand

Location

Platform Scale

Material

Carbon Steel

Measure Method

Manual

Application

Industrial Scales

Function

Weighing Scale

Structure

Mechanical Scale

Shape

Circular

Payment

T/T L/C

Delivery Time

20-40days

Transport Package

Carton or Wooden Box

Specification

1.5-200kg

Origin

China Mainland

HS Code

84251100

Production Capacity

5000PCS Per Month

Product Description

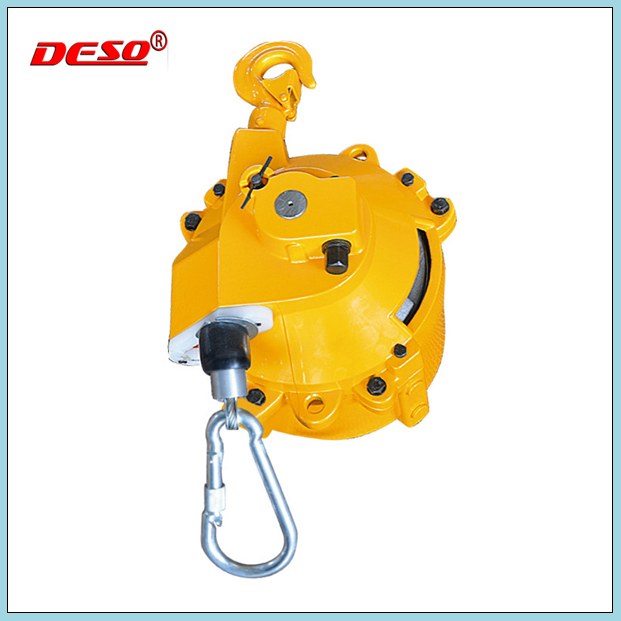

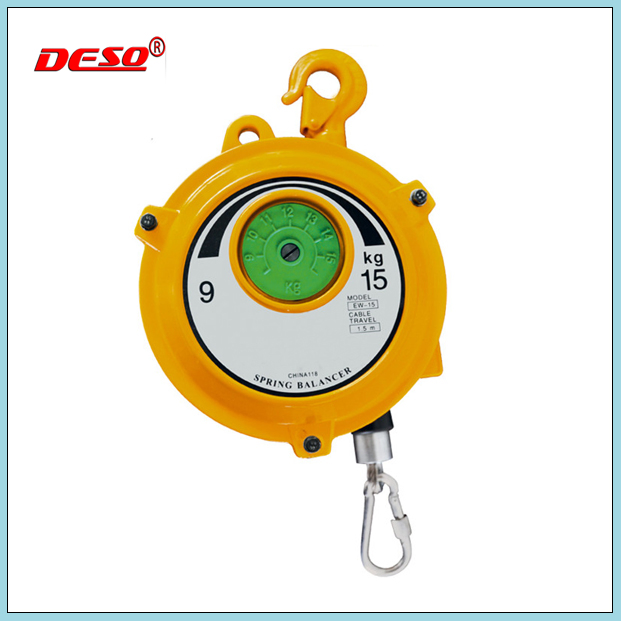

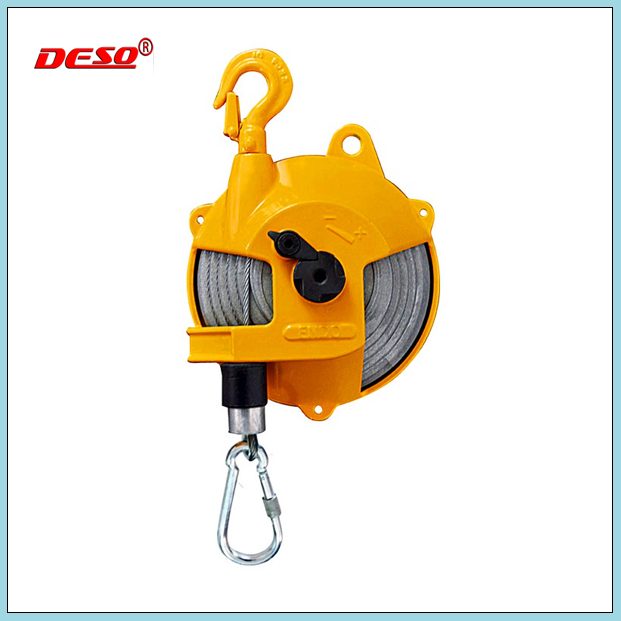

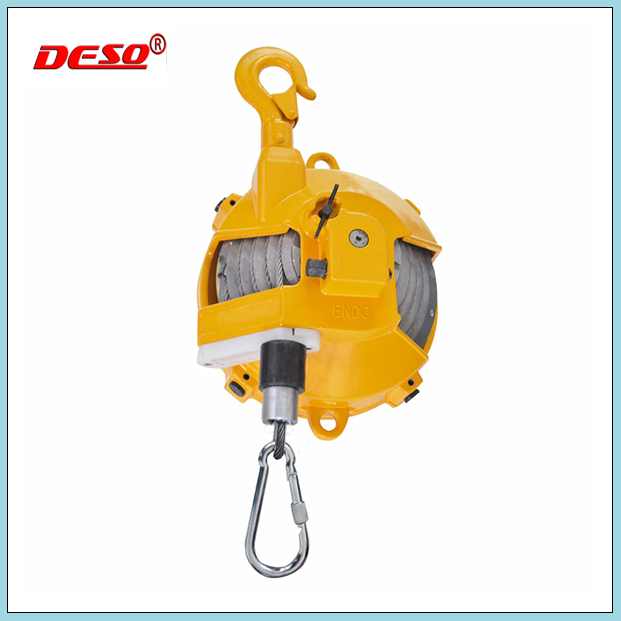

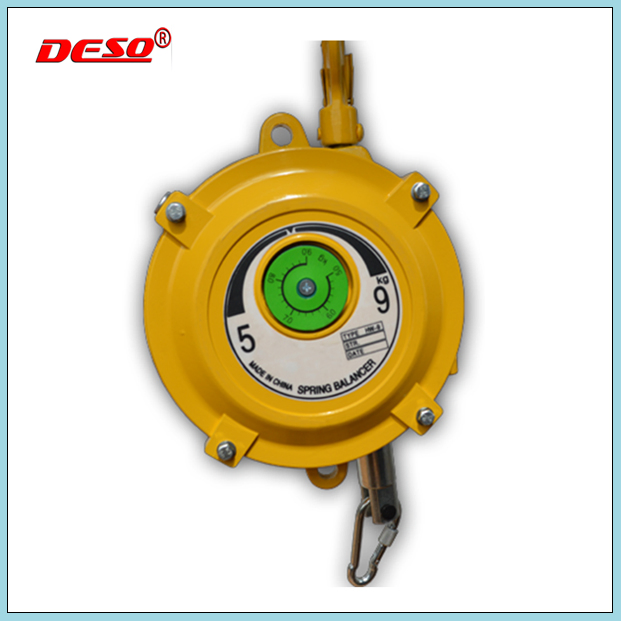

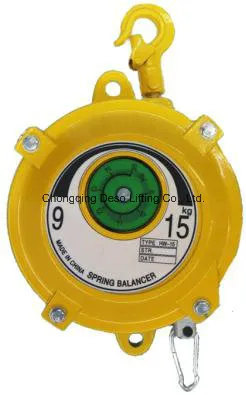

Spring Balancer Self-Locking

Key Features:

Provides 15kg to 22kg of lifting load with 8 different load ranges available for options.
Equipped with an install hook for 360-degree revolving performance.
High-quality aluminum die casting housing for durability.
Includes an anti-falling steel wire installation hole for enhanced safety.
Integrated tool anti-falling device in case of spring breakage.
Widely used in welding lines, rivet lines, and assembly lines for engines and home appliances.
Equipped with a highly durable spring system.

Model No.	Min Load (kg)	Max Load (kg)	Cable Travel (m)	N.W (kg)
HW-1.5	0.5	1.5	1.9	1.58
HW-3	1	3	1.9	1.6
HW-5	3	5	1.9	1.65
HW-7	5	7	1.9	1.7
HW-9	5	9	1.8	4.5
HW-15	5	9	1.8	4.8
HW-22	15	22	2.8	8
HW-30	22	30	2.8	8.5
HW-40	30	40	2.8	10
HW-50	40	50	2.8	10.5
HW-50	50	60	2.3	11
HW-70	60	70	2.3	12
HW-80	70	80	2.3	12.5
HW-100	80	100	2.8	19
HW-120	100	120	2.5	20
HW-140	120	140	2.5	21
HW-160	140	160	2.4	22
HW-180	160	180	1.7	23
HW-200	180	200	1.7	24

Frequently Asked Questions

What is the primary function of a self-locking spring balancer?

It is designed to suspend heavy tools in production lines, making them feel weightless to the operator and allowing for precise positioning with a self-locking safety mechanism.

In which industries is this spring balancer typically used?

It is widely used in automotive assembly (welding and engine lines), motorcycle production, and the manufacturing of home appliances.

What safety features are included in the HW series?

The series includes an aluminum die-casting housing, an anti-falling steel wire installation hole, and a tool anti-falling device that activates if the spring breaks.

Does the balancer allow for tool rotation?

Yes, when mounted with the installation hook, the balancer can perform a full 360-degree revolution for maximum flexibility.

How do I choose the right model for my tool?

You should choose a model where your tool's weight falls between the Minimum and Maximum load capacity specified in the technical table (e.g., for a 20kg tool, the HW-22 is suitable).

What is the maximum travel distance for the cable?

The cable travel varies by model, ranging from 1.7 meters to 2.8 meters depending on the specific load capacity required.
