Single Beam 1-50t Electric Rail Traveling Trussed Type Engineering Gantry Crane

Customization:	Available
After-sales Service:	Online Instruction/Engineers Available to Service
Warranty:	Online Instruction/Engineers Available to Service

Send Inquiry

Product Description

Basic Information

Model NO.

Certification

RoHS, CE, ISO9001

Condition

New

Maximum Lifting Weight

20-50t

Maximum Lifting Height

30-40m

Operation Form

Air Operation+Ground Operation

Type

Common Gantry Crane

Main Girder Form

Single Girder

Product Name

Truss Type Single Beam Gantry Crane

Power

3p 220--440 V/50Hz 60Hz

Working Class

A3-A5

Span

10-40m

HS Code

842531900

Production Capacity

100 Sets Per Month

Product Description

5t /10t /20t Single Girder Gantry Crane for Outdoor Use

⚙️

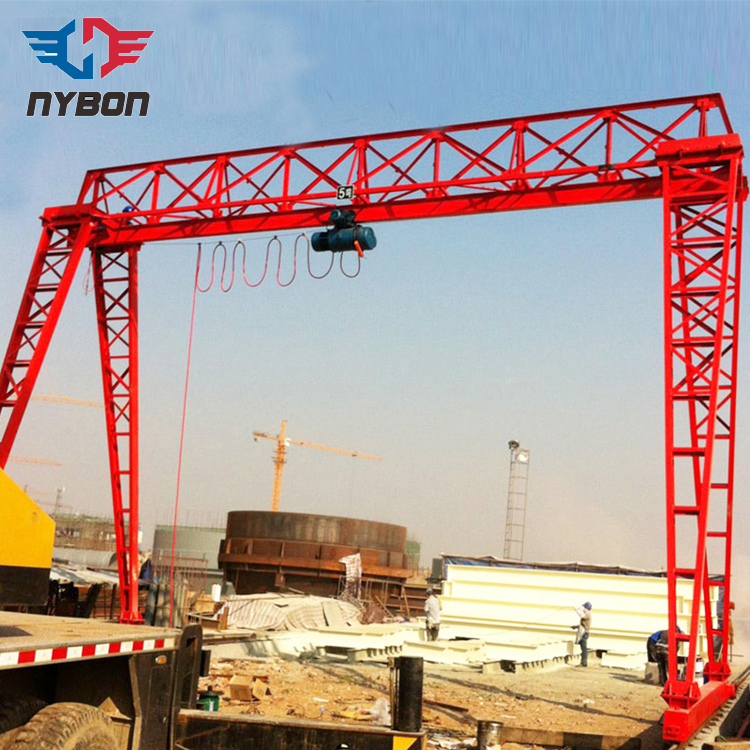

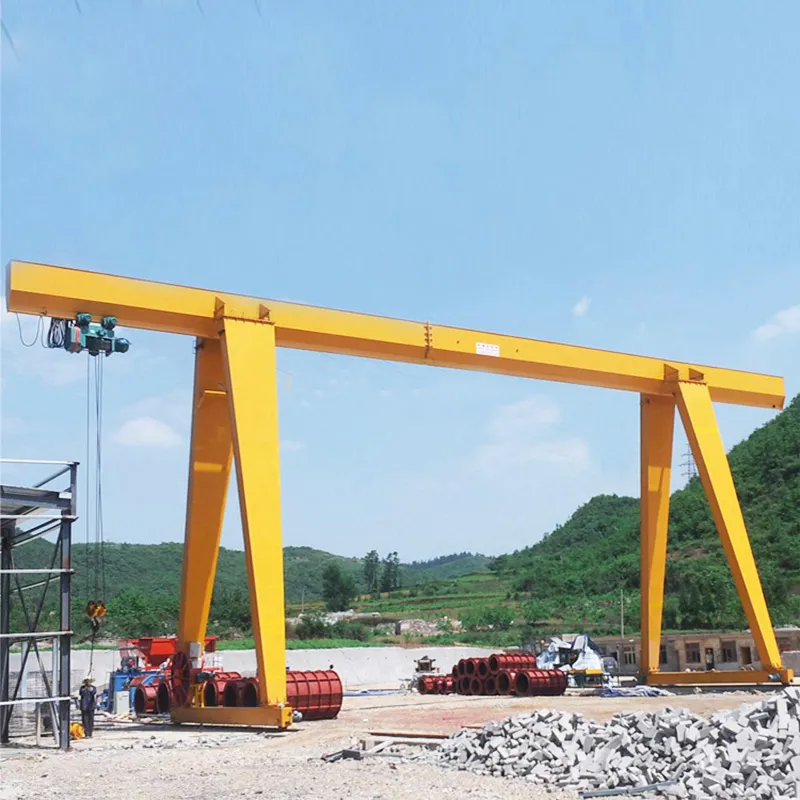

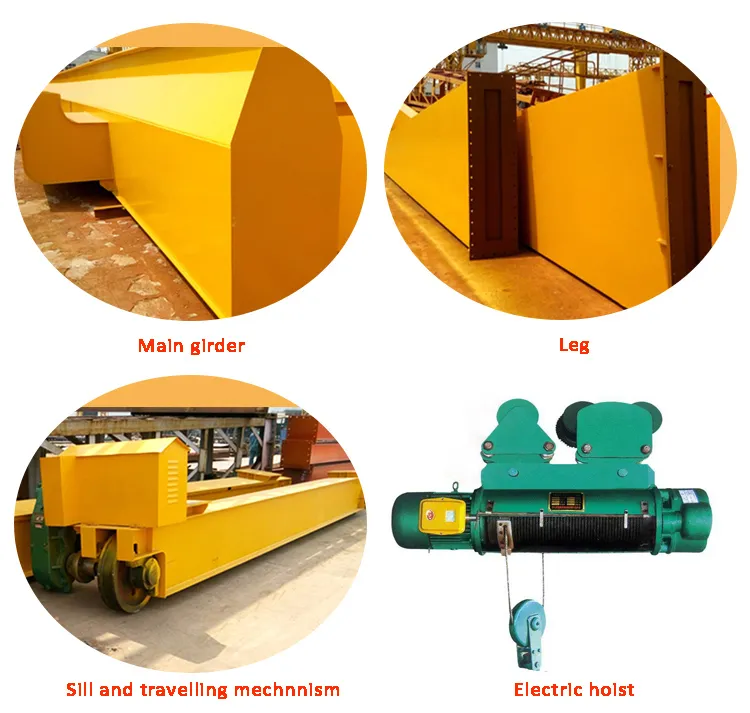

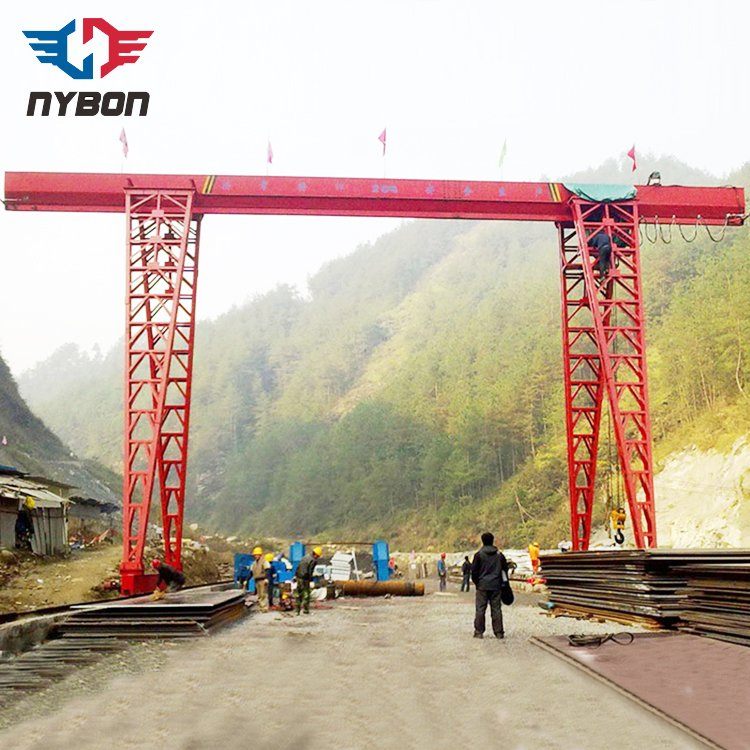

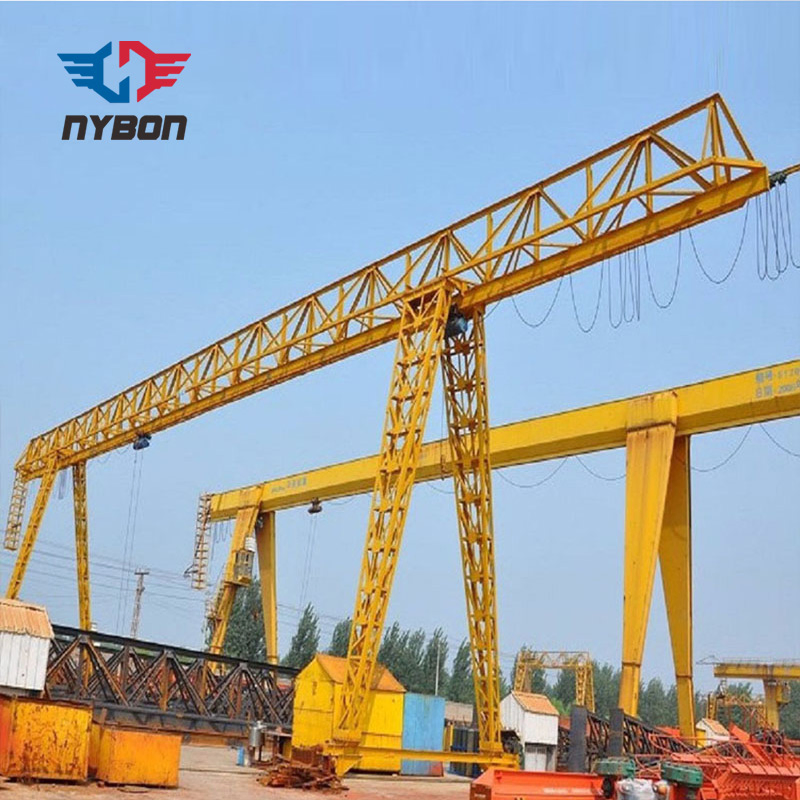

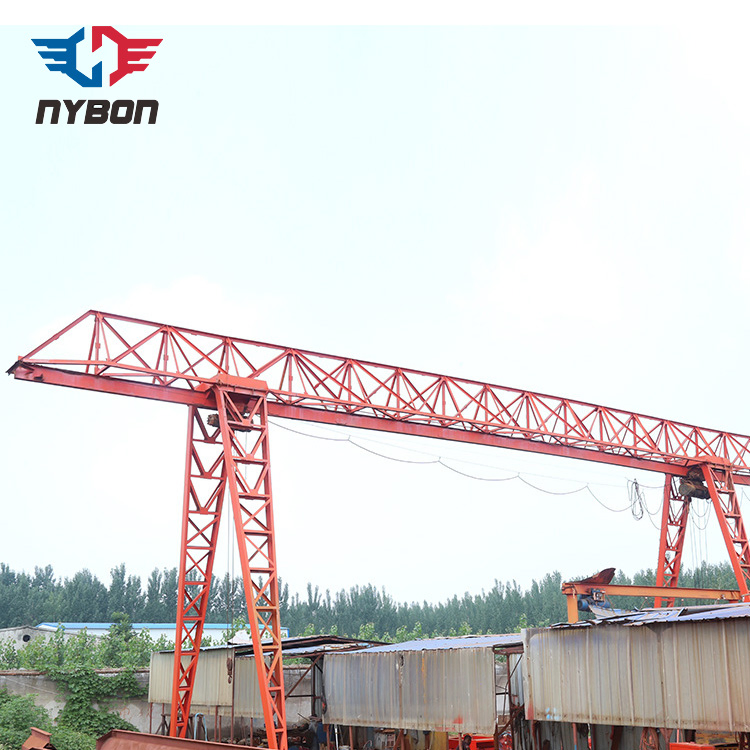

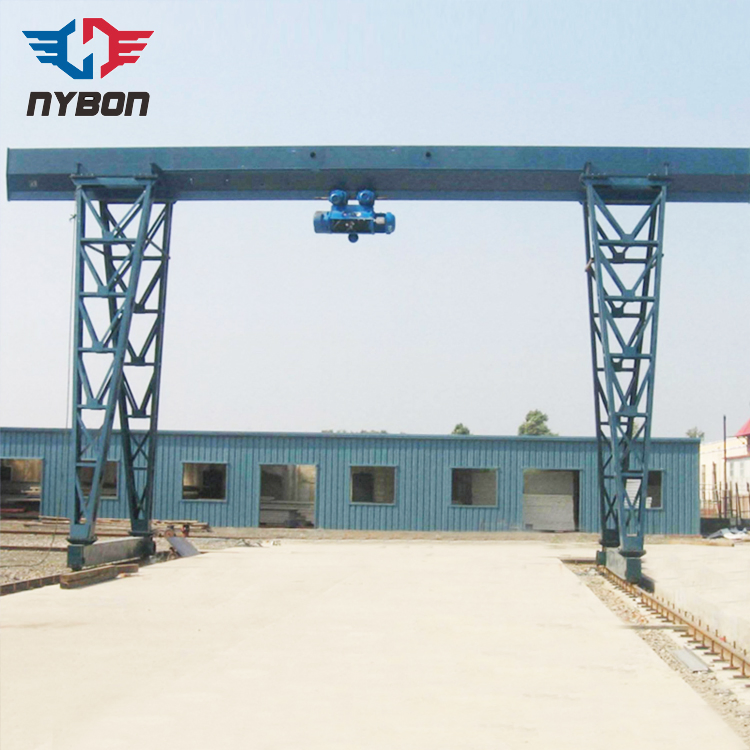

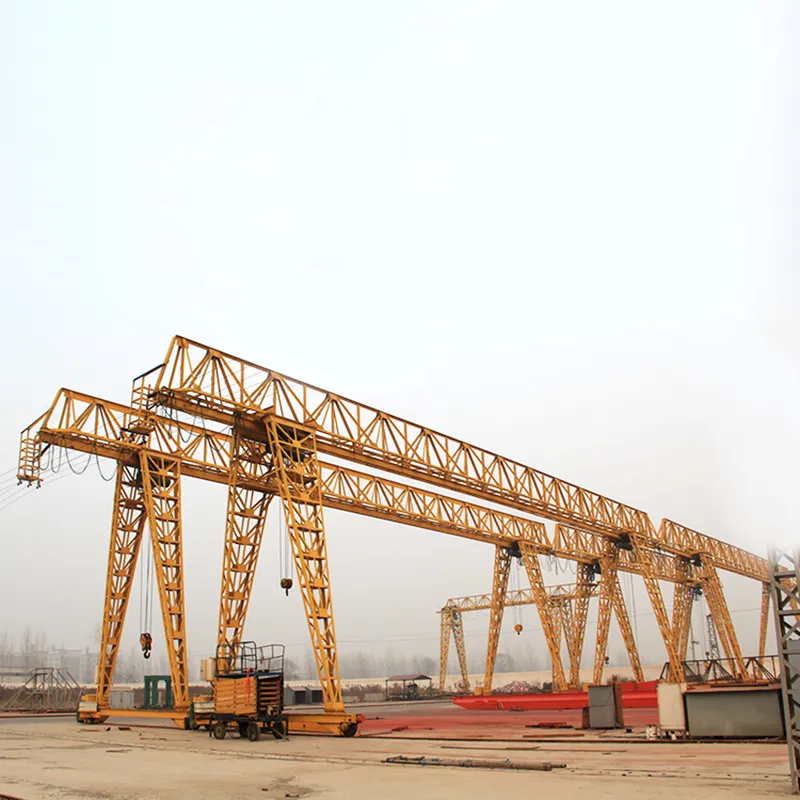

Introduction: The single girder gantry crane is a track travelling light type crane used where overhead runways are not practical. The main girder is mounted on two A-shape columns resting on wheel-mounted end carriages.

Key Features & Applications:

Widely applied for loading and unloading in material stocks, cement plants, and construction industries.
Durable appearance with perfect performance and low maintenance costs.
Equipped with electric wire rope winch and comprehensive safety devices.
Models include MH Truss type, MH Box type, and MHL Electric hoist hanging type.

Technical Parameters

Rated load (ton)	5	10	16	20	32
Span (m)	10-40
Lifting height (m)	30
Working class	A3/1bM
Lifting speed (m/min)	8	7	3.5	3.5	3
Trolley running speed (m/min)	20	20	20	20	20
Crane running speed (m/min)	20	20	20	20	20
Steel track recommended	P24	P38	P43	P43	P43
Power supply	3AC 220~480V 50/60Hz

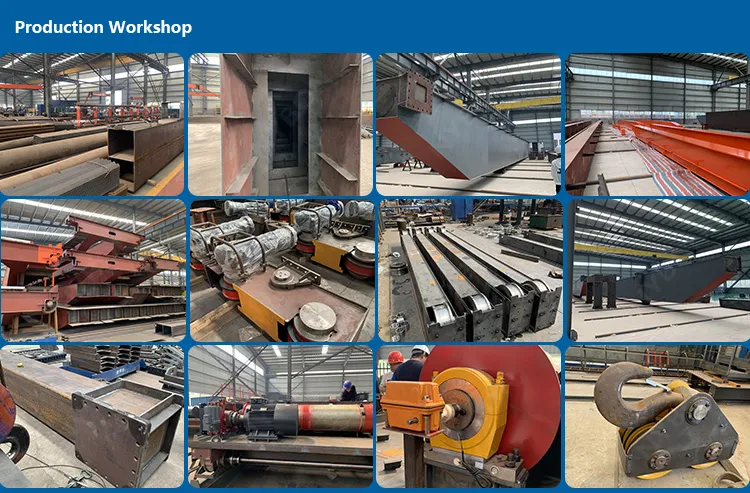

Application & Production

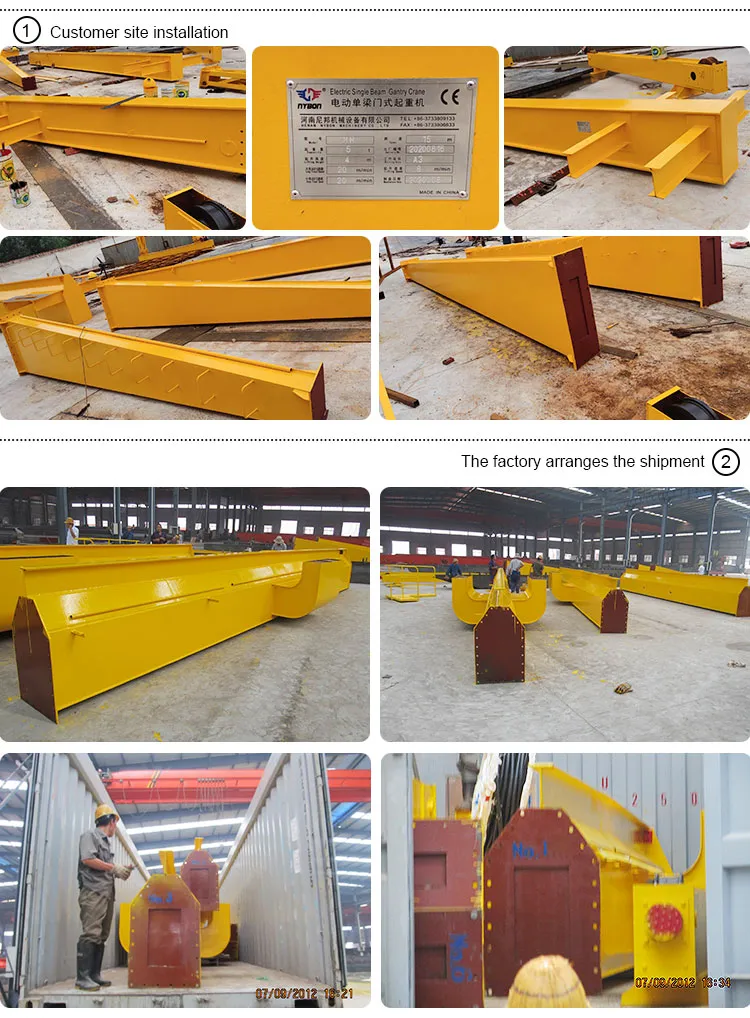

Packaging & Shipping

Frequently Asked Questions

Can I customize the gantry crane products?

Yes, we offer comprehensive OEM and ODM services to meet specific industrial requirements and workshop layouts.

What is the typical delivery period?

Delivery usually occurs within 10, 25, or 40 days after receiving prepayment. The exact period depends on detailed specifications and the current production schedule.

Do you provide overseas installation services?

Yes, we have a professional engineering team available for overseas installation, commissioning, and staff training.

What safety devices are included with the crane?

Our cranes are equipped with overload limit switches, rubber buffers, emergency stop systems, voltage lower protection, and lifting height limit devices.

How do I get an accurate price quote?

Please provide the loading capacity, span, lifting height, and power supply requirements. Once we have these parameters, we will offer an accurate price.

How are the products packaged for international shipping?

We use the safest packaging options, including export-standard wooden cases or nude packing in containers, to protect the goods during long-distance transportation.

To provide you with the most suitable solution, please confirm:

1. Lifting capacity | 2. Span (center distance between rails) | 3. Lifting height | 4. Daily working hours | 5. Type of goods to be lifted.
