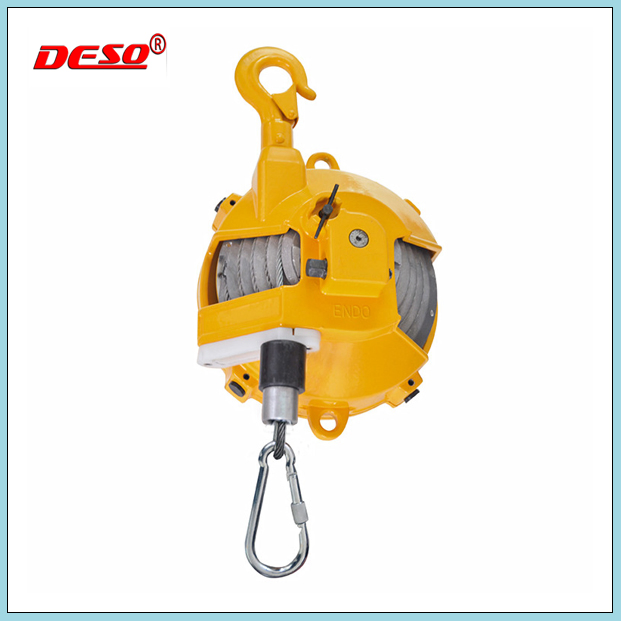

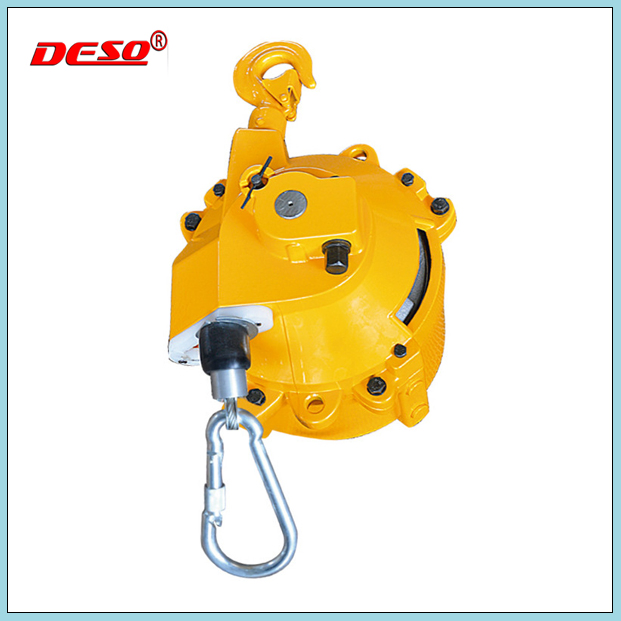

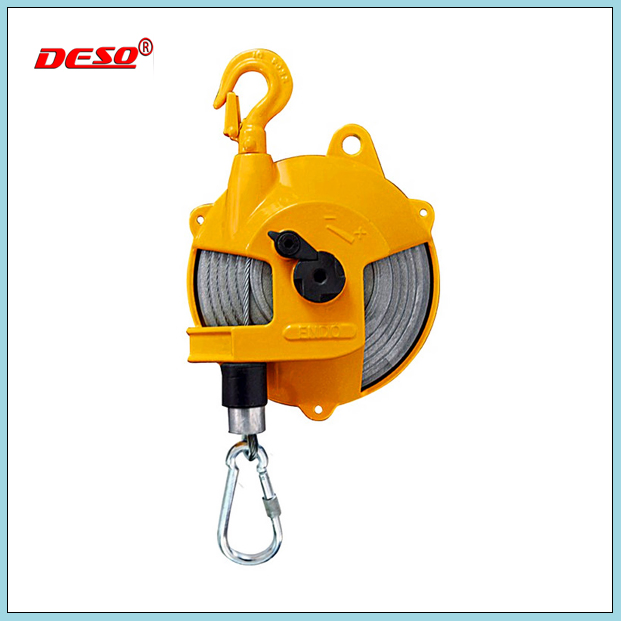

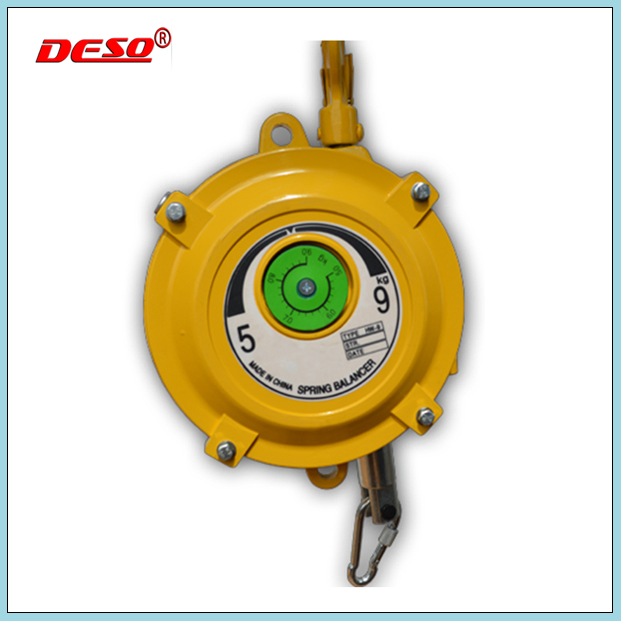

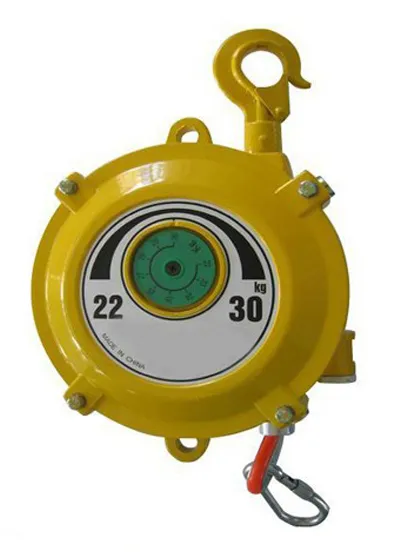

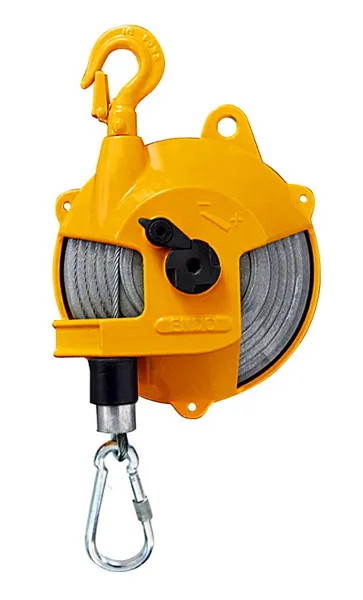

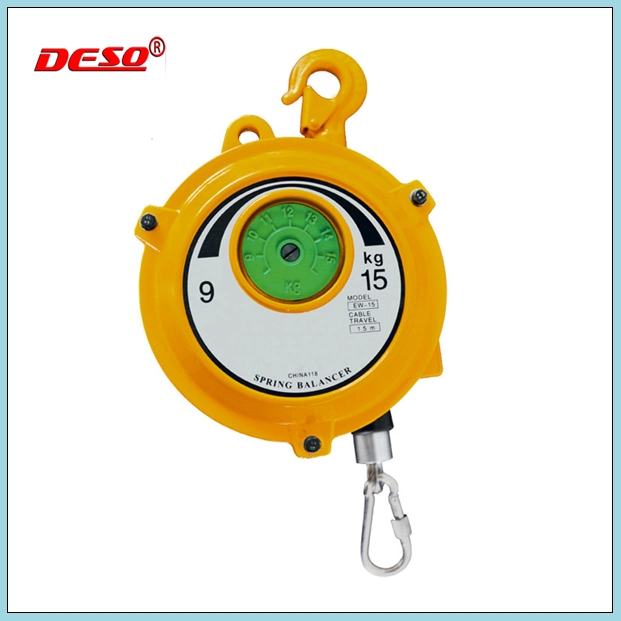

Spring Balancer Remote Control Self-Locking

1 / 5

Spring Balancer Remote Control Self-Locking

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

HW-02

Display Type

Mechanical Hand

Location

Platform Scale

Material

Carbon Steel

Measure Method

Manual

Application

Industrial Scales

Function

Weighing Scale

Structure

Mechanical Scale

Shape

Circular

Payment

T/T L/C

Delivery Time

20-40days

Transport Package

Carton or Wooden Box

Specification

1.5-200kg

Origin

China Mainland

HS Code

84251100

Production Capacity

5000PCS Per Month

🛠️ Product Description

✓ Bigger outer diameter and increase the lever force the operation more easily.

✓ It can travel 2 meters, increased the work scope.

✓ Spring fatigue resistance increased, extend the service life of more than 50%.

✓ With remote control function of stop pin, can avoid the ladder homework, increase the safety of operation.

Model No.	Min load capacity (kg)	Max load capacity (kg)	Cable travel (m)	N.W (kg)
HW2-9	5	9	1.8	4.5
HW2-15	9	15	1.8	4.8
HW2-22	15	22	1.5	8
HW2-30	22	30	1.5	8.5
HW2-40	30	40	1.5	10
HW2-50	40	50	1.5	10.5
HW2-60	50	60	1.5	11
HW2-70	60	70	1.5	12
HW2-80	70	80	1.5	12.5
HW2-105	85	105	3	25
HW2-125	105	125	3	26
HW2-145	125	145	3	27
HW2-165	145	165	3	28
HW2-185	165	185	3	29

❓ Frequently Asked Questions

What is the primary benefit of the HW-02 Spring Balancer?

The HW-02 features a larger outer diameter to increase lever force, making manual operations significantly easier and reducing operator fatigue.

How does the remote control function improve safety?

The remote control stop pin allows users to manage the balancer without using a ladder, which minimizes the risk of falls and enhances overall workplace safety.

What is the maximum travel distance for the cable?

The cable travel distance varies by model, with many units offering up to 2 meters or 3 meters, providing a wide working scope for industrial applications.

Is the spring durable for long-term industrial use?

Yes, the spring fatigue resistance has been increased to extend the service life by more than 50% compared to standard models.

What materials are used in the construction of the balancer?

The balancer is constructed from high-quality Carbon Steel, ensuring a robust and durable structure suitable for heavy-duty industrial environments.

How do I select the correct model for my needs?

Selection should be based on your required load capacity. Our models range from a minimum of 5kg (HW2-9) up to a maximum of 185kg (HW2-185).
