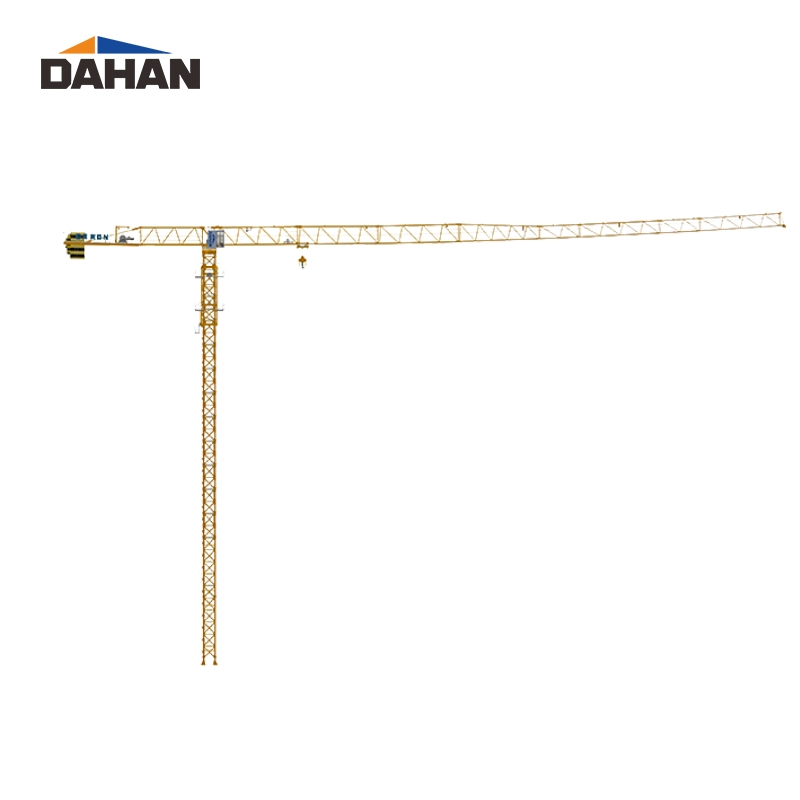

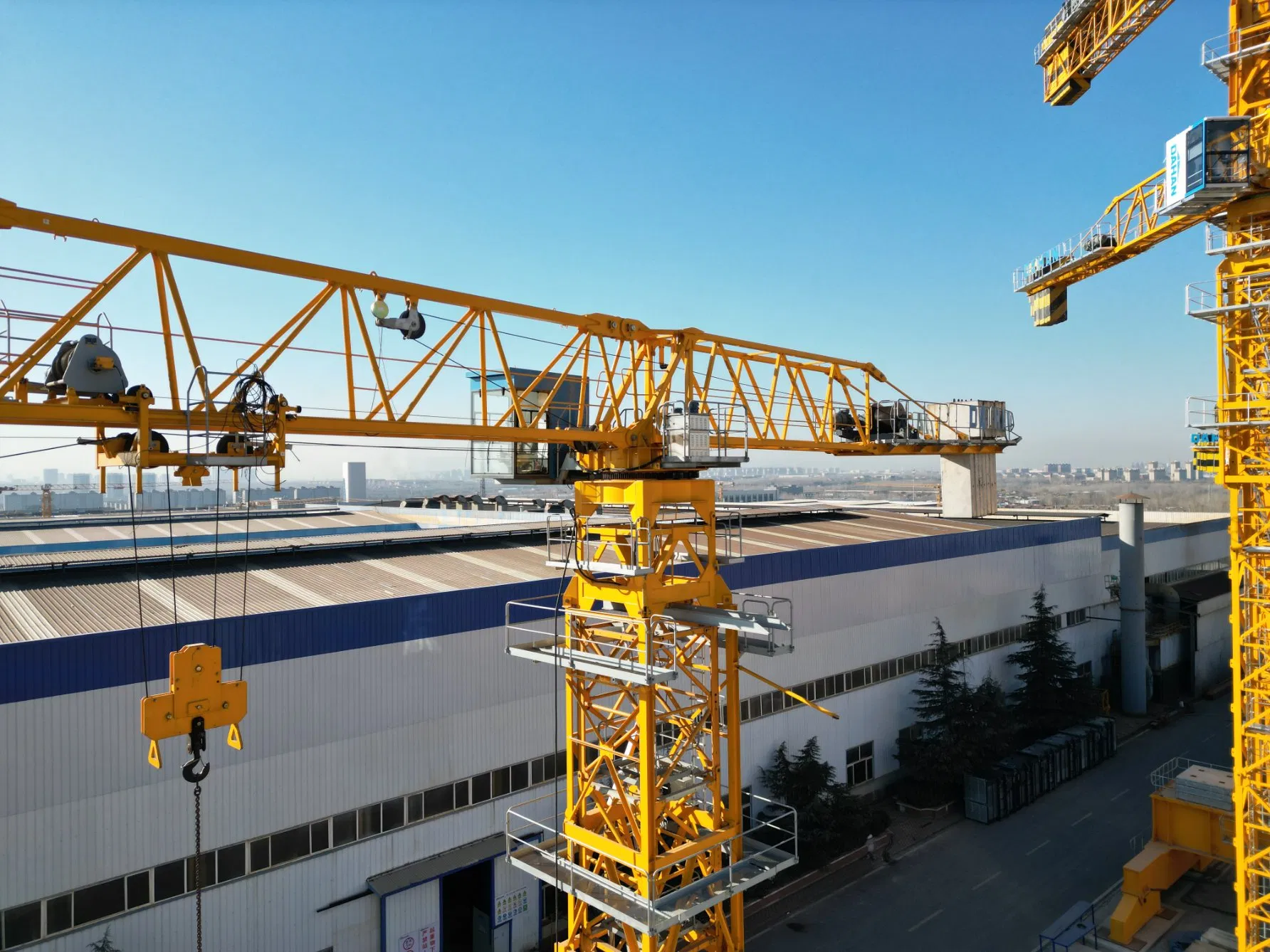

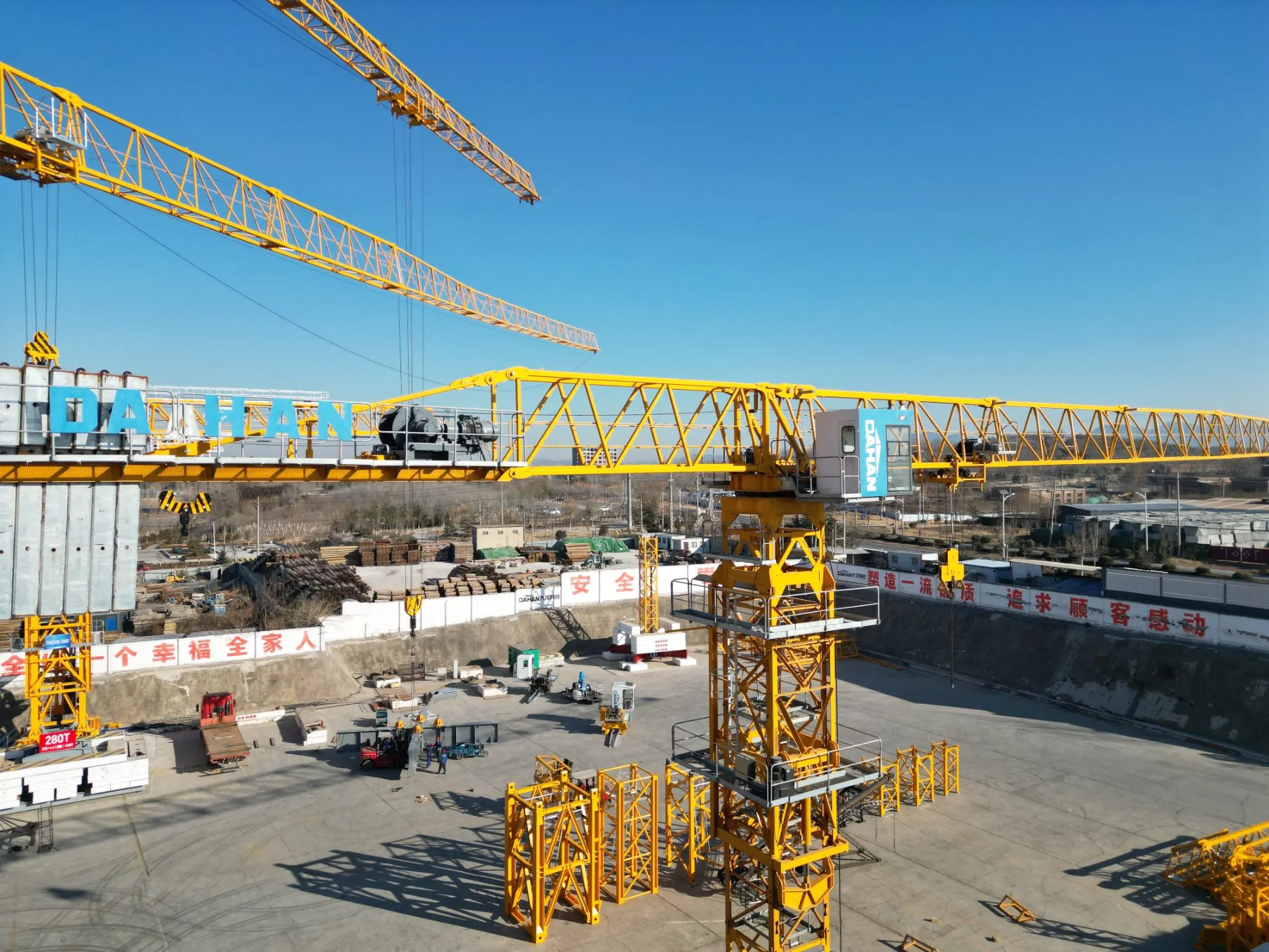

Tower Crane Price Dh258 (7020) Jib70m Tip Weight 2.0ton Flat-Top Tower Crane

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

1 Basic Information

Model NO.

DH258(7020)-10T

Certification

CE, ISO9001

Condition

New

Max Lifting Height

150-200m

Max Lifting Weight

10t

Installation

Jack-Up

Moving Type

Fixed

Type

Top-Slewing Crane

Specialization

Using L48 Blade Sections

Quality Control

Electrophoresis + Powder Spray

Control System

Full Frequency Conversion

Intelligence

Real-Time Monitoring Feedback

2 Packaging & Delivery

Package Size

11800.00cm * 21300.00cm * 27200.00cm

Gross Weight

3000.000kg

3 Product Description

Model	DH258(7020)
Max. Rated Capacity	10t
Max (Min) Working Radius	70(3.0)m
Tip Load	2.0t
Max Free Standing Height	48m
Hoisting Speed	0~80m/min
Slewing Speed	0~0.6r.p.m
Trolleying Speed	0~58 m/min

4 Key Advantages

High Specialization

Designed specifically to optimize costs using L48 blade sections. The transportation volume is minimized, and balance weight specifications are universal across the series, significantly reducing operational expenses.

High Quality & Durability

The entire machine is verified with test loads exceeding European standards (150% static, 125% dynamic). Features electrophoresis and powder electrostatic spraying for superior anti-corrosion. The arm frame uses high-strength bolt and square sleeve connections for maximum safety and impact resistance.

High Intelligence

Equipped with fully variable frequency control for faster, more stable rotation. Intelligent monitoring provides real-time feedback to prevent overloading, hook slipping, and collisions, ensuring high work efficiency with load-sensitive speed adjustments.

5 Frequently Asked Questions

What is the maximum lifting capacity of the DH258(7020)-10T?

The maximum rated lifting capacity for this model is 10 tons.

What is the maximum working radius and tip load?

The maximum working radius is 70 meters, with a tip load capacity of 2.0 tons at that distance.

How does the crane handle anti-corrosion?

The machine adopts a combination of electrophoresis and powder electrostatic spraying, which provides much stronger anti-corrosion performance compared to traditional painting.

What is the free-standing height of this tower crane?

The maximum free-standing height under the hook is 48 meters.

Does the DH258(7020) feature intelligent safety controls?

Yes, it includes full frequency conversion control and an intelligent monitoring system that provides real-time feedback to prevent overloading, hook slipping, and top collisions.

What certifications does this product hold?

This tower crane is certified under CE and ISO9001 standards, ensuring international quality and safety compliance.
