Strong Lifting Capacity Gantry Crane

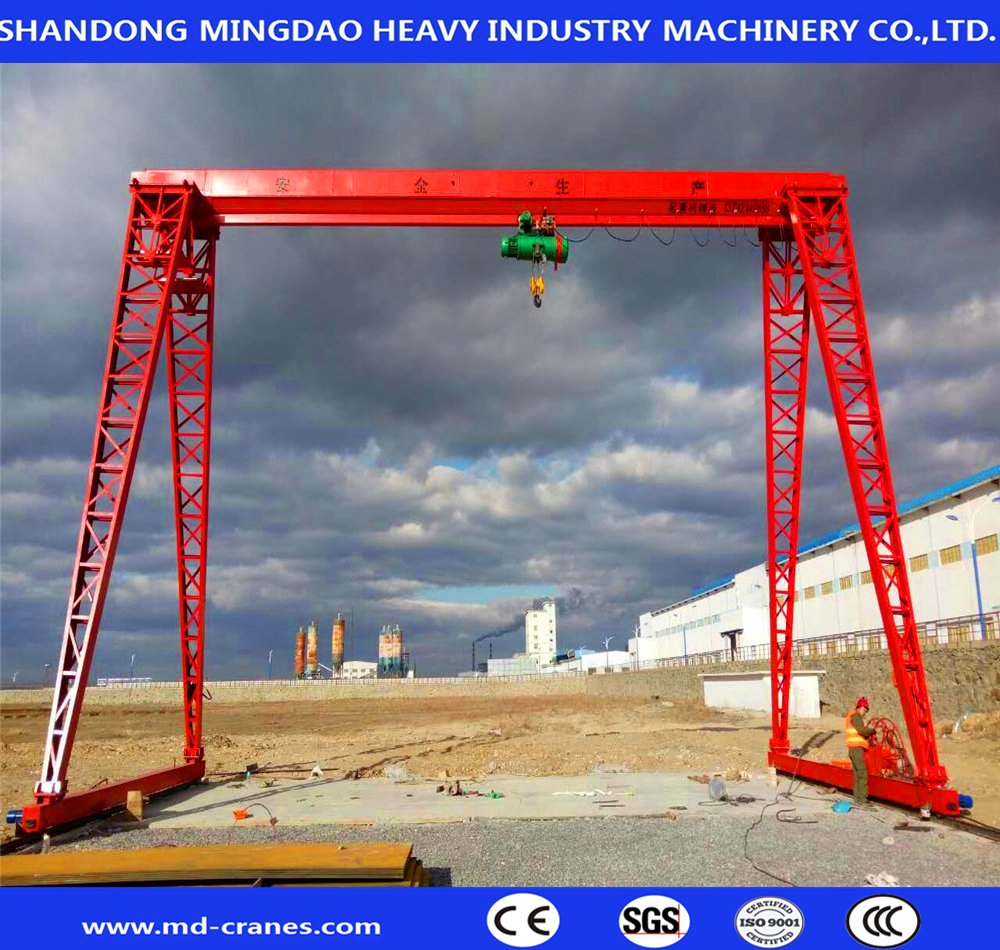

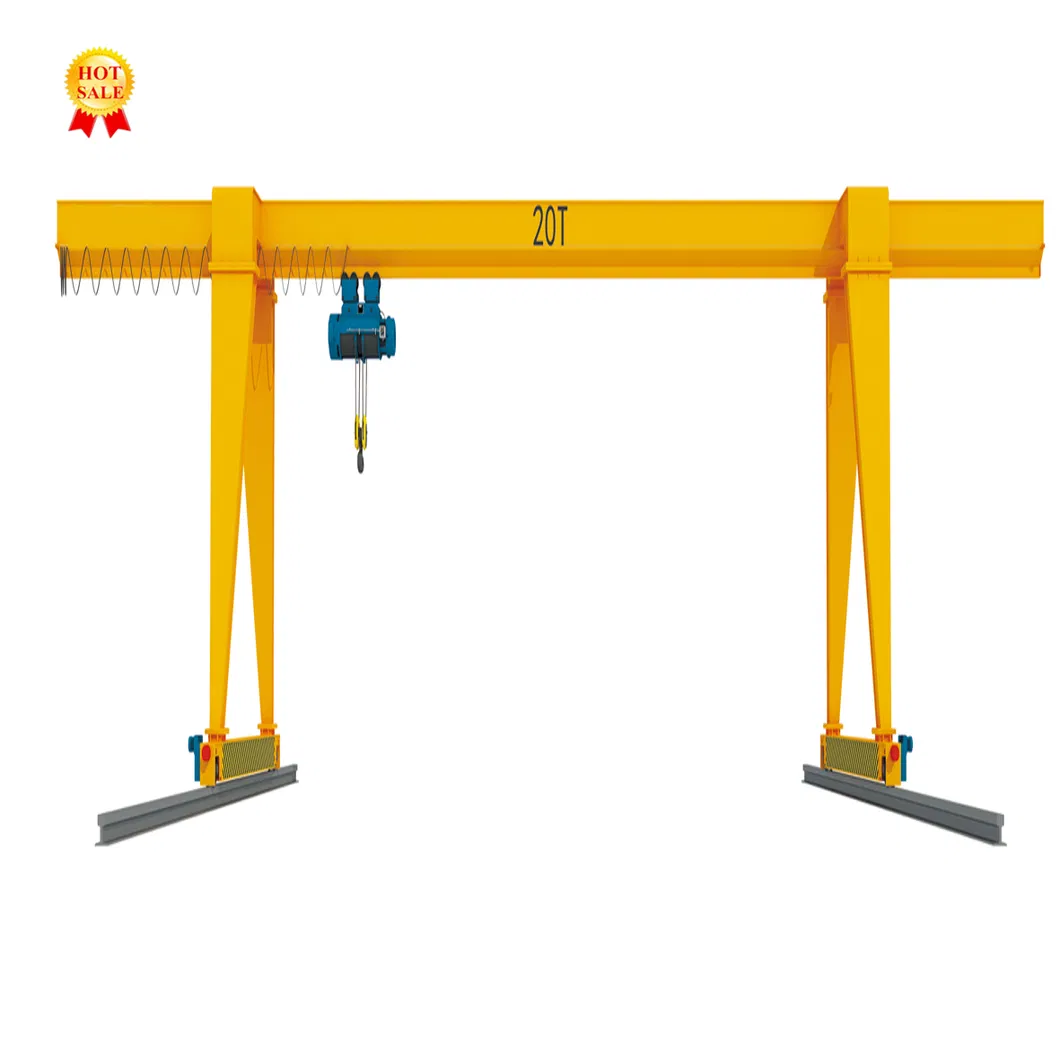

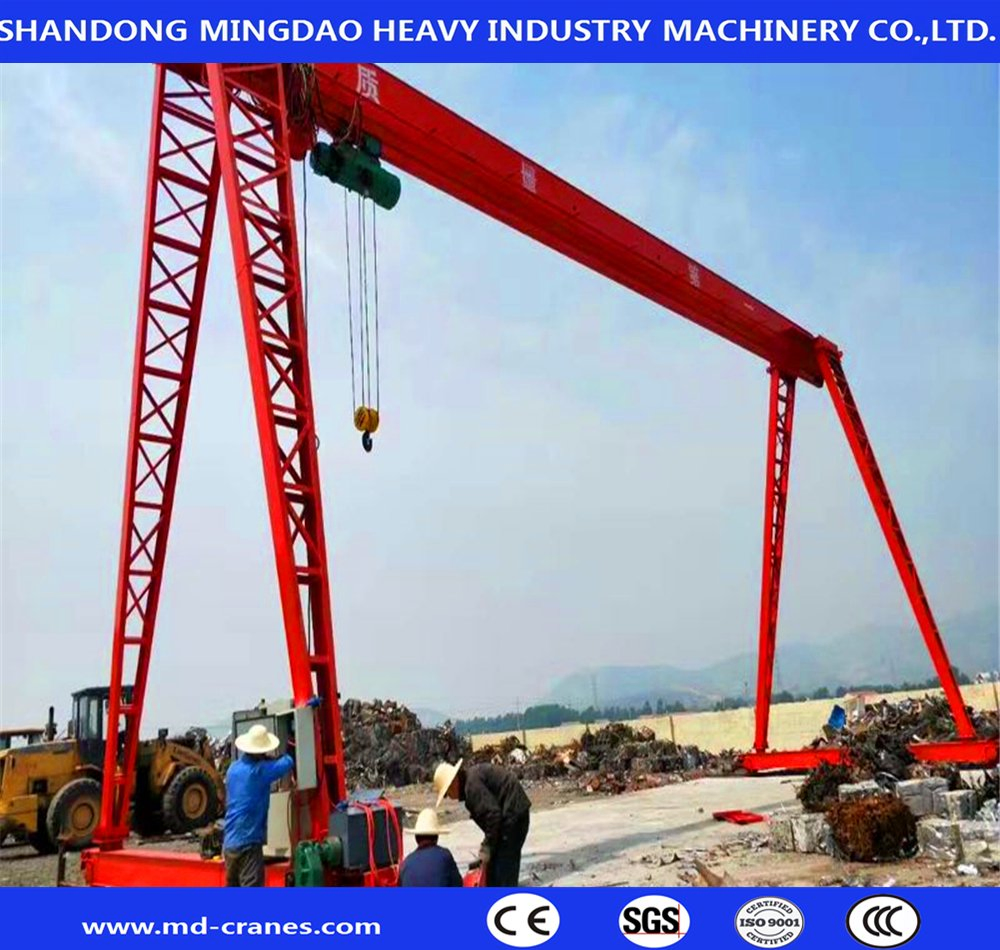

The MH single girder gantry crane is the most commonly used light duty crane, widely applied for indoor and outdoor workplaces, such as storage yards, warehouse, workshop, freight yards, and dock. It is a typical A frame gantry crane designed to handle small and medium sized materials ranging from 3 ton to 16 ton.

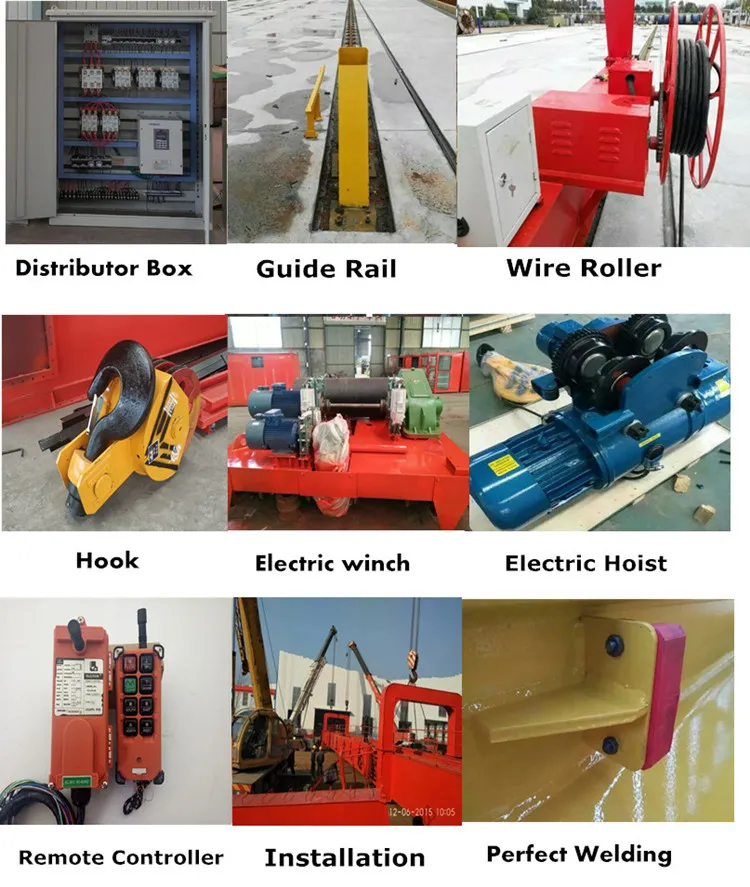

This crane is composed of a beam, support legs, crane travelling mechanism, trolley, and electric equipment. It is available in box type (slim body, strong capacity) and trussed type (small windward surface, light self-weight).
| Item | Unit | Technical Result | ||||
|---|---|---|---|---|---|---|
| Lifting capacity (Main) | ton | 5 | 10 | 16 | 20 | 32 |
| Lifting capacity (Aux.) | ton | - | - | 3.2 | 5 | 5 |
| Span | m | 18 / 22 / 26 / 30 / 35 | ||||
| Lifting Height (Main) | m | 11 | 12 | 12 | 12 | 12 |
| Working System | - | A5 | ||||
| Hoisting Speed (Main) | m/min | 12.5 | 9.82 | 9.7 | 9.3 | 7.6 |
| Power Source | Three-phase 380V 50HZ (Customizable) | |||||

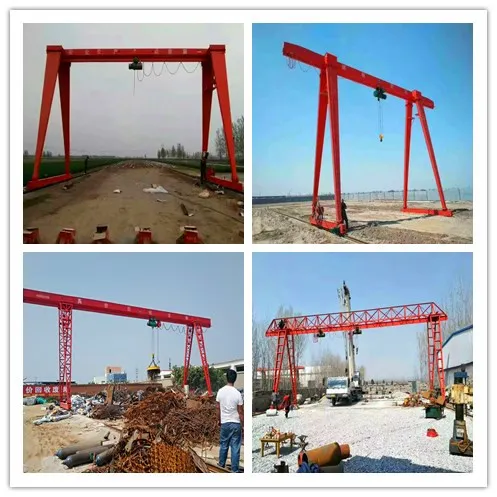

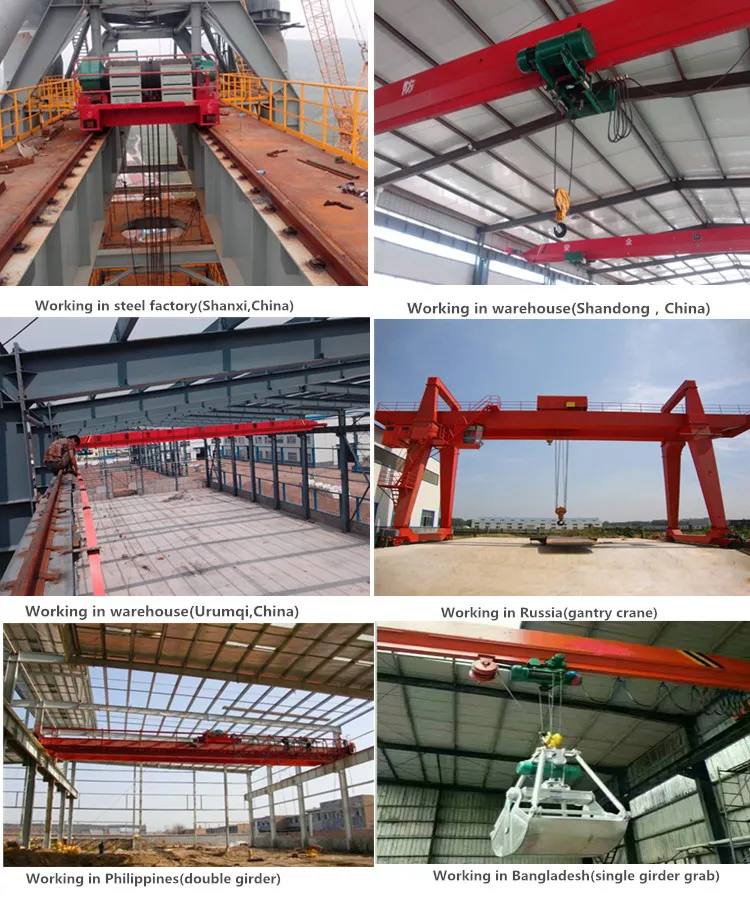

This product is widely used in open warehouses, material stocks area, cement plants, granite industry, construction industry, engineering industry, and railway stations for lifting, loading, and unloading goods.
