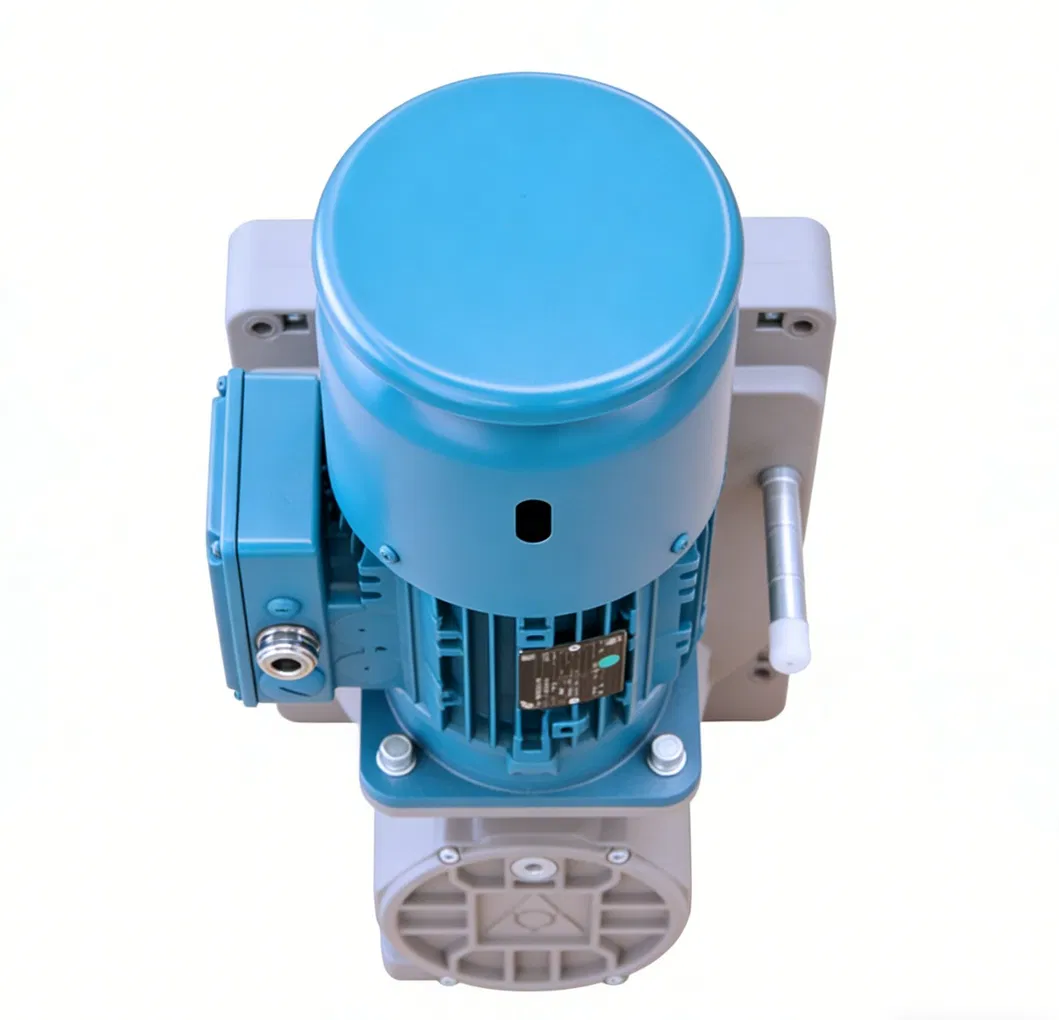

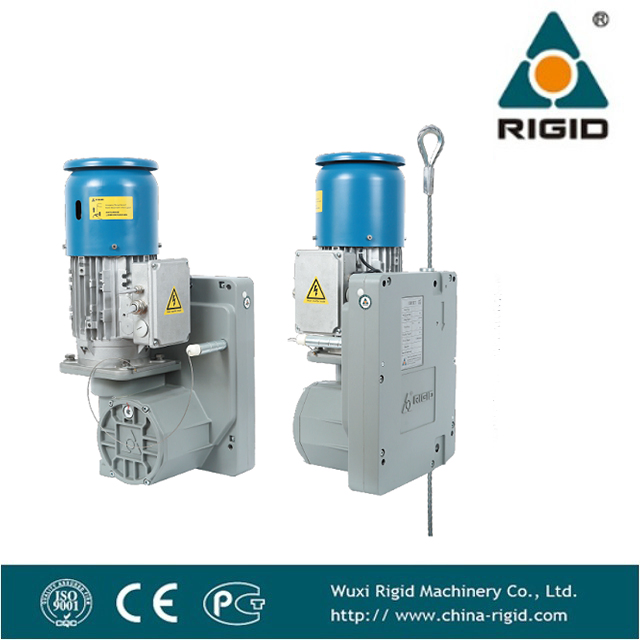

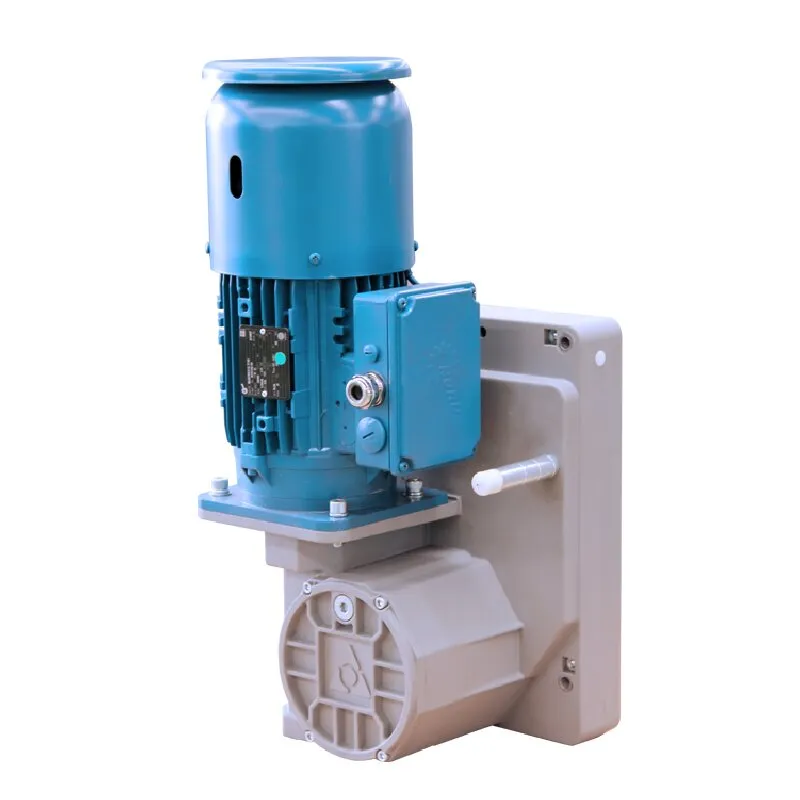

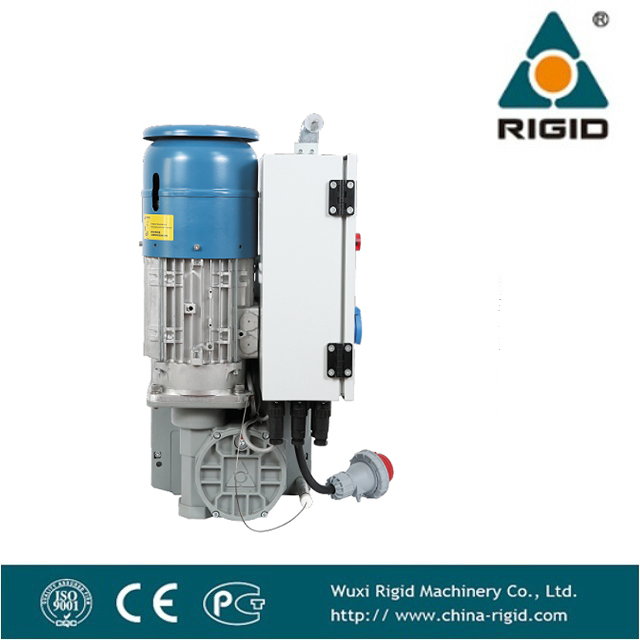

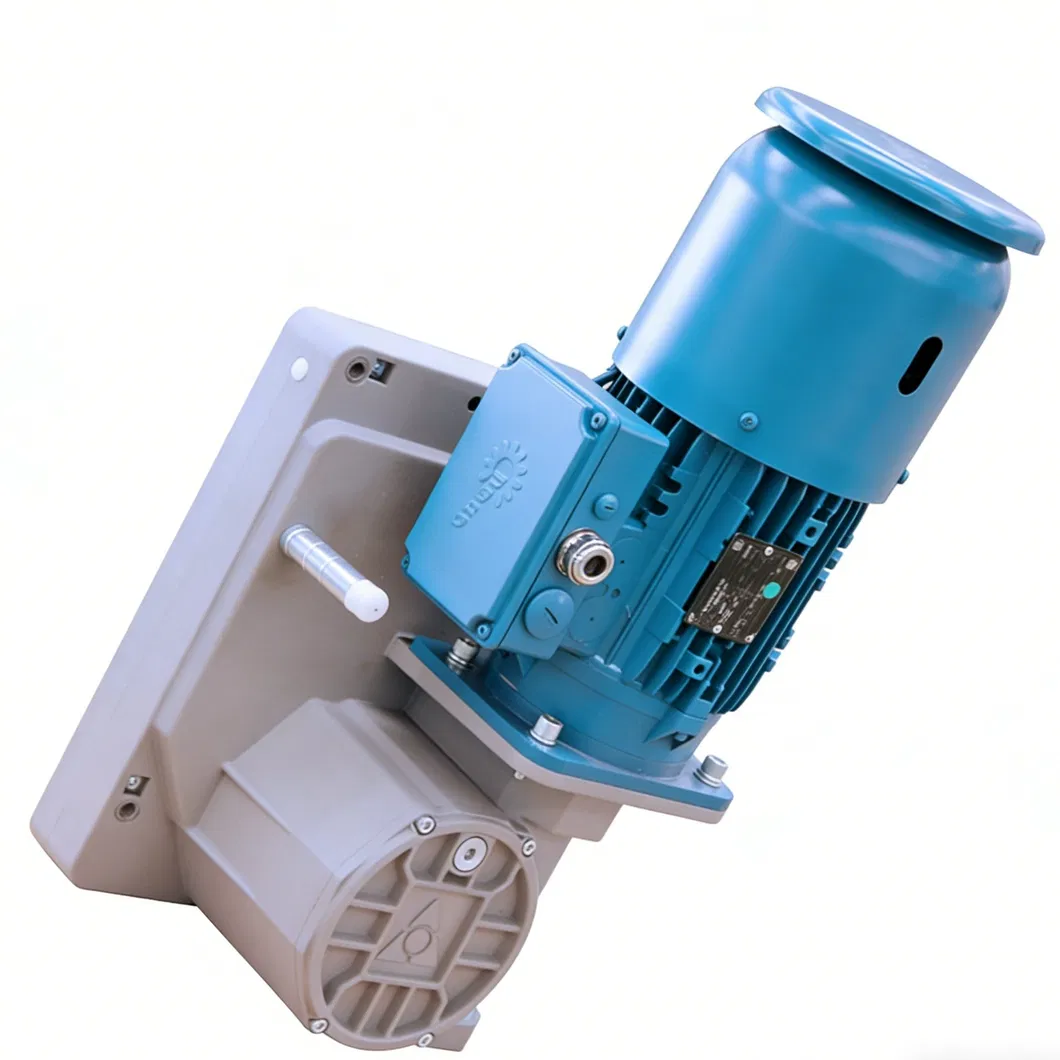

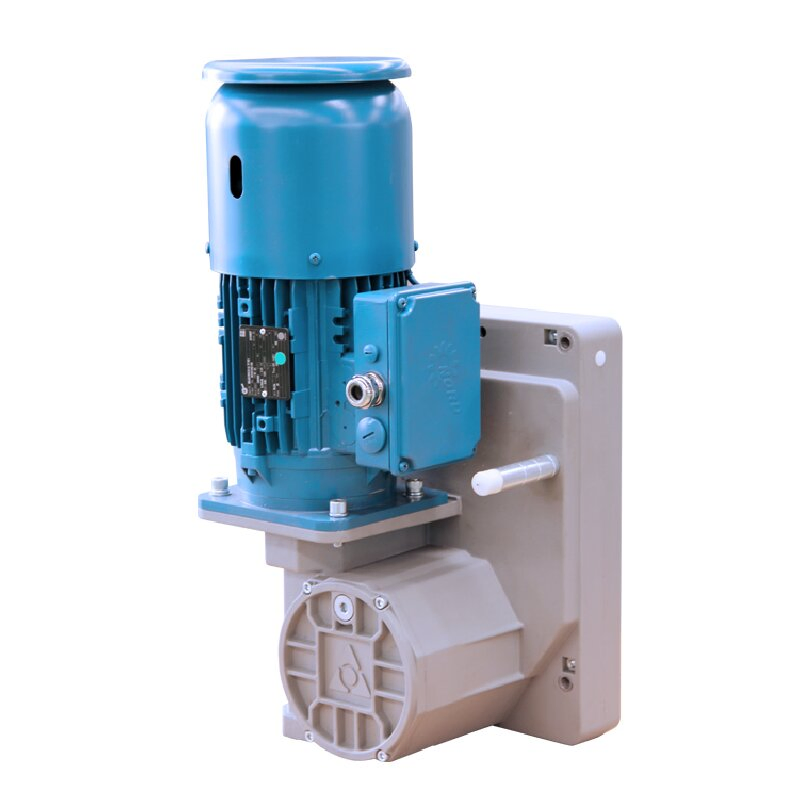

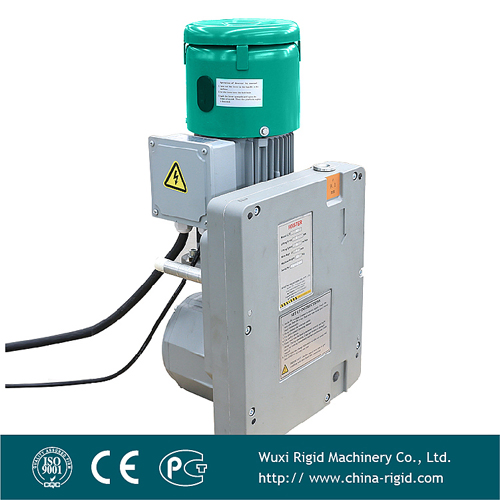

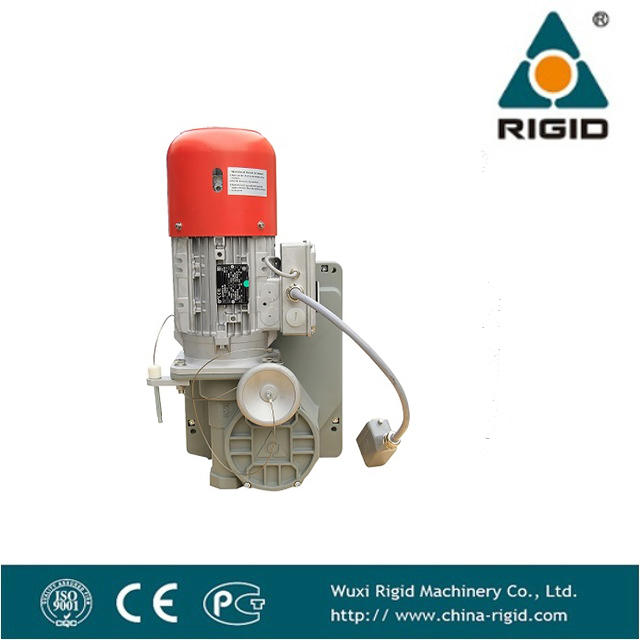

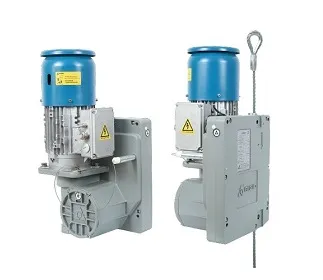

Endless passenger elevation (man-riding) hoist designed for unlimited rope lengths.
This series of unlimited cable passenger lifting hoists is versatile and suitable for a wide range of applications. Capacities range from 500kg to 1000kg at either 9 or 18 m/min. The rope is not connected, making it compact, lightweight, and easy to handle, enabling unlimited lifting heights and traction lengths.
| Model | Capacity (kg) | Lifting Speed (m/min) | Nominal Rope Dia (mm) | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|
| LTD50-8P9 | 500 | 9 | 8.3 | 1.1 | 46 |
| LTD50-8P18 | 500 | 18 | 8.3 | 2.0 | 47 |
| LTD63-8P9 | 600 | 9 | 8.3 | 1.5 | 48 |
| LTD63-8P18 | 600 | 18 | 8.3 | 2.2 | 49 |
| LTD80-9P9 | 800 | 9 | 9.0 | 1.8 | 50 |
| LTD80-9P18 | 800 | 18 | 9.0 | 3.0 | 53 |
| LTD100-10P9 | 1000 | 9 | 10.2 | 2.2 | 51 |
| LTD100-10P18 | 1000 | 18 | 10.2 | 4.0 | 62 |
Compliant with DIN EN1808 requirements, every hoist used for passenger elevation features a safety system on an independent rope. Our solutions are TUV certified and meet all safety requirements for suspended access equipment.

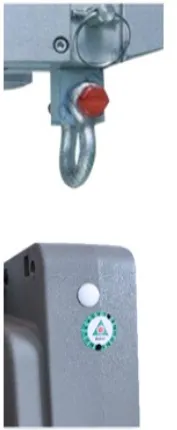

Flexible Attachment Points: Corner attachment points allow for flexible mounting with screws or pins.
Inner Mechanism Overload: Hoist stops rising or only descends if the load exceeds limits.

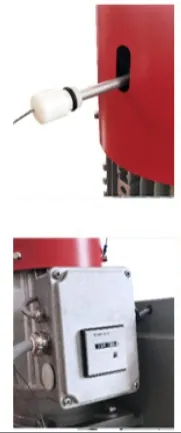

Safety Lowering Mechanism: Manual release for the electro-mechanical brake ensures controlled lowering during power failure.
Counters: Integrated recording of operating hours and number of starts.
Overspeed Safety Fall Arrester (OSL): Automatically trips if lowering speed exceeds 30m/min. Hardened steel jaws stop the rope within centimeters.
Anti-tilting Safety Fall Arrester (LSF): Automatically trips if the platform angle exceeds 5°, immediately stopping movement.
