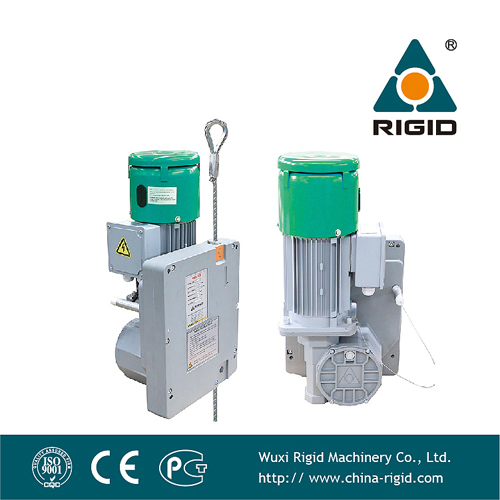

Ltd-P Vertical Wire Rope Construction Hoist

1 / 5

Ltd-P Vertical Wire Rope Construction Hoist

Customization:	Available
Application:	Man-Riding
Type:	Electric Hoist

Send Inquiry

Product Description

Basic Specifications

Model NO.LTD-P

Sling TypeWire Rope

Lift Speed9/18m/Min

Max Lifting HeightCustomer's Request

CertificationCE, TUV

ConditionNew

Voltage380V (415V/220V)

Frequency50Hz/60Hz

Transport PackageCardboard Box

HS Code8425110000

Capacity1000 pieces/Month

LTD-P Vertical Wire Rope Construction Hoist

This series features an endless passenger elevation (man-riding) hoist designed for use with unlimited rope lengths when lifting and lowering personnel. Capacities range from 500kg to 1000kg at speeds of either 9 or 18 m/min.

The LTD-P Series unlimited cable hoist is a versatile solution suitable for various man-riding applications. Its design is compact, lightweight, and easy to handle because the rope is not connected to a drum. This capability allows for unlimited lifting heights and traction lengths.

Key Features & Benefits

⚙️ Robust die-cast aluminium housing ensures low dead-weight and outstanding rigidity.

🛠️ Gearing and drive sheave fabricated from high-grade hardened steel.

🛡️ Motor protection rated to IP55 as standard.

⚡ Standard operating voltage: 380V, 3ph, 50Hz (Customizable).

✅ Certified by independent inspection institute (TUV).

🌡️ Synthetic special oil ensures efficiency in temperatures from -40°C to 70°C.

🔗 Universal attachment via 16mm load pin or two M10 screws.

📉 Surface hardness of approximately 70 HRC on drive components for low wear.

Main Technical Parameters

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9.0	1.8	50
LTD80-9P18	800	18	9.0	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety Systems for Passenger Elevation

In accordance with DIN EN1808, every passenger hoist must feature a safety system on an independent rope. We provide two approved safety fall arresters.

OSL Overspeed Arrester: Automatically trips when lowering speed exceeds 30m/min.

LSF Anti-tilting Arrester: Automatically trips when the platform angle exceeds 5°.

Dimensional Specifications

Frequently Asked Questions (FAQ)

Q1: What is the maximum lifting capacity of the LTD-P series? A: The LTD-P series offers capacities ranging from 500kg up to 1000kg depending on the specific model selected.

Q2: Can this hoist be used for carrying people? A: Yes, it is specifically designed as a man-riding (passenger elevation) hoist and complies with the DIN EN 1808 safety standards.

Q3: How does the hoist handle power failures? A: It is equipped with an electric-mechanical brake that can be manually released to ensure a safe and controlled lowering of the load.

Q4: Are the voltage and frequency customizable? A: While the standard is 380V/50Hz, other operating voltages and frequencies are available upon customer request.

Q5: What safety arresters are compatible with this hoist? A: It can be fitted with OSL overspeed safety arresters or LSF anti-tilting safety arresters to meet passenger safety requirements.

Q6: What is the benefit of the "endless" rope design? A: The endless design allows for unlimited lifting heights and traction lengths since the wire rope is not limited by a drum capacity.
