Ltd-P Vertical Wire Rope Man-Riding Hoist

Customization:	Available
Voltage:	380V(415V/220V)
Frequency:	50Hz/60Hz

Send Inquiry

Product Description

Basic Specifications

Model NO.LTD-P

CertificateTUV Ce

ConditionNew

Transport PackageCardboard Box

HS Code8425110000

Capacity1000pieces/Month

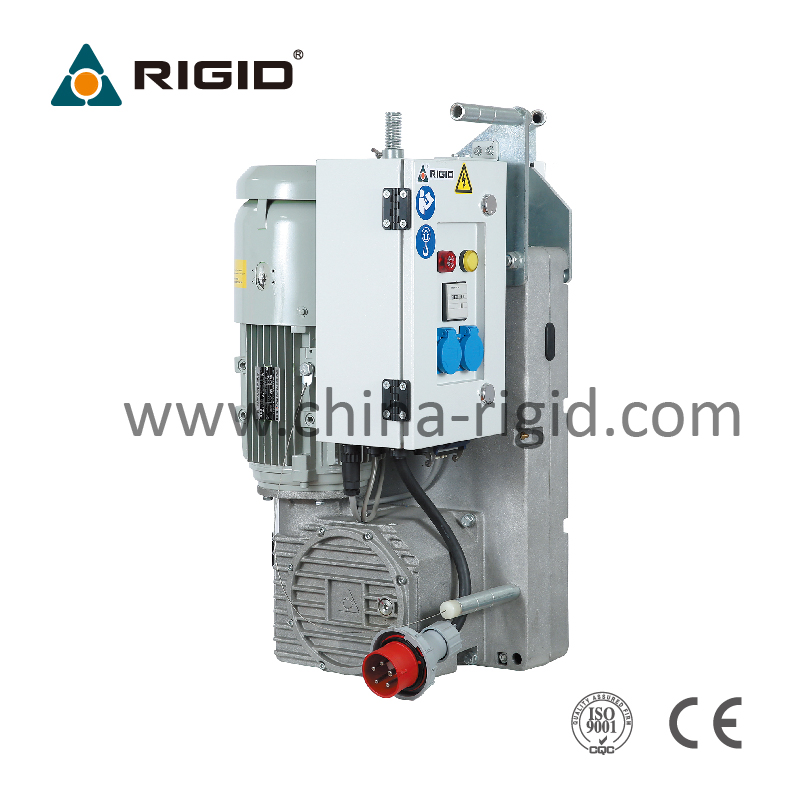

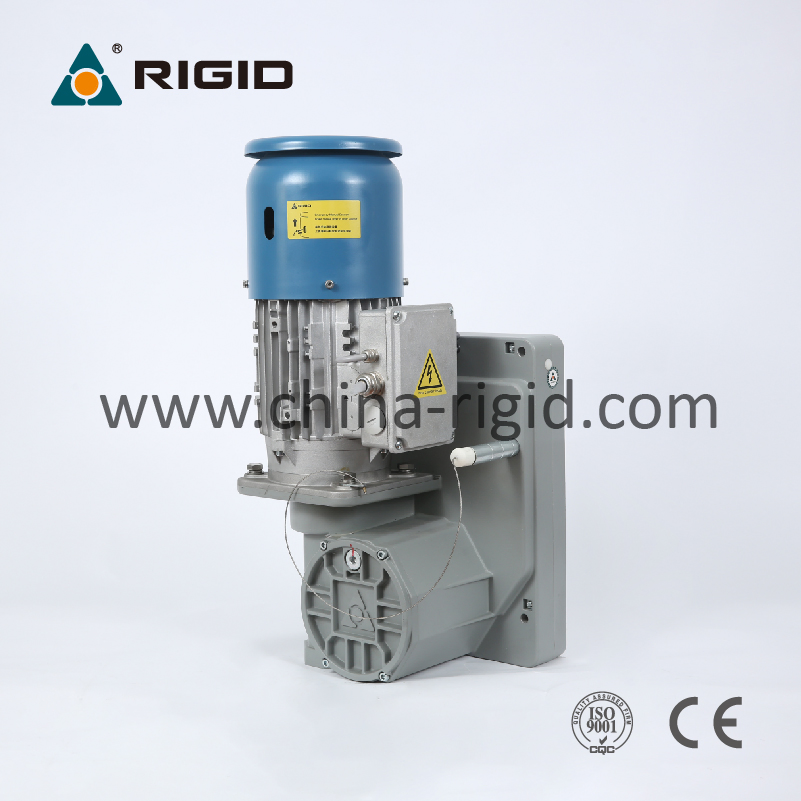

LTD-P Vertical Wire Rope Man-Riding Hoist

Endless passenger elevation (man-riding) hoist designed for use with unlimited rope lengths. Capacities range from 500kg to 1000kg at either 9 or 18 m/min.

The LTD-P Series unlimited cable (wire rope) passenger lifting hoist is a versatile solution suitable for unlimited applications. The rope is not connected, making it compact, lightweight, and easy to handle. The unrestricted wire rope capability allows for unlimited lifting heights and traction lengths.

Key Features & Benefits

Robust, precisely machined housing of die-cast aluminium for low dead-weight.
Gearing and drive sheave fabricated from hardened steel.
Universal attachment via central 16mm load pin or two M10 screws.
Motor protection: IP55 as standard.
Standard operating voltage: 380V, 3ph, 50Hz (customizable).
Thermal overload protection device fitted as standard.
Drive sheave and pressure rollers made of nitrided steel (70 HRC) for low wear.
Fully-synthetic special oil ensures efficiency in -40°C to 70°C ranges.

Main Parameters of LTD Series Hoist

Model	Capacity (kg)	Lifting Speed (m/min)	Rope Diameter (mm)	Motor (kW)	Weight (kg)
LTD50-8P9	500	9	8.3	1.1	46
LTD50-8P18	500	18	8.3	2.0	47
LTD63-8P9	600	9	8.3	1.5	48
LTD63-8P18	600	18	8.3	2.2	49
LTD80-9P9	800	9	9	1.8	50
LTD80-9P18	800	18	9	3.0	53
LTD100-10P9	1000	9	10.2	2.2	51
LTD100-10P18	1000	18	10.2	4.0	62

*Voltage and frequency are available upon request.

Safety for Passenger Elevation

In accordance with DIN EN1808, each hoist used for passenger elevation must feature a safety system on an independent safety rope. We offer two safety fall arresters approved for passenger elevation.

Overspeed (OSL)

Automatically trips when the lowering speed exceeds 30m/min.

Anti-tilting (LSF)

Trips automatically when the angle of the rope or platform exceeds 5°.

Dimensional Specifications

Frequently Asked Questions

What is the weight capacity of the LTD-P series?

The capacity ranges from 500kg for the LTD50 models up to 1000kg for the LTD100 models, suitable for various passenger lifting requirements.

Does this hoist meet international safety standards?

Yes, the hoist is TUV CE certified and complies with standard DIN EN 1808 for safety requirements on suspended access equipment.

Can the hoist be used for unlimited lifting heights?

Absolutely. The LTD-P series uses an endless wire rope system, which means the rope length is unrestricted, allowing for unlimited height and traction.

What safety mechanisms are included in case of power failure?

It features an electric-mechanical brake that can be released manually to ensure safe and controlled lowering of the personnel or load if power is lost.

What is the environmental durability of the hoist?

The motor is protected to IP55 standards, and the special fully-synthetic oil used ensures high efficiency in extreme temperatures ranging from -40°C to 70°C.

Are there options for different voltages?

The standard operating voltage is 380V/3ph/50Hz, but other operating voltages and frequencies are available upon request.
