| Model NO. | Portable Gantry Crane |
|---|---|
| Certification | CE, ISO9001 |
| Maximum Lifting Weight | 10 Ton |
| Maximum Lifting Height | 2-30m / Customized |
| Span | 2-32m Customizable |
| Operation Form | Remote Control |
| Main Girder Form | Single/Double Girder |
| Lifting Mechanism | Hoist |
| Working Temperature | -25~+40℃ |
| Application | Material Handling, Mining, Repairing Shops, etc. |
| Power Supply | 380V 50Hz Three-Phase AC |
| Transport Package | Wooden Case |
| HS Code | 8426193000 |

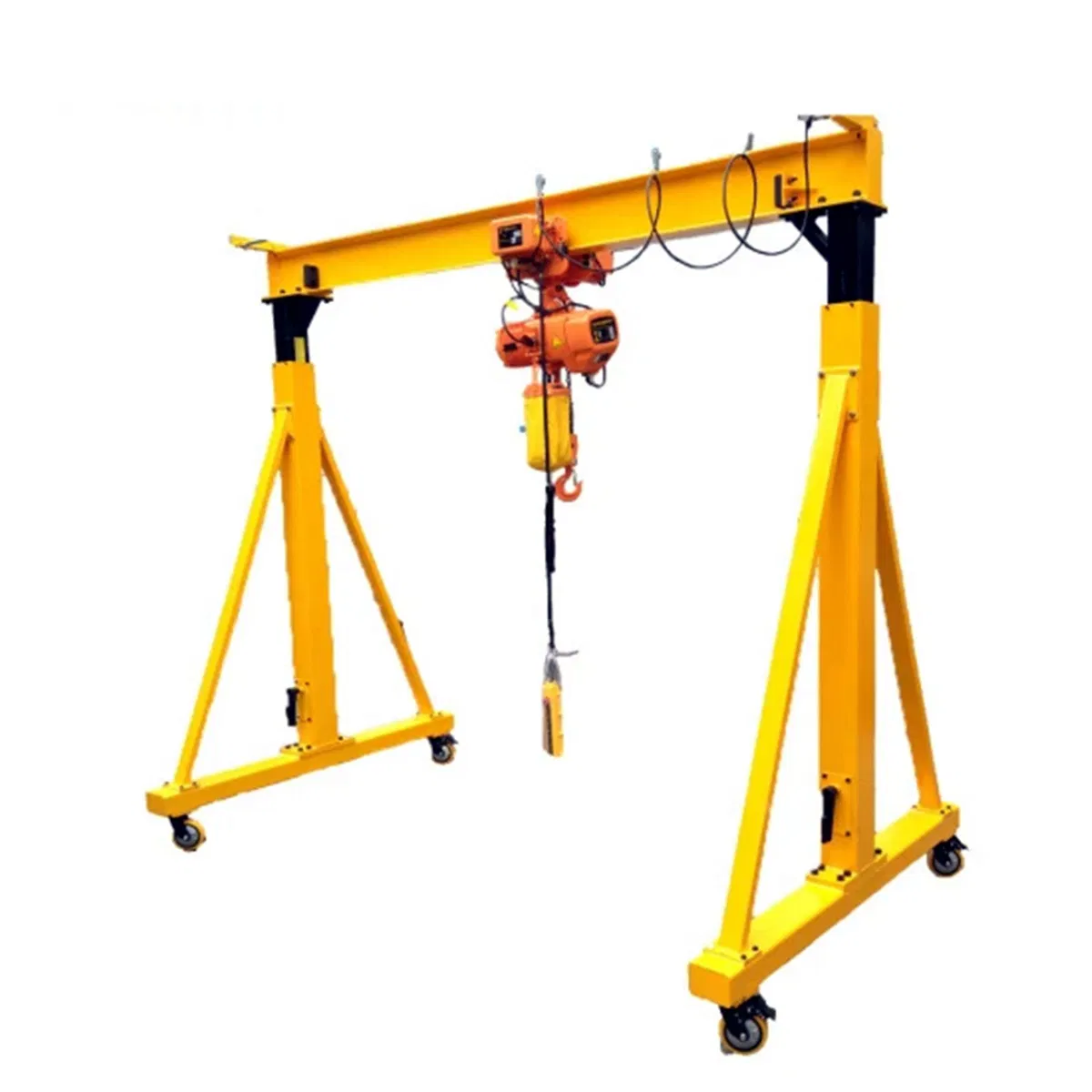

Portable gantry cranes provide a practical, cost-effective, and flexible lifting solution for material handling needs. With their easy disassembly and transportability, they are ideal for companies that require a versatile crane that can be moved and reassembled at different locations without hassle.

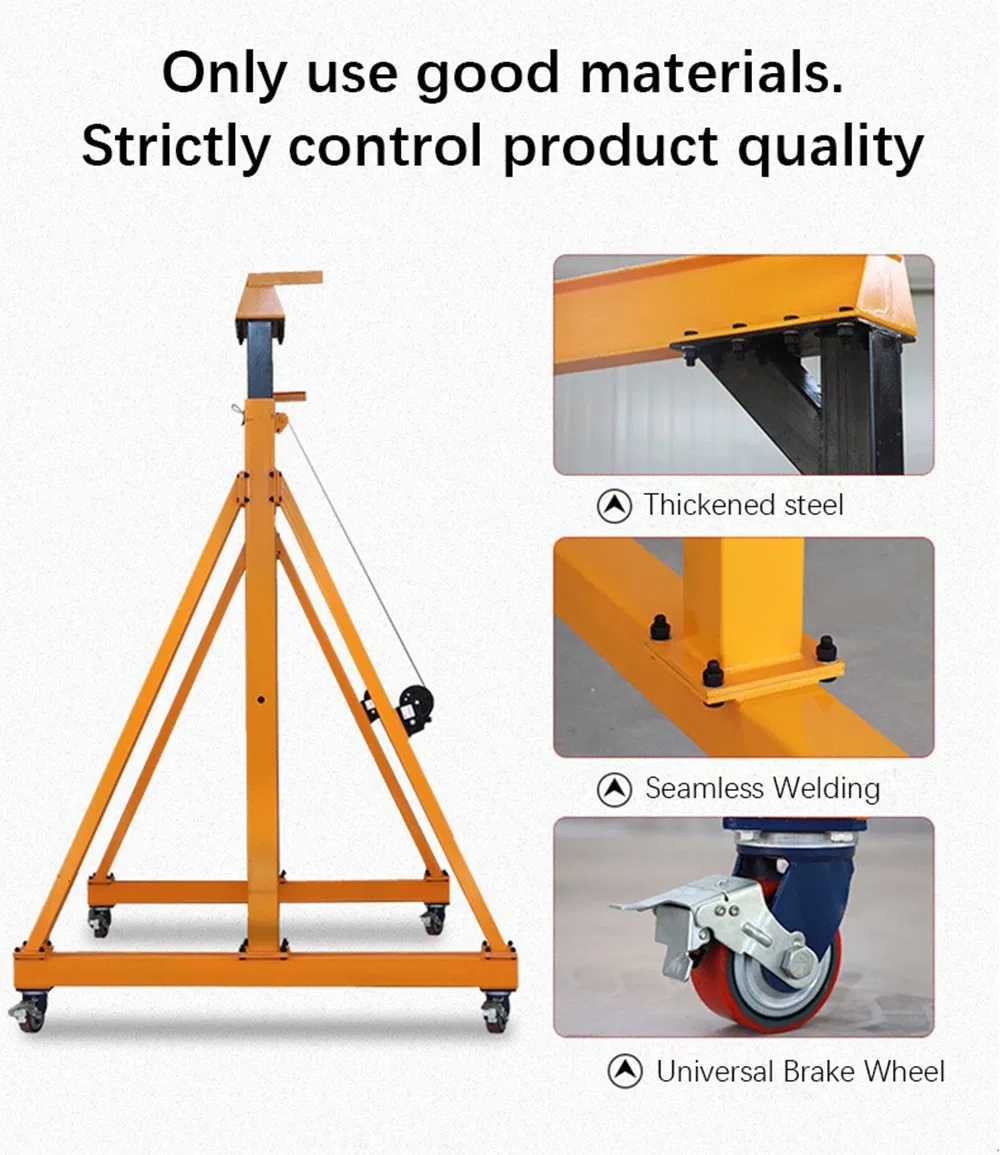

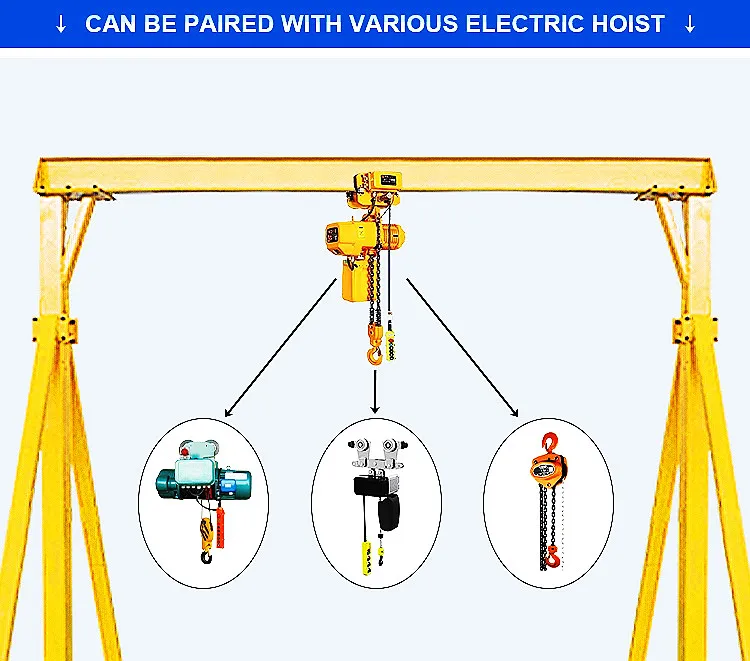

Cranes are manufactured through precision engineering processes involving welding, machining, and assembly. High-quality steel ensures structural integrity and durability. These mobile systems support both manual and electric hoists for versatile lifting.
| NO. | Parameters | Range |
|---|---|---|
| 1 | Lifting Capacity | 0.5 - 100 tons / Customized |
| 2 | Span | 2-32m / Customized |
| 3 | Lift Height | 2-30m / Customized |
| 4 | Lifting Mechanism | Hoist trolley |
| 5 | Working Temperature | -20 ~ 50 ºC |
| 6 | Lifting Speed | 3~8 m/min or Variable frequency |
| 7 | Power Supply | AC 3Phase (220V-440V) |
| 8 | Control Method | Push button or Wireless remote |

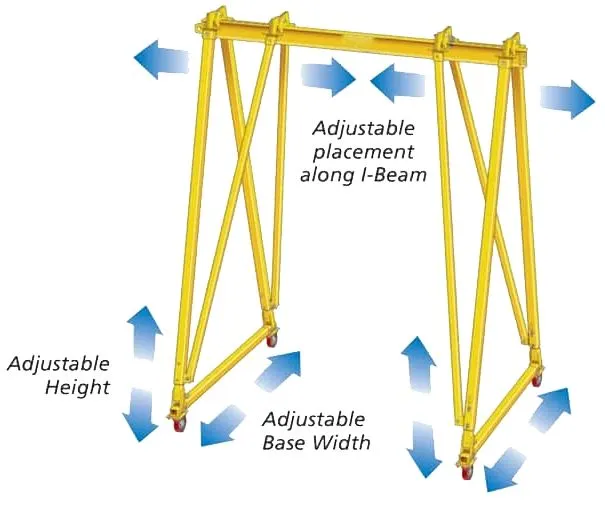

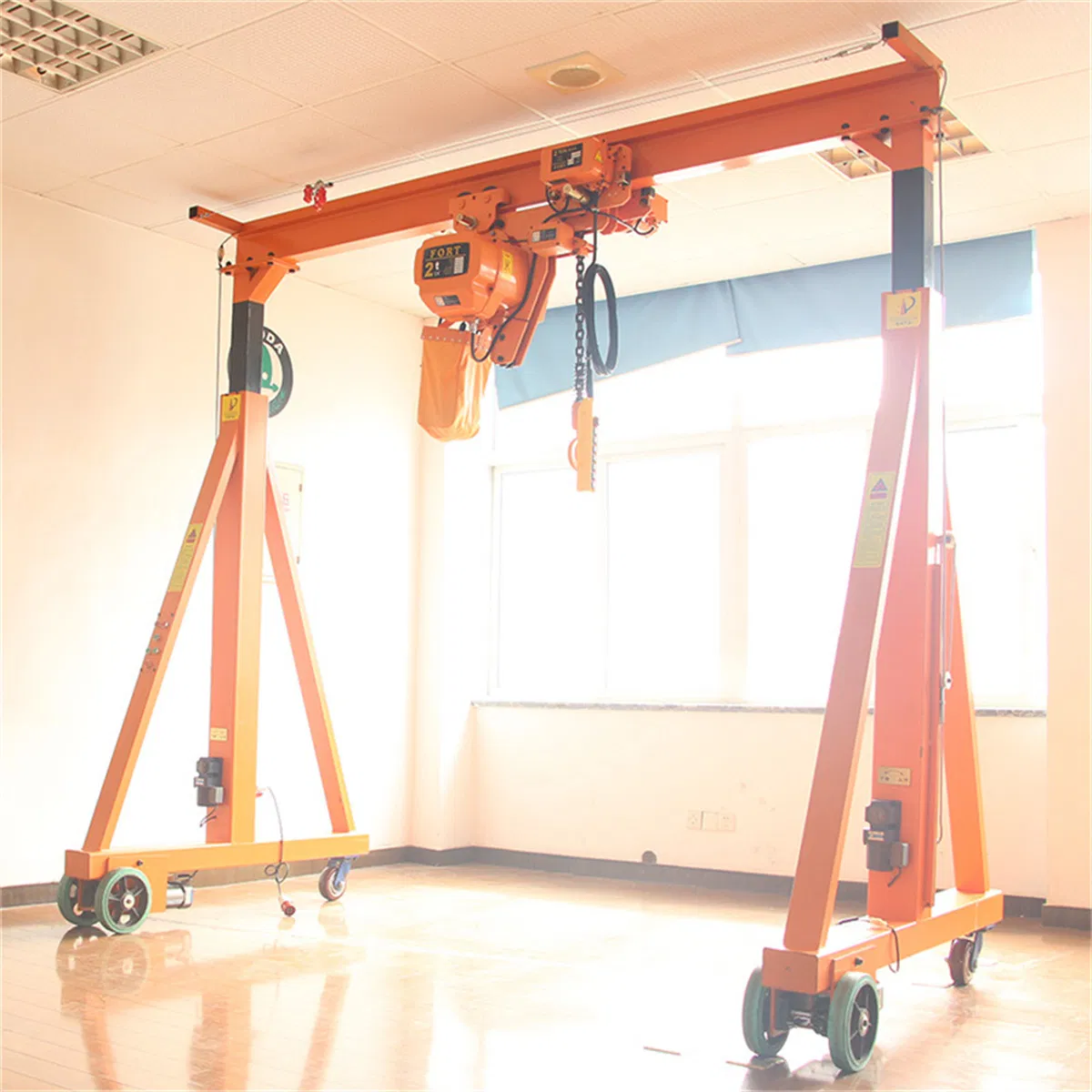

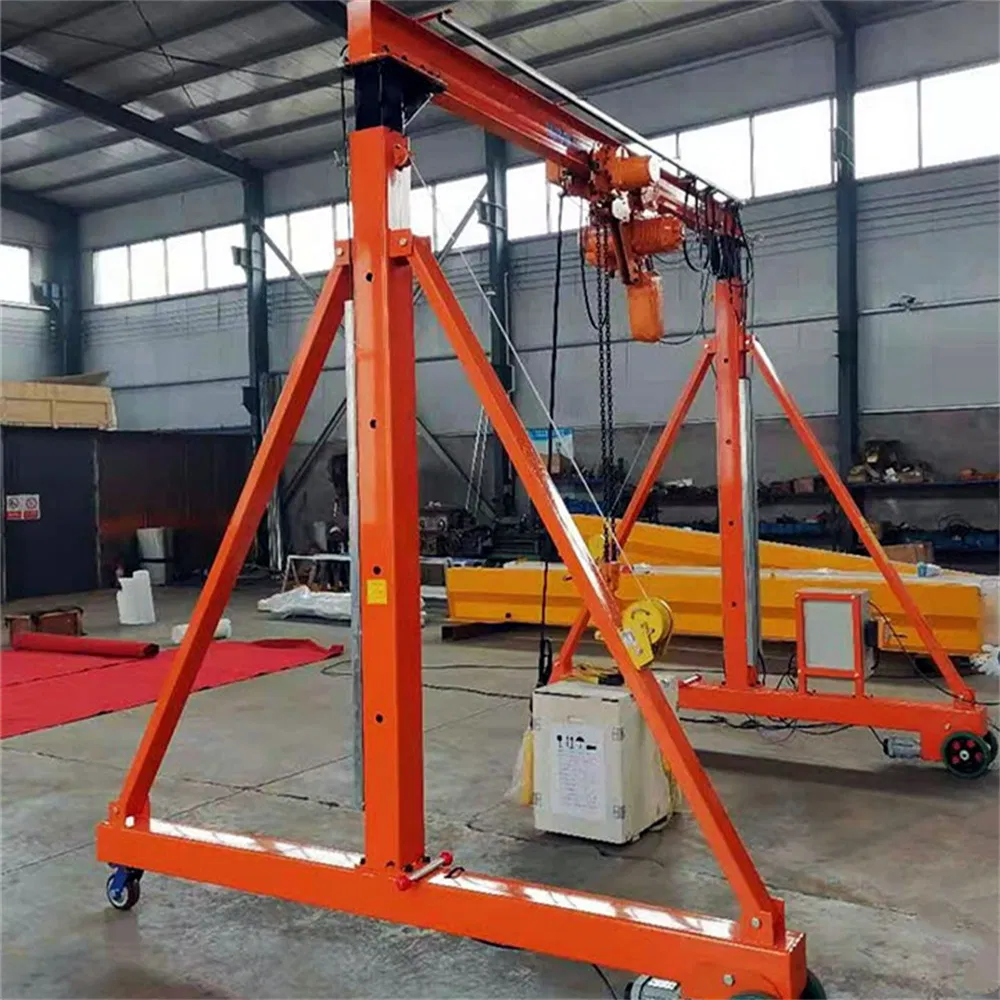

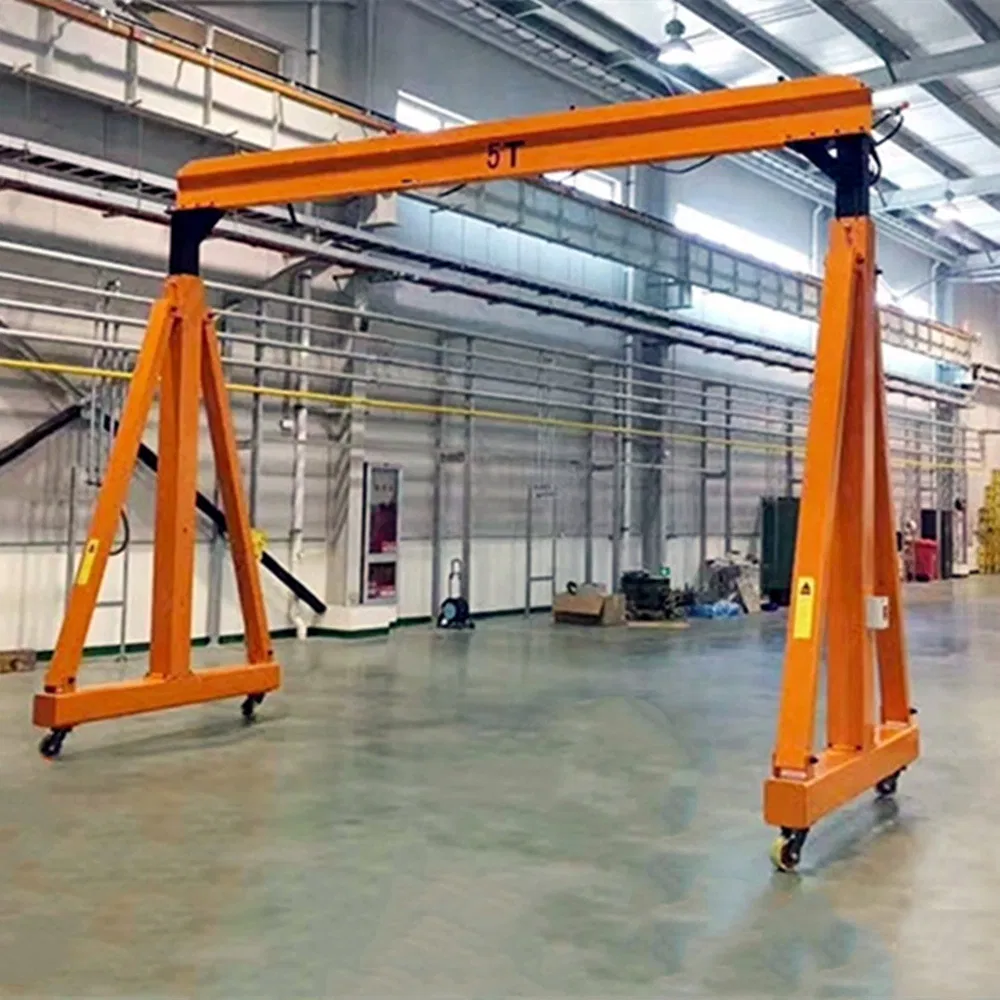

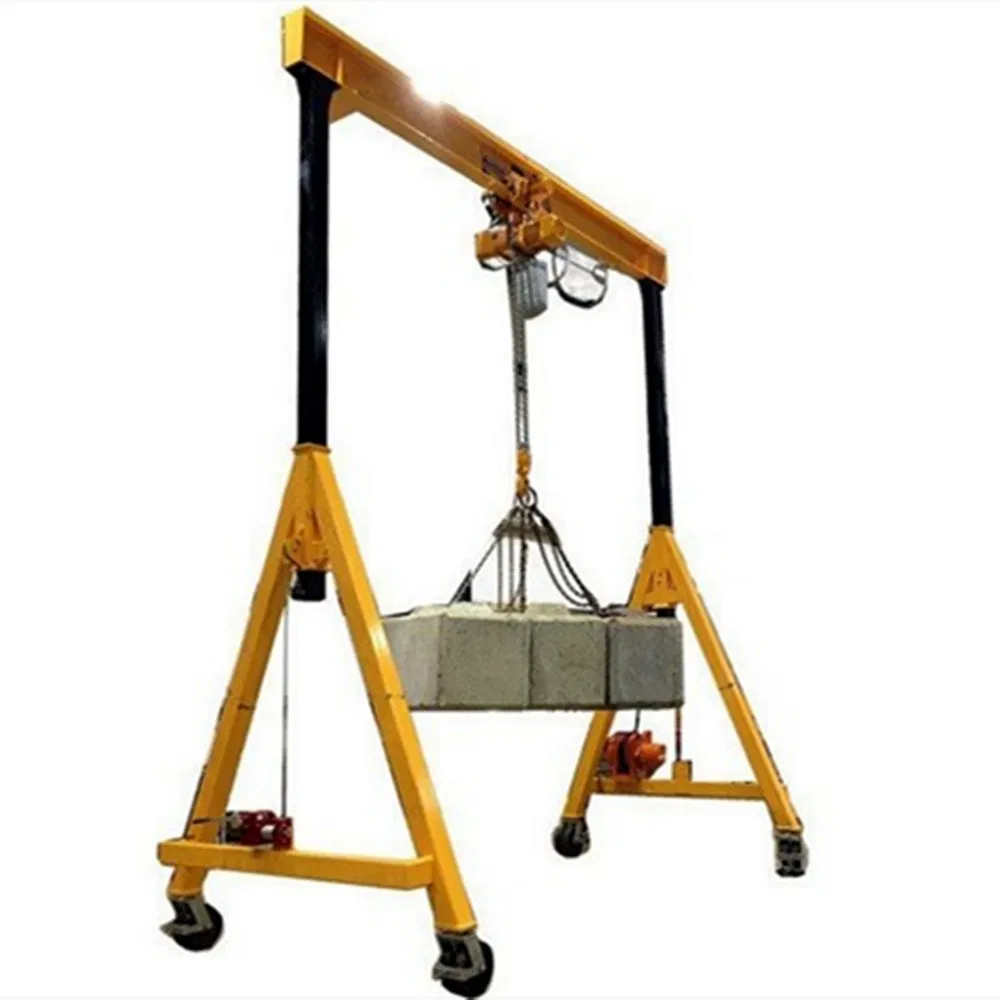

The portable gantry crane is built for maximum versatility, featuring an adjustable frame and strong load-bearing capability. Its smooth-rolling casters allow for effortless movement across workspaces, while its robust structure ensures stability and safety during lifting operations.
The maximum standard lifting weight is 10 tons, but we provide customized solutions ranging from 0.5 to 100 tons depending on your specific requirements.
Yes, both the lifting height (standard 2-30m) and the span (standard 2-32m) are fully customizable to fit your workshop or outdoor site dimensions.
We offer both ground handle control (push button) and wireless remote control for safe and efficient operation from a distance.
Yes, it is designed to work in temperatures ranging from -25°C to +40°C, making it suitable for both indoor workshops and outdoor material handling sites.

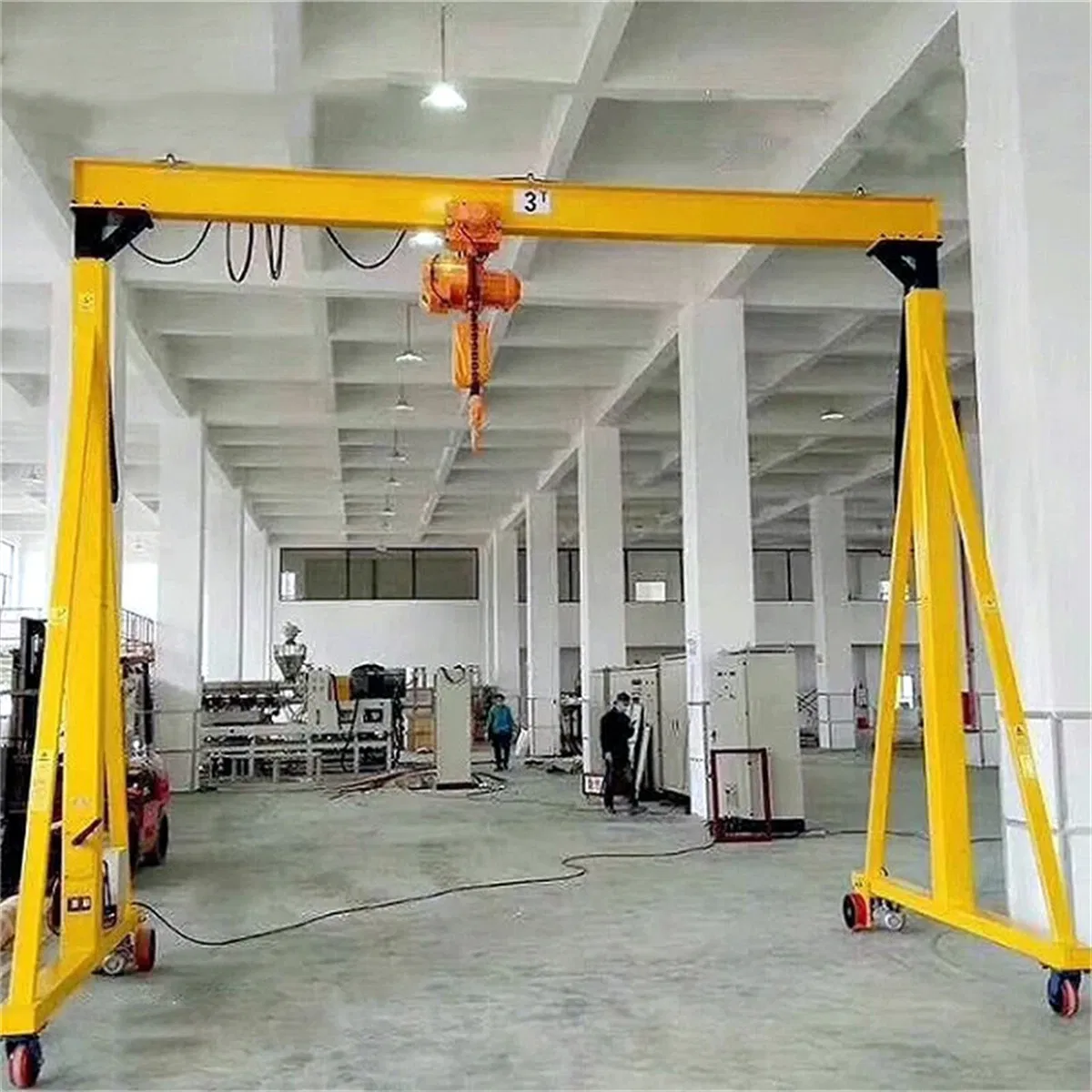

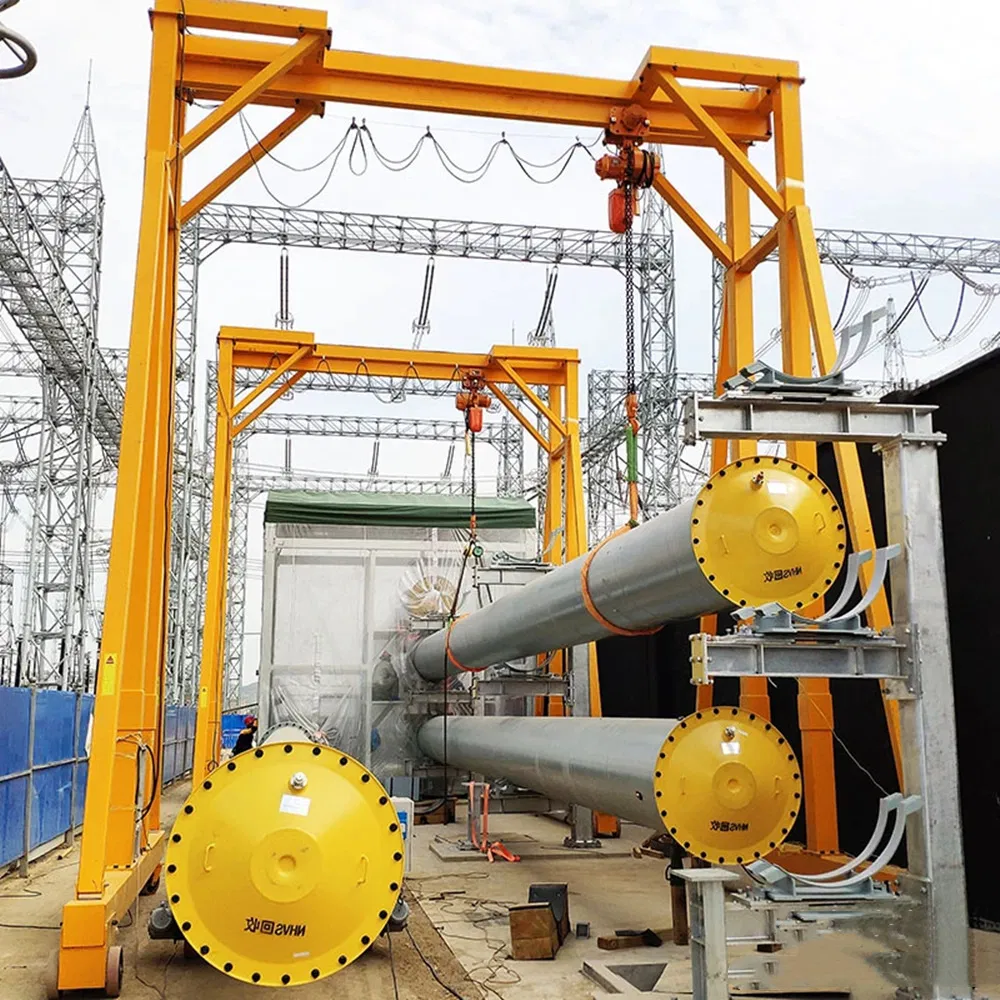

They are widely used in manufacturing, warehousing, construction, vehicle maintenance, power plants, and mining due to their mobility and strength.
The standard power supply is 380V 50Hz Three-Phase AC, but we can adapt the power configuration (220V to 440V, 50/60Hz) based on local industrial standards.
