Welding Line Used 1-200kg Crane Scale Hand Tools Heavy Lifting Spring Balancer

1 / 5

Welding Line Used 1-200kg Crane Scale Hand Tools Heavy Lifting Spring Balancer

Customization:	Available
After-sales Service:	One Year
Warranty:	12 Months

Send Inquiry

Product Description

📋

Basic Information

Model NO.:XW-0.5, XW1-3, XW70-80, XW140-160

Accuracy:0.1kg

Weighing:30-300kg

Display Type:Mechanical Hand

Material:Carbon Steel

Application:Industrial Scales

Product Name:Suspension Spring Balancer

Cable Length:1.5m

Certificate:CE

HS Code:84251100

🔍

Product Description

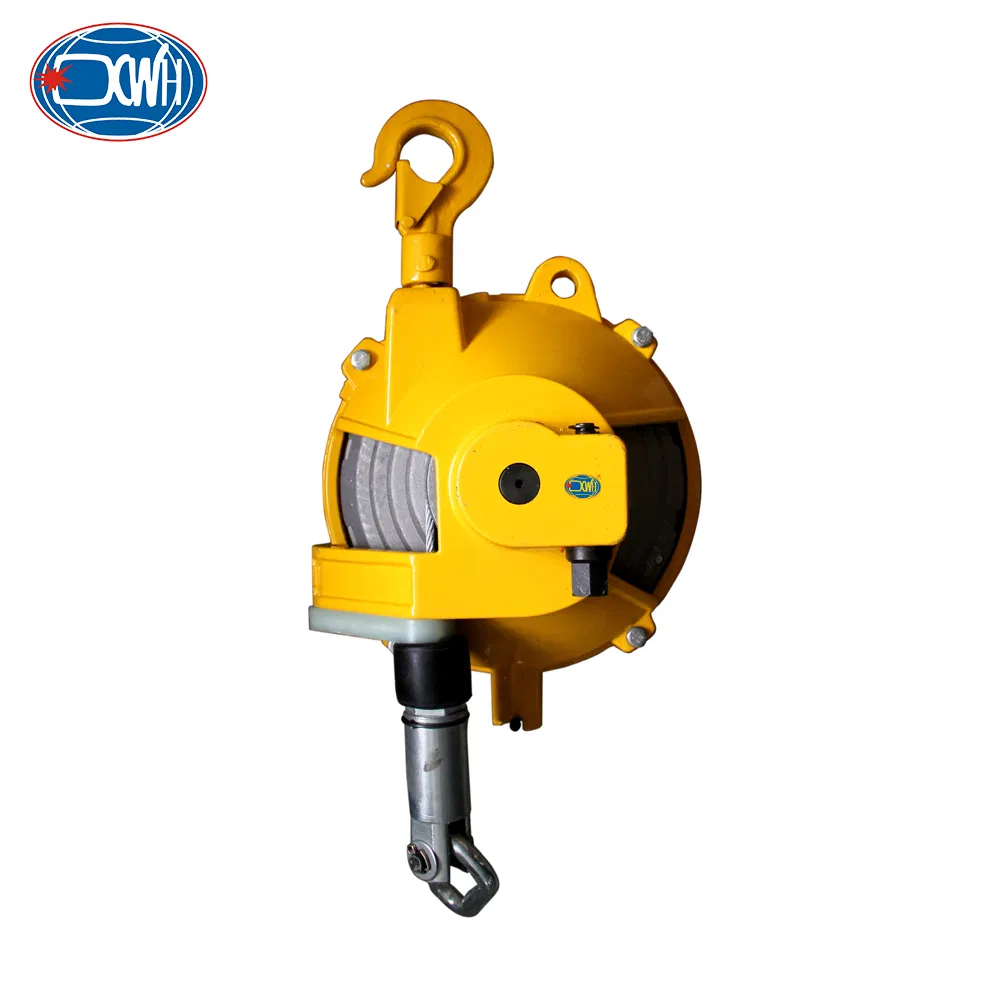

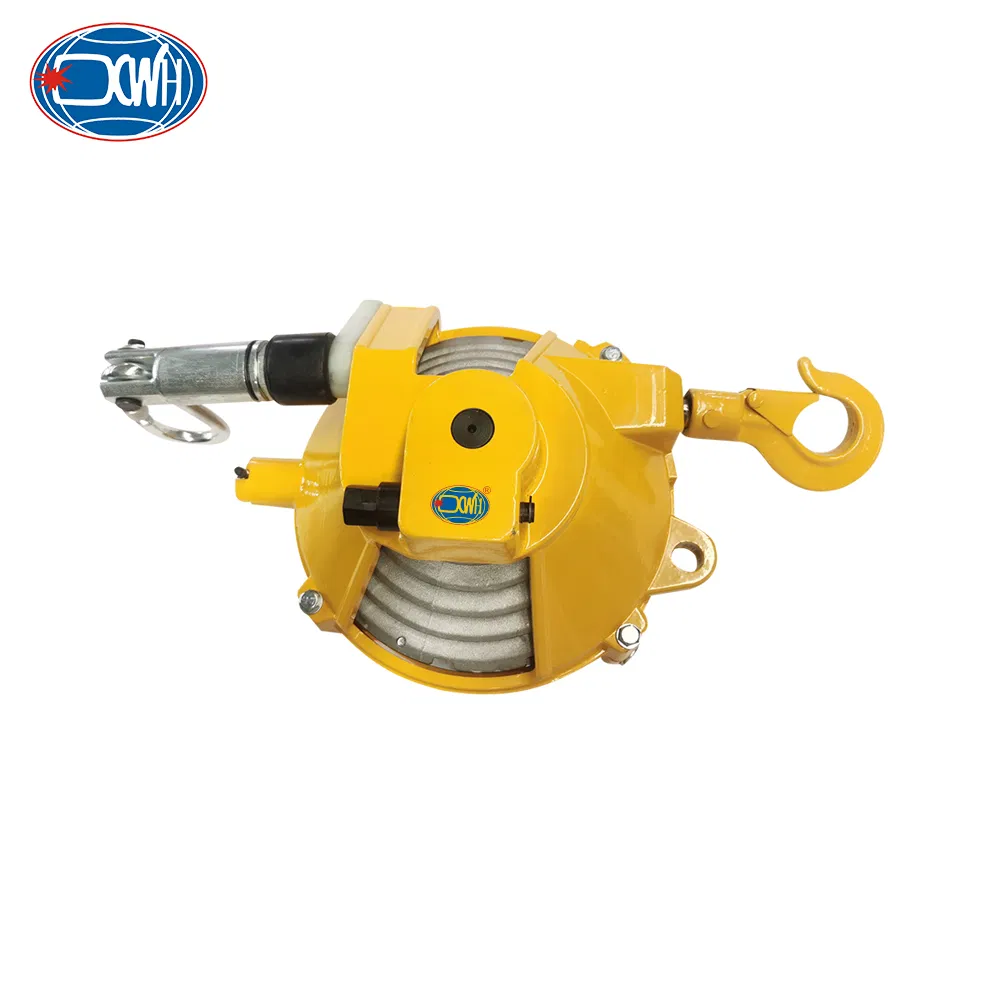

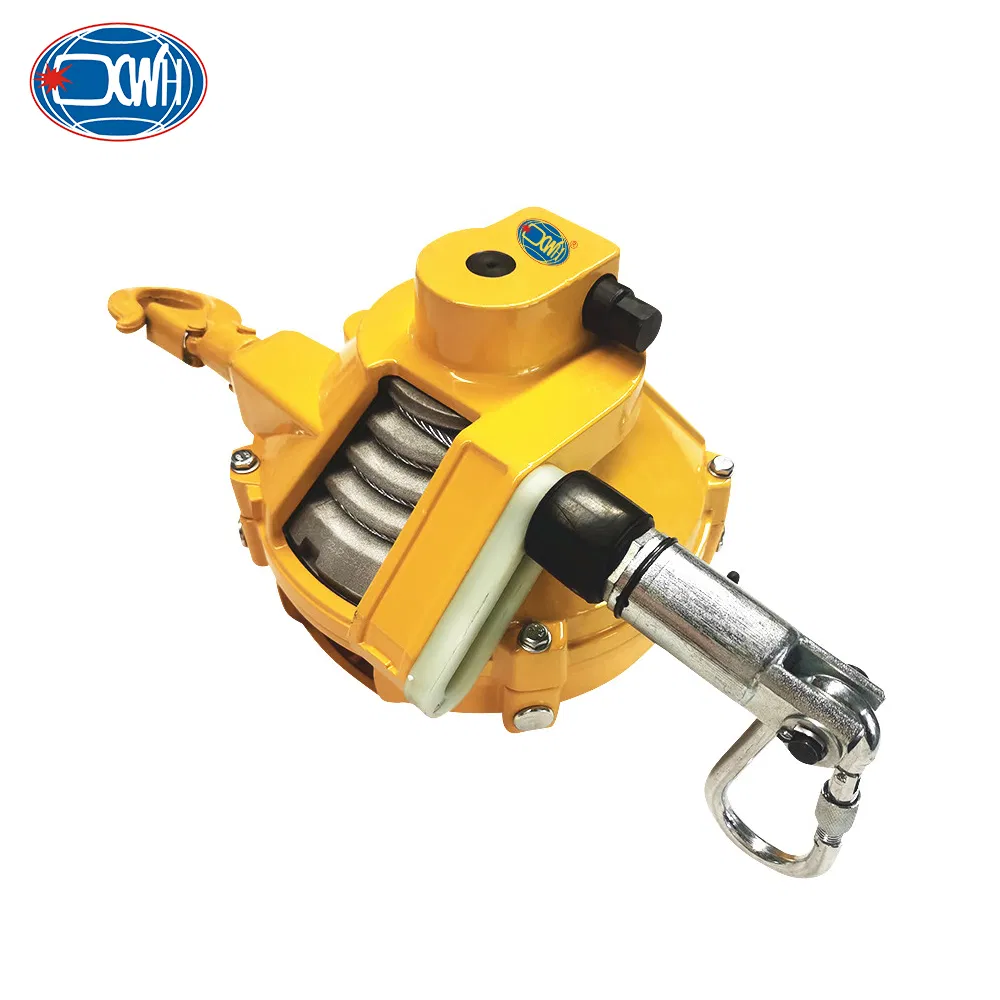

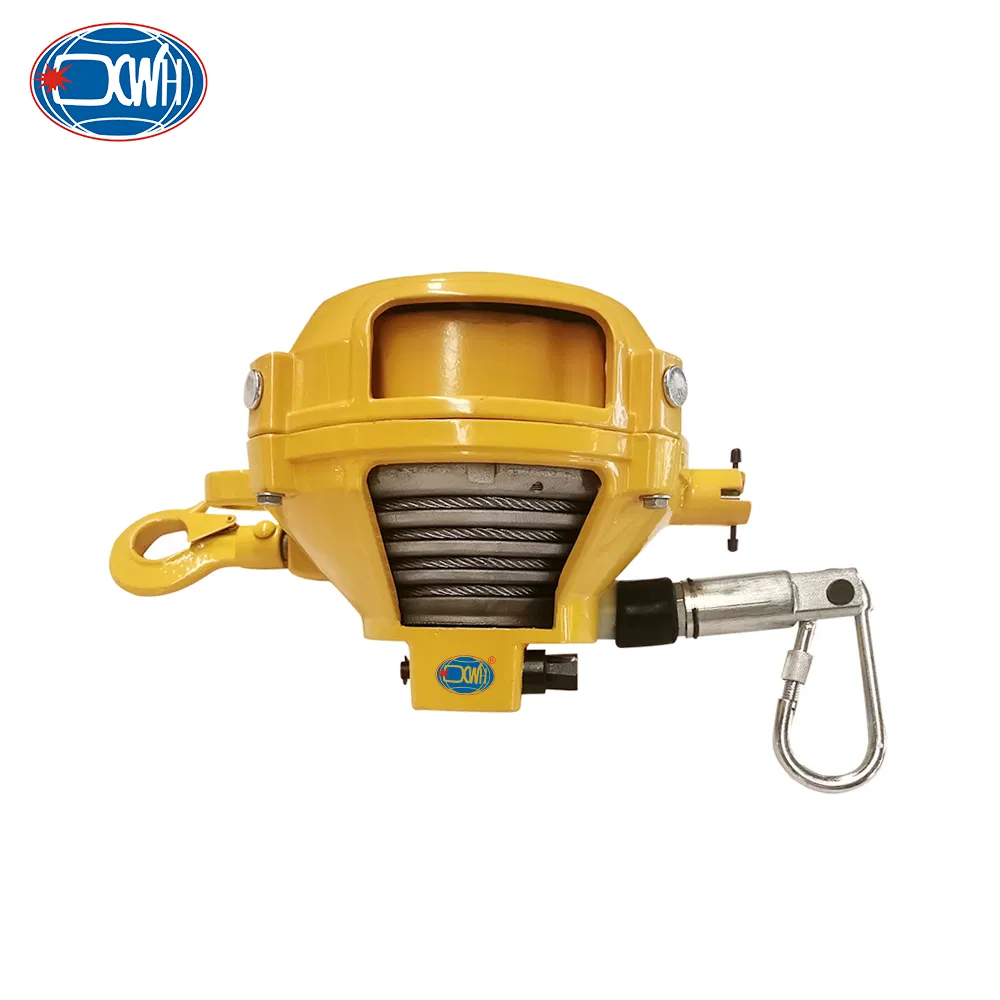

Crane Scale Hand Tools Heavy Lifting Spring Balancer

One of the leading welding equipment manufacturers, specialized in manufacturing and providing a complete set of welding solutions. With an R&D team of more than 20 engineers and an 18,000 sq.m factory, we guarantee professional welding advice and after-sales service. Technical service teams are available in many regions to provide on-site installation and maintenance.

Spring balancers are auxiliary tools used with operational tools. They make operational tools weightless and significantly reduce the labor intensity of operators, thereby increasing labor productivity. These are extensively used in automobile manufacturing, tractor production, and machine making.

📊

Product Parameters

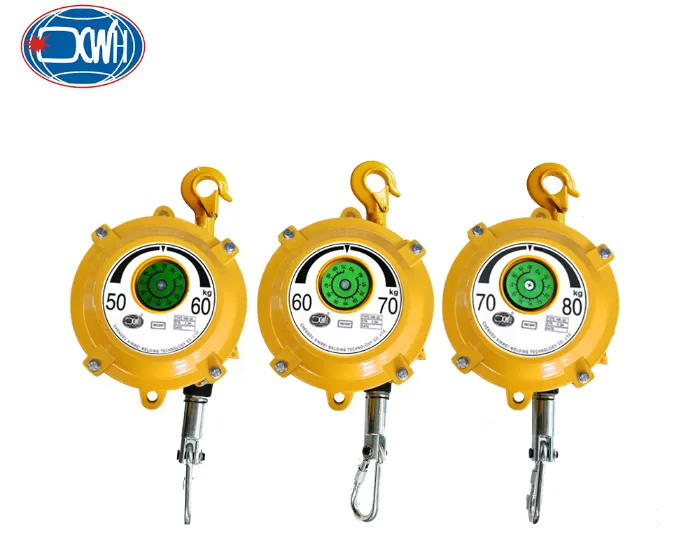

Models	Loading Capacity (Kg)	Stroke (m)	Rope Dia. (mm)	Weight (kg)
XW-0.5	0.5-1.5	1.0	3.0	0.5
XW1-3	1.5-3.0	1.3	3.0	1.9
XW3-5	3.0-5.0	1.3	3.0	2.1
XW5-9	5.0-9.0	1.5	3.0	3.5
XW9-15	9.0-15.0	1.5	4.0	3.8
XW15-22	15.0-22.0	1.5	4.76	7.3
XW22-30	22.0-30.0	1.5	4.76	7.7
XW30-40	30.0-40.0	1.5	4.76	9.7
XW40-50	40.0-50.0	1.5	4.76	10.1
XW50-60	50.0-60.0	1.5	4.76	11.1
XW60-70	60.0-70.0	1.5	4.76	11.4
XW70-80	70.0-80.0	1.5	4.76	22.0
XW80-100	80.0-100.0	1.5	4.76	24.0
XW100-120	100.0-120.0	1.5	4.76	28.0
XW120-140	120.0-140.0	1.5	6.0	24.1
XW140-160	140.0-160.0	1.5	6.0	28.7

🛠️

Installation Instructions

Select a balancer of appropriate specifications based on the weight of the tools and accessories.

When hanging the balancer, be sure to connect the safety rope properly.

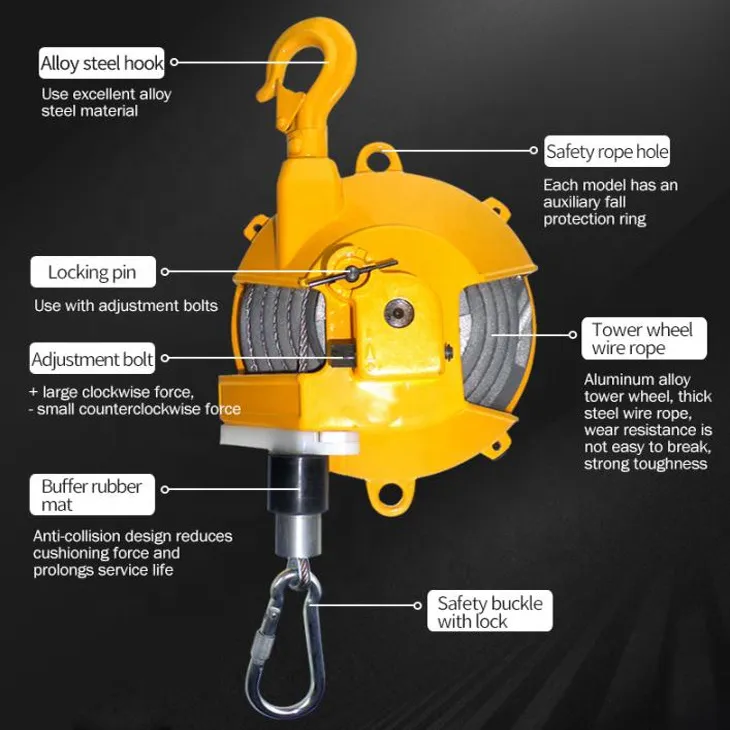

Adjust the main adjusting worm to ensure the balance weight matches the tool used. Clockwise increases weight.

When removing tools, pull out the stop pin pull rod, turn clockwise by 30°, and lock the tower wheel to prevent injury.

Do not empty the balancer without a tool attached to avoid wire rope damage.

When moving horizontally beyond 30°, return to vertical before loosening to avoid rope jamming.

The load should always be suspended vertically.

📸

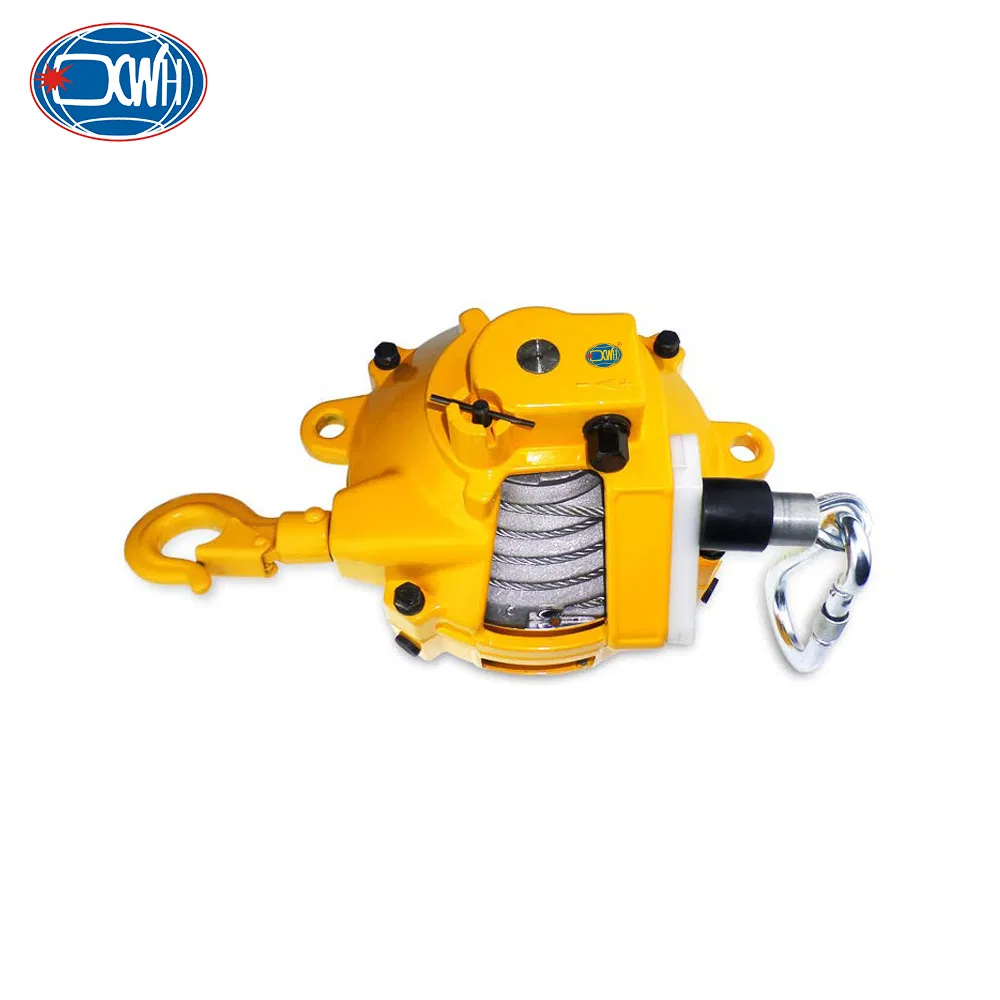

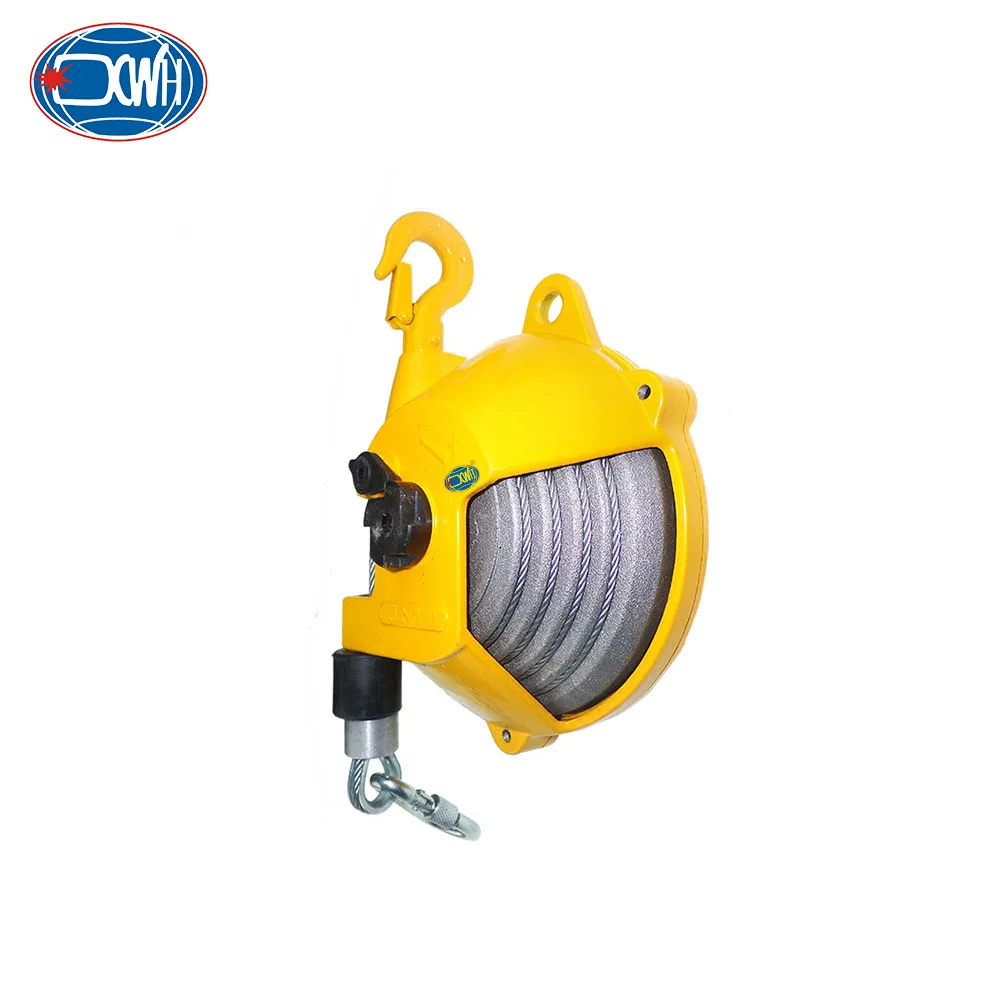

Detailed Photos

Winning by quality, precision to thrive; Dedicated, so Professional.

📦

Packaging & Shipping

❓

Frequently Asked Questions

What is the primary function of a spring balancer?

Spring balancers are auxiliary tools designed to make operational tools weightless, which significantly reduces the labor intensity for operators and increases overall productivity.

In which industries are these balancers typically used?

They are extensively used in automobile manufacturing, tractor production, machine making, and other industrial weighing applications.

How do I adjust the balance weight of the tool?

You can adjust the main adjusting worm on the balancer. Turning it clockwise increases the balance weight, while turning it counter-clockwise decreases it to match the tool's weight.

What safety measures should be taken when removing a tool?

Before removing a tool, you must pull out the stop pin pull rod, turn it clockwise by 30°, and lock the tower wheel to prevent the hook from retracting suddenly and causing injury.

What materials are the balancers made of?

The balancers are constructed using high-quality Carbon Steel for durability and industrial-grade performance.

What is the maximum weight capacity available?

Depending on the specific model (from XW-0.5 to XW140-160), the loading capacity ranges from 0.5kg up to 160kg, with some industrial configurations supporting up to 300kg.
