📍 Basic Information
Certification
ISO 9001, GS, CE
Color
White / Multi-color
Capacity
100,000 PCS/Month
📦 Product Description

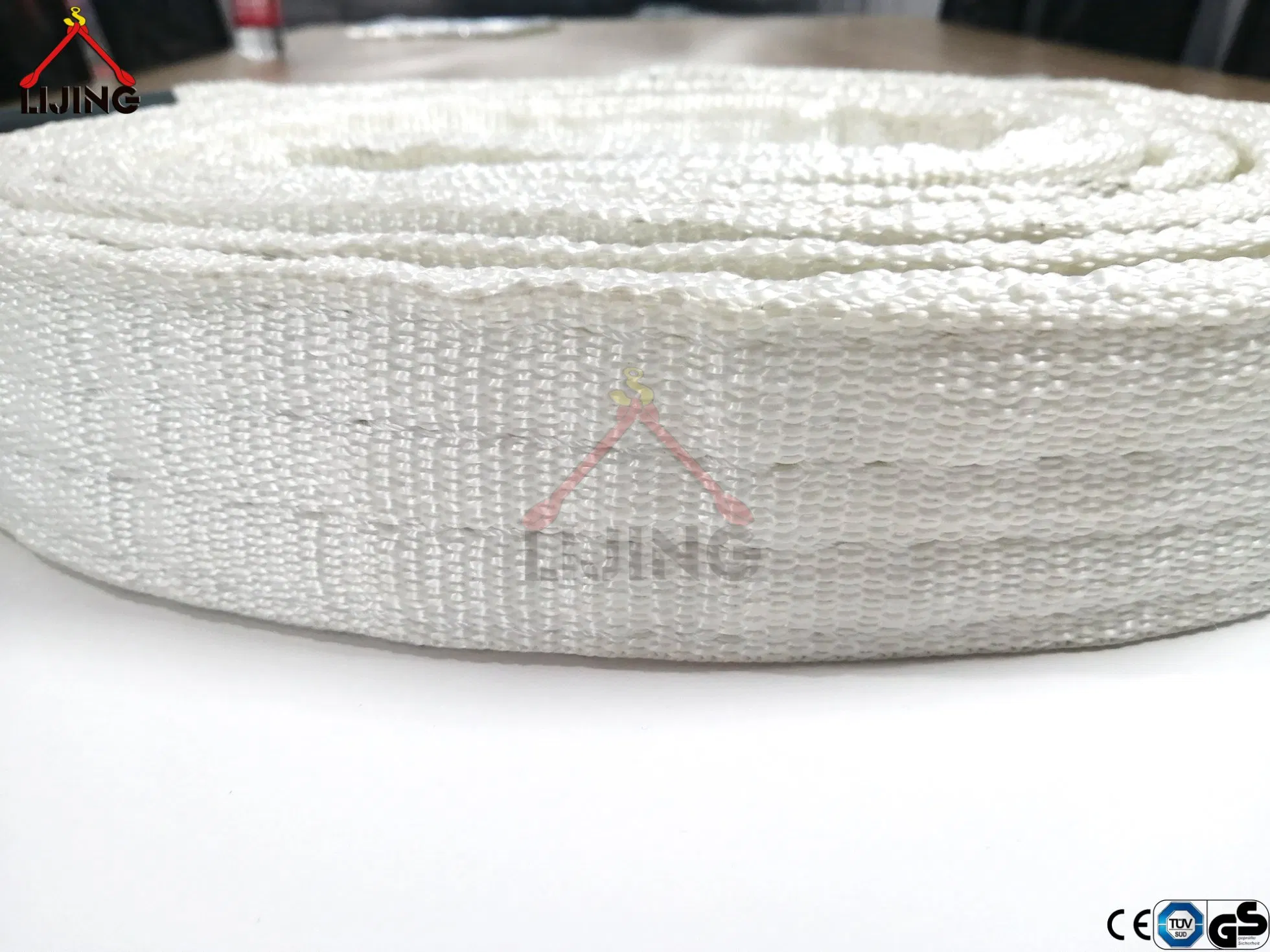

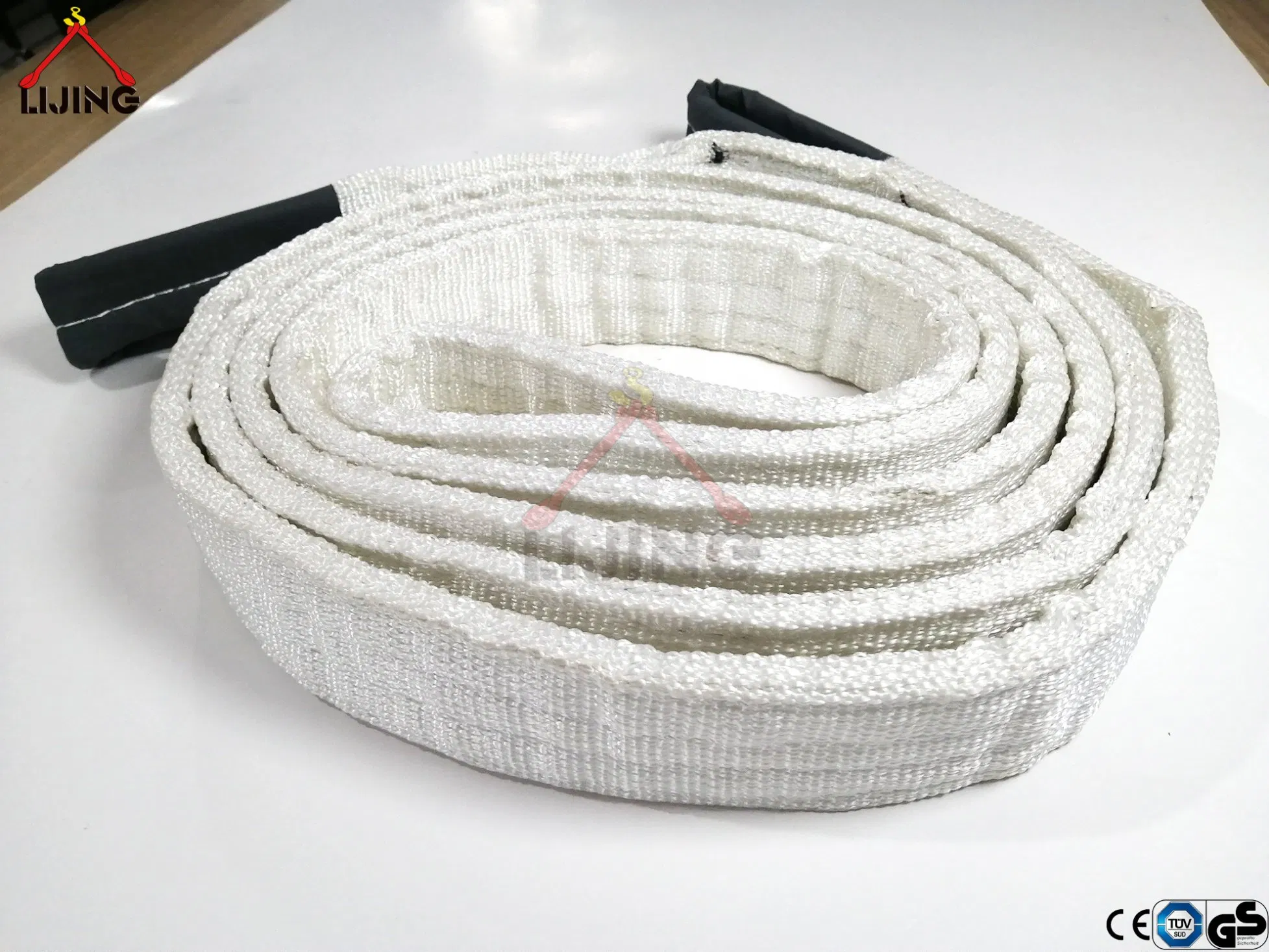

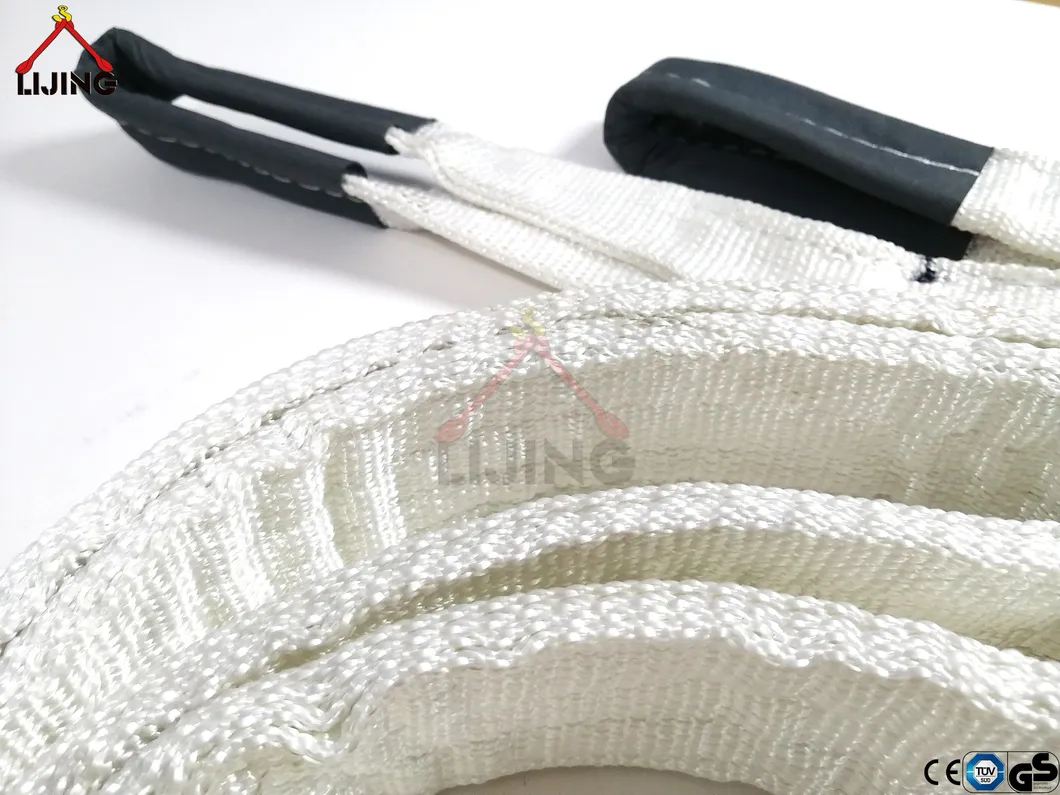

The Flat eye and eye webbing slings are crafted from high-tenacity 100% polyester webbing, featuring two reinforced eye loops at each end for maximum durability. Depending on the construction requirements, we provide simplex, duplex, triplex, and quadruplex webbing slings. Our lifting belts follow the international color code for quick and easy load-bearing capacity identification.
✔
High Abrasion Resistance
✔
Corrosion & Mould Resistance
✔
Lightweight & Easy to Use
✔
TUV, GS, CE Approved

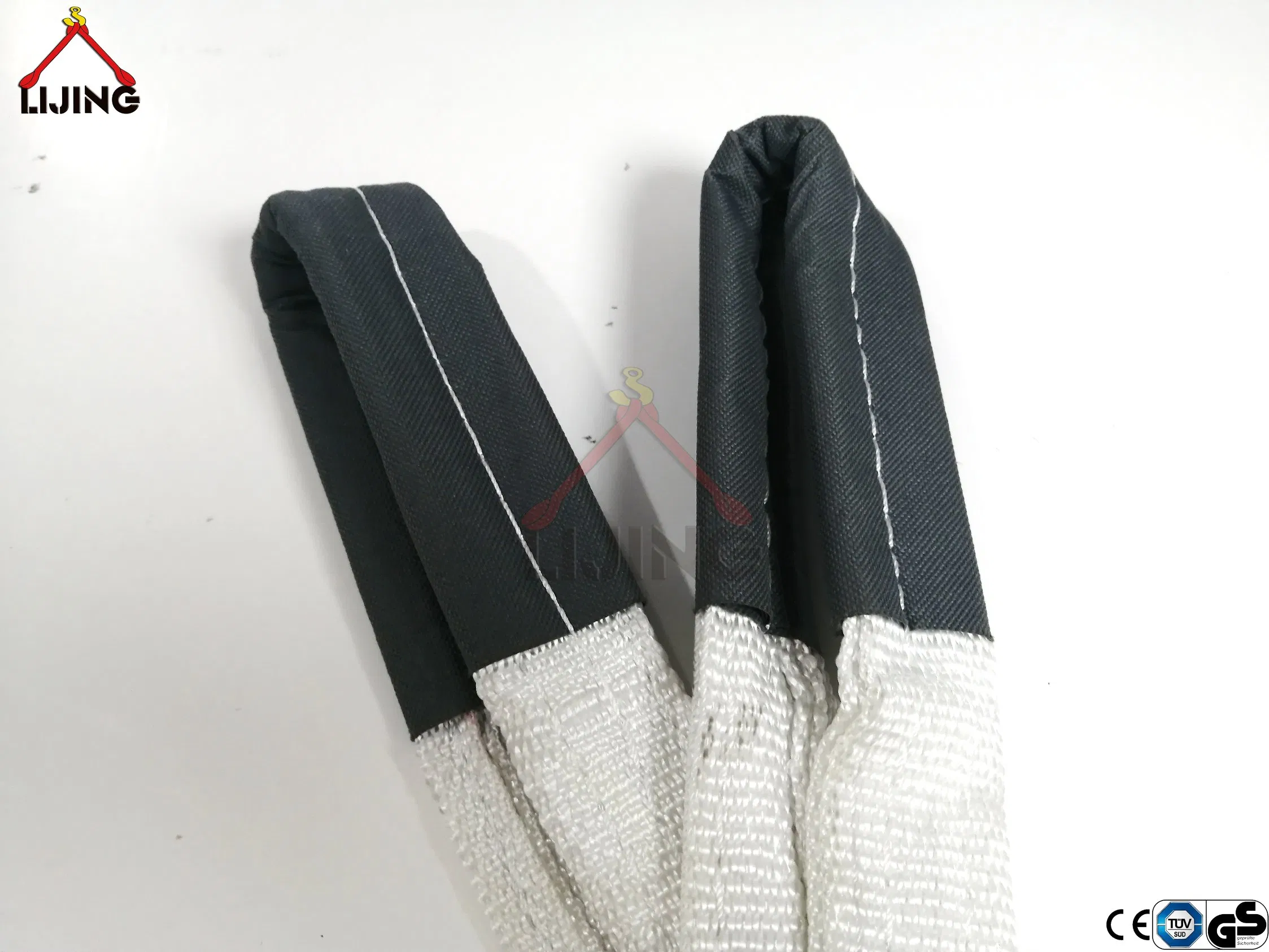

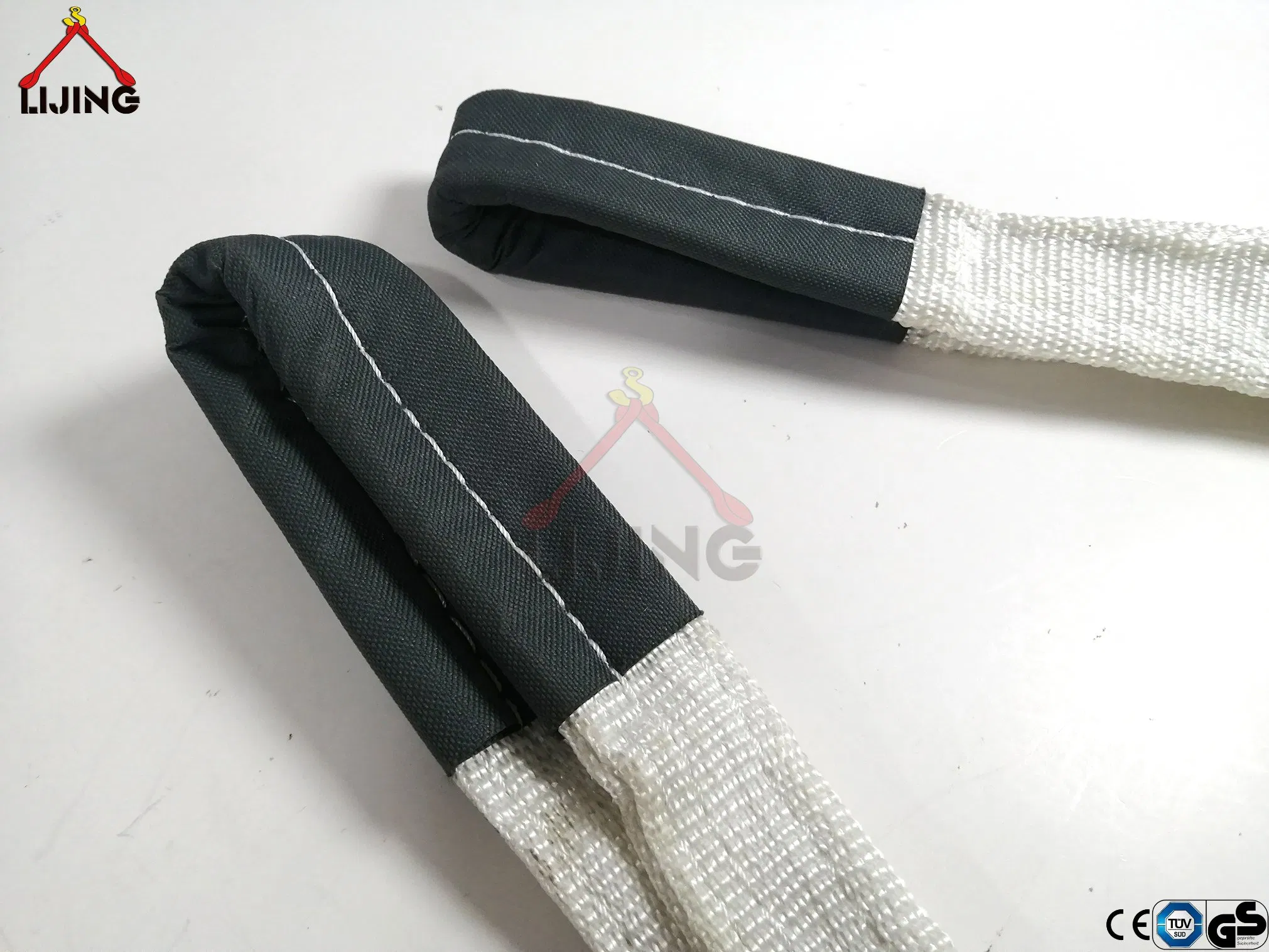

These polyester lifting webbing slings are widely utilized in engineering, marine, port, dock, steel installment, and various industrial fields. We offer full flexibility to customize capacities, lengths, and configurations based on your specific lifting applications. Protective sleeves are also available to enhance the longevity of the slings.

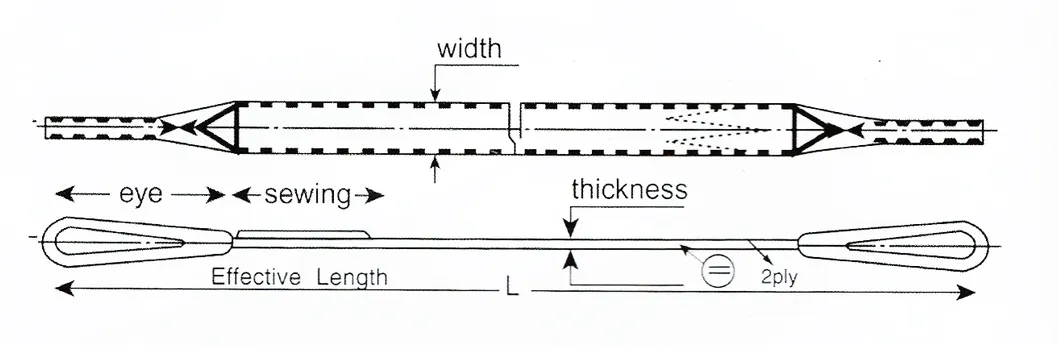

📊 Technical Specifications (Duplex DEE)
| Article No. |
Color |
WLL (kg) |
Width (mm) by Safety Factor |
| 5:1 |
6:1 |
7:1 |
| WS-DEE010 | Violet | 1000 | 25 | 25 | 30/50 |
| WS-DEE020 | Green | 2000 | 50 | 50 | 60 |
| WS-DEE030 | Yellow | 3000 | 75 | 75 | 90 |
| WS-DEE040 | Grey | 4000 | 100 | 100 | 120 |
| WS-DEE050 | Red | 5000 | 125 | 125 | 150 |
| WS-DEE060 | Brown | 6000 | 150 | 150 | 180 |
| WS-DEE080 | Blue | 8000 | 200 | 200 | 240 |
| WS-DEE100 | Orange | 10000 | 250 | 250 | 300 |

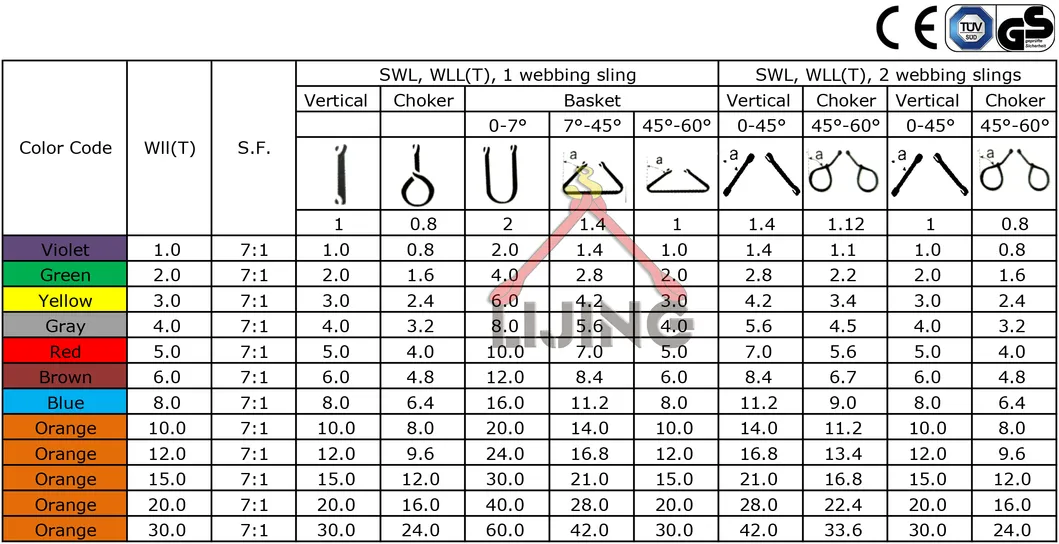

🔄 Lifting Methods & Hitches
Eye to eye webbing slings are versatile and can carry loads in three primary hitches: vertical, choker, and basket. All products conform to BS EN1492-1:2000 and the 'Machinery Directive 2006/42/EC'.

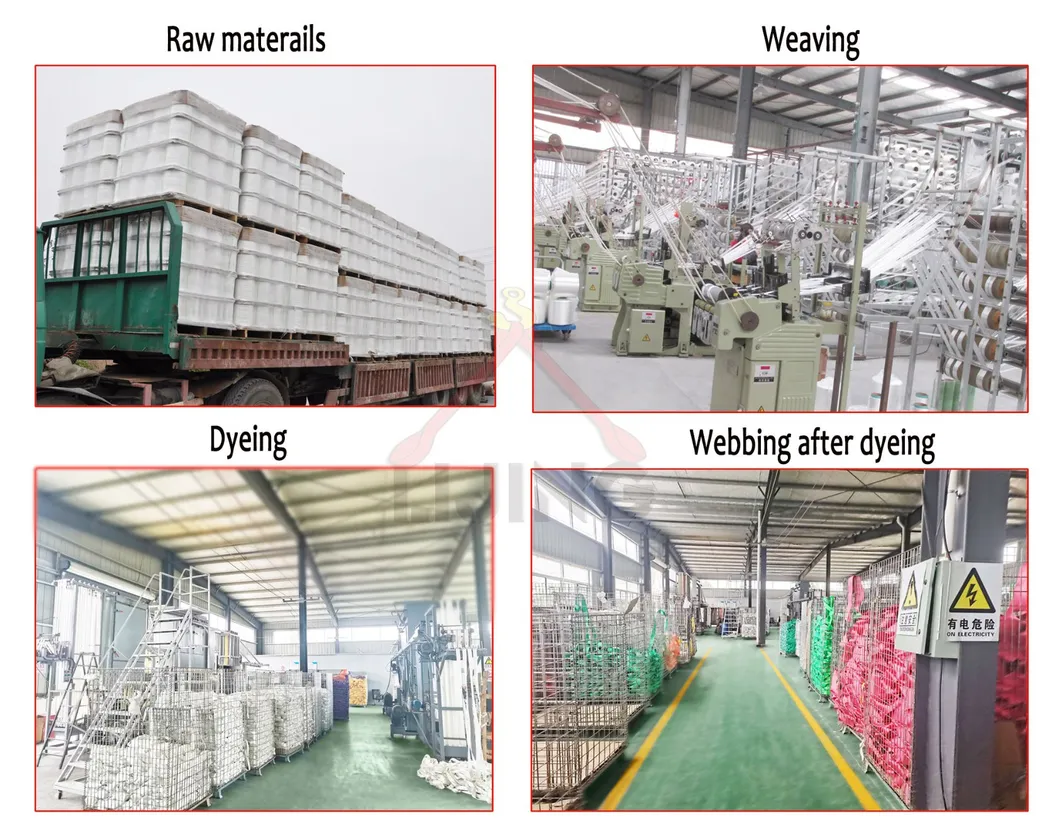

🏭 Factory Overview
❓ Frequently Asked Questions
Q1: What material are the webbing slings made of?
Our flat eye-to-eye webbing slings are made from 100% high-tenacity polyester, ensuring strength and durability.
Q2: What is the safety factor (SF) of these slings?
The standard safety factor is 7:1, though we also provide specifications for 5:1 and 6:1 depending on your requirements.
Q3: Do these products meet international safety standards?
Yes, they are manufactured in accordance with BS EN1492-1:2000 and are TUV, GS, and CE approved.
Q4: Can I request customized lengths and widths?
Absolutely. We offer flexibility in customizing lifting capacities, lengths, and configurations to match your specific lifting applications.
Q5: How do I identify the load capacity of a sling?
The slings follow the international color code (e.g., Violet for 1000kg, Green for 2000kg) for quick and safe identification.
Q6: In what environments can these slings be used?
They are ideal for engineering, marine, port, dock, and steel installment due to their high resistance to corrosion, mould, and abrasion.
