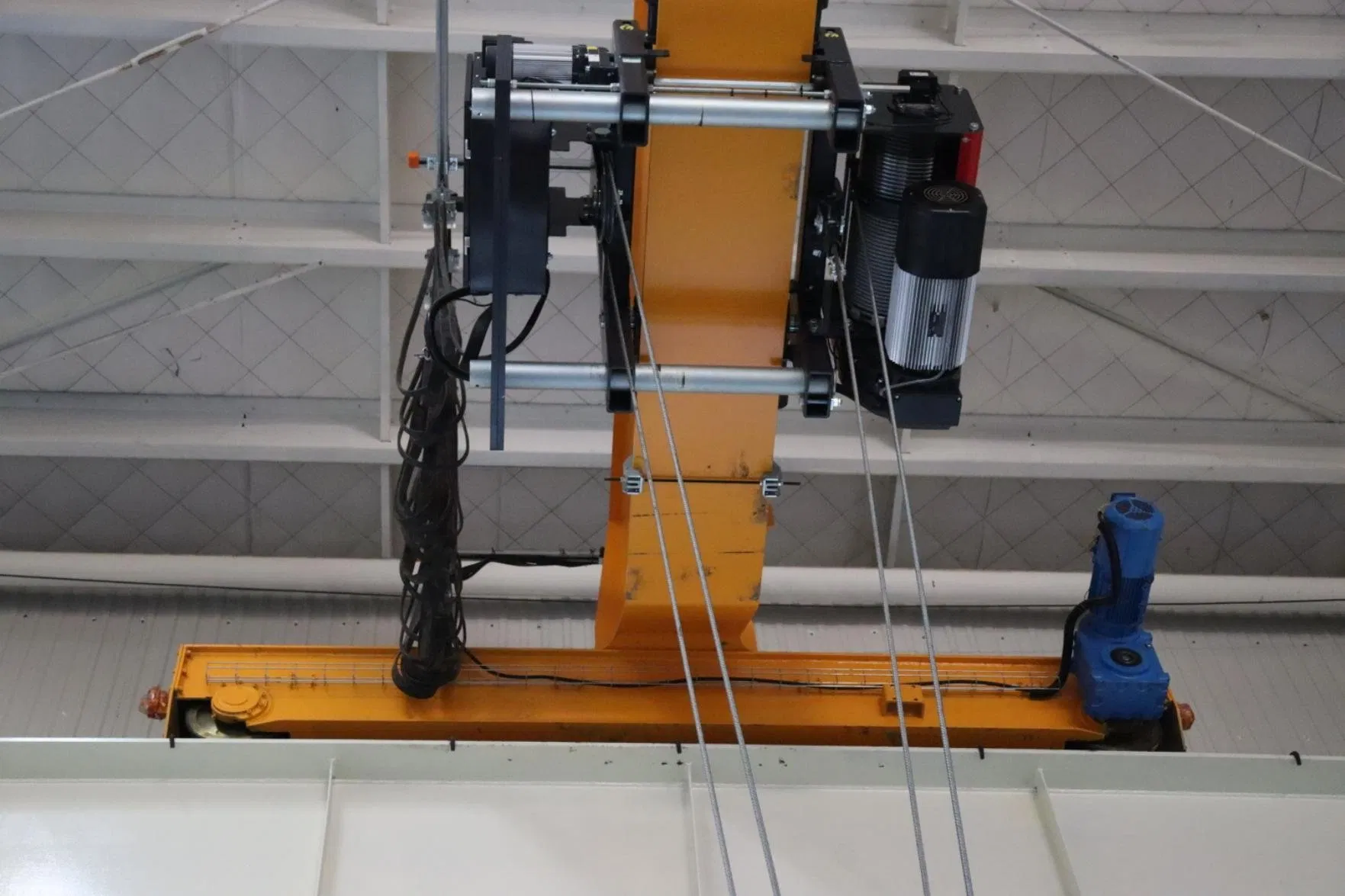

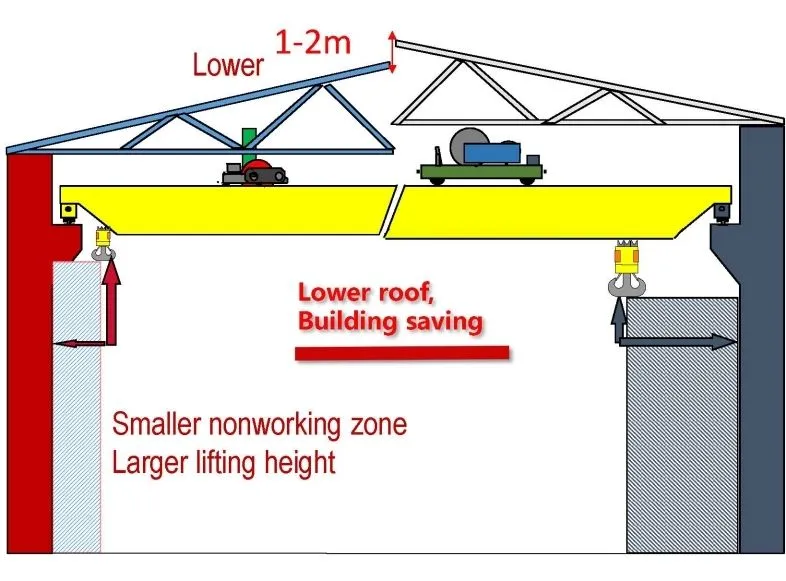

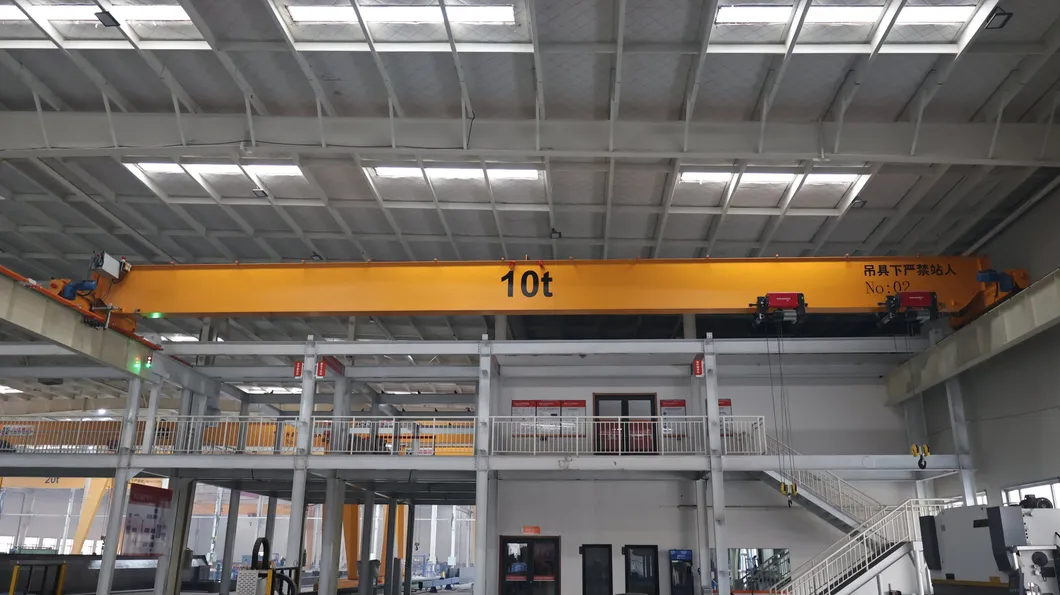

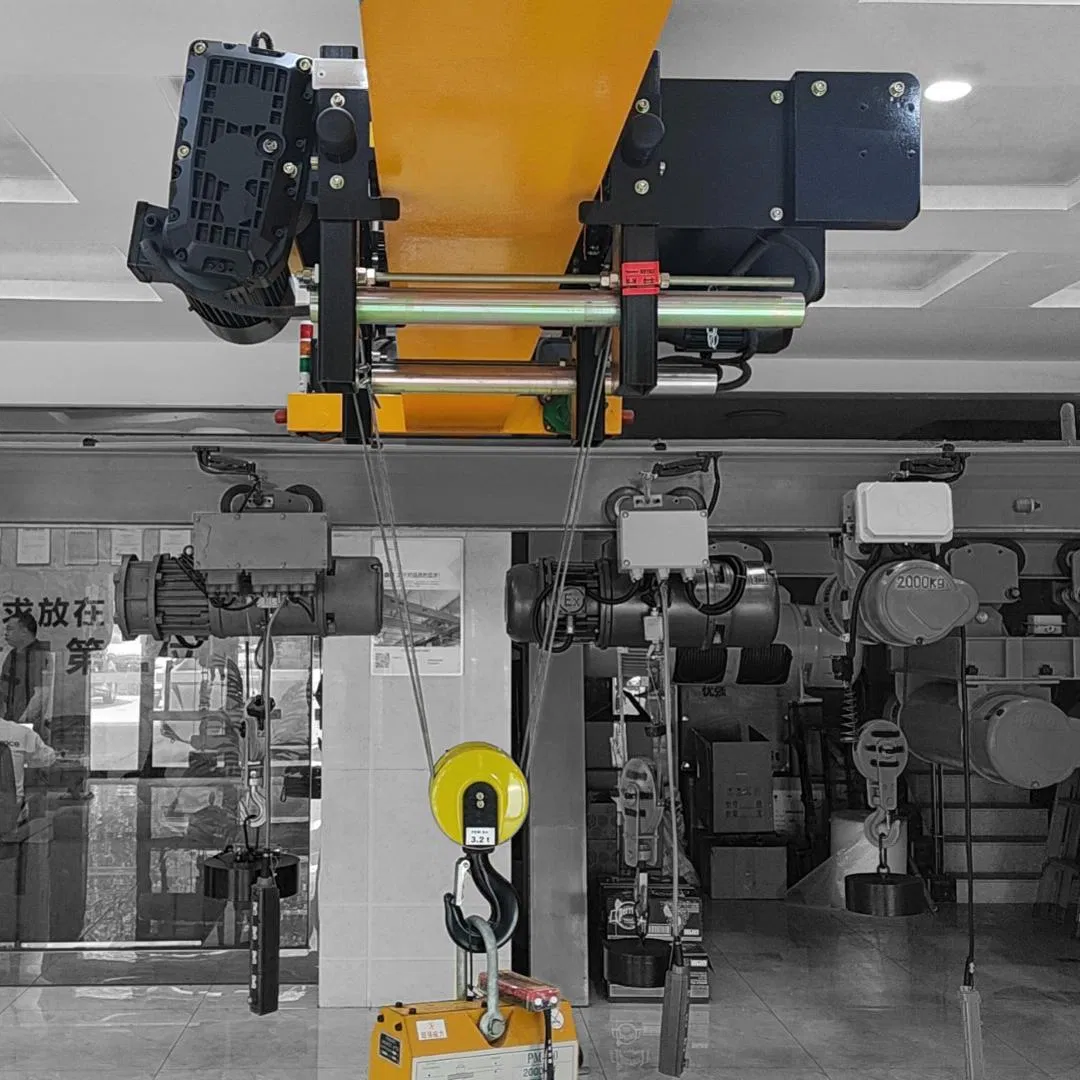

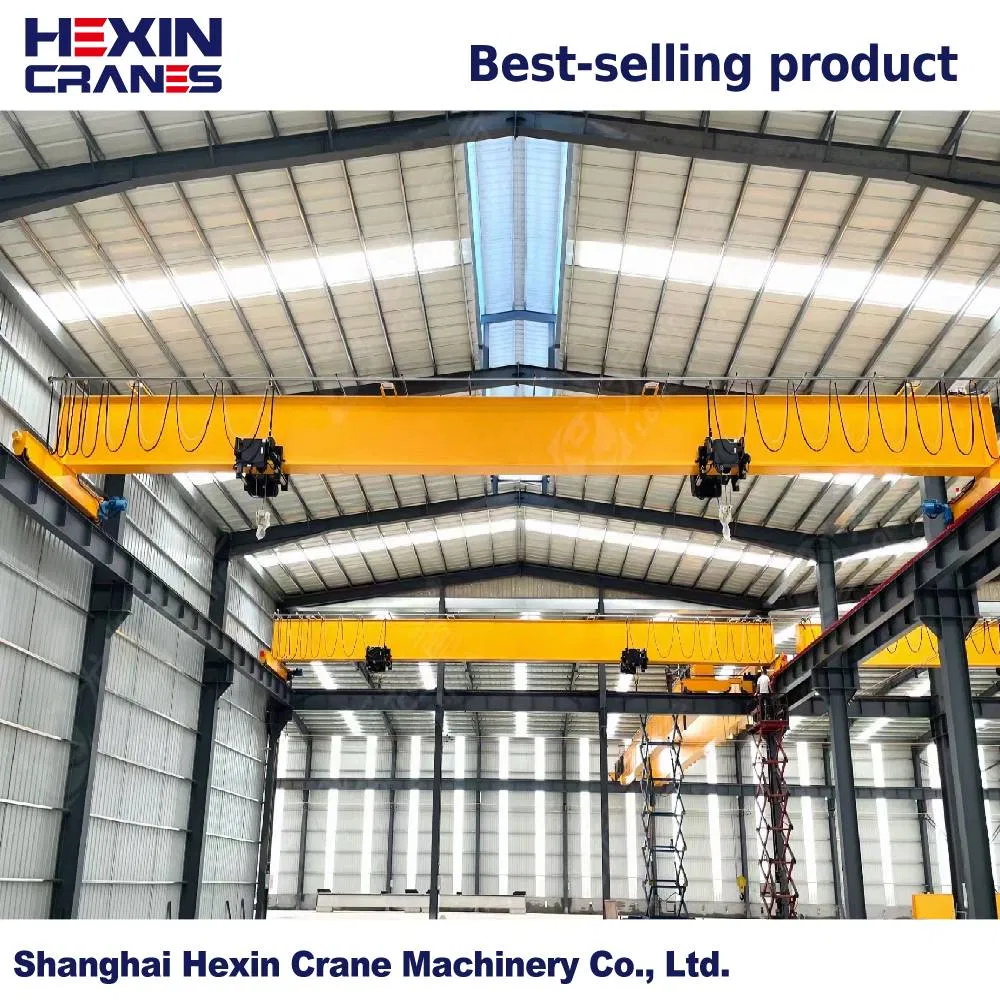

Traditional single-girder electric cranes typically use a combination of box girders and I-beams. In contrast, Euro-style single-girder electric cranes feature a box-type structure for the main beam, providing a more streamlined design. The electric hoist trolley runs smoothly on the lower flange of the main beam, paired with European-style electric hoists that use flat-rimmed wheels for enhanced stability and durability.
| Classification (ISO) | A3 / A4 / A5 / A6 / A7 |
|---|---|
| Lifting Capacity | Total capacity up to 32 tons |
| Span Range | 7.5m to 31.5m |
| Lifting Height | 3.2m to 40m (Customizable up to 100m) |
| Lifting Speed | 0.32 m/min to 25 m/min |
| Travel Speed | Up to 80 m/min |
| Environmental Temp | -20°C to 40°C |

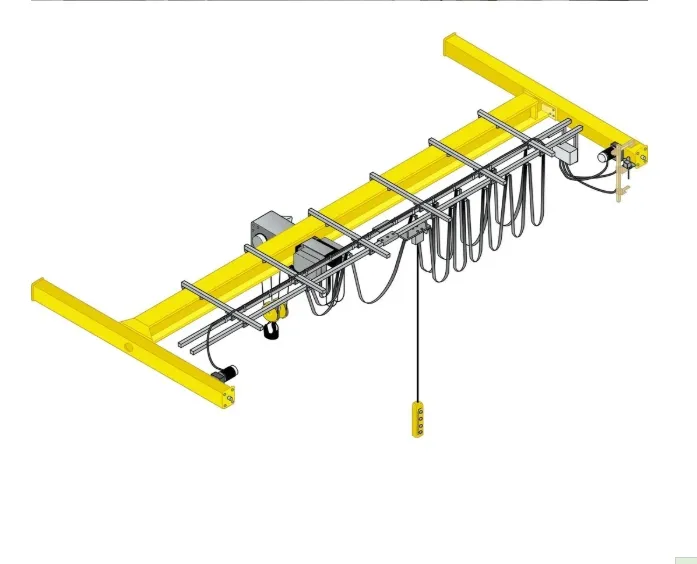

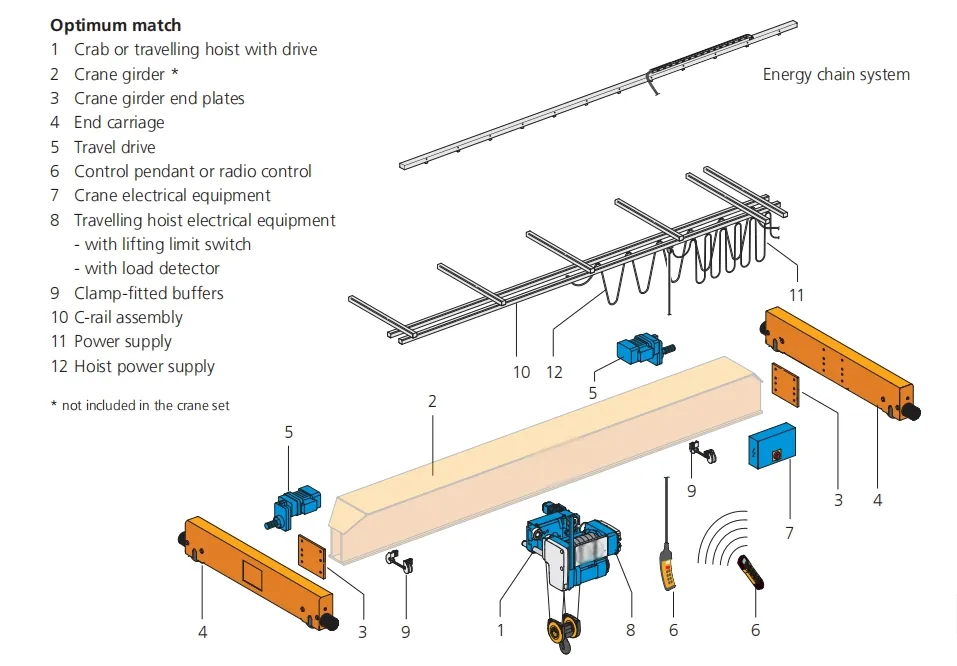

The primary structural component connecting the runways. Girders can be made of rolled steel or fabricated into a steel box design for superior strength.

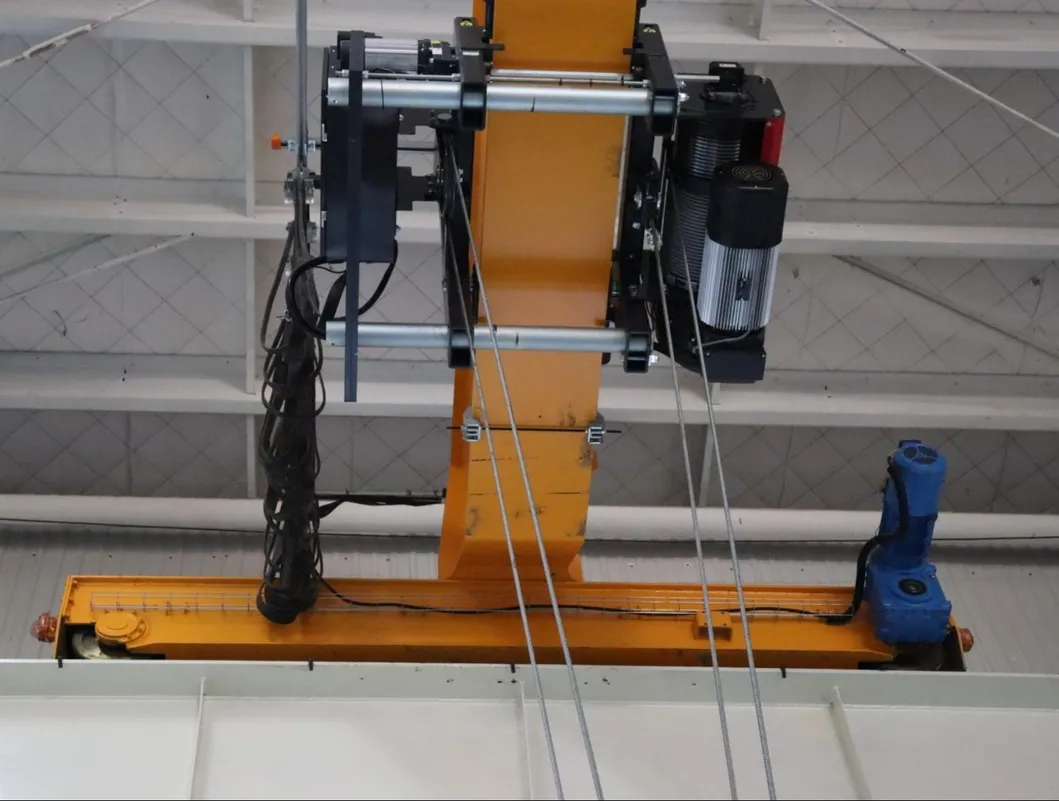

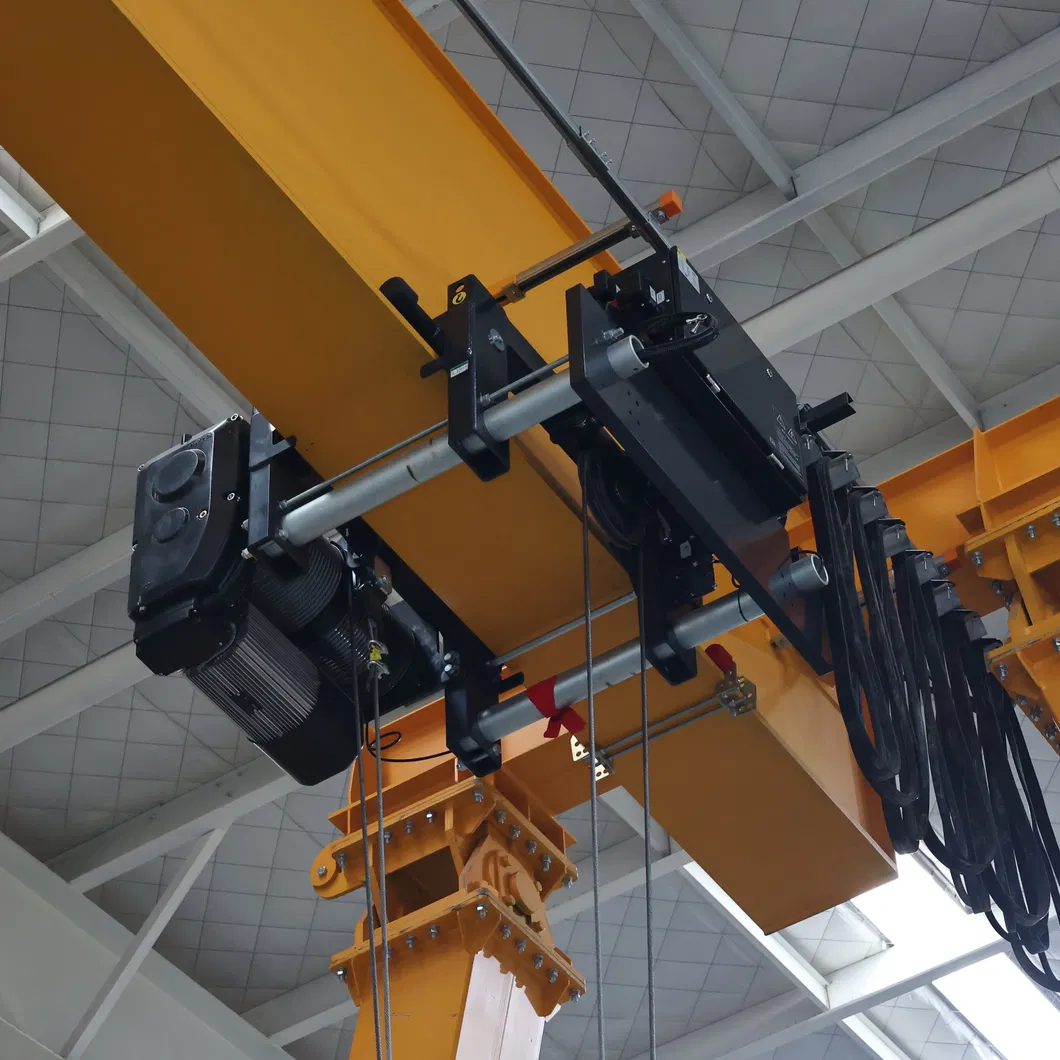

Houses the motor, drum, and high-tensile ropes. Enables vertical movement and horizontal positioning along the main beams.

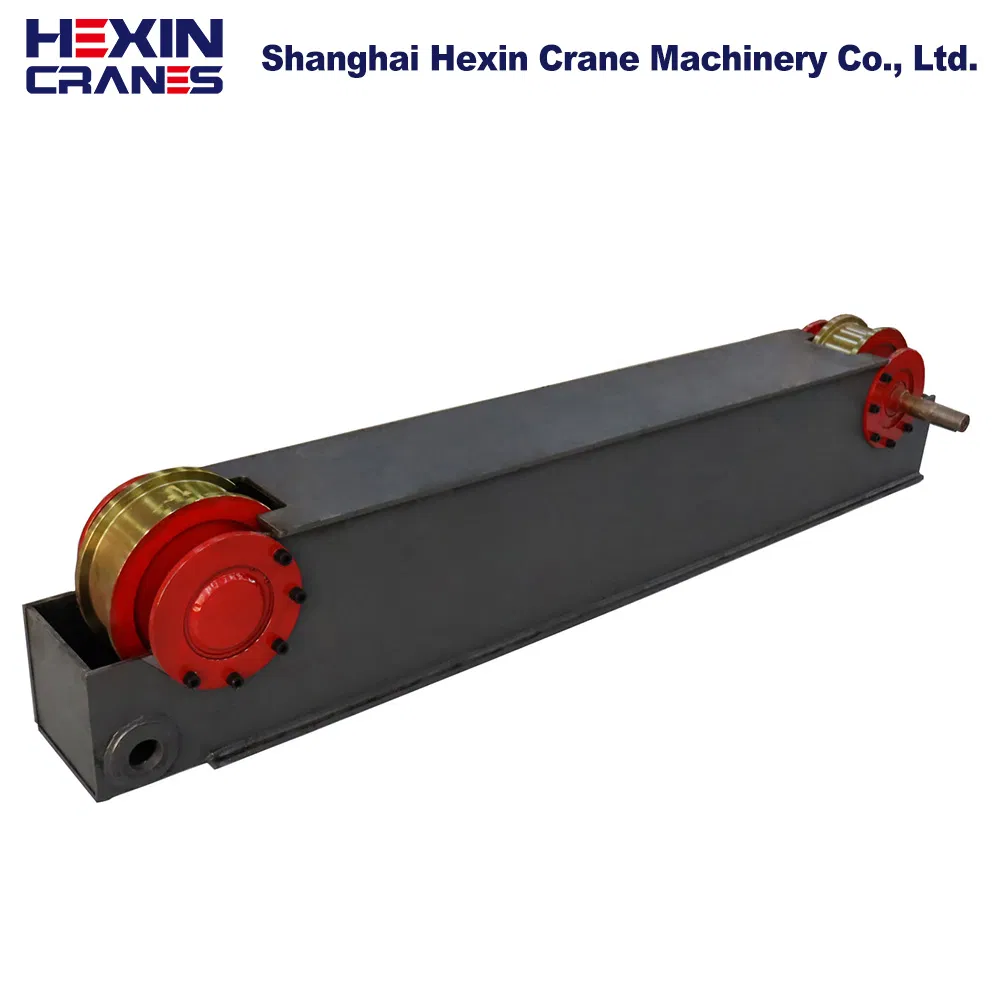

Equipped with wheels (2, 4, or 8 depending on capacity) to ensure the crane travels smoothly along the rails.

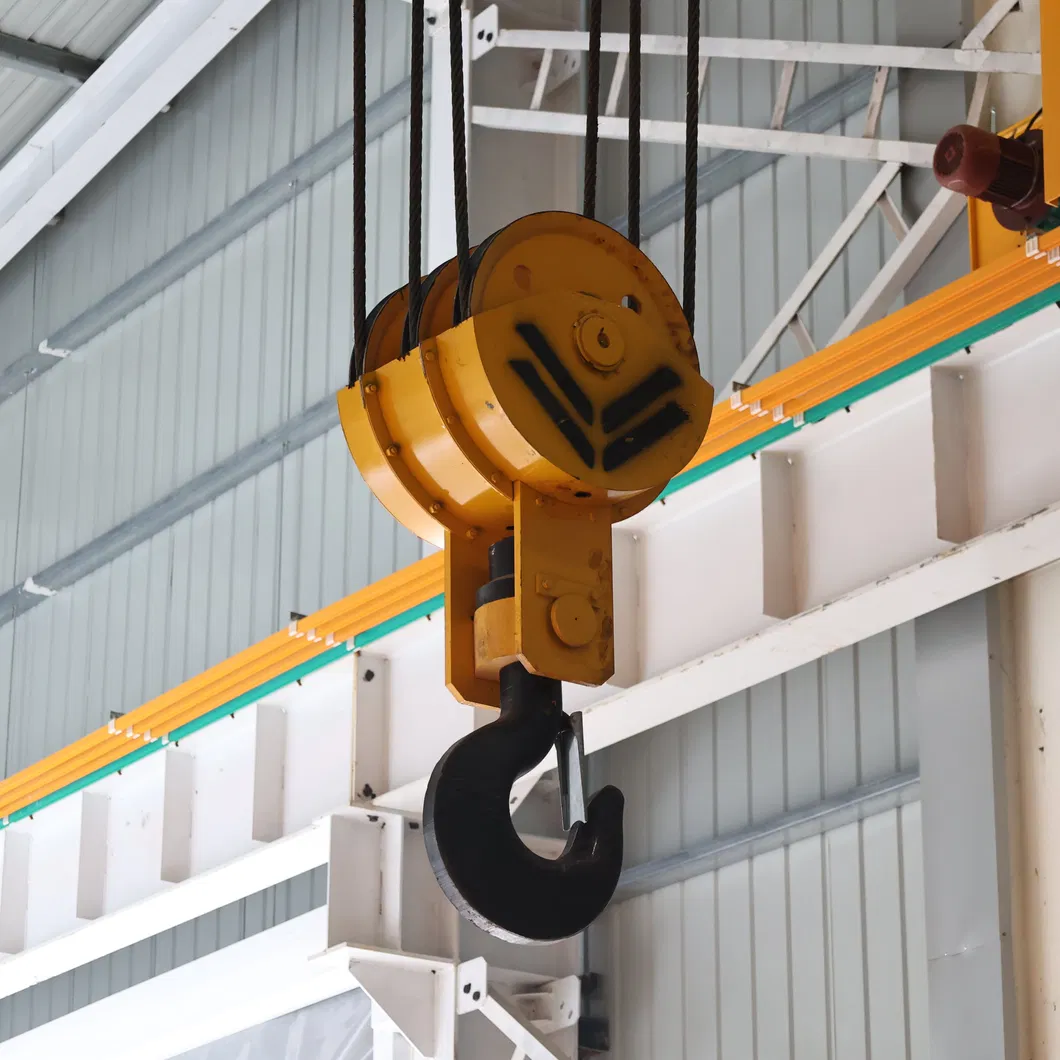

Equipped with versatile hooks, grab buckets, or specialized electromagnetic devices for diverse material handling needs.

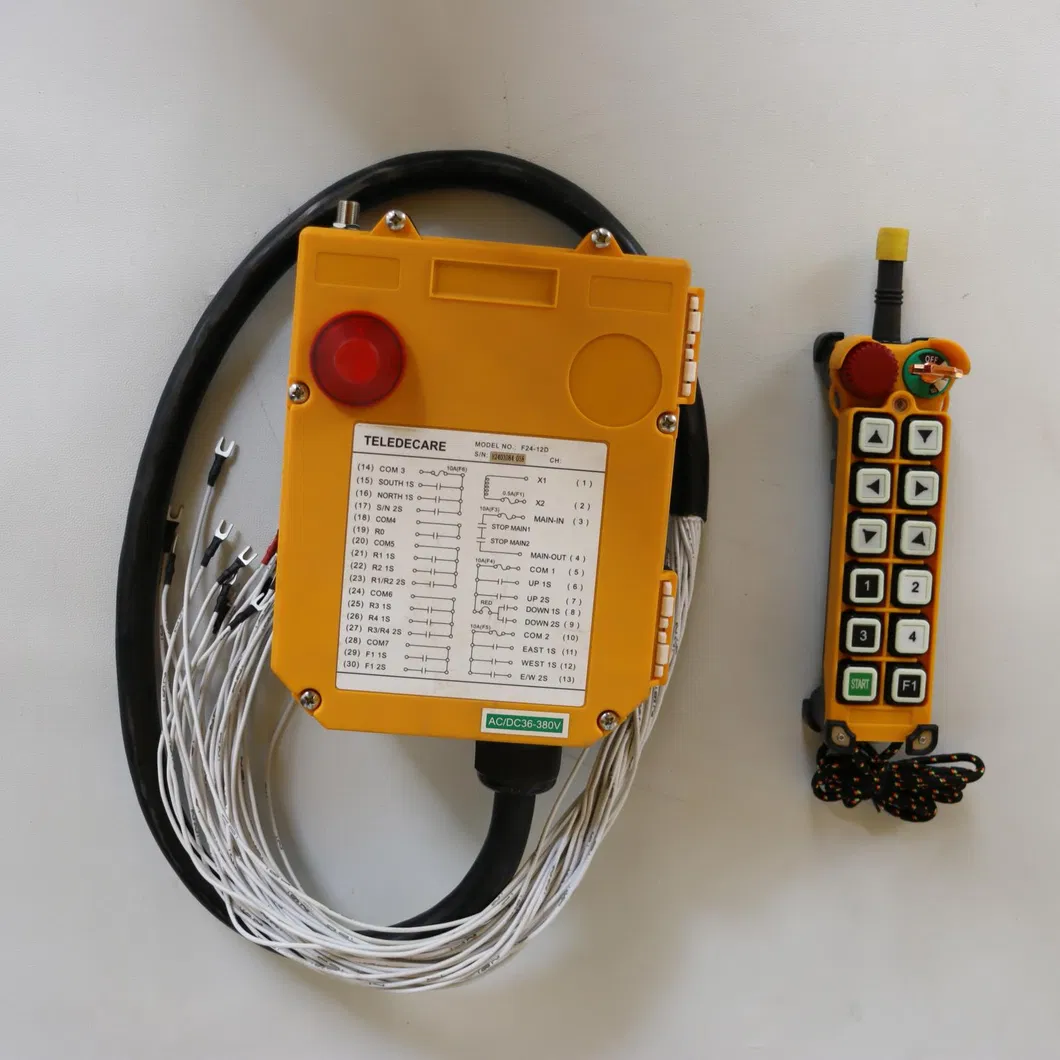

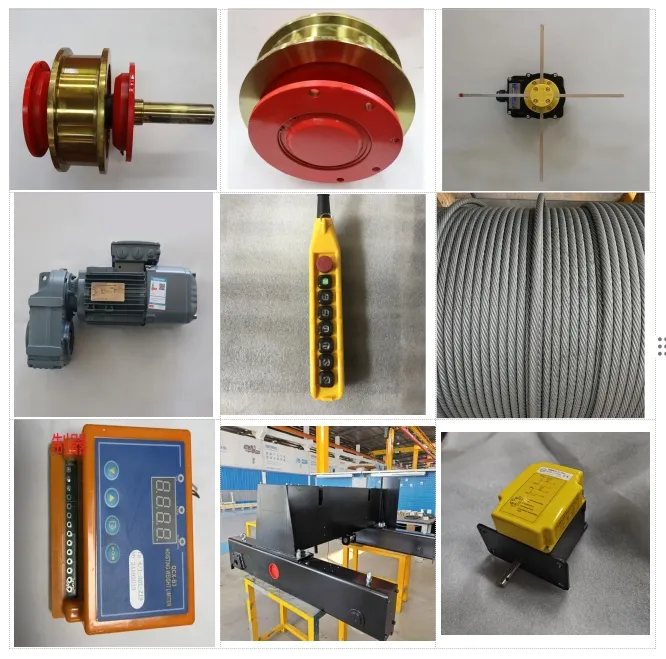

Standard accessories include: Driving and Idle wheels, Cross Limit Switches, 3-in-1 Motor (Motor+Reducer+Brake), Double Speed Pendant Control, and Load Limiters.
To provide an accurate design solution, please provide the following details:
