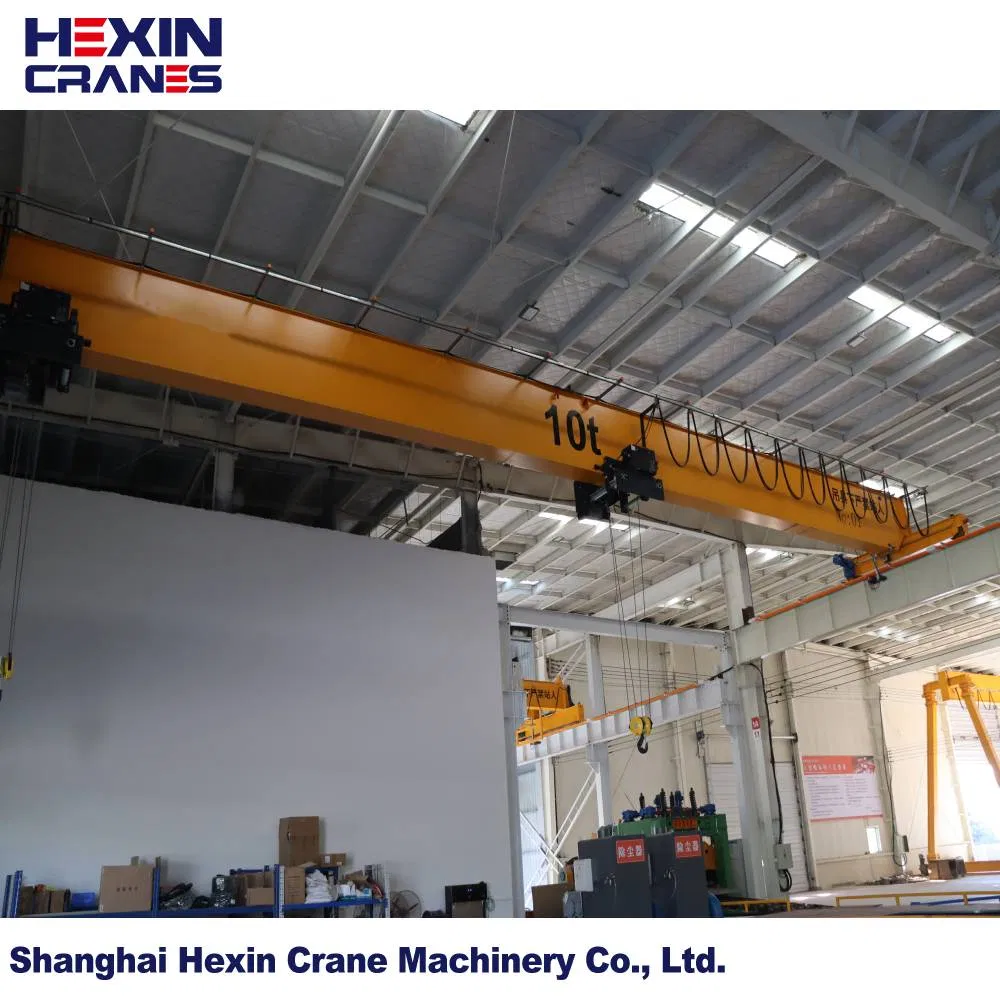

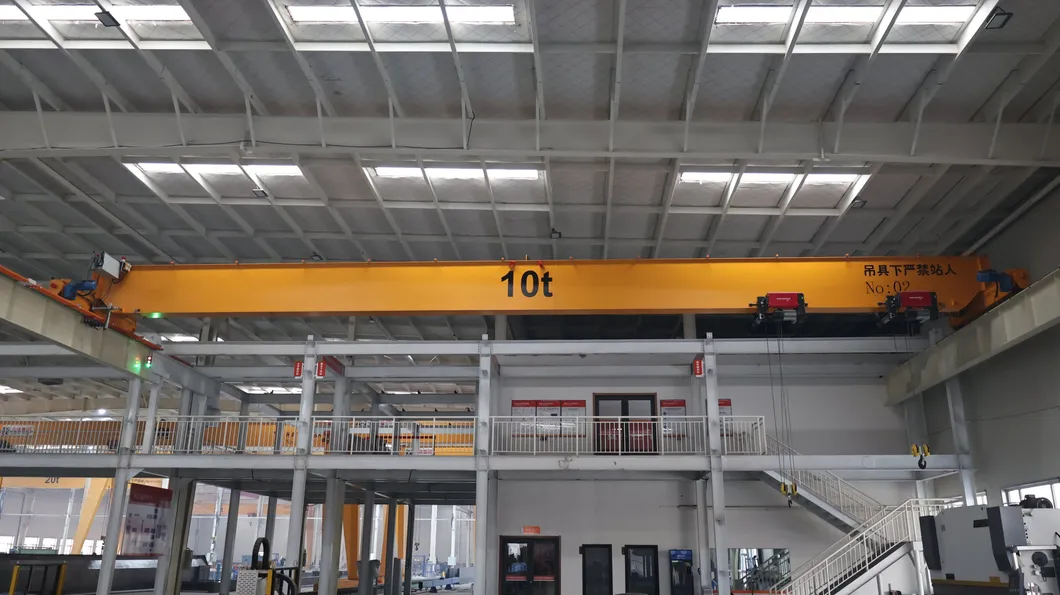

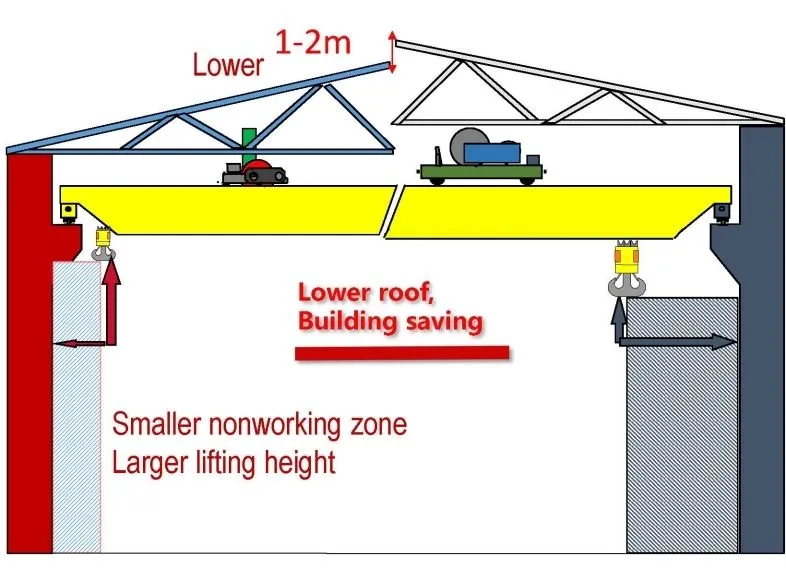

Advanced Euro-style Design: Traditional single-girder electric cranes typically use a combination of box girders and I-beams. In contrast, Euro-style single-girder electric cranes feature a box-type structure for the main beam, providing a more streamlined design and enhanced stability. The electric hoist trolley runs smoothly on the lower flange of the main beam, paired with flat-rimmed wheels for superior durability.
| Classification (ISO) | A3 | A4 | A5 | A6 | A7 |
|---|---|---|---|---|---|
| Lifting Capacity | Up to 32 Tons (Total) | ||||
| Span Length | 7.5m to 31.5m | ||||
| Lifting Height | 3.2m to 100m | ||||
| Lifting Speed | 0.32 m/min to 40 m/min | ||||
| Power Supply | Single/Three-phase AC, 220V - 660V, 50/60 Hz | ||||
| Ambient Temperature | -20°C to 40°C | ||||

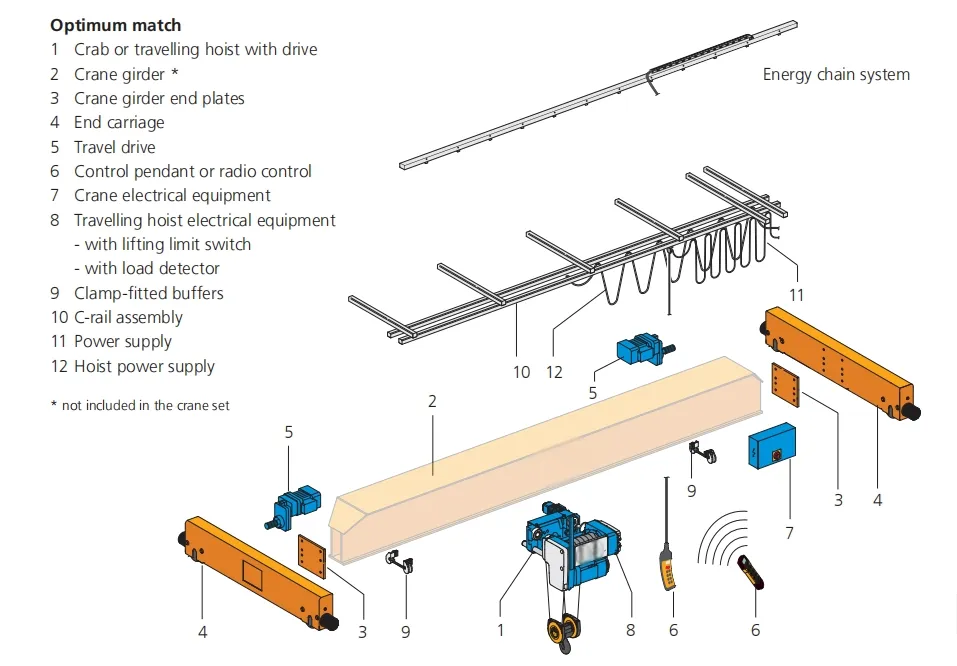

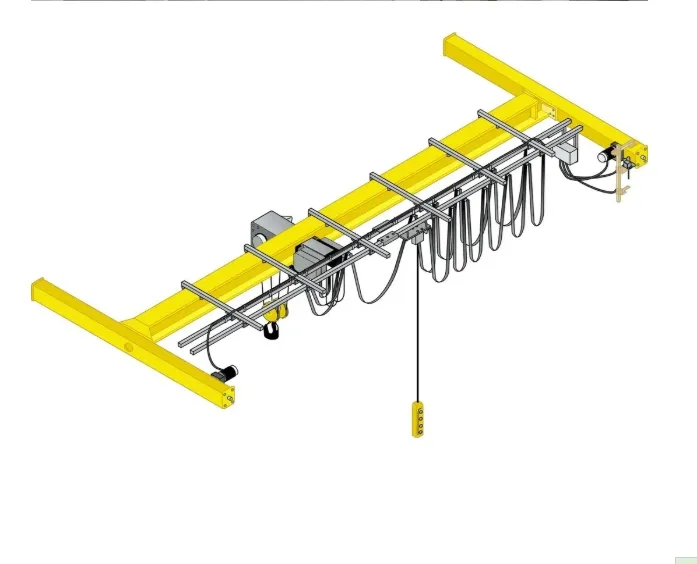

Bridge: A load-bearing beam that runs the width of the building. This primary structural component connects the runways and moves the hoist using a trolley. Girders can be rolled steel or welded steel box designs.

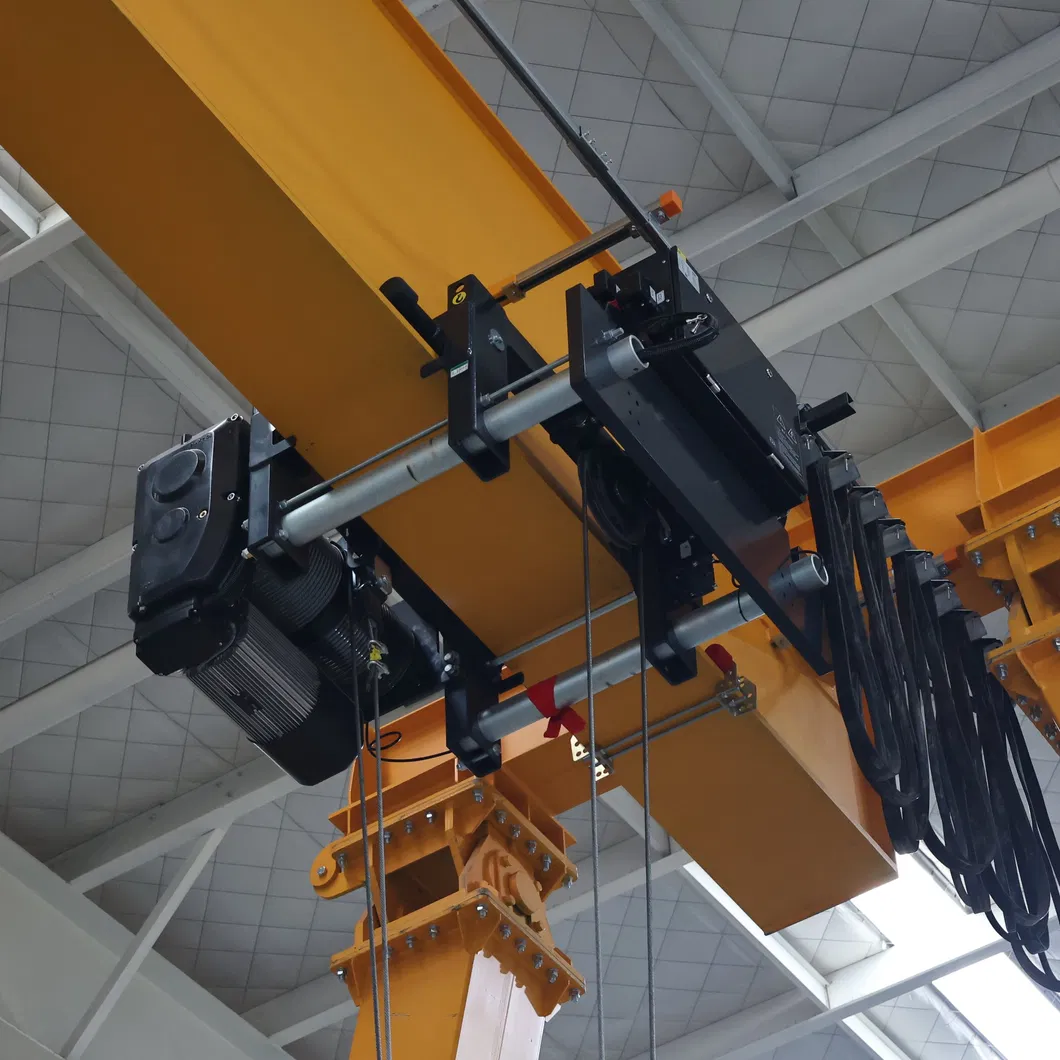

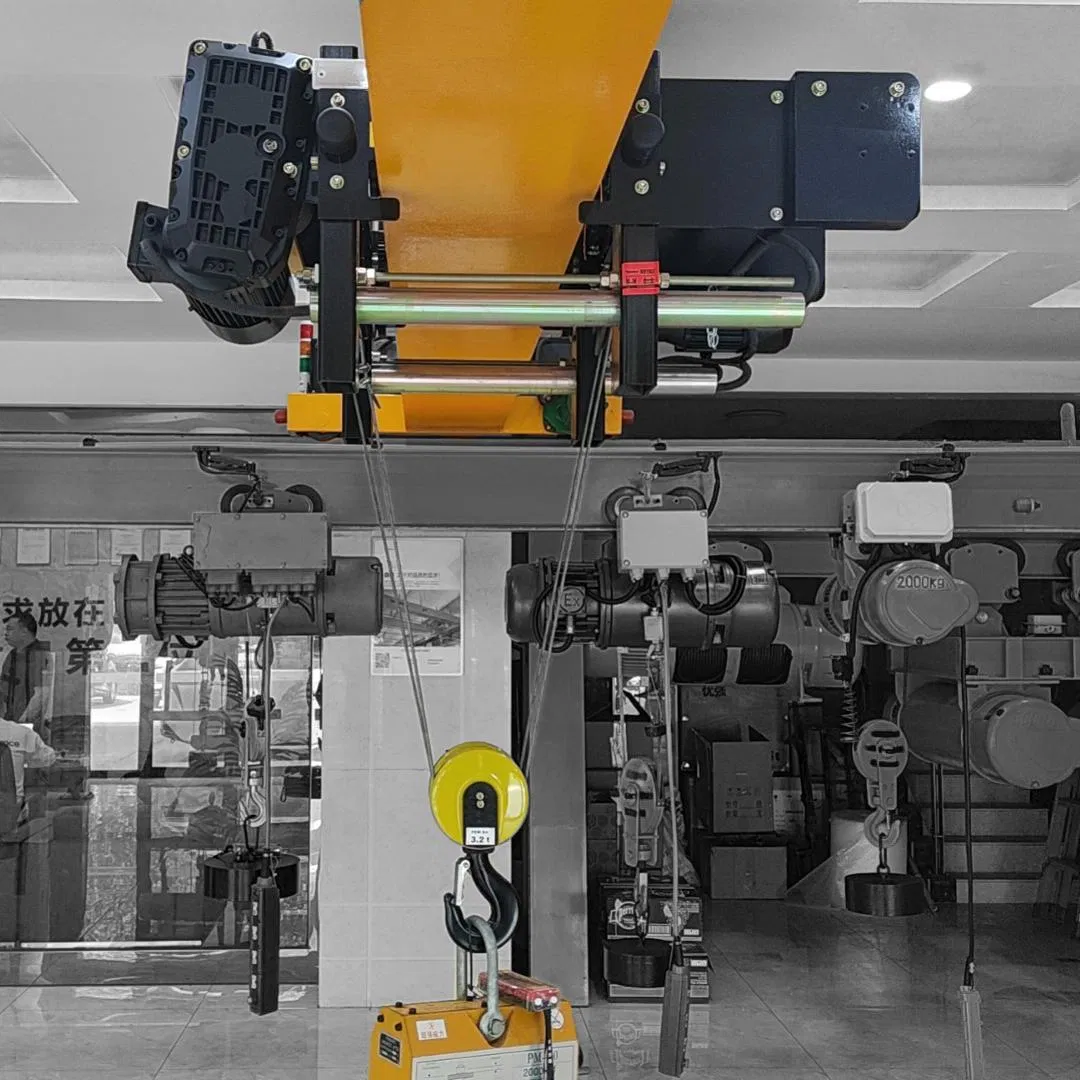

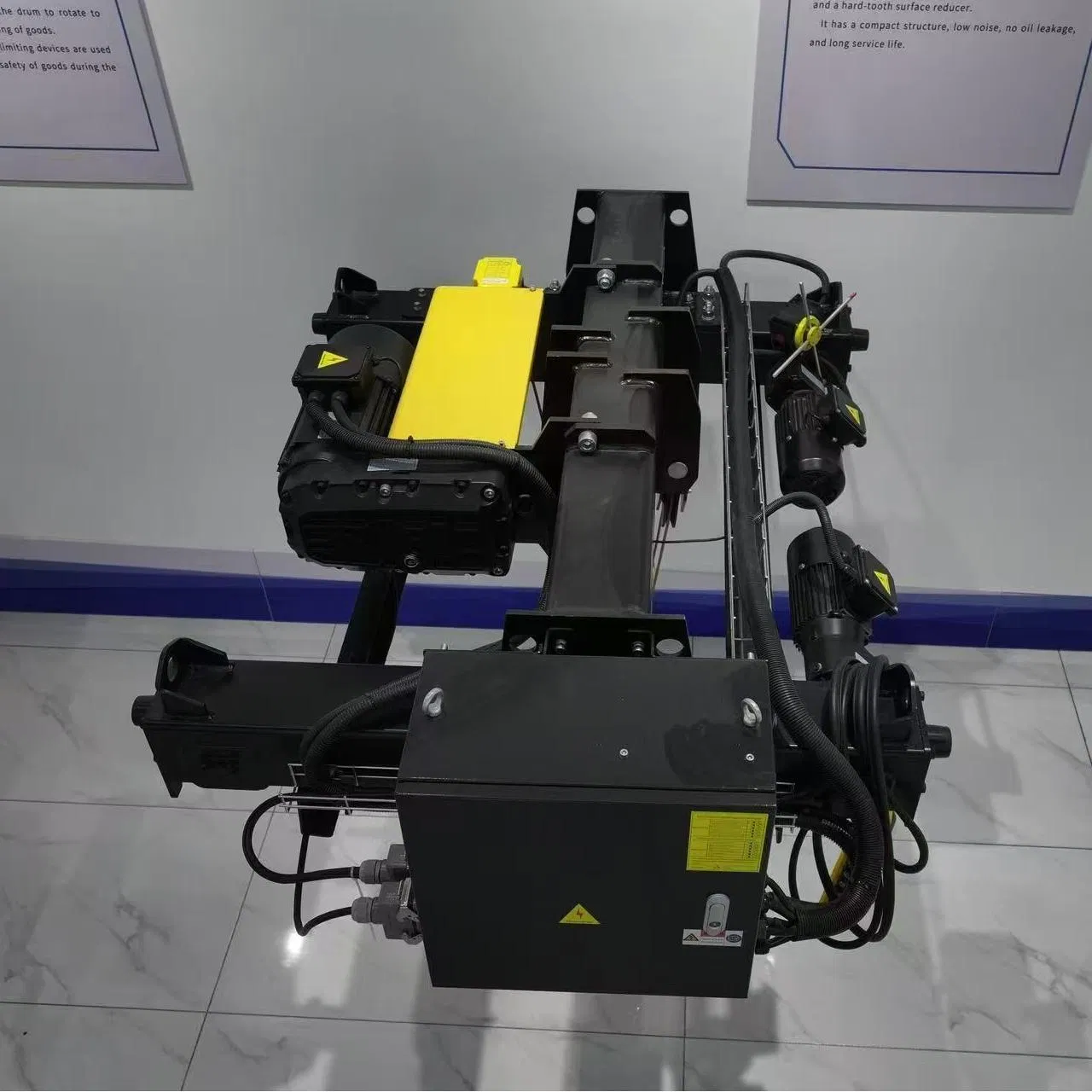

Trolley & Hoisting Mechanism: The mobile platform that houses the motor, hoist drum, and ropes. High-tensile steel ropes ensure safety and durability during vertical movement.

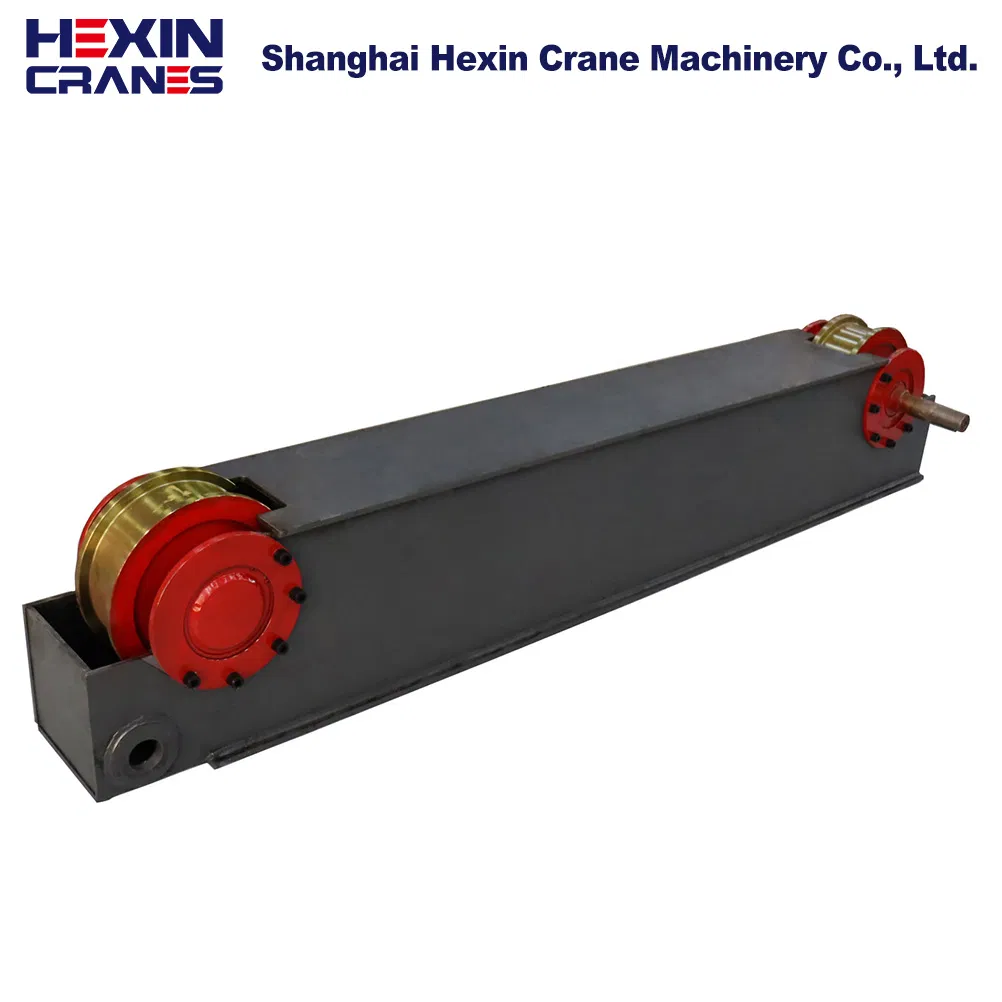

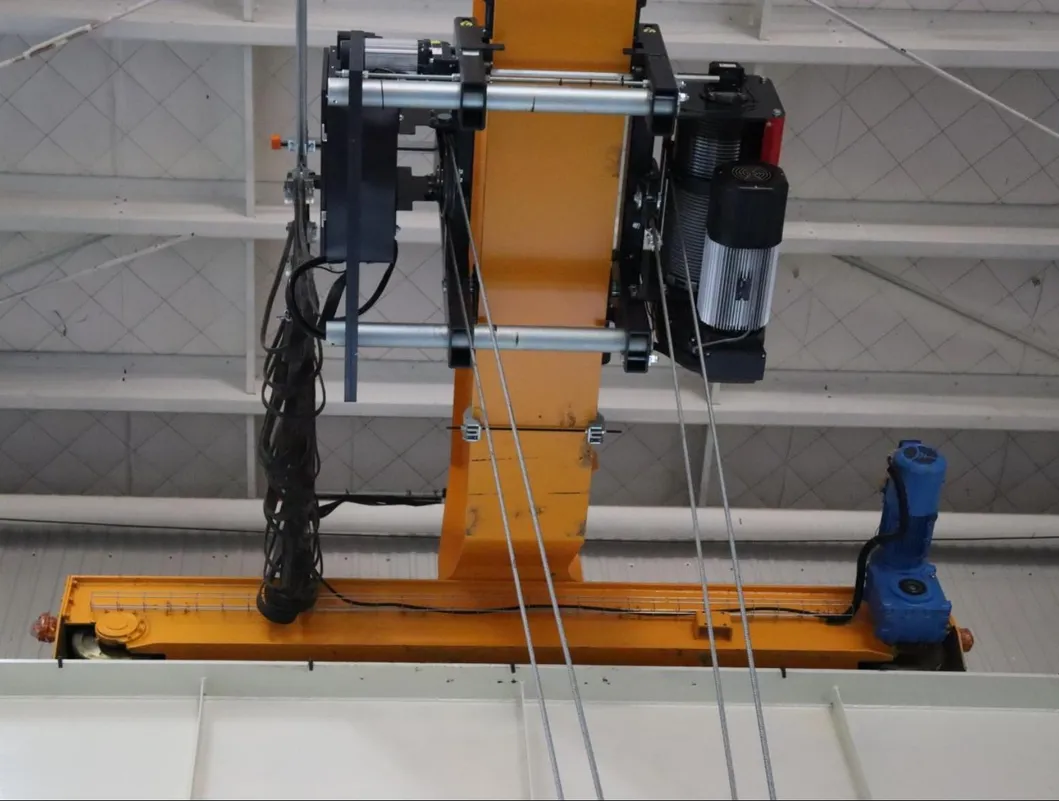

End Truck: Located at each end, these enable the crane to travel along the rails. Depending on capacity, they feature 2, 4, or 8 wheels for stability.

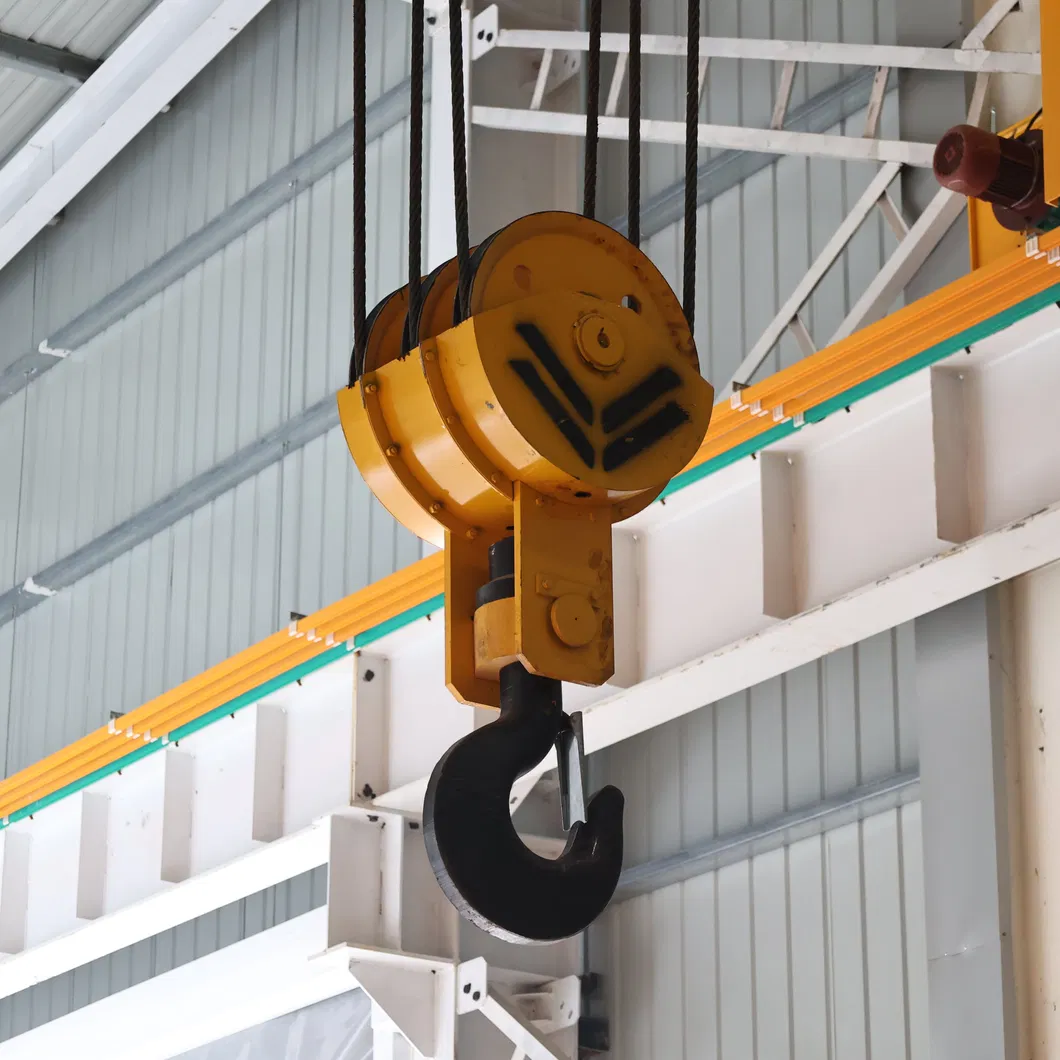

Hooks & Tools: We provide standard hooks for general tasks, grab buckets for bulk materials, and other specialized lifting tools tailored to operational needs.

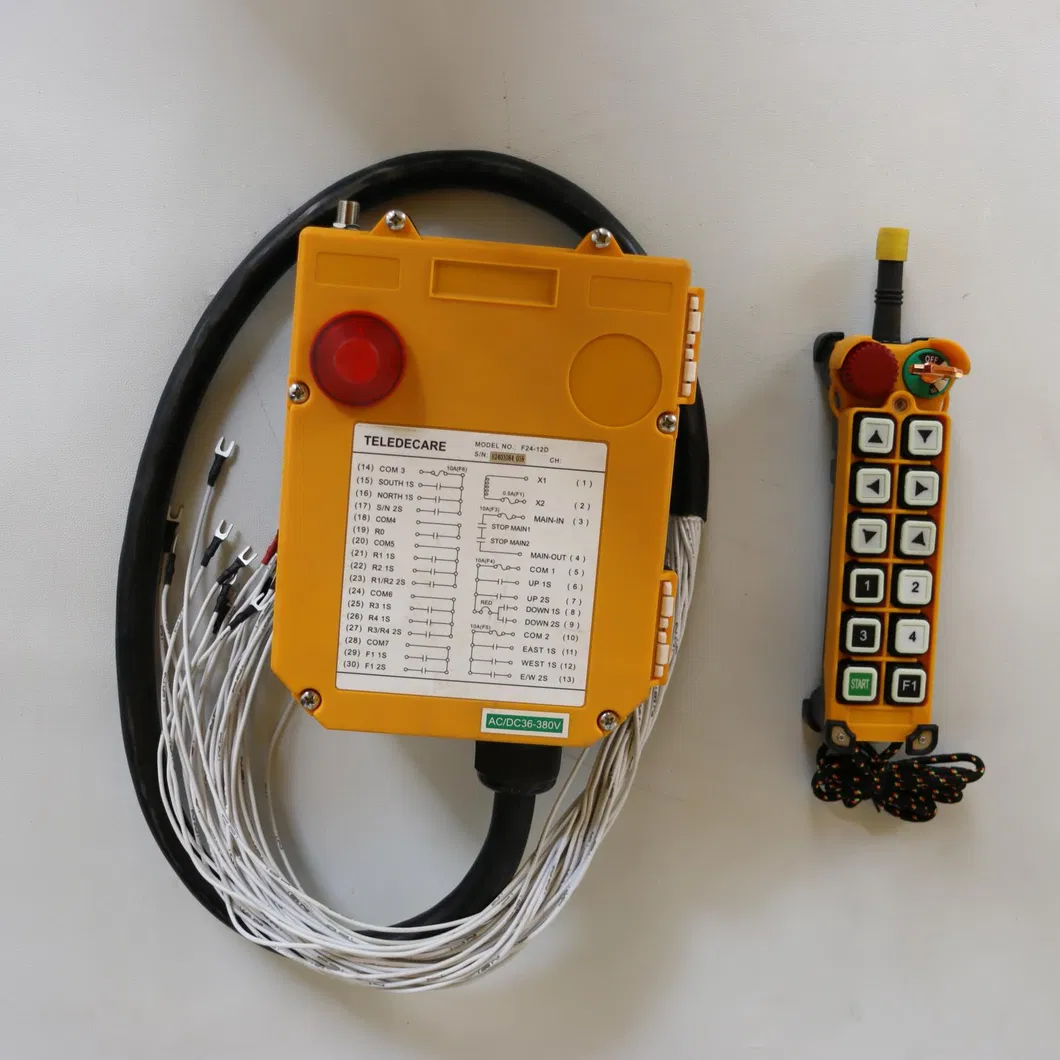

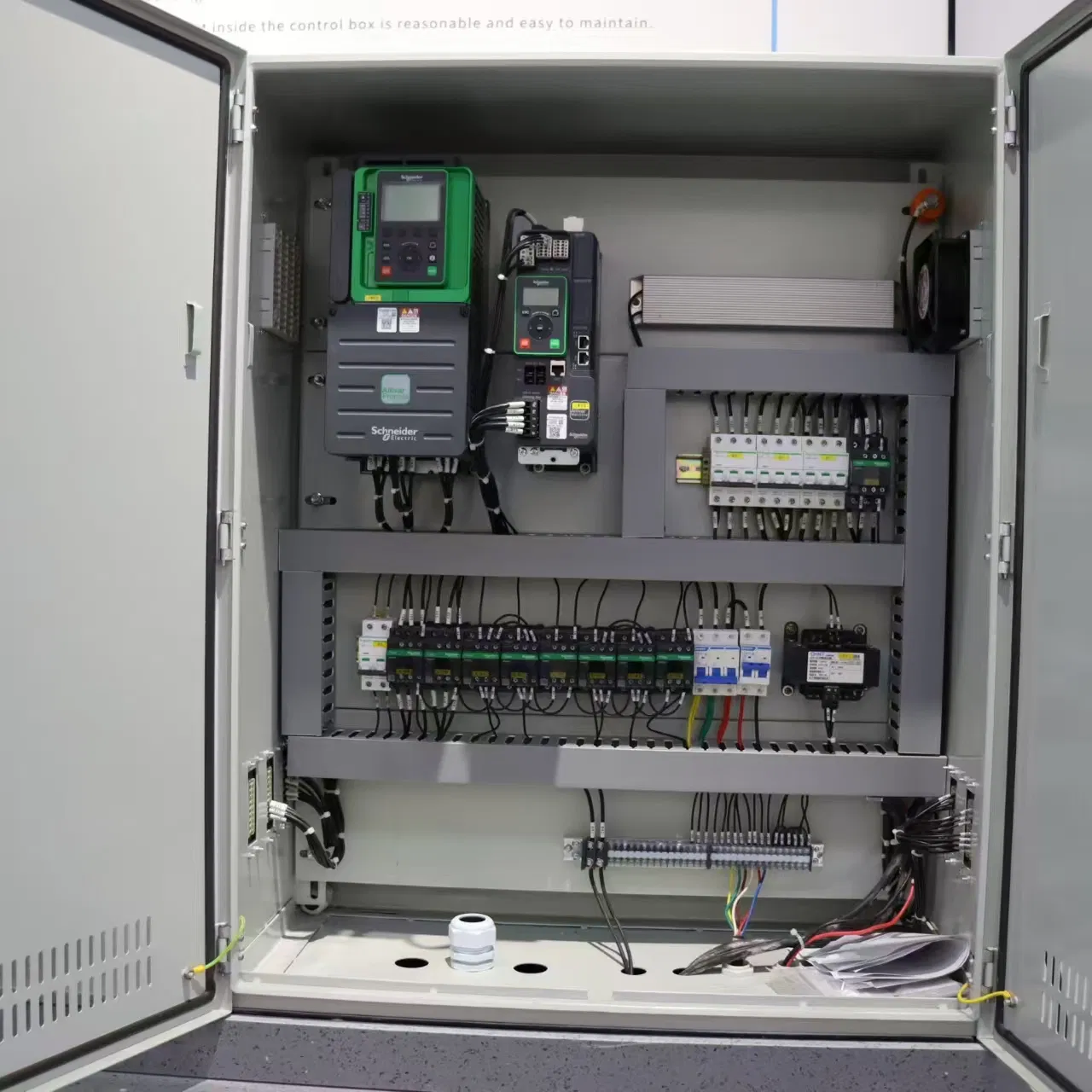

Controls & Power: Options include pendant controls or remote consoles with VFDs for precise positioning. Power is supplied via insulated conductor bars or festoon systems.
Custom Design Solution: To provide the most accurate solution, please share:
