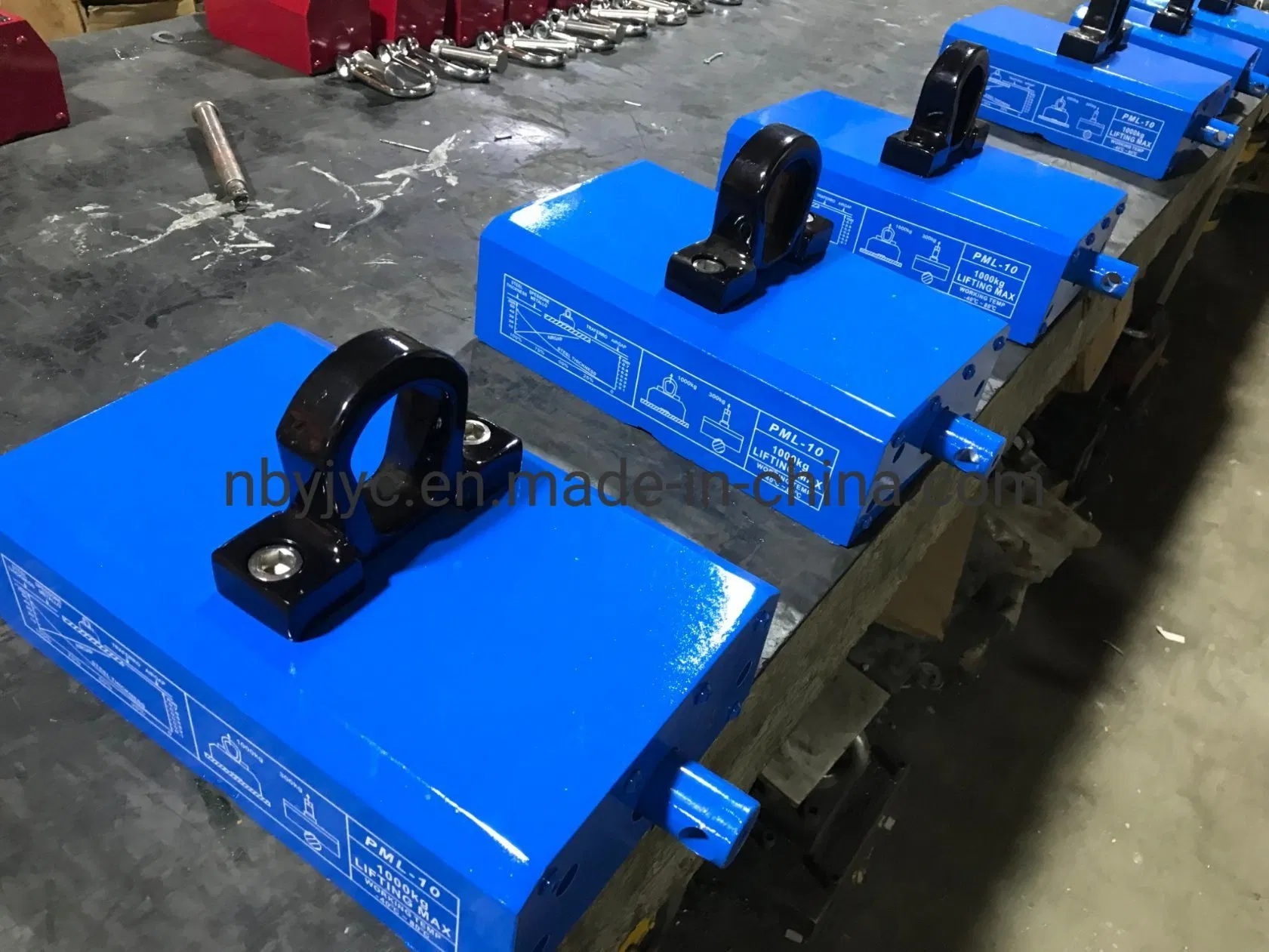

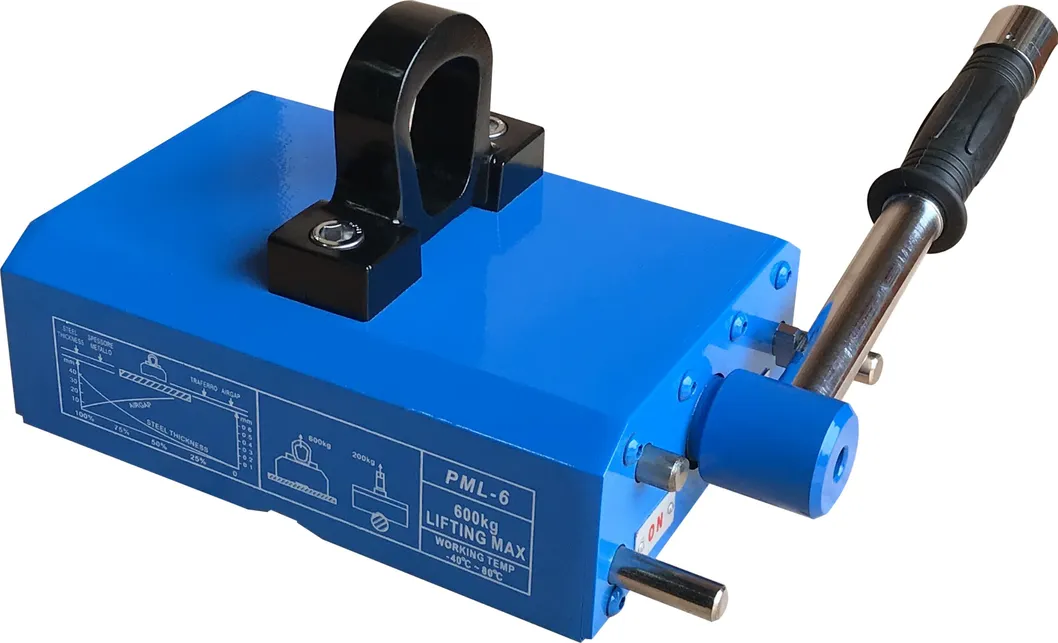

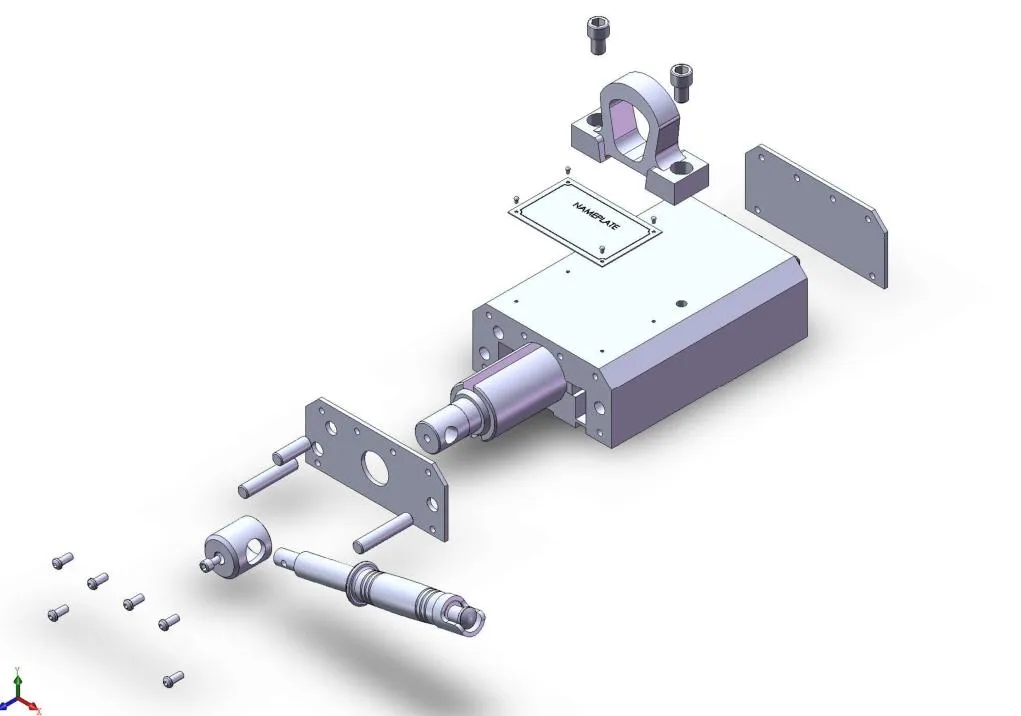

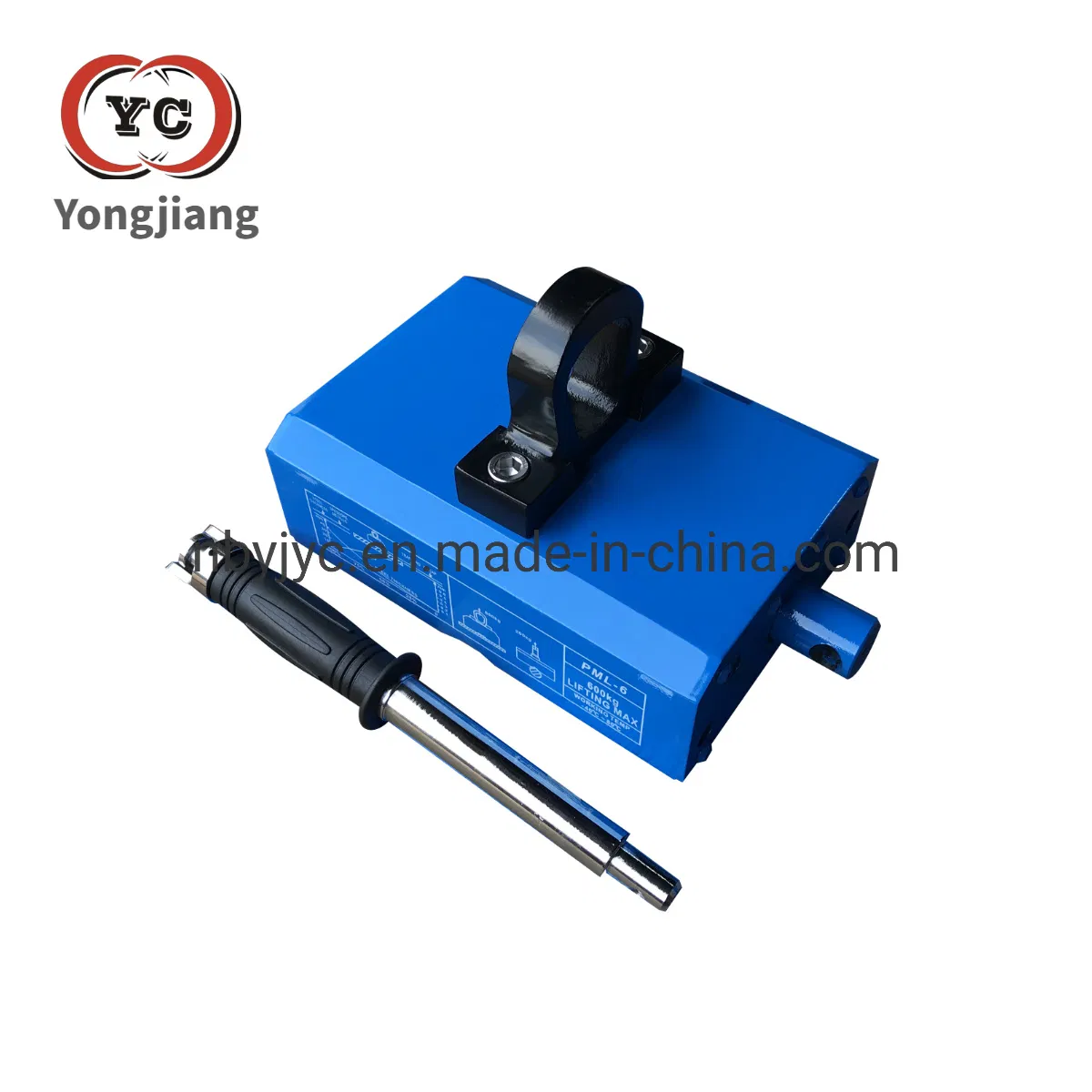

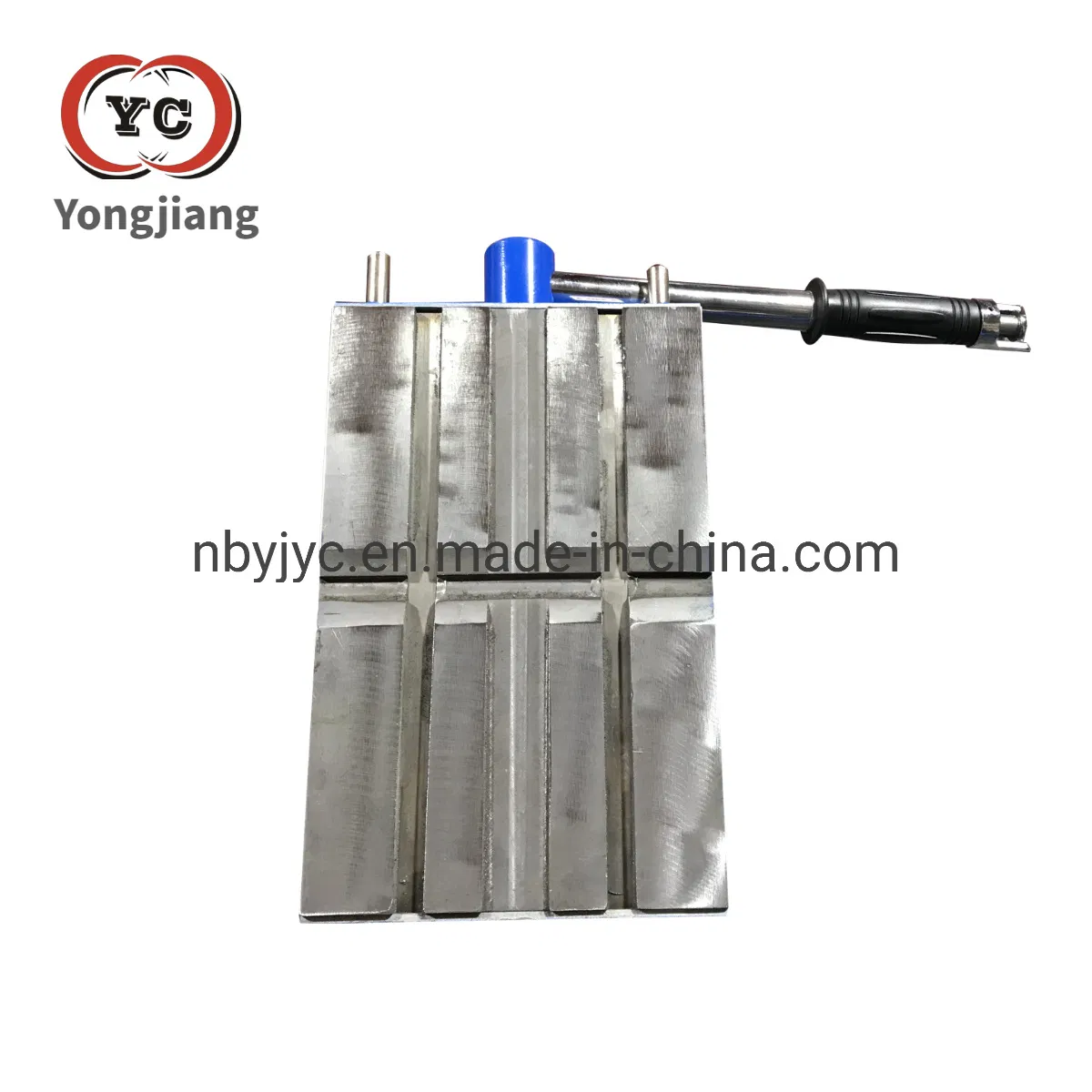

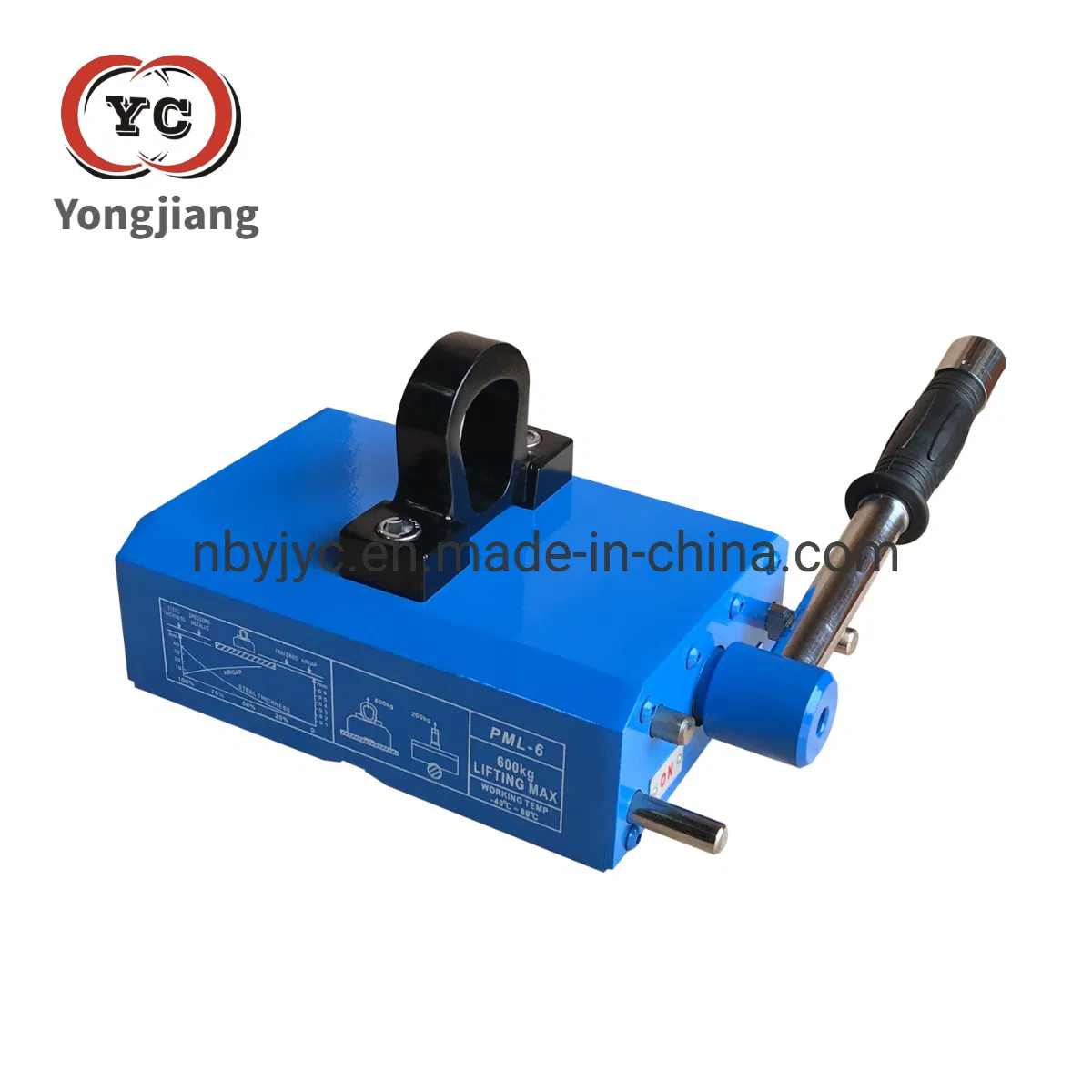

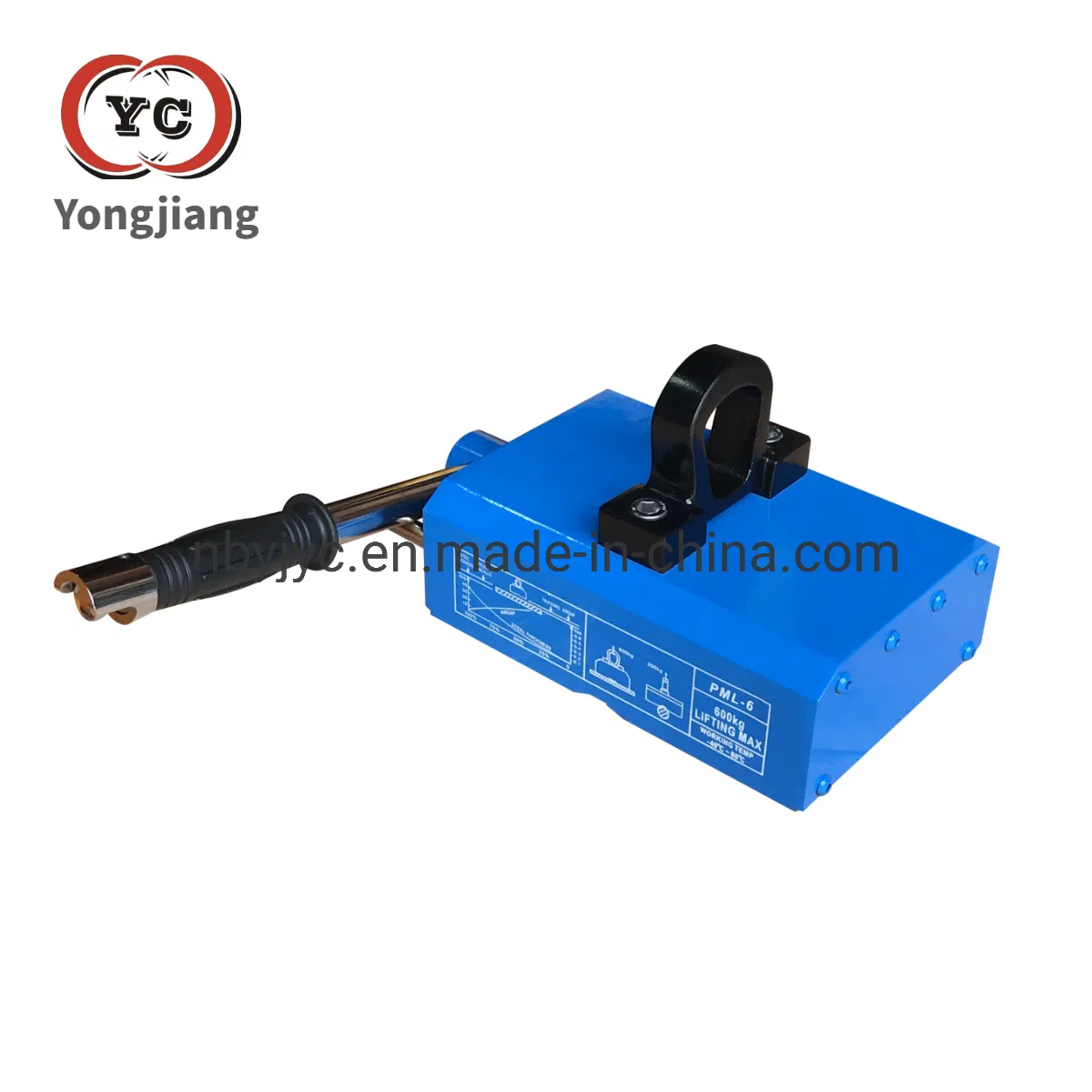

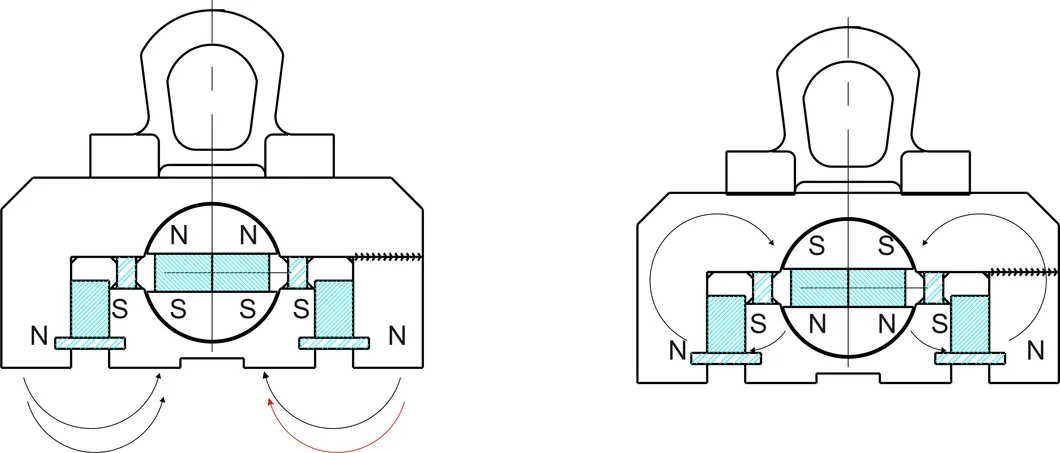

Double circuit magnetic lifters utilize high-performance NdFeB magnetic materials to create a powerful magnetic path. The activation and deactivation of the magnetic field are easily controlled via a manual nozzle.
This advanced design offers higher magnetism with reduced overall weight and minimal residual magnetism when turned off. The innovative handle design significantly reduces operating effort—requiring only 30%-40% of the strength compared to traditional single-magnetic lifters. It is highly effective for transporting thin magnetic-inductive materials with a thickness of 5mm or more.

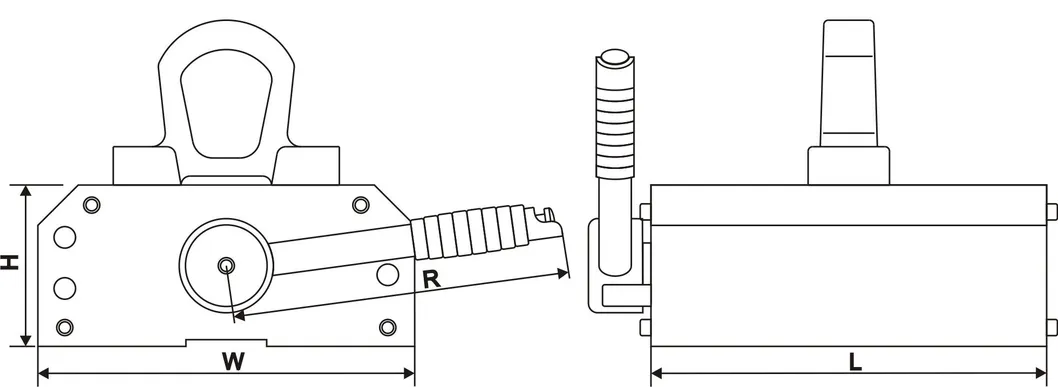

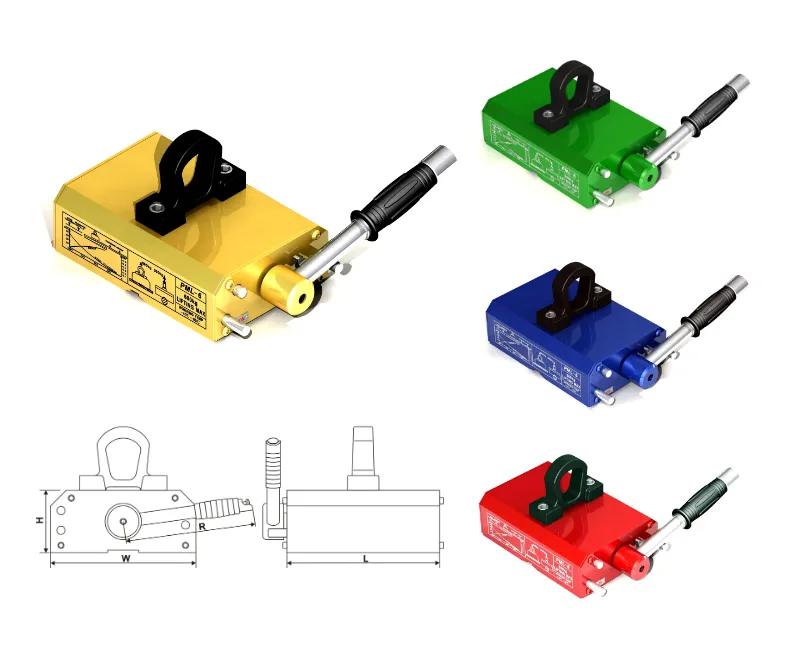

| Model | Rated Lifting Strength (kgf) | Cylindrical Lifting Strength (kgf) | Max Pull Off Strength (kgf) | Length (mm) | Width (mm) | Height (mm) | Handle Length (mm) | N.W (kg) |
|---|---|---|---|---|---|---|---|---|
| PML-3 | 300 | 100 | 900 | 163 | 133 | 60 | 180 | 9.5 |
| PML-6 | 600 | 200 | 1800 | 234 | 162 | 74 | 220 | 21 |
| PML-10 | 1000 | 300 | 3000 | 302 | 190 | 87 | 265 | 37.5 |
| PML-20 | 2000 | 600 | 6000 | 441 | 231 | 107 | 380 | 77 |
Specializing in manufacturing permanent magnetic lifters and planar chucks. Our magnetic lifters have passed rigorous quality tests and gained CE certification. We adhere to a "Quality First" philosophy to ensure the highest safety standards for your lifting operations.
