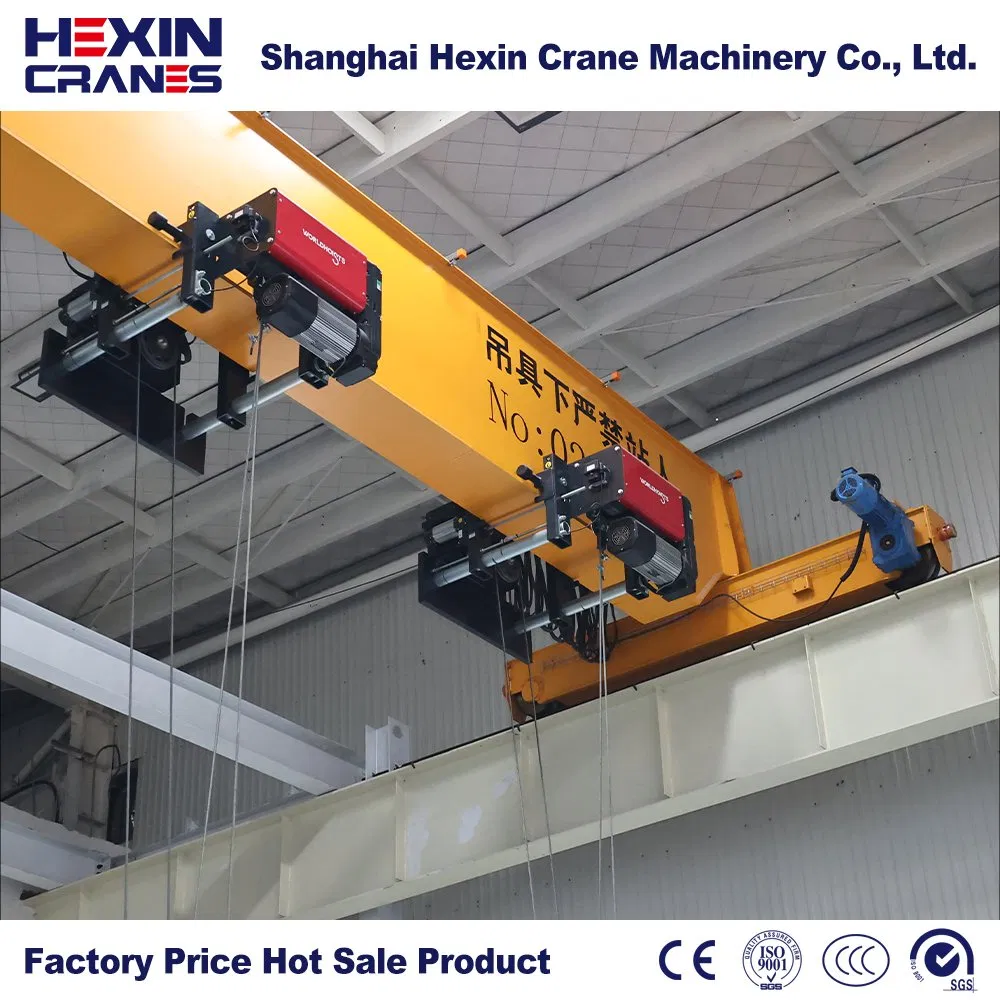

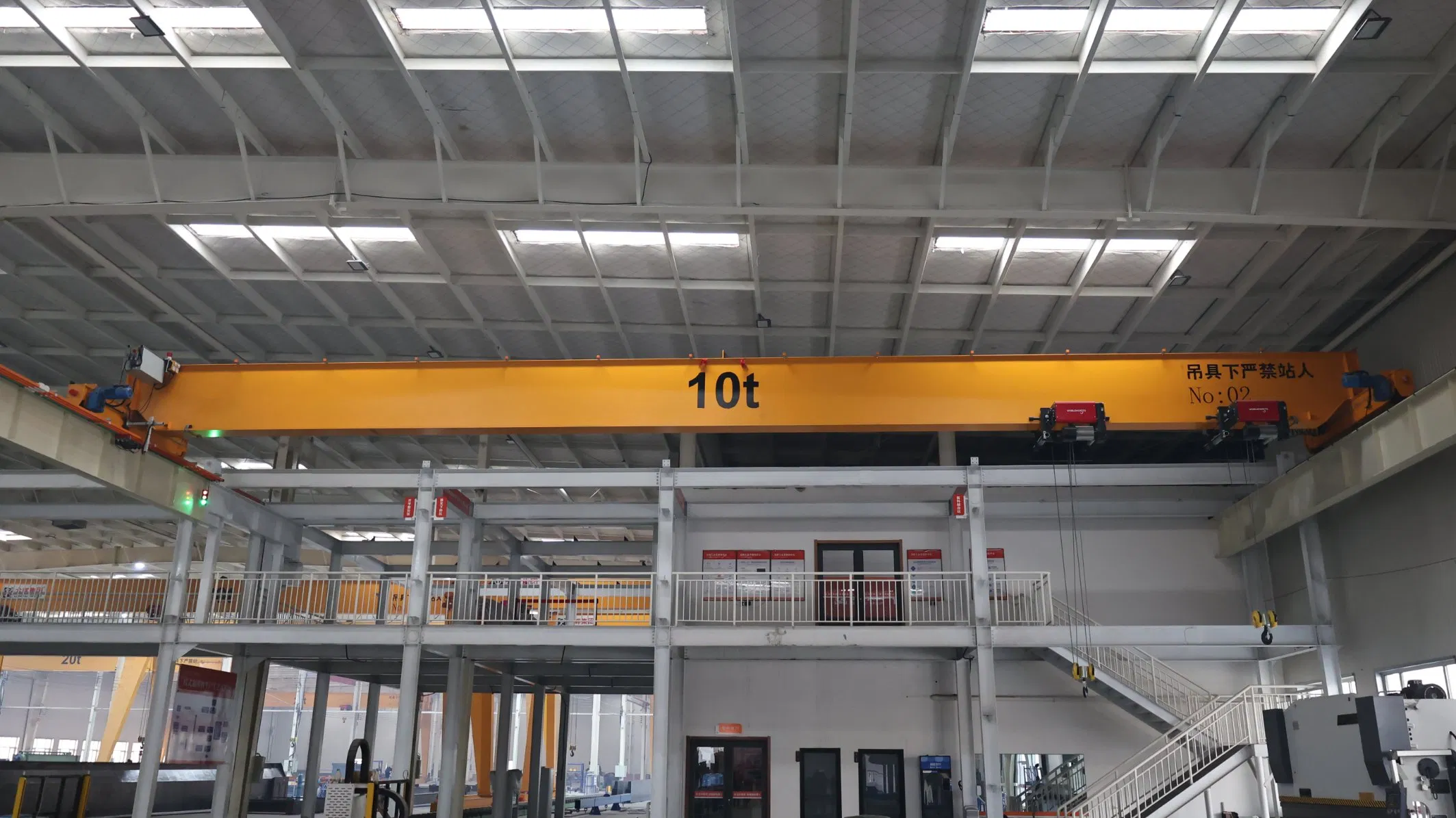

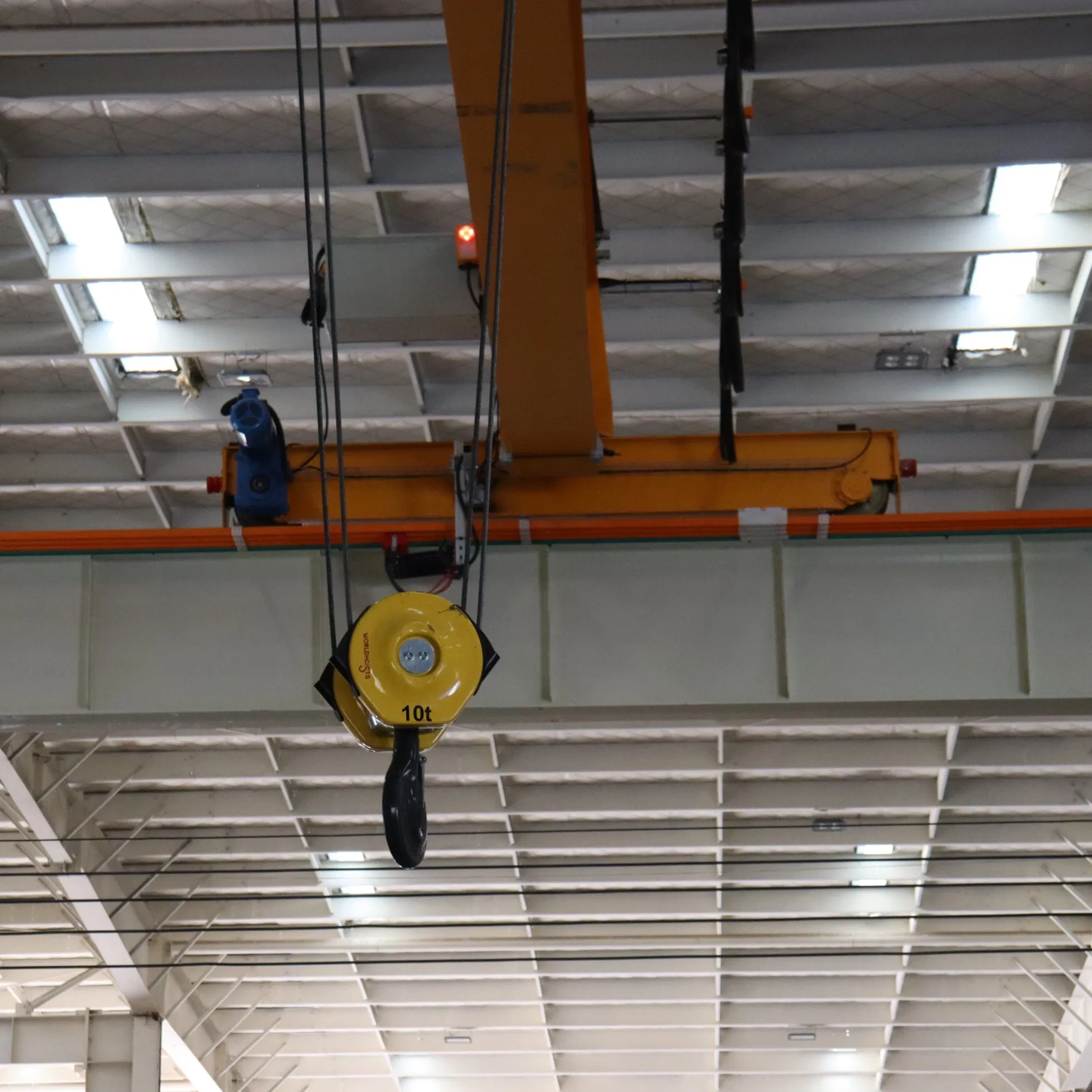

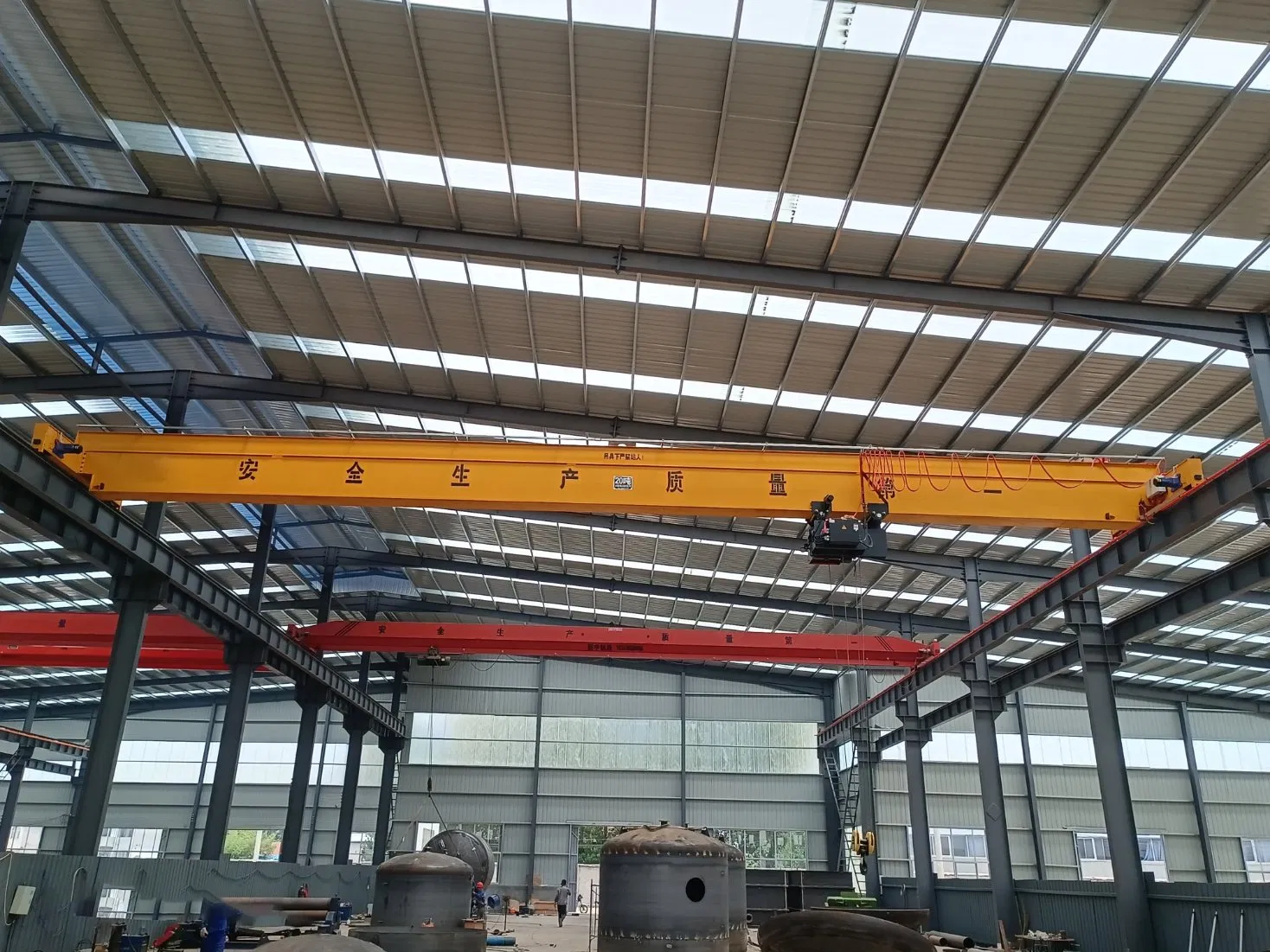

European Style Single Girder Bridge Crane with Electric Hoist
Traditional single-girder electric cranes typically use a combination of box girders and I-beams. In contrast, Euro-style single-girder electric cranes feature a box-type structure for the main beam, providing a more streamlined design. The electric hoist trolley runs smoothly on the lower flange, paired with flat-rimmed wheels for enhanced stability and durability.

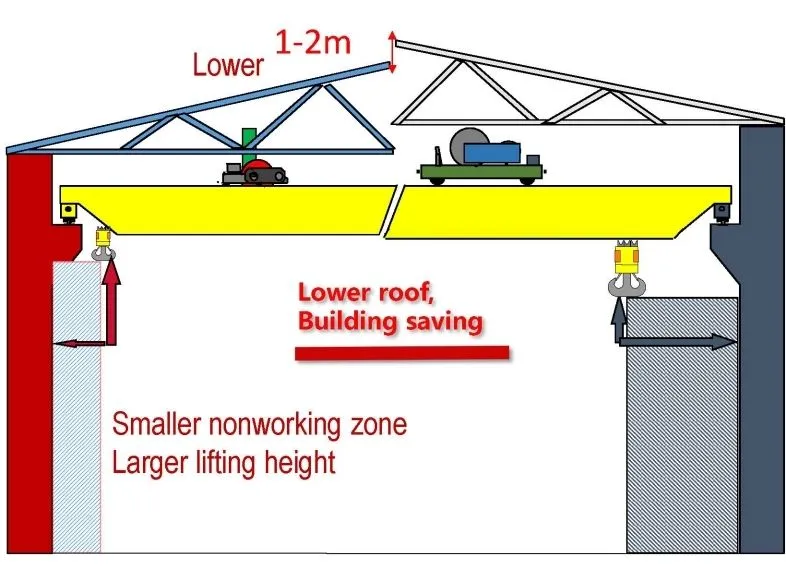

Euro-style cranes offer a lightweight design, compact structure, and energy-efficient operation. They feature smaller hook-to-wall distances and reduced headroom requirements, maximizing usable workspace. This results in significant cost savings in construction and long-term maintenance.

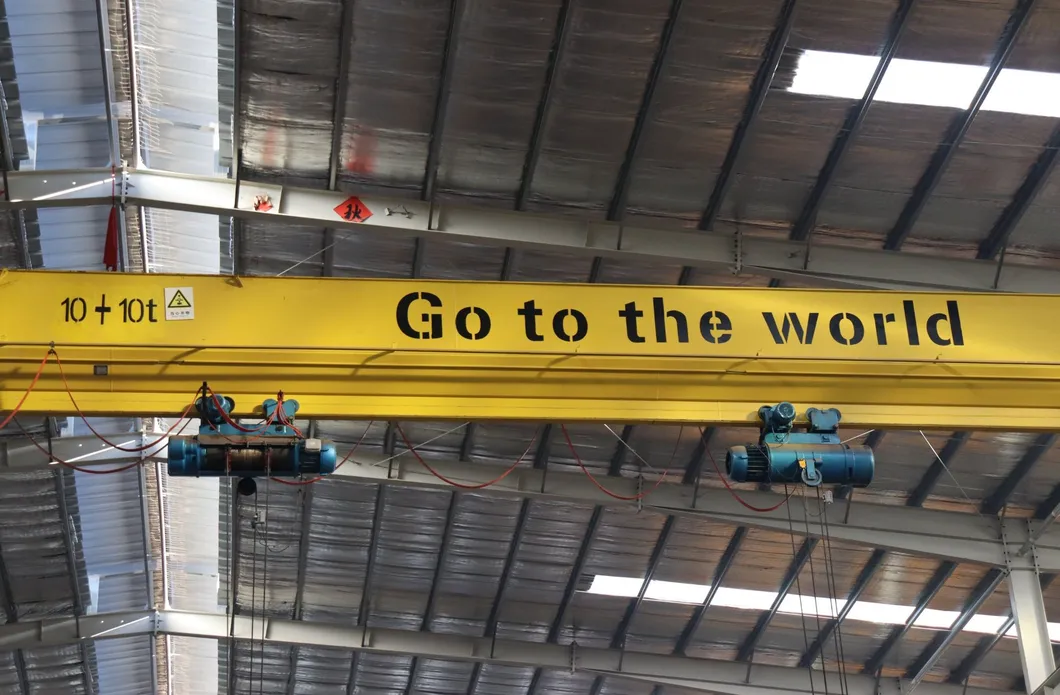

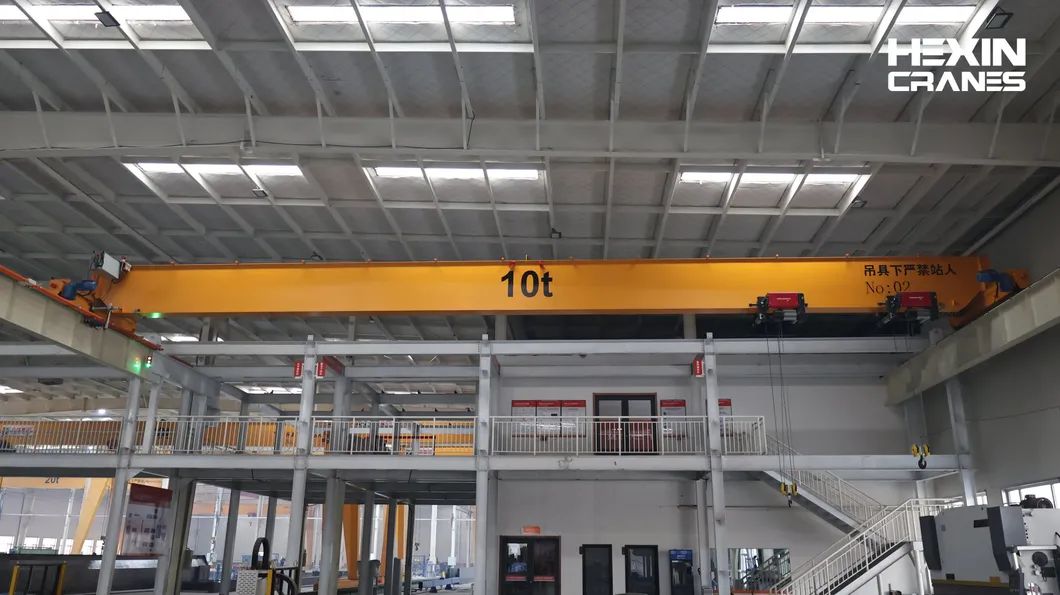

Lifting long, awkward loads may require two wire rope hoists. Dual hoist lifting adds flexibility, allowing hoists to be used independently or synchronized for heavy loads. This solution is engineered to meet specific capacity requirements for complex operations.
| Classification (ISO) | A3 | A4 | A5 | A6 | A7 |
|---|---|---|---|---|---|
| Lifting Capacity (t) | Up to 32 Tons (Total) | ||||
| Span (m) | 7.5m to 31.5m | ||||
| Lifting Height (m) | 3.2m to 100m | ||||
| Lifting Speed (m/min) | 0.32 to 40 m/min | ||||
| Travel Speed (m/min) | 3.2 to 80 m/min | ||||
| Power Supply | 220V - 660V, 50/60Hz, 3-Phase | ||||
| Ambient Temperature | -20°C to 40°C | ||||

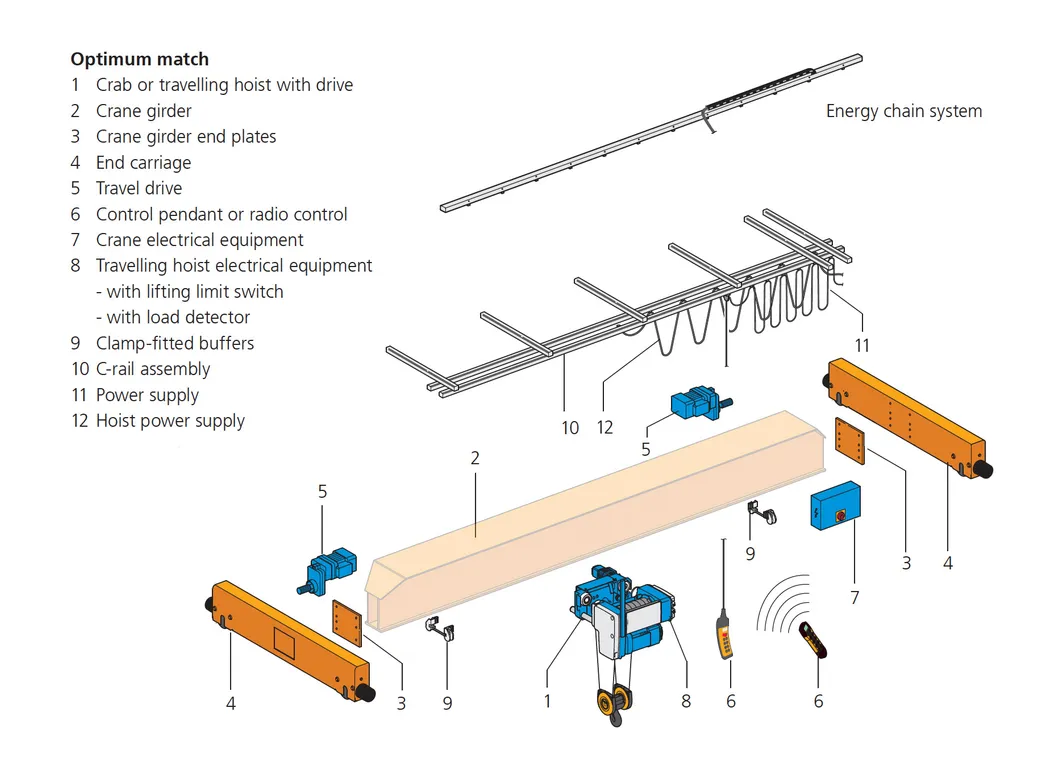

A primary load-bearing beam that runs the width of the building. Girders are fabricated using a steel box design for maximum strength and stability.

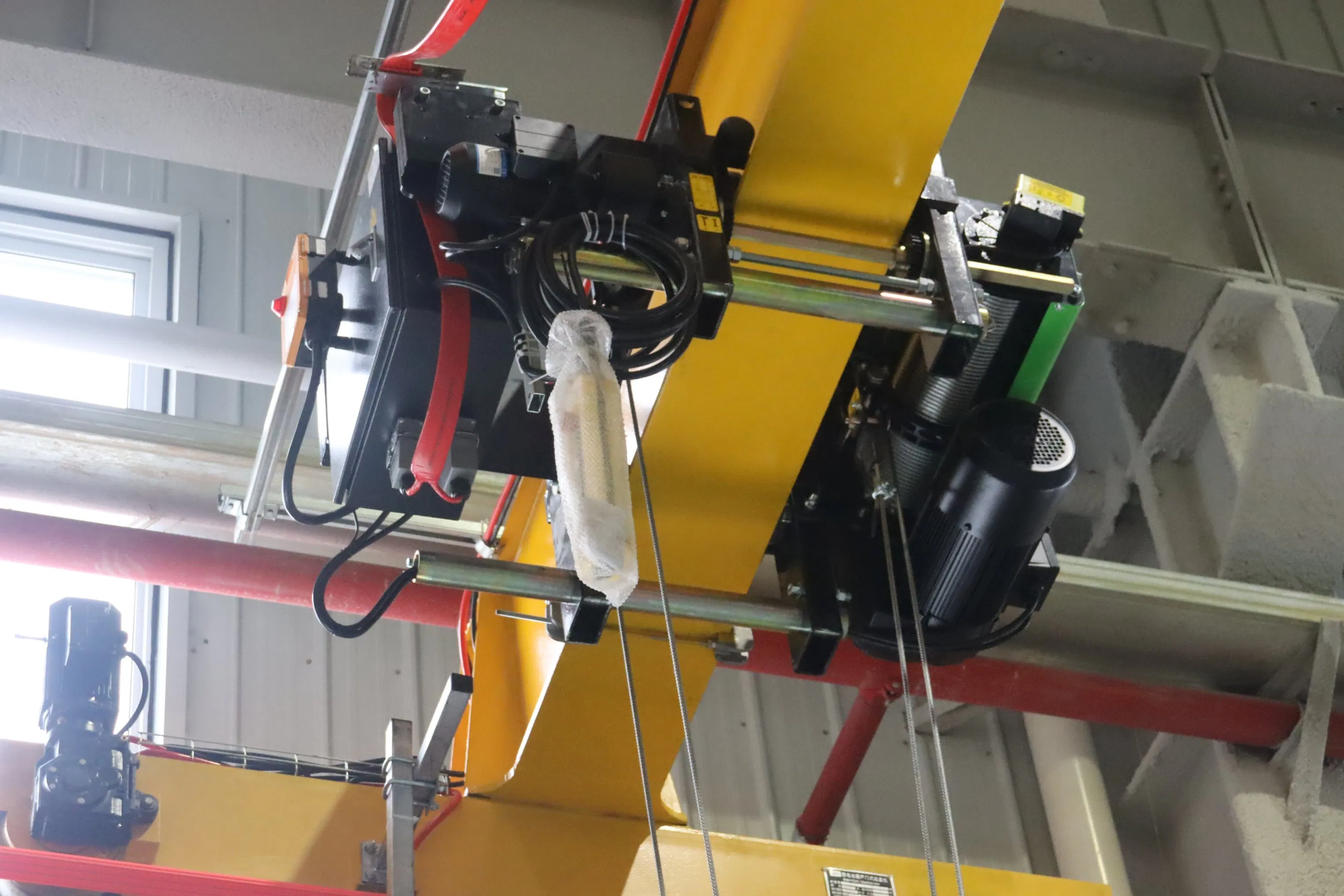

The mobile platform housing the hoisting mechanism. It includes high-tensile steel ropes, pulleys, and a motor-driven drum for precision lifting.

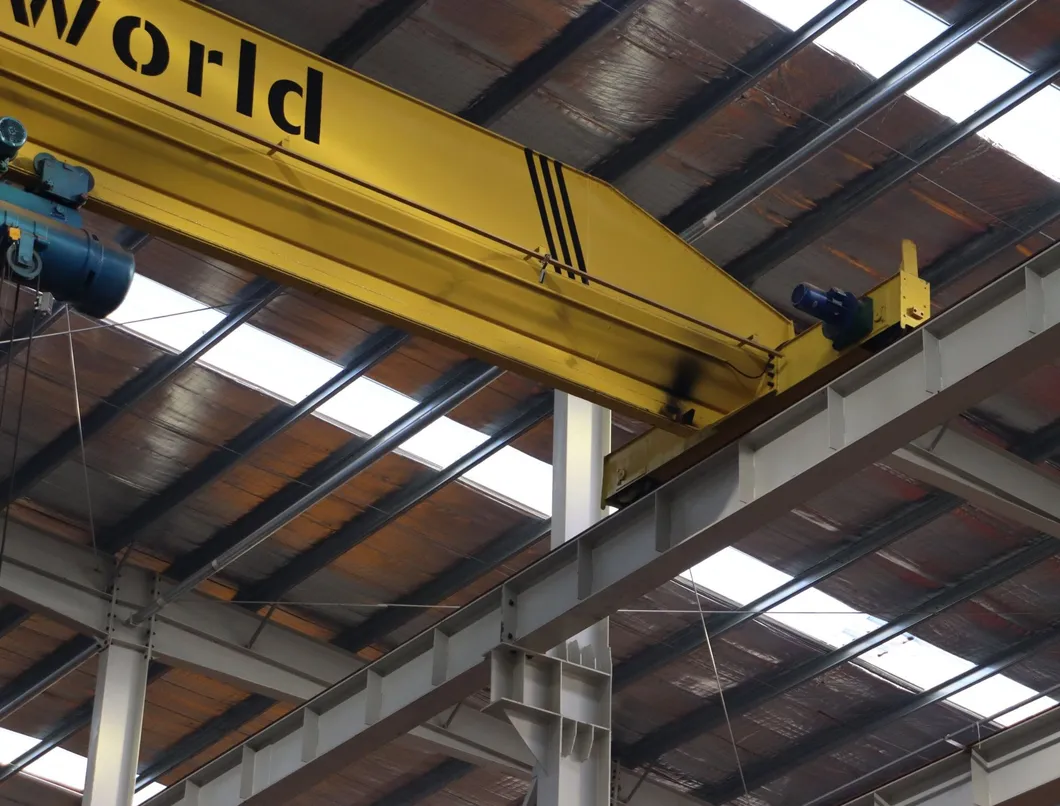

Equipped with 2, 4, or 8 wheels depending on capacity, ensuring the crane travels smoothly along the rails with optimal stability.

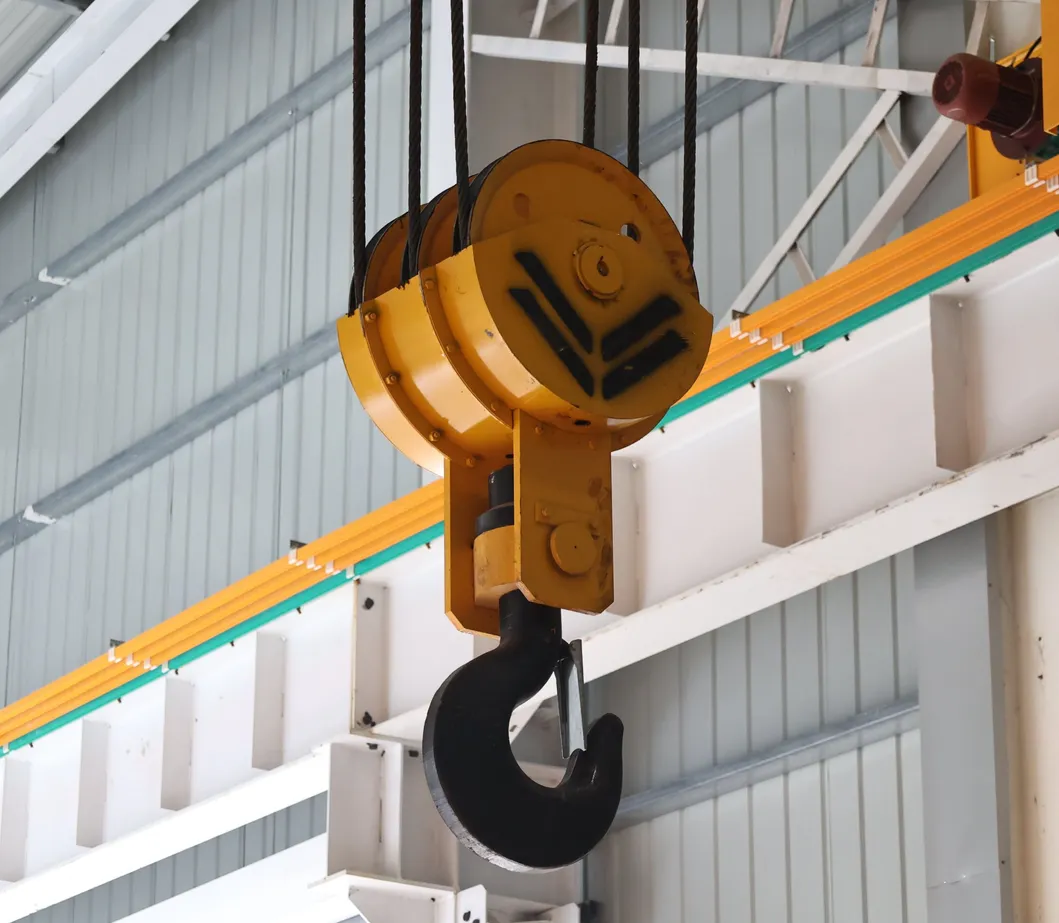

Options include standard hooks for general tasks, grab buckets for bulk materials, and specialized tools tailored to specific operational needs.

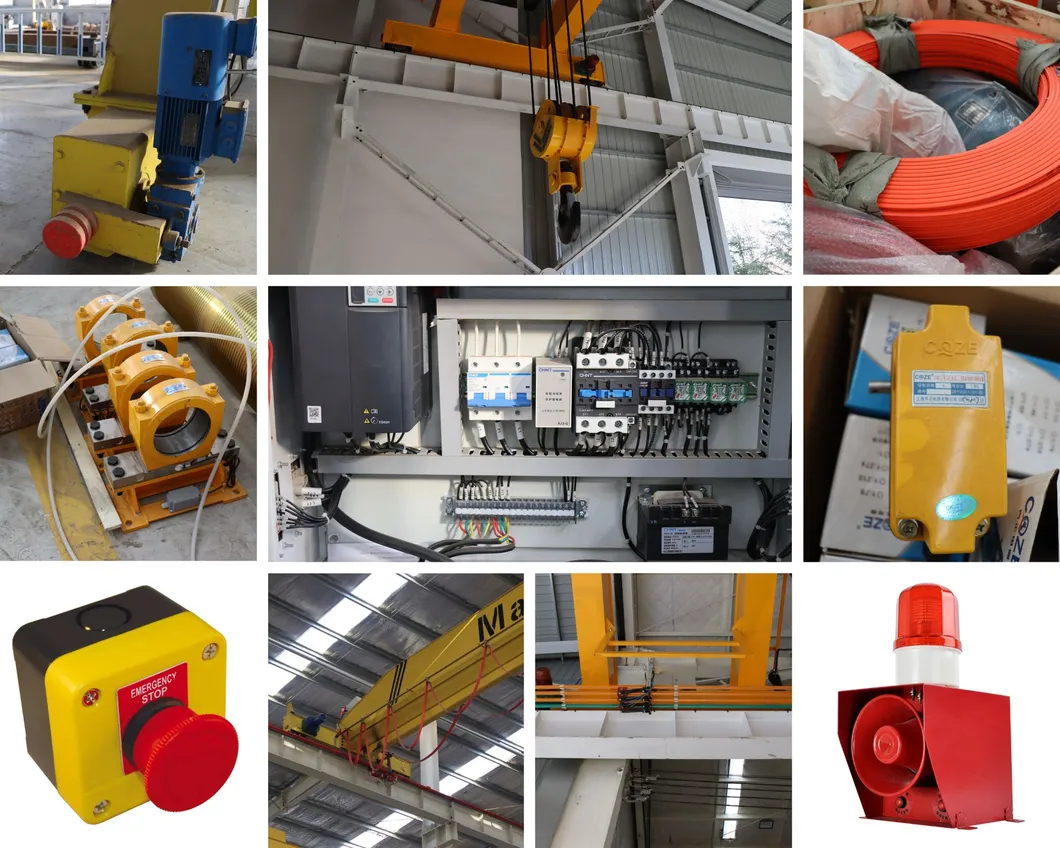

Comprehensive safety apparatus including overload limit switches, rubber buffers, emergency stop systems, and rail anchoring for secure operation.
To provide the most accurate design solution, please share the following details:

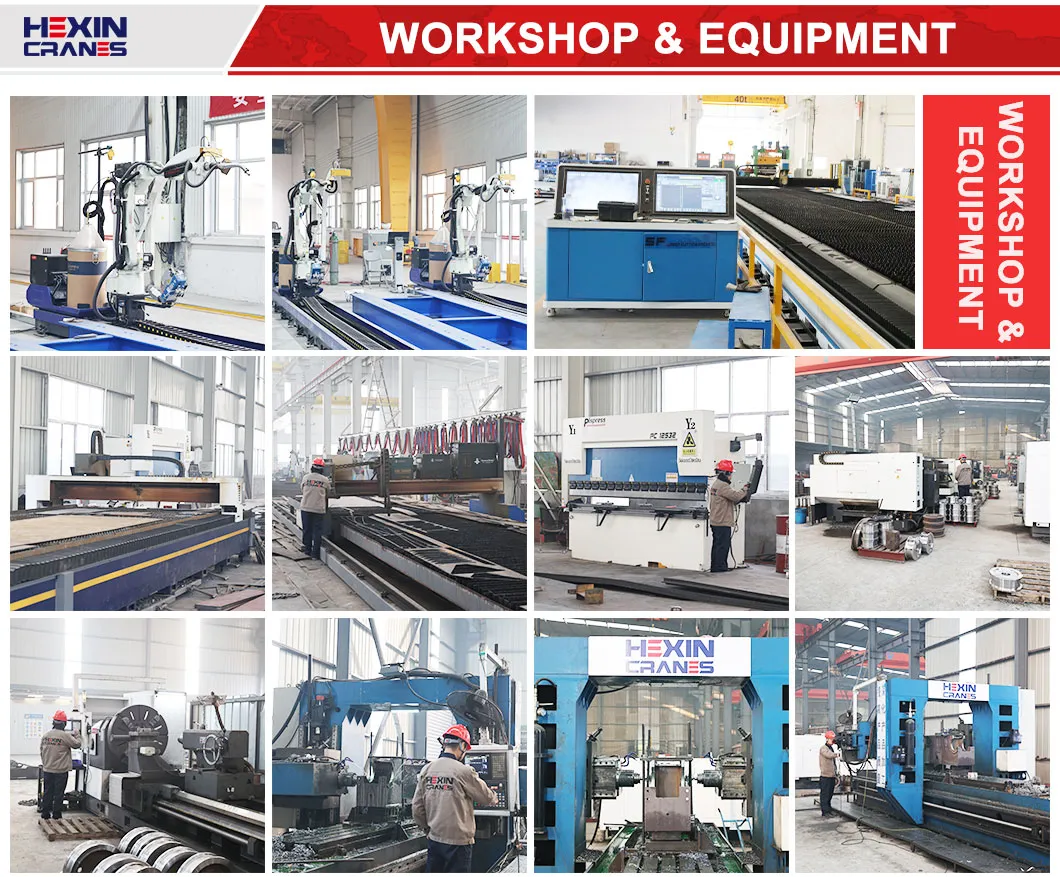

Founded in 2007, our journey began in the lifting machinery industry. We operate a modern manufacturing facility and a dedicated office to serve global demands. Our products are exported to over 20 countries, providing standardized and customized solutions for factories and distributors worldwide.
