Basic Information
Model NO.MW5 - 70L/1
ApplicationLift Steel Scrap
Quality CertificateISO9001:2008
Conductor/CoilAluminum or Copper
Diameter700mm
Product NameLifting Electromagnet
Machine Weight490kgs
Power3.3kw
HS Code8505901000
Production Capacity100 Sets/Month
Product Description

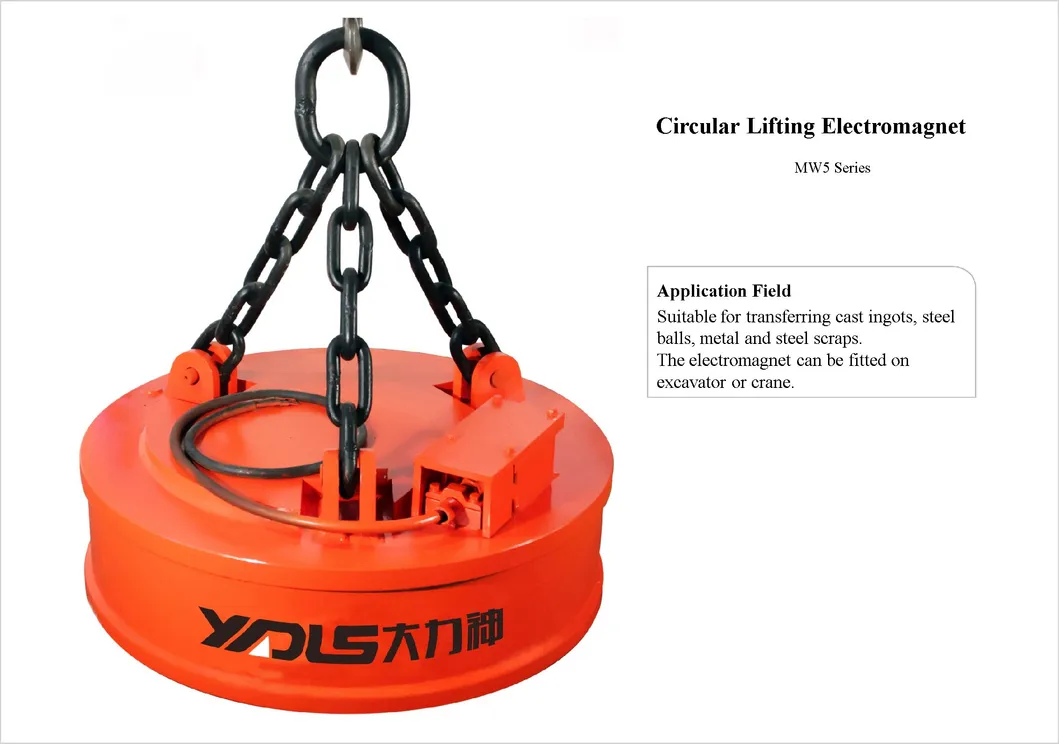

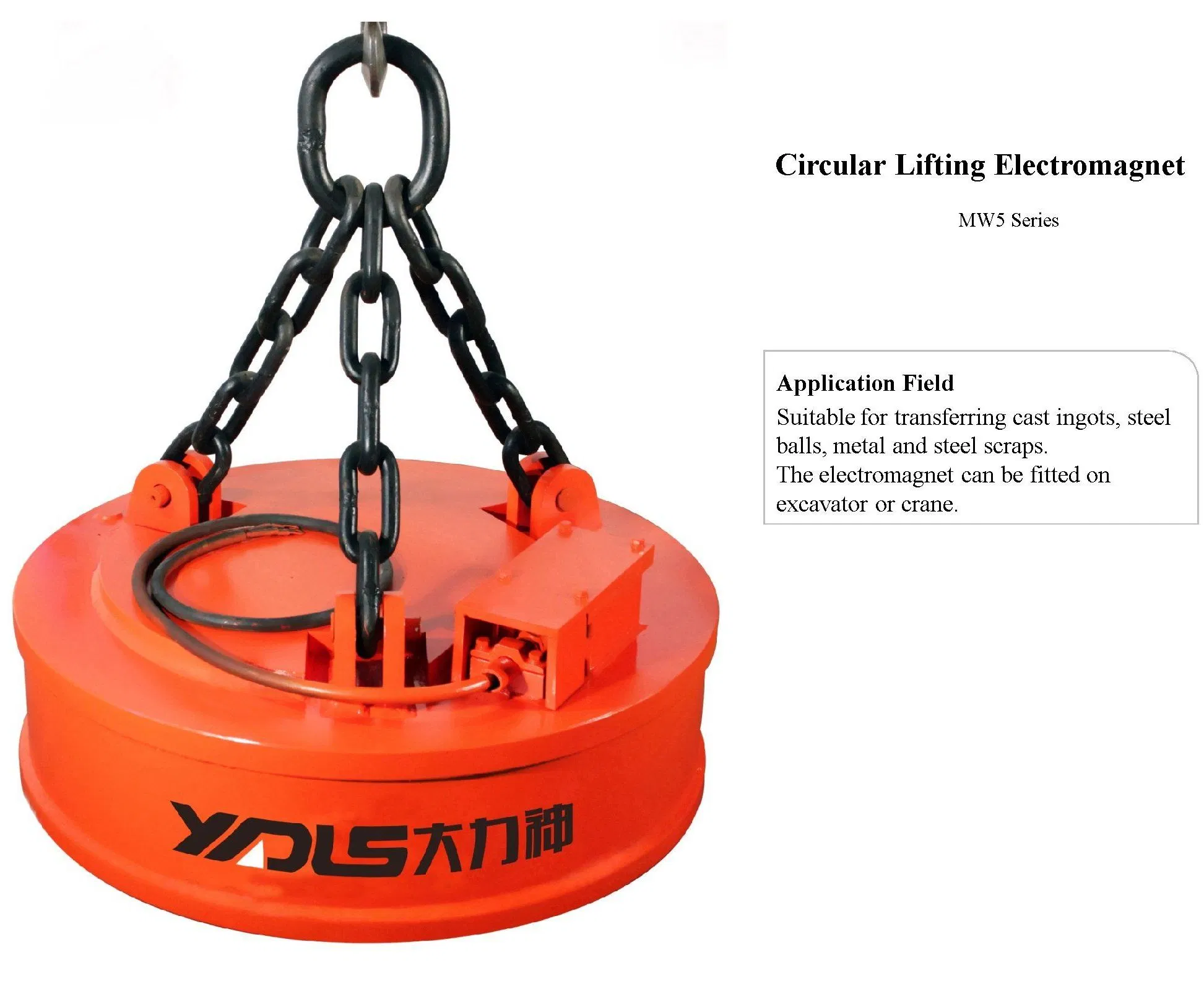

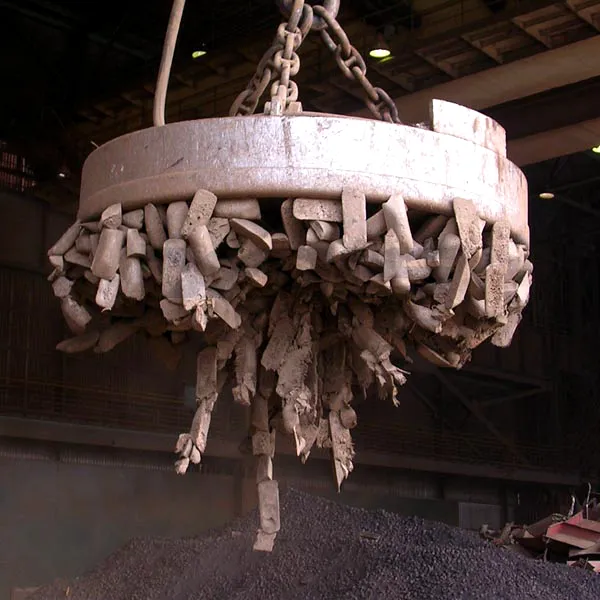

The MW5 Series Lifting Electromagnet is specifically designed for handling steel scraps, casting ingots, and steel balls. It serves as an essential lifting appliance for traveling electric cranes, mobile cranes, lifting trucks, and excavators.
Available Options:
- Normal temperature lifter
- High frequency lifter
- High temperature lifter (up to 700°C)
Technical Features
- Sealed structure with excellent moisture and dust proofing.
- Optimized design featuring light weight and strong attraction force with low energy consumption.
- Coils processed with special technology to improve electrical and mechanical properties (Insulation Grade F to H).
- Increased energizing ratio (up to 75%) for higher operational effectiveness.
- Abrasion-resisting and shockproof high-manganese steel protection plate for coils.
- Easy installation, operation, and maintenance.
Technical Data Specifications
| Model |
Diameter (mm) |
Current (A) |
Power (kW) |
Lifting capacity (cold/hot state) (kgs) |
| Steel ball |
Steel ingot |
Steel scrap |
| MW5-70L/1 | 700 | 15 | 3.3 | 2500 | 380/200 | 120/100 |
| MW5-80L/1 | 800 | 18 | 3.96 | 3000 | 480/250 | 150/130 |
| MW5-90L/1 | 900 | 26.6 | 5.85 | 4500 | 600/400 | 250/200 |
| MW5-110L/1 | 1100 | 35 | 7.7 | 6500 | 1000/800 | 450/400 |
| MW5-120L/1 | 1200 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 |
| MW5-130L/1 | 1300 | 54 | 11.9 | 8500 | 1400/1100 | 700/600 |
| MW5-150L/1 | 1500 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 |
| MW5-165L/1 | 1650 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 |
| MW5-180L/1 | 1800 | 102.4 | 22.5 | 14500 | 2750/2100 | 1600/1350 |
| MW5-210L/1 | 2100 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 |
| MW5-240L/1 | 2400 | 154 | 33.9 | 26000 | 4800/3800 | 2850/2250 |
Frequently Asked Questions (FAQ)
What materials can the MW5 series lifting electromagnet handle?
The MW5 series is designed for handling cast ingots, steel balls, metal fragments, and various types of steel scraps efficiently.
Can this electromagnet handle high-temperature materials?
Yes, with our special heat-protection design, the high-temperature version can handle materials up to 700 degrees centigrade.
What are the options for the coil conductor?
The coils can be made of either Aluminum (flat aluminum wire with double spun glass covering) or high-quality Copper, depending on your requirements.
What is the insulation grade of the equipment?
The electromagnet is built with a high insulation standard, typically ranging from Grade F to Grade H, ensuring a long service life and safety.
What types of machinery can this electromagnet be installed on?

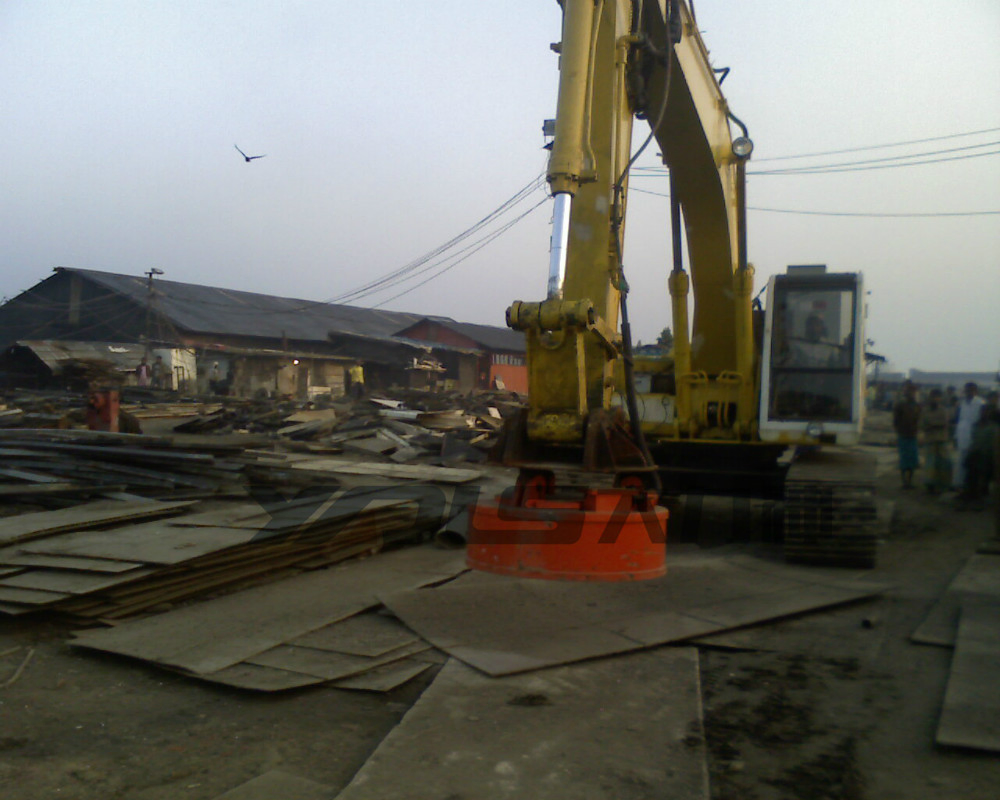

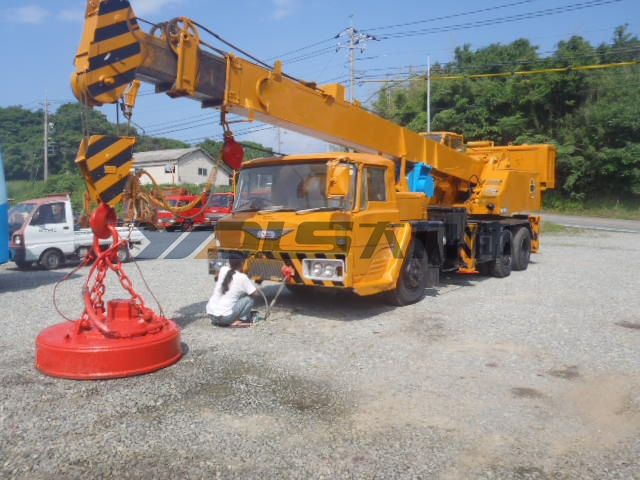

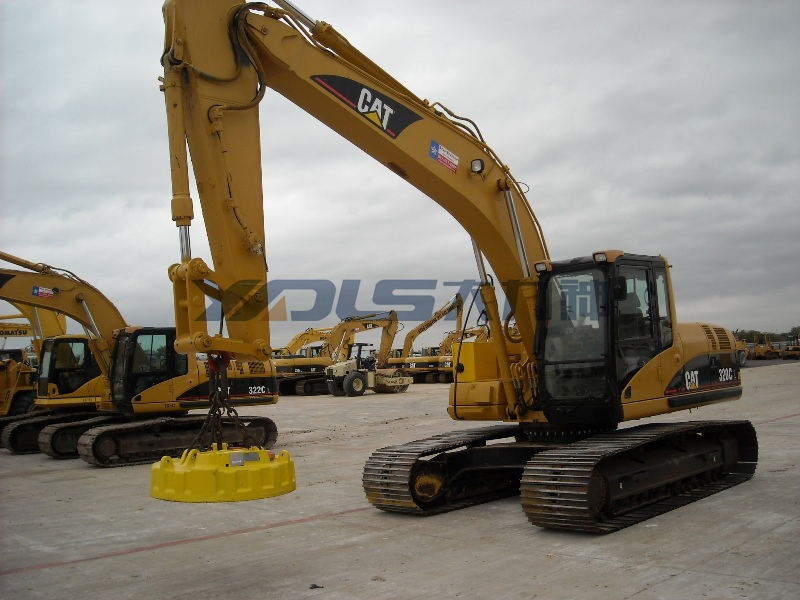

It is highly versatile and can be fitted onto excavators, overhead traveling cranes, mobile cranes, and lifting trucks.
What is included in the scope of supply?
We provide a complete setup including the lifting magnet, control panels, cables, cable reels, lifting chains, beams, and battery sets as required.
