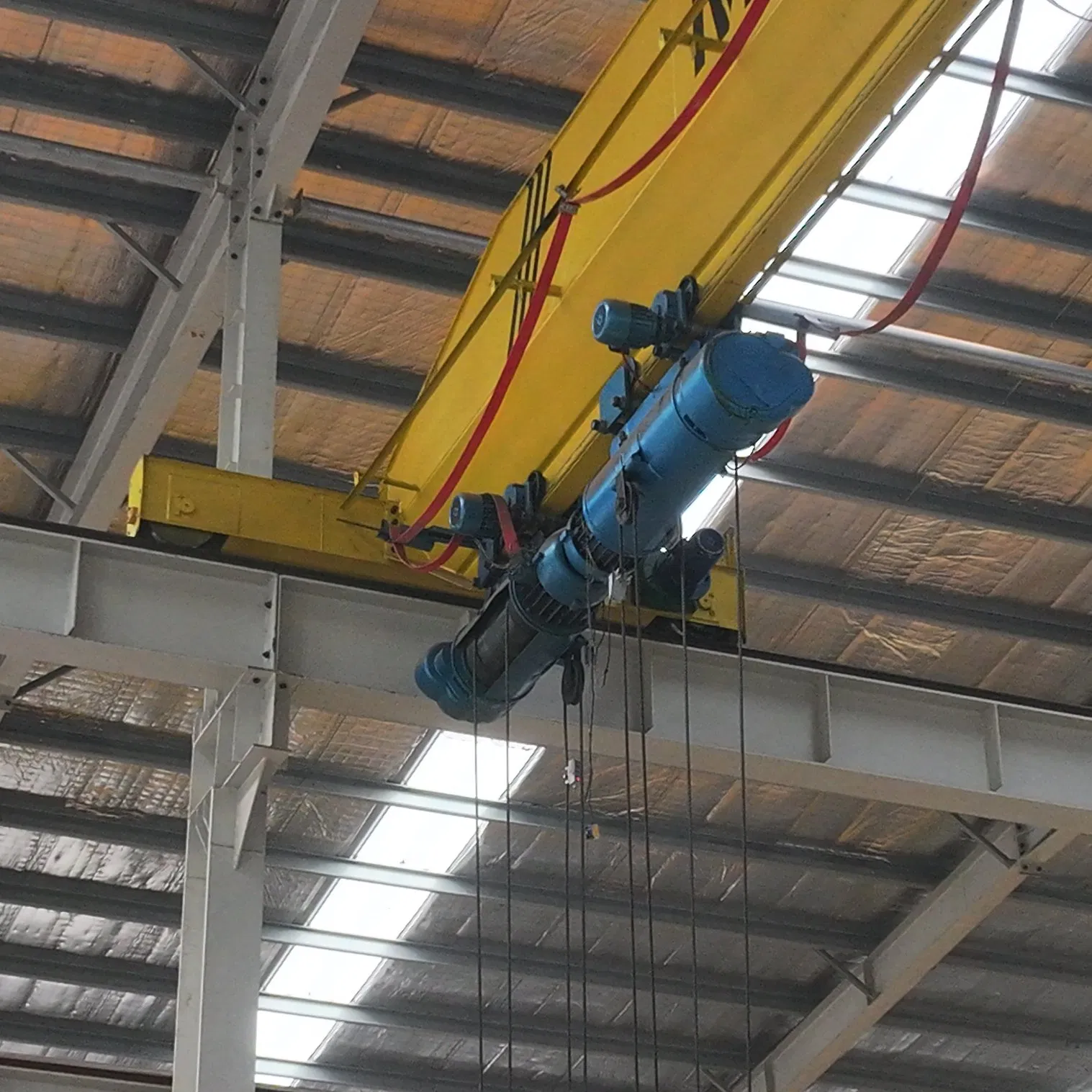

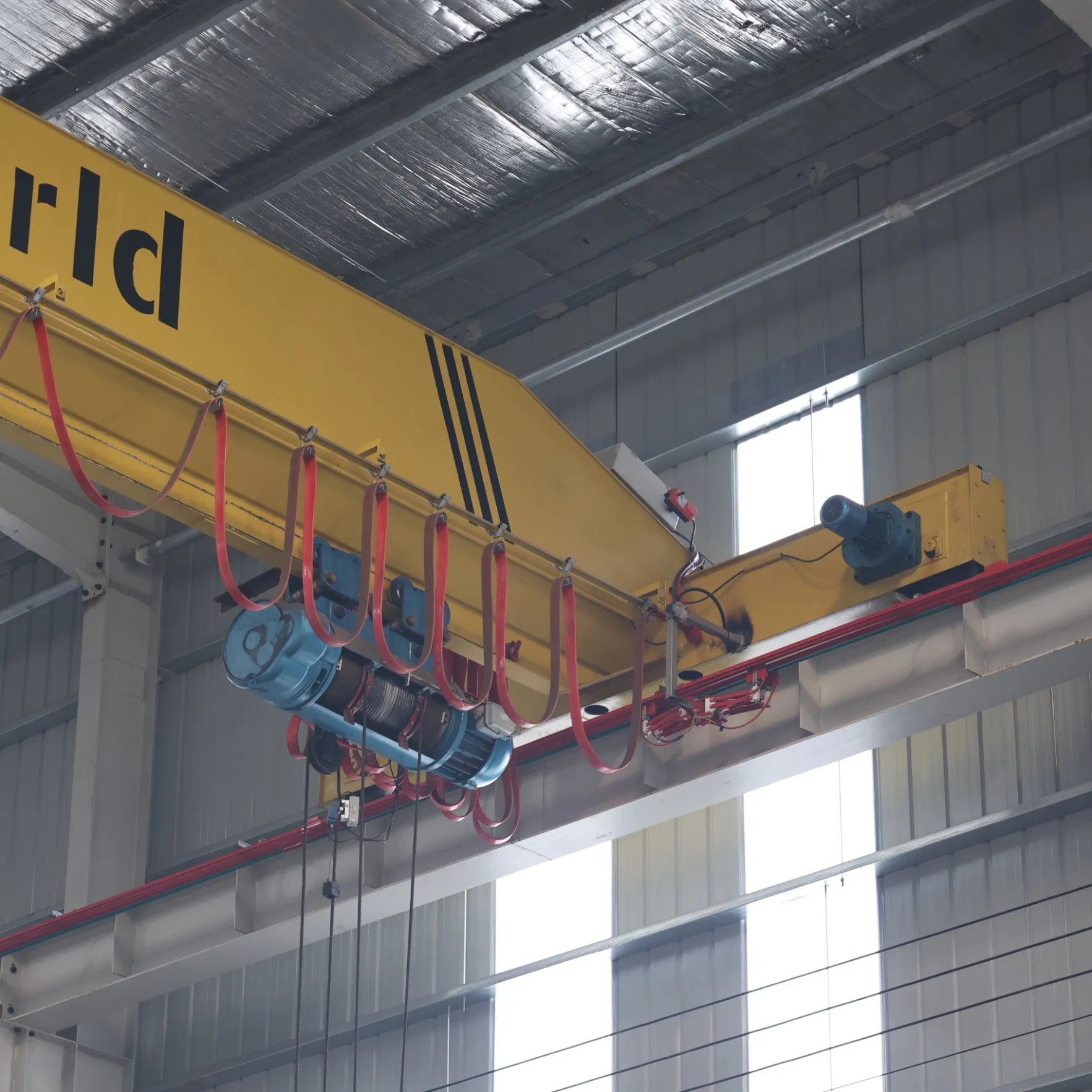

| Model | LD Single Beam Overhead Crane |
| Certification | RoHS, CE, ISO9001, SGS |
| Lifting Capacity | 2t - 20t (Customizable) |
| Lifting Height | Max 20m (Customizable) |
| Span | Max 40m (Customizable) |
| Control Form | Pendent / Radio Remote Control |
| Power Supply | 3 Phase 380V 50Hz (Customizable) |
| Work Duty | A3, A4, A5 |
| Material | Q235B/Q355B Steel |

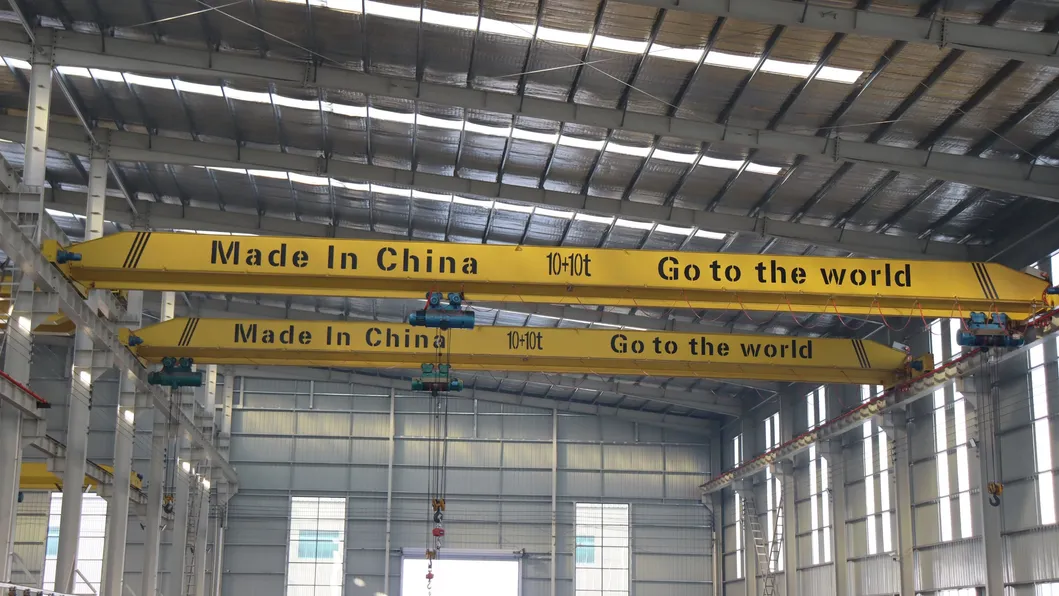

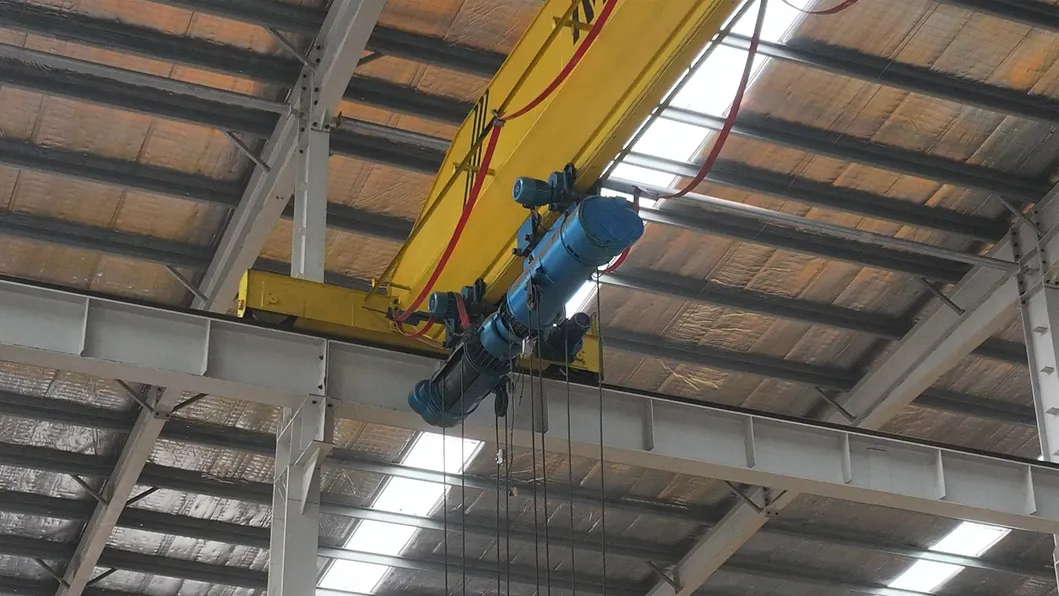

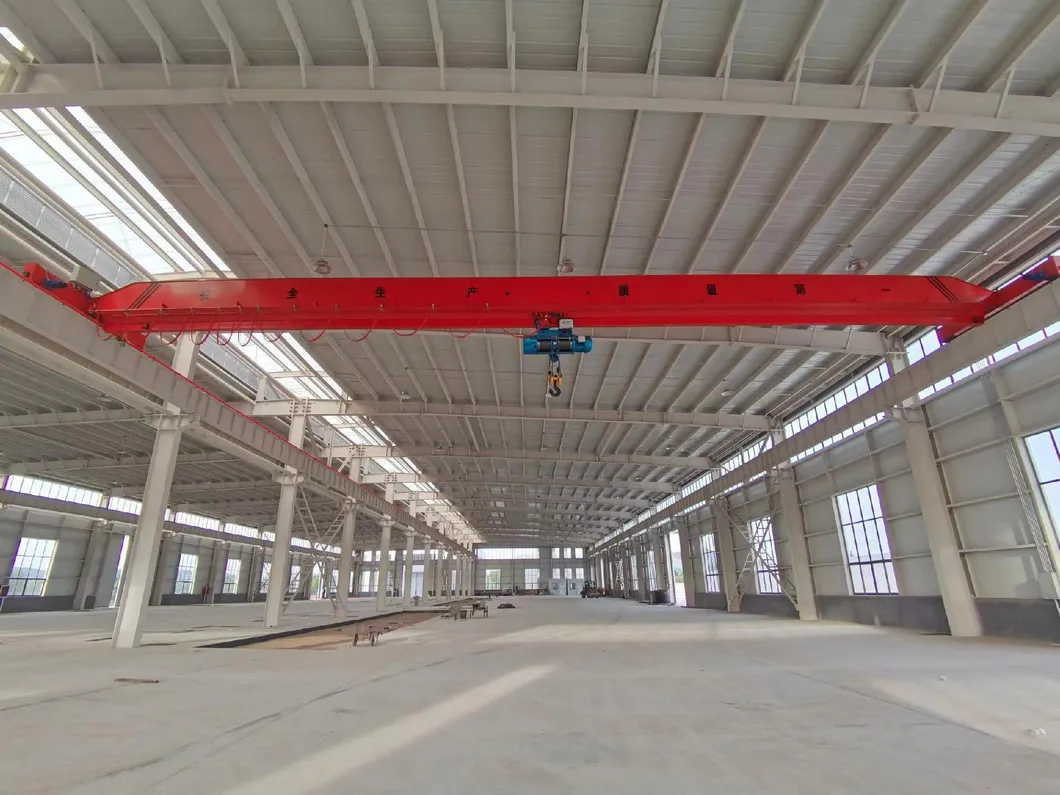

An overhead crane mainly consists of a bridge frame (main girder + end girder), a hoisting trolley, an electrical control system, and safety protection devices. It efficiently handles large workpieces for factory assembly lines and warehouse logistics through precise longitudinal and vertical movements.
| Type | Single Girder Overhead Crane |
| Lifting Speed | 5/0.8 m/min (Double Speed / Customizable) |
| Trolley Speed | 0-20 m/min (Frequency Conversion) |
| Warranty | 18 Months after shipment |
| Surface Prep | Shot Blasting Sa2.5 |
| Working Temp | -20°C to +45°C |
| Application | Warehouses, Ports, Steel Plants, Power Stations |
Constructed from Box Beam or I-Beam using Q235B/Q355B steel for maximum stability and load transmission.

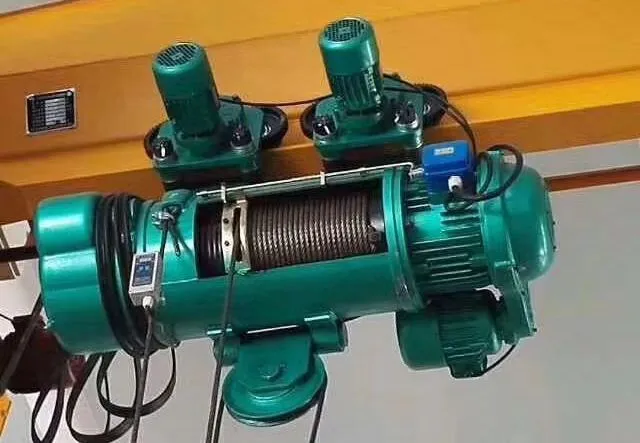

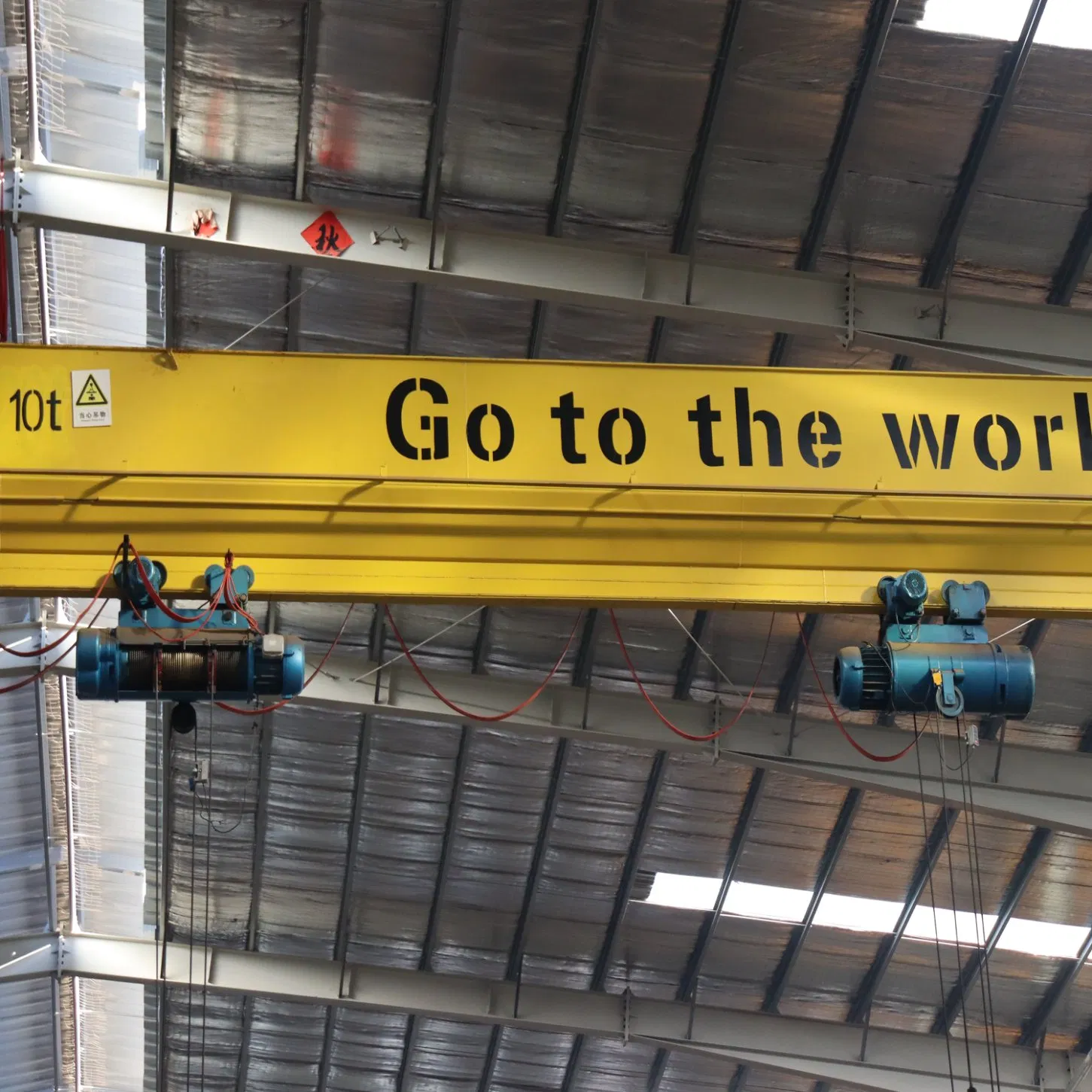

Features high-performance electric hoists with integrated motors and reducers for vertical handling.

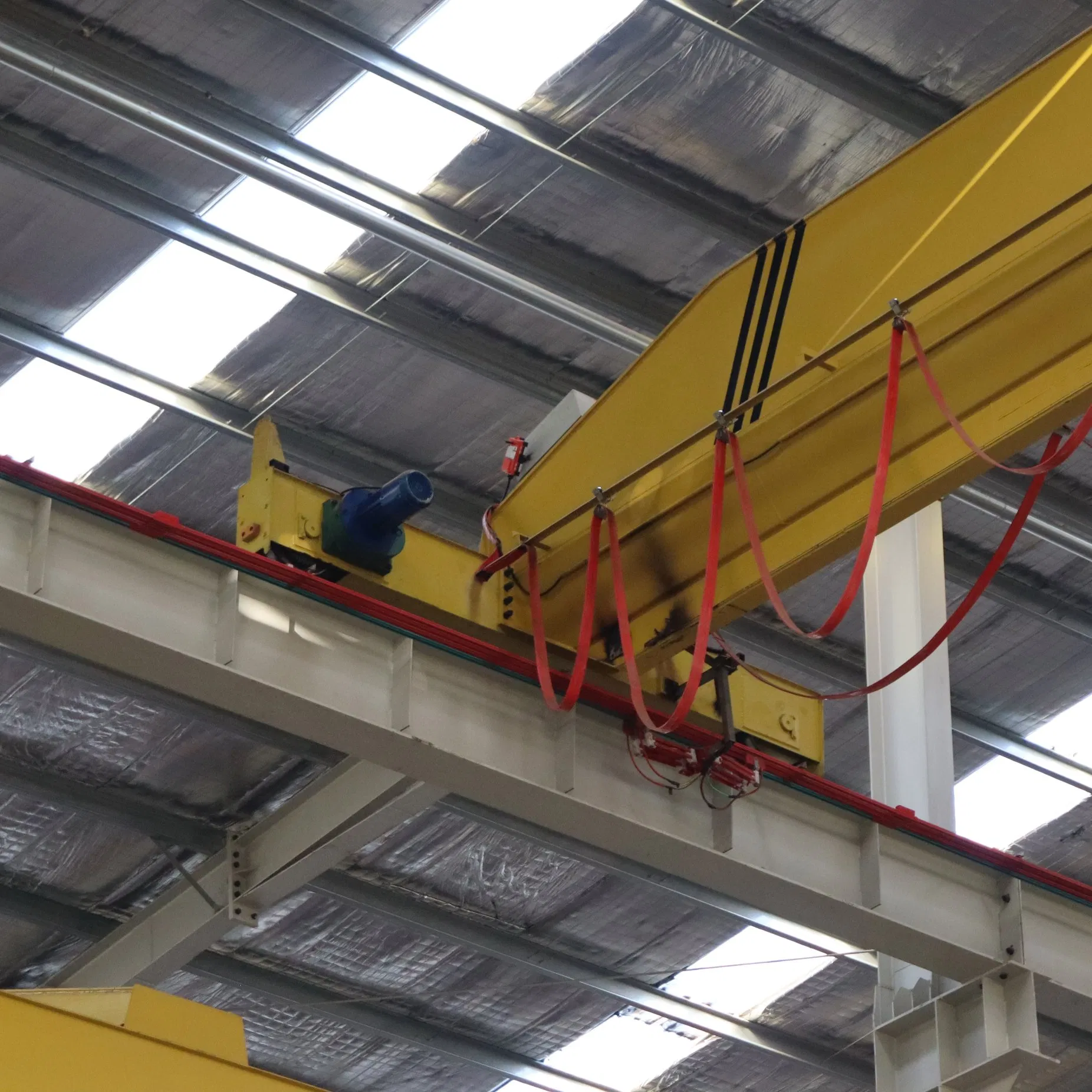

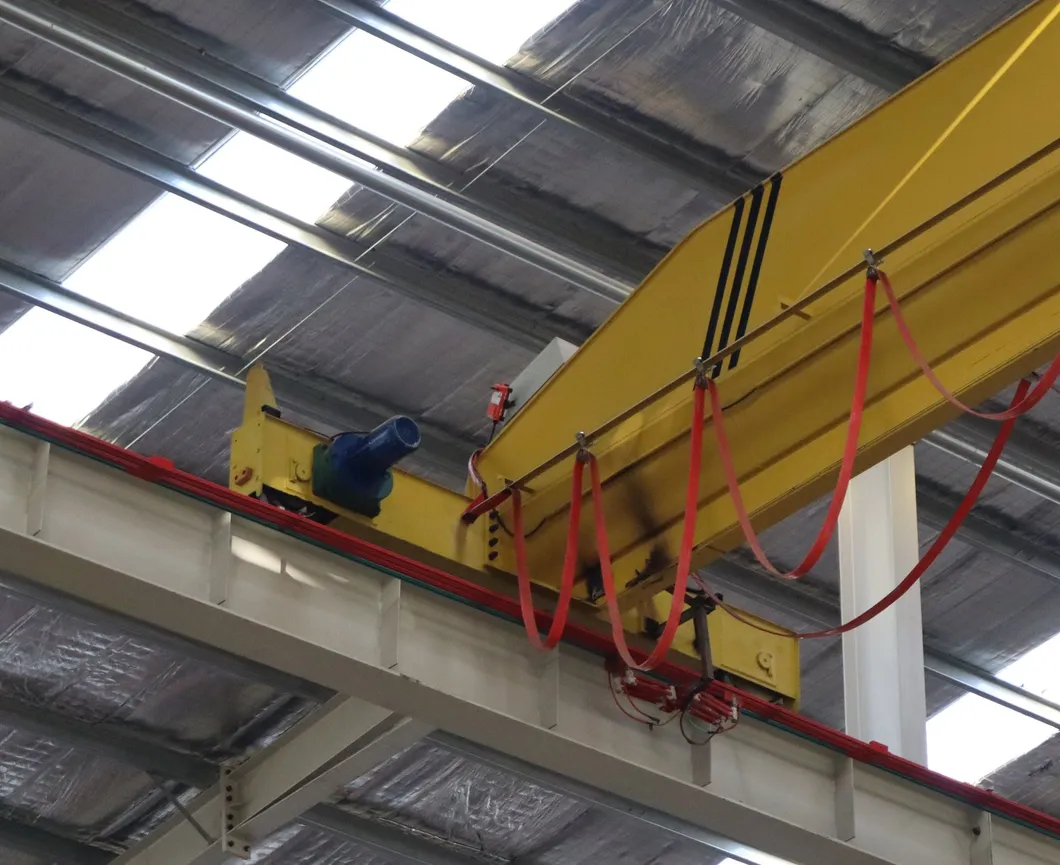

Heavy-duty wheels and end beams ensure smooth longitudinal movement on workshop rails.

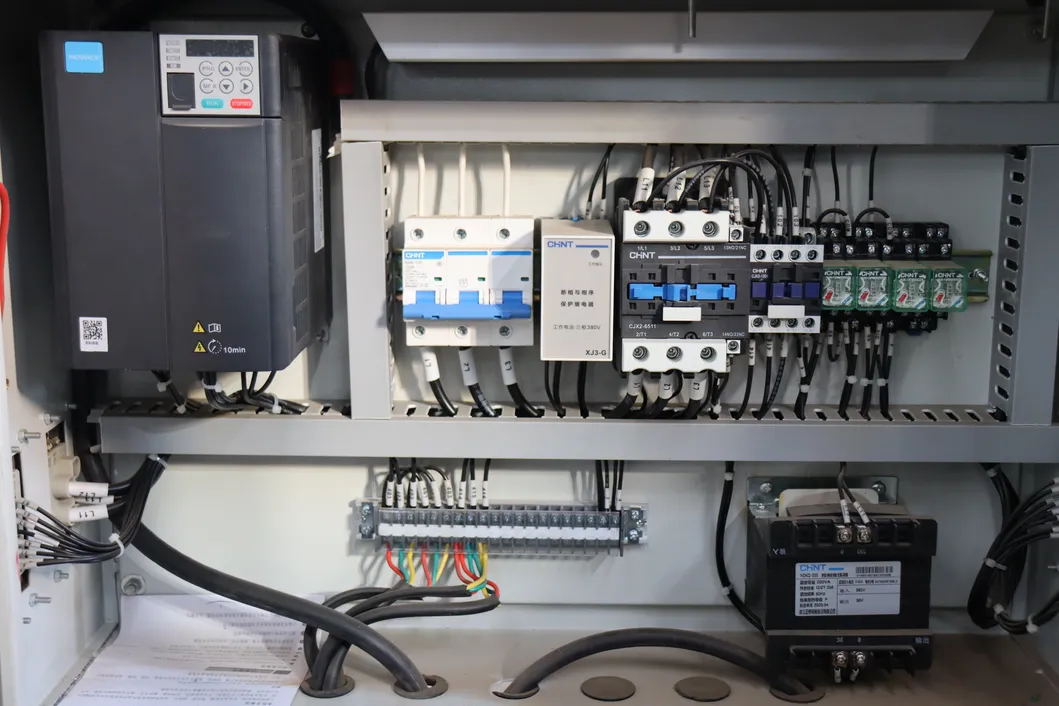

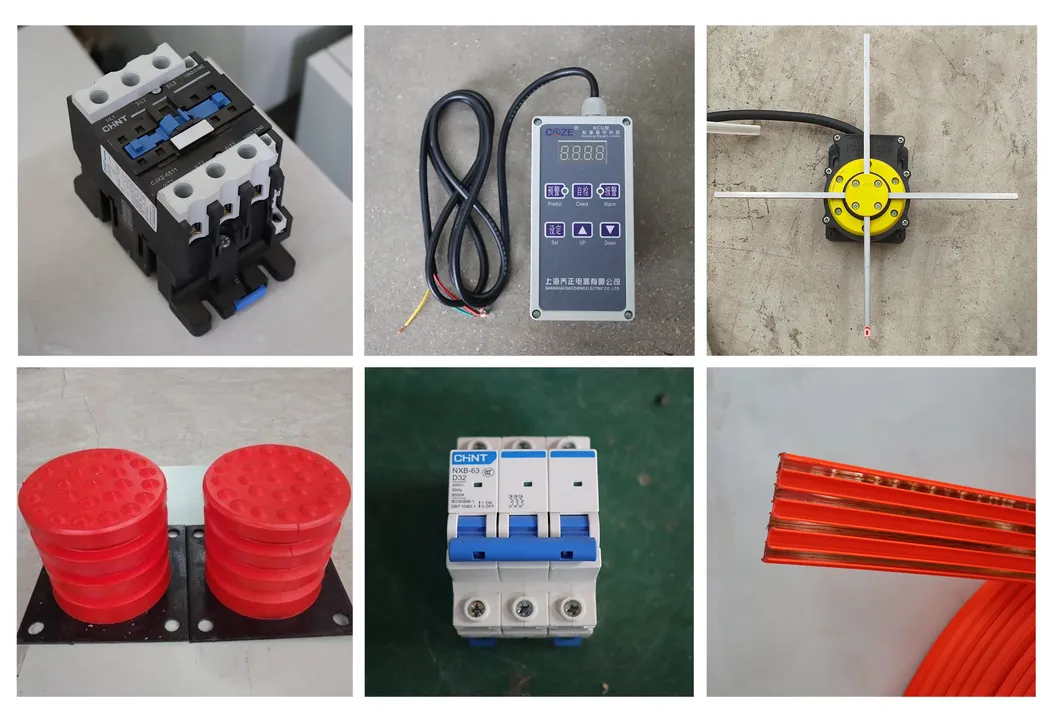

Precisely controls all lifting and moving actions with strong protection against environmental factors.
To provide an accurate design, please share:

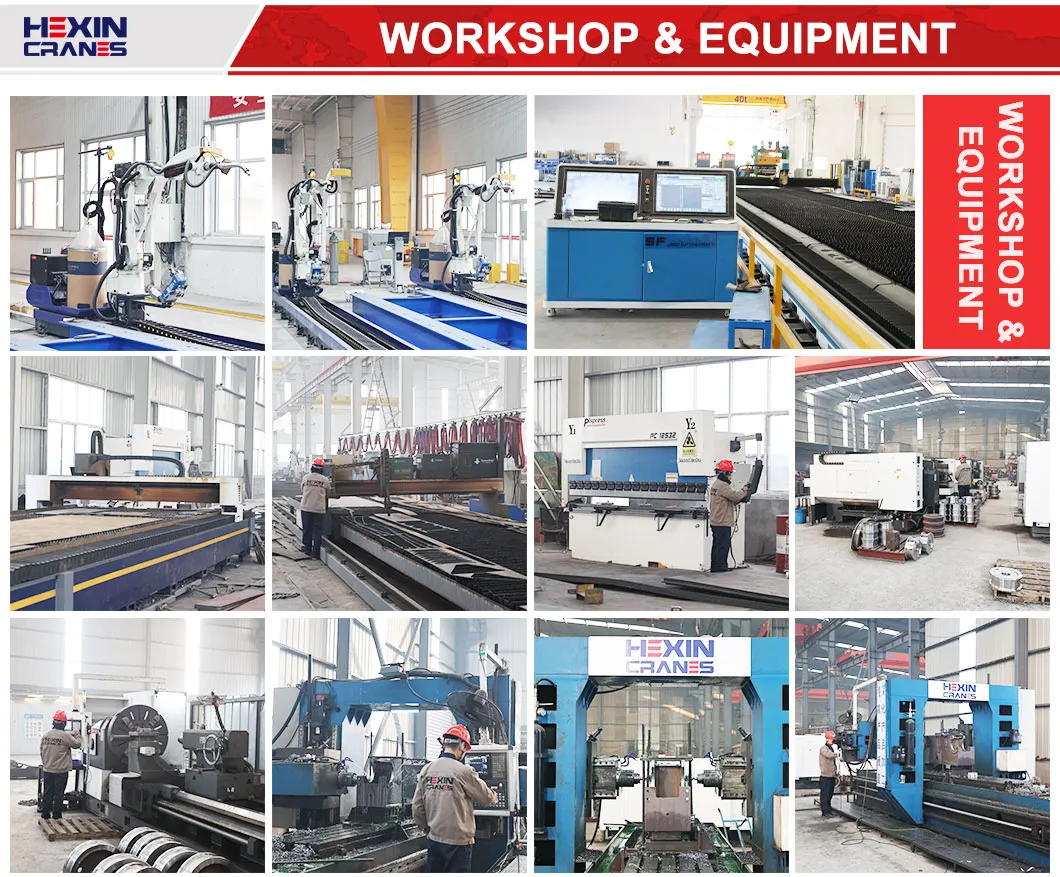

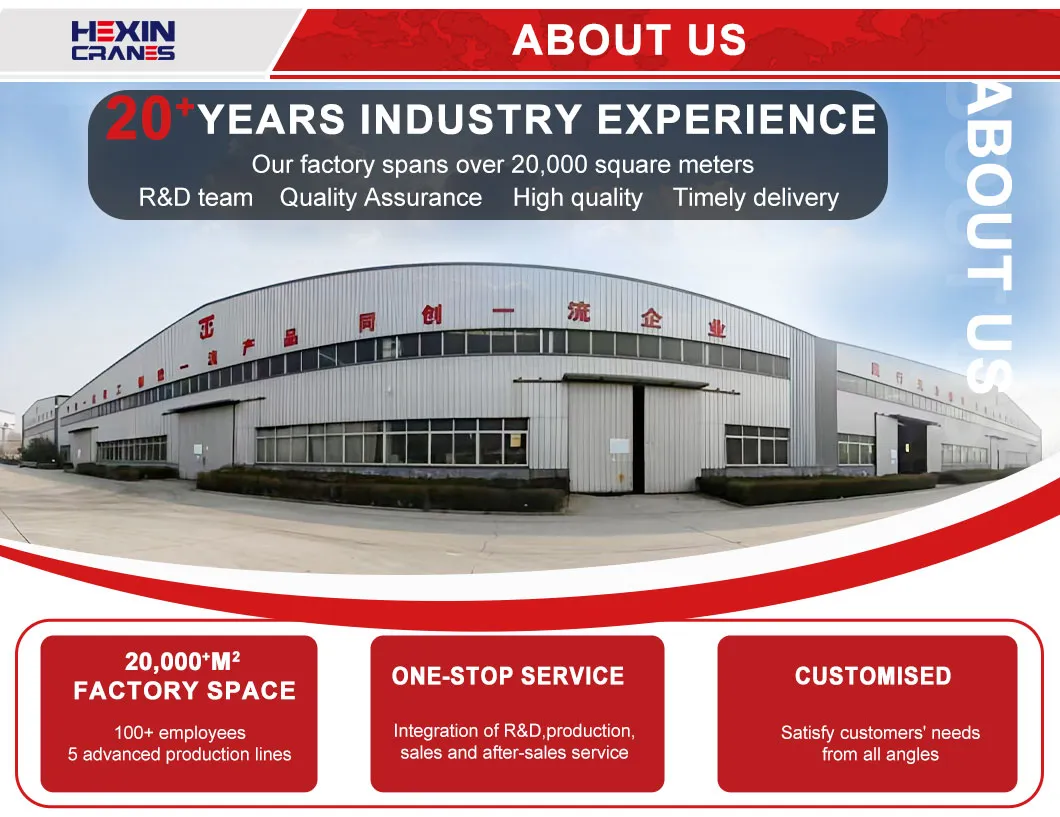

With over 20 years of expertise, we are a one-stop solution provider integrating R&D, production, and after-sales service. Operating a 20,000 sqm production base with 5 advanced lines, we deliver reliable equipment to over 20 countries.
We select optimal transportation solutions ensuring safety, efficiency, and cost-effectiveness for timely delivery.
