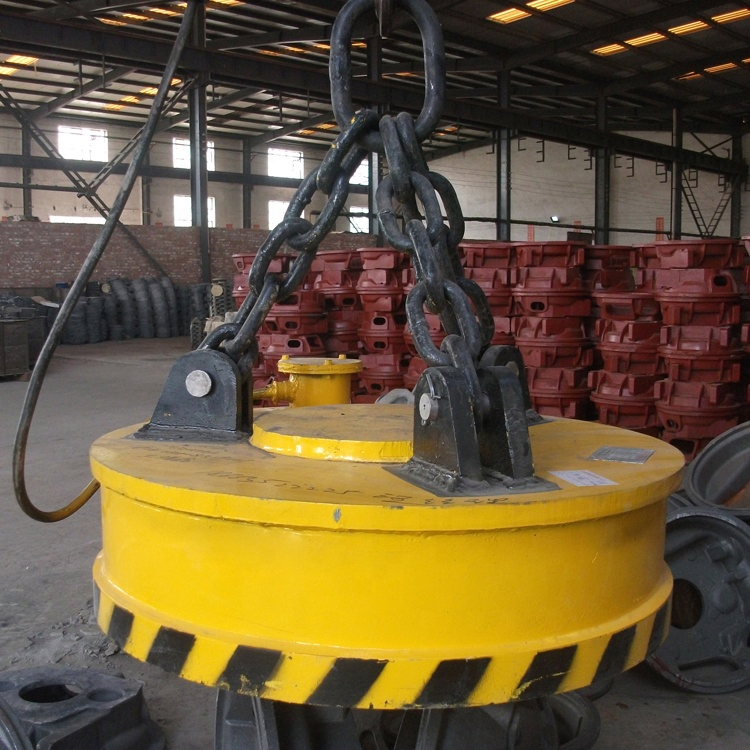

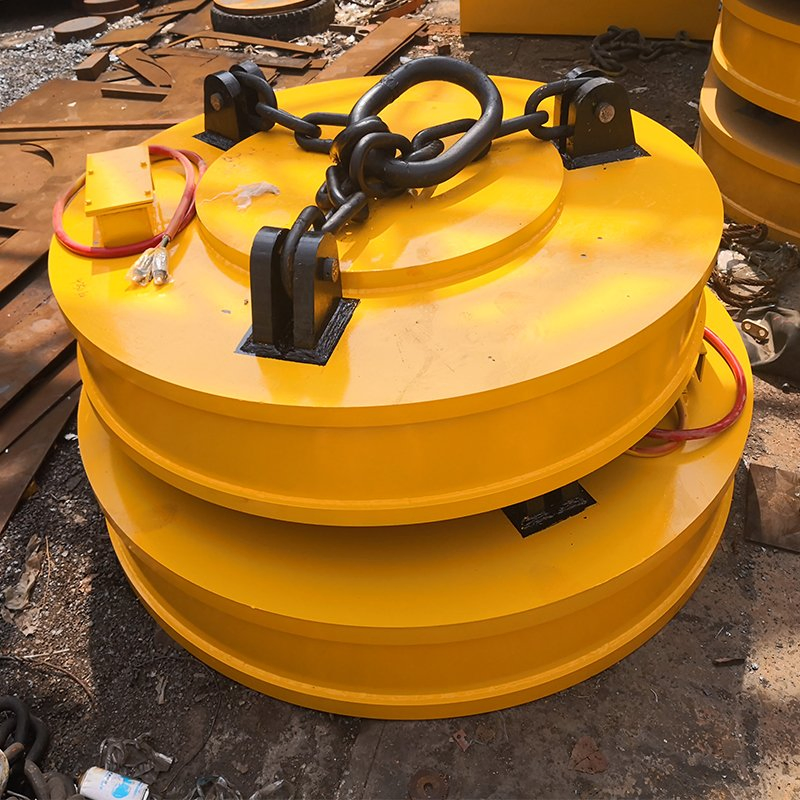

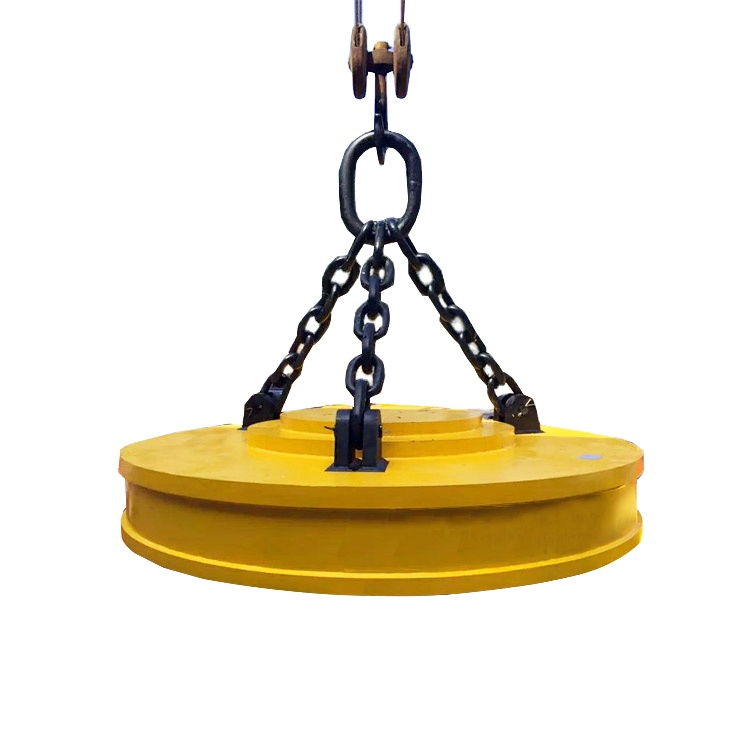

Round Diameter 1000 mm Electric Magnetic Lifter for Crane Excavator

1 / 5

Round Diameter 1000 mm Electric Magnetic Lifter for Crane Excavator

Customization:	Available
After-sales Service:	Site Installation & Engineer Maintenance Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info

Color:

Yellow

Rated Voltage:

DC-220V

Duty Cycle:

Td-75%

Model:

MW5

Cold State Power:

2.0-32.5 Kw

Max. Temperature:

Can Reach to 700-800℃

Coil Material:

Aluminum or Copper Optional

Weight:

7000kg

Electric Current:

102A

Production Capacity:

1000 Set/Sets Per Month

Product Description

DC 24v 12 v electromagnets excavator circular lifting magnet scrap metal electromagnet

The low-power 24V lifting electromagnet of the excavator adopts the original 24V battery input of the excavator: the magnetic voltage is changed by the controller to make the magnetic disk strong.

Technical Data

Model	KM-70	KM-120	KM-200
Matching excavator weight (t)	6-7	10-15	20-25
Disk diameter (mm)	750	900	1100
Output Power (kw)	3.5	6	10
Oil quantity (l/min)	18	32	46
Oil pressure (kg/cm2)	210	210	210
Full height (mm)	935	1250	1250
Weight (kg)	550	1050	1600

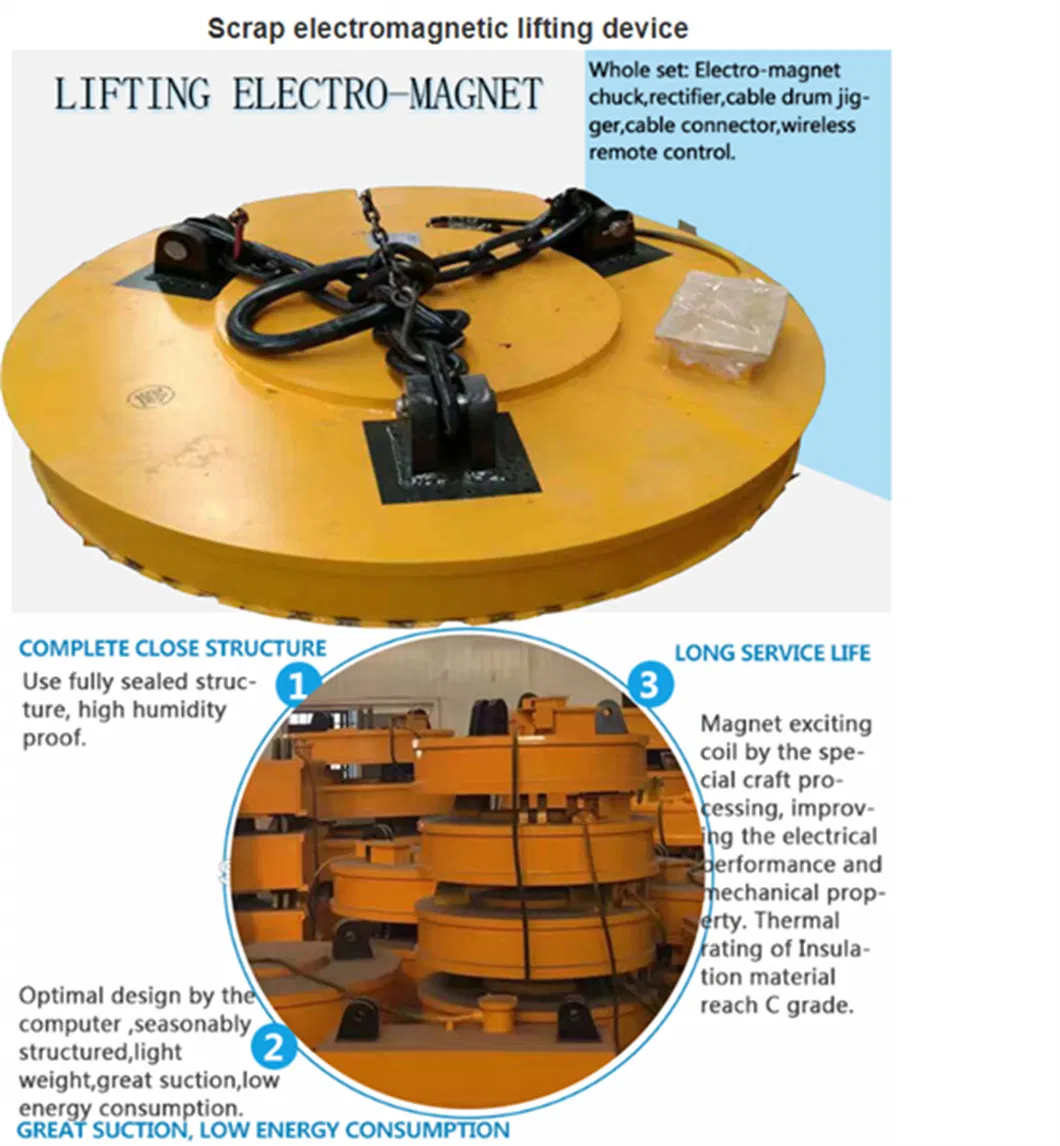

Product Advantages

◈

Sealed Structure: Fully sealed design ensures excellent moisture resistance for various environments.

◈

Optimized Design: Computer-optimized structure provides light weight, large suction, and low energy consumption.

◈

High-Grade Insulation: Coils use special processes with Class C and Class H heat-resistance for long service life.

◈

Efficiency: Rated electrification continuation rate increased from 50% to 60%, boosting operational efficiency.

◈

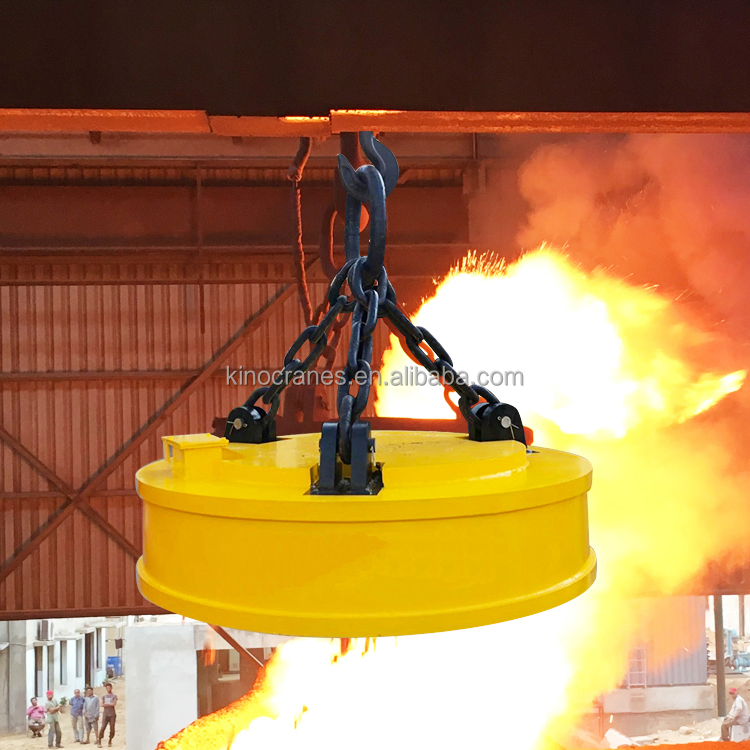

High Temperature Adaptability: Unique insulation allows suction of objects up to 700°C.

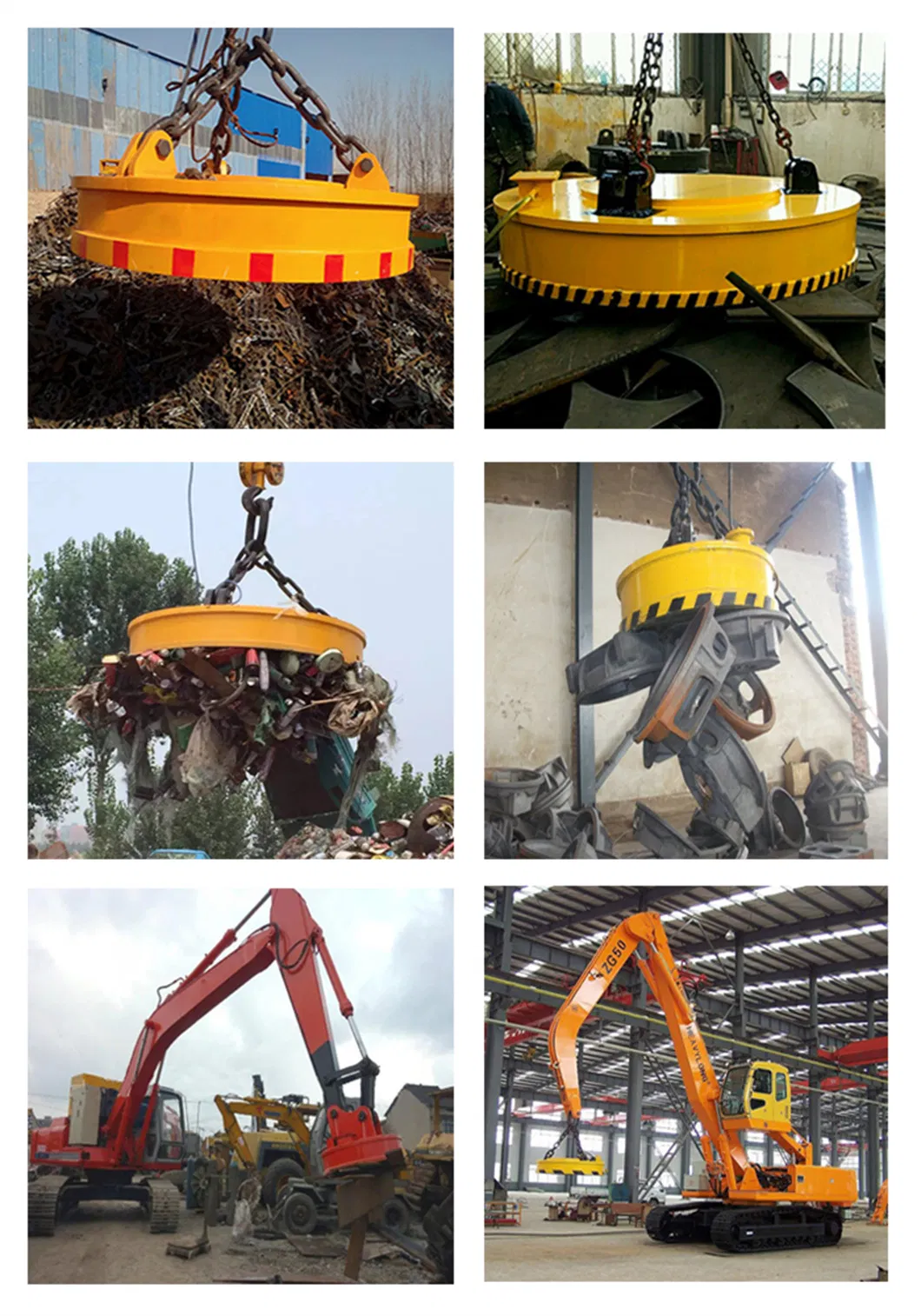

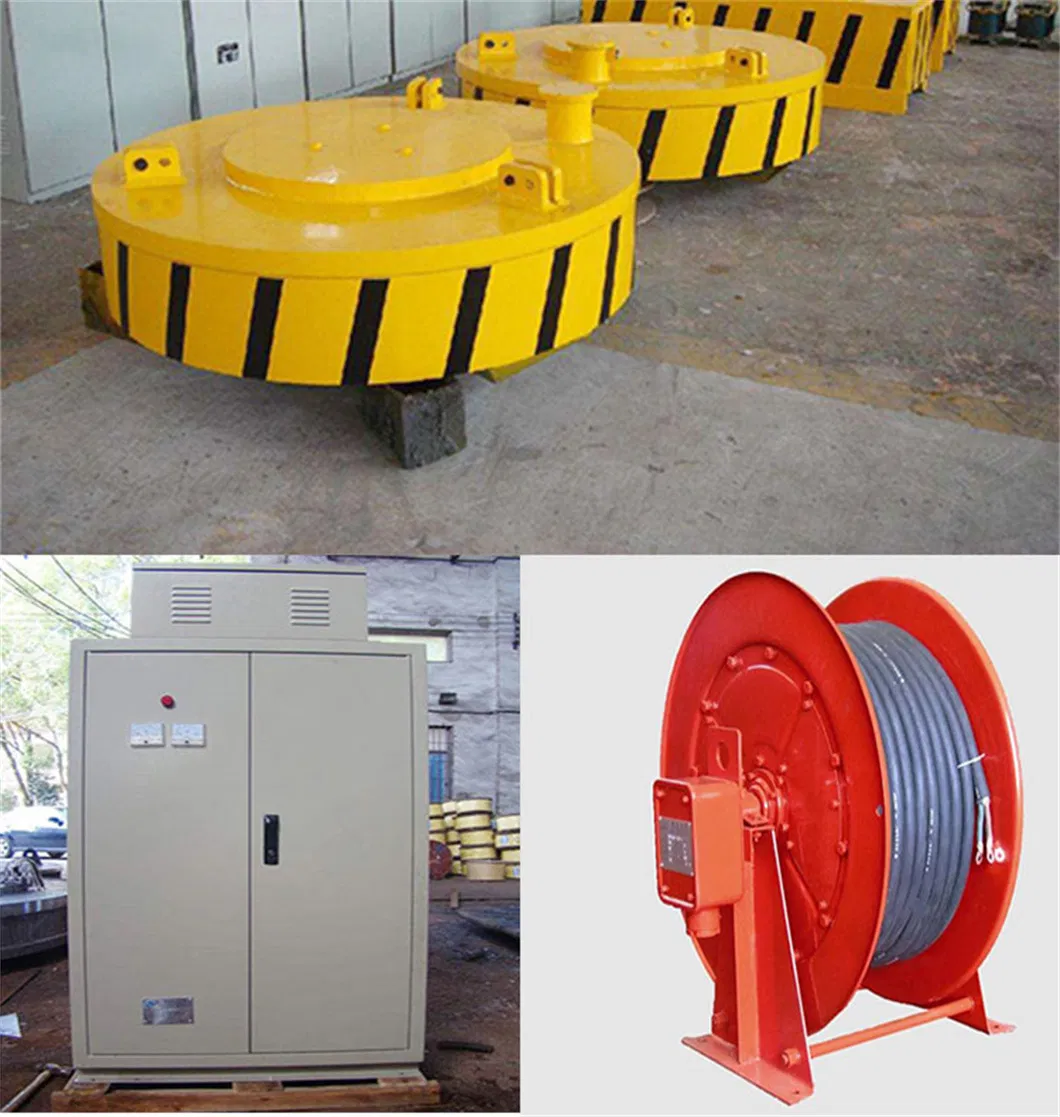

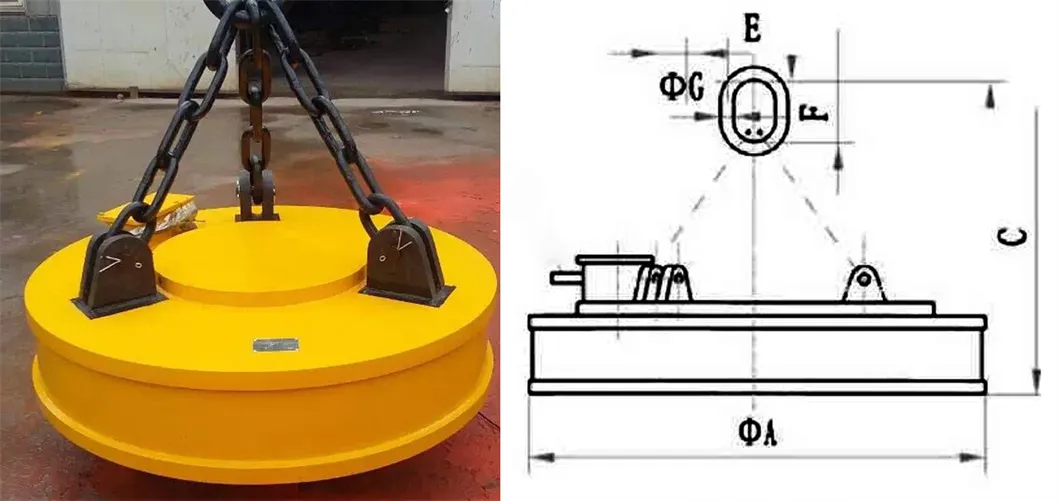

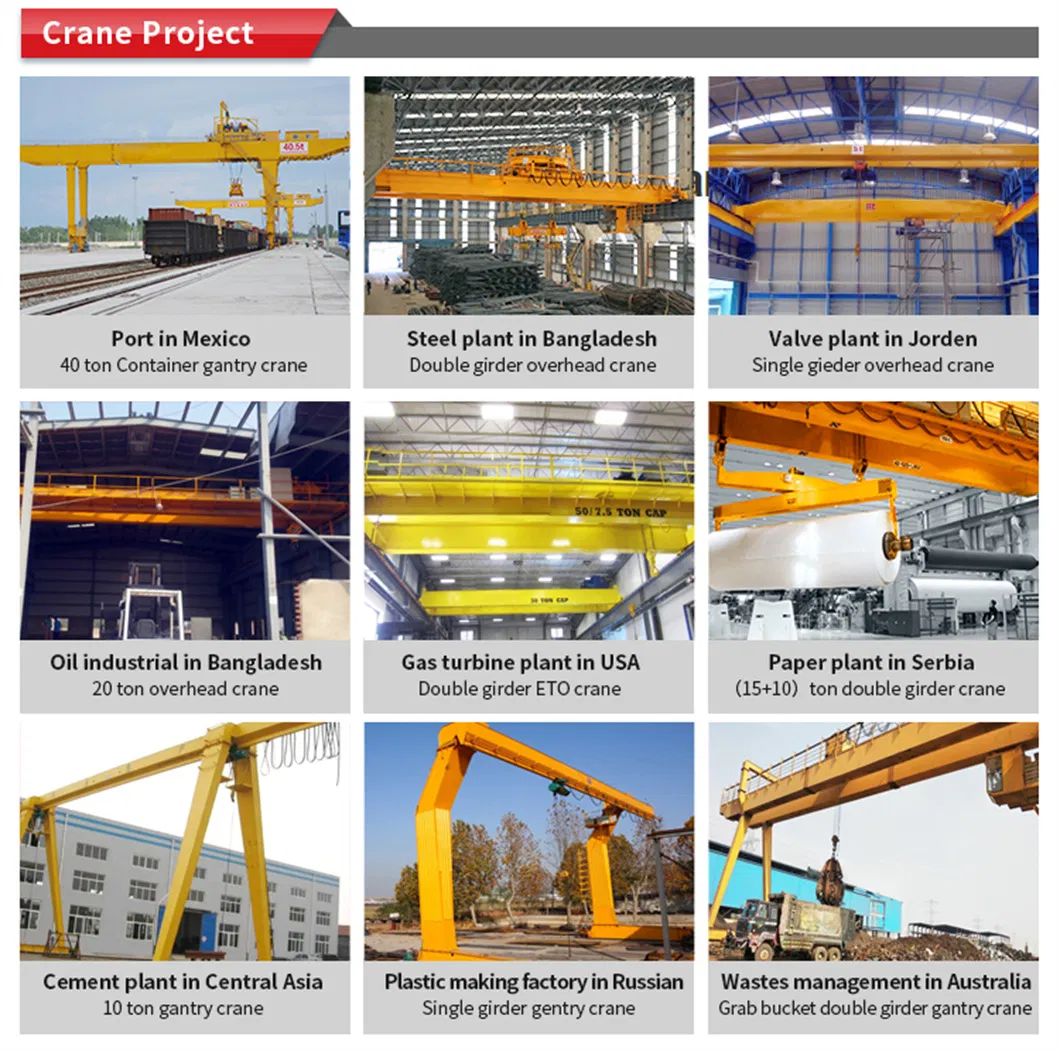

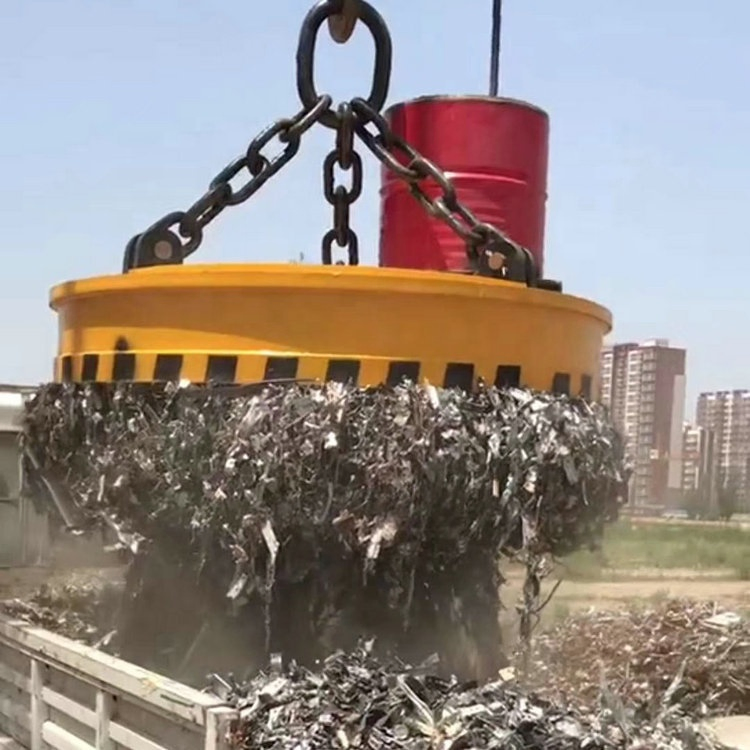

Product Design & Application Scenarios

Production & Quality Control

Frequently Asked Questions

Q1: What materials are used for the lifting magnet's coils?

A1: We offer both Aluminum and Copper coils as options, both treated with special processes to improve mechanical and electrical properties.

Q2: What is the maximum temperature of objects the magnet can lift?

A2: The high-temperature model is designed with a unique insulation method that allows it to lift materials at temperatures ranging from 700°C to 800°C.

Q3: Is this electromagnet suitable for wet outdoor environments?

A3: Yes, the unit features a fully sealed structure with excellent moisture resistance, making it suitable for various working conditions.

Q4: How is the low-power 24V excavator magnet powered?

A4: It utilizes the excavator's original 24V battery as the input source, with a controller managing the voltage to ensure strong magnetic performance.

Q5: What are the insulation classes for these magnets?

A5: The insulation materials reach Class C for heat resistance, and the overall insulation of the suction cups is rated at H-class for extended service life.

Q6: What is the typical duty cycle of these electromagnets?

A6: The standard duty cycle (Td) is 75%, and the electrification continuation rate has been optimized to 60% for enhanced efficiency.
