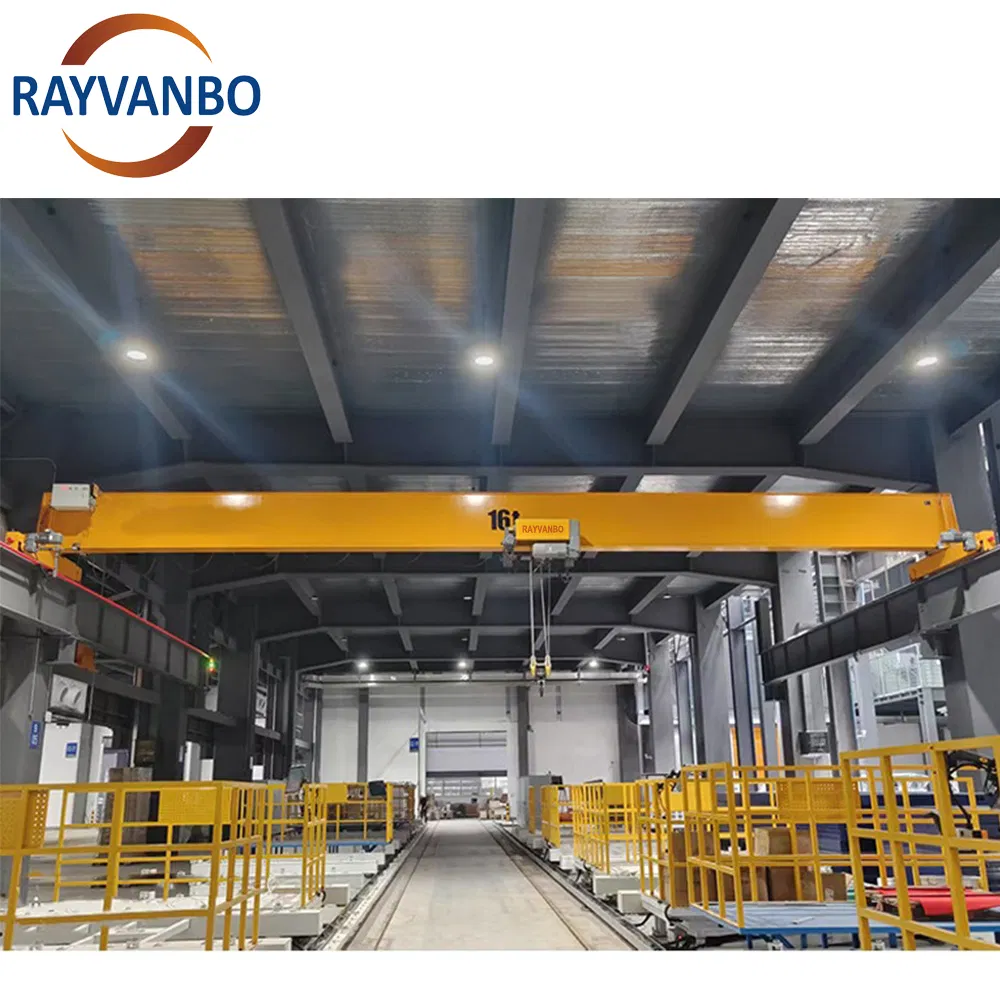

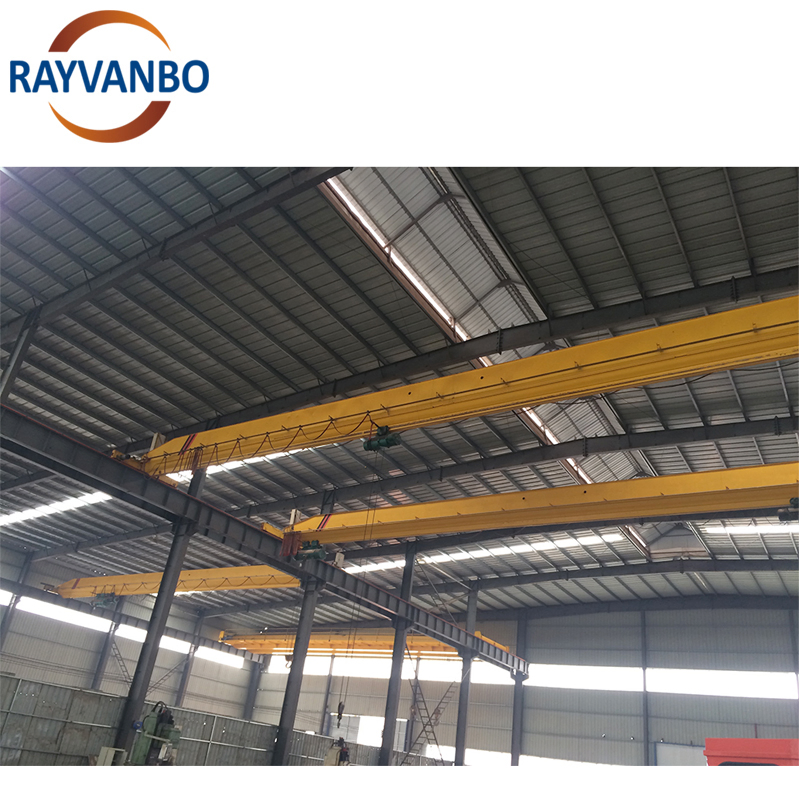

High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse
High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse
High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse
High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse
High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse
1 / 5
High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse
High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse
High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse
High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse
High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse

High Quality 1 Ton 3 Ton 5 Ton 10 Ton 20 Ton Electric Single Girder Overhead/Bridge Traveling Crane for Warehouse

Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months
Send Inquiry

Product Description

📋 Basic Information
Model NO.LD/LDX/LX
CertificationCE, ISO9001
Operation FormRemote Control
Main Girder FormSingle or Double Girder
Product NameOverhead Crane
Span3m-35m
Max. Lifting Height3m-16m
Power Supply3 Phase AC 220-690V 50Hz/60Hz
Work DutyA3-A8
Lifting MechanismElectric Hoist
⚙ Product Description

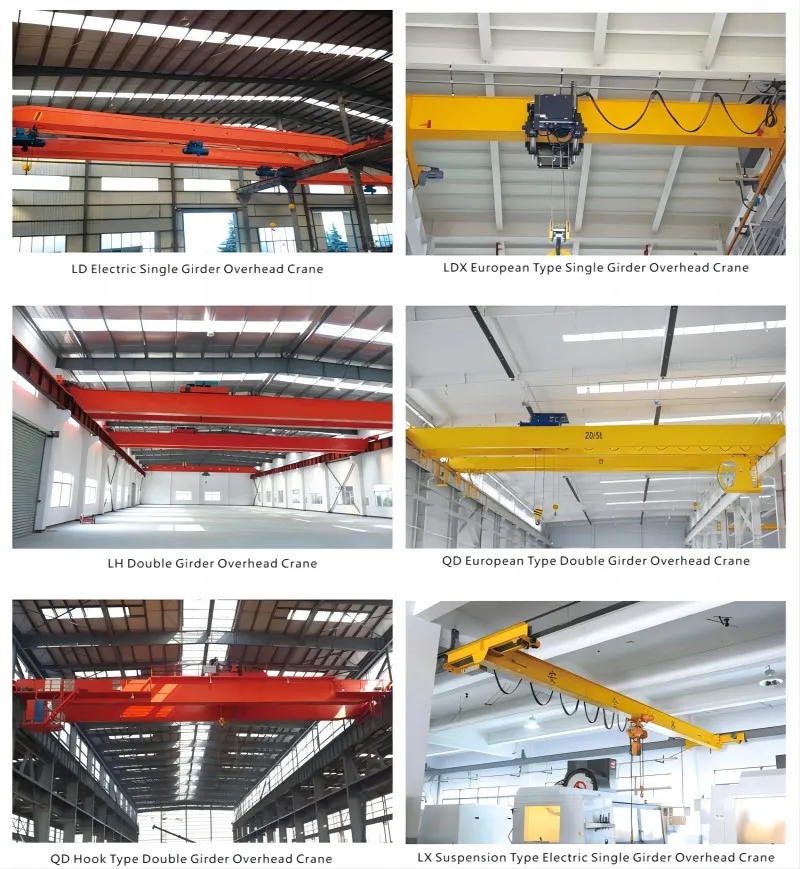

Overhead Crane Overview

A. Single Girder Overhead Crane

Single beam overhead crane configuration is made up of a single bridge girder, two end carriages and a hoist with trolley, which runs along the bottom flange of the bridge girder between the end carriages.

  • Widely used in industrial factories, warehouses, workshops, and workstations.
  • Consists of metal structure, crane travelling mechanism, lifting mechanism, and safety protection.
Crane Operation

B. Double Girder Overhead Crane

Double beam overhead crane configuration is made up of two bridge girders, two end carriages and a hoist with trolley. The hoist travels on top of rails that are mounted to the top of bridge girders. It is ideal for heavy-duty material transferring and equipment maintenance.

Double Girder Crane
🔍 Product Details
Technical Details

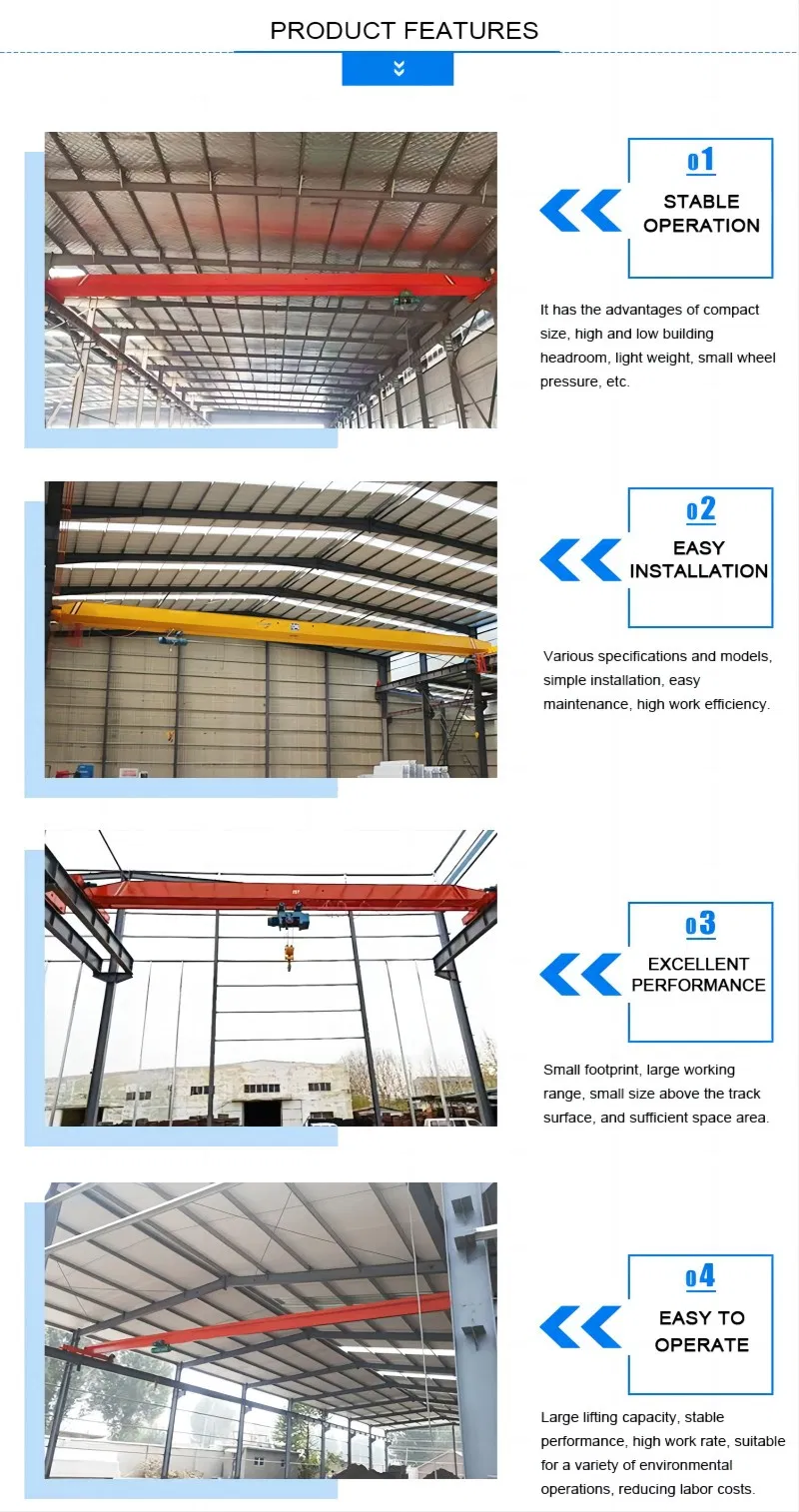

Components Detail
📊 Product Parameters
Item Specifications
Lift capacity (T)1T~100T
Crane span (M)3~28m customized
Lifting height (M)3~48m customized
Traveling speed (m/min)5~40m/min as requested
Hoist lifting speedEuropean (5/0.8 m/min)CD1/MD1 (8 m/min)
Remote controlF24-6D/F24-10D or F21-E1B options
🏭 Product Application
Crane Application

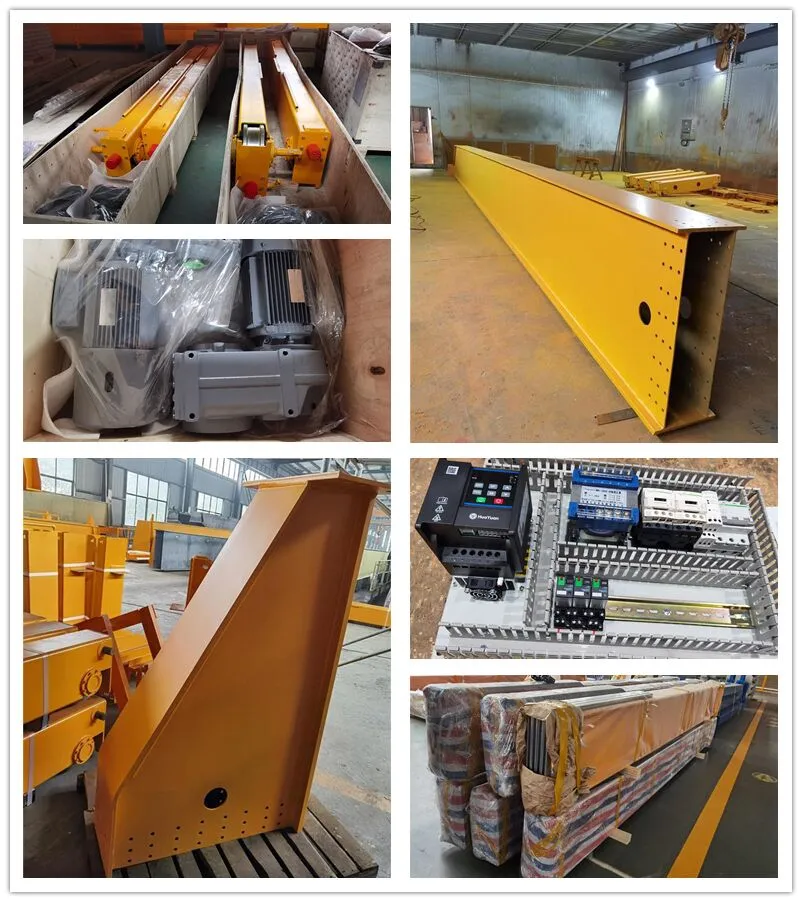

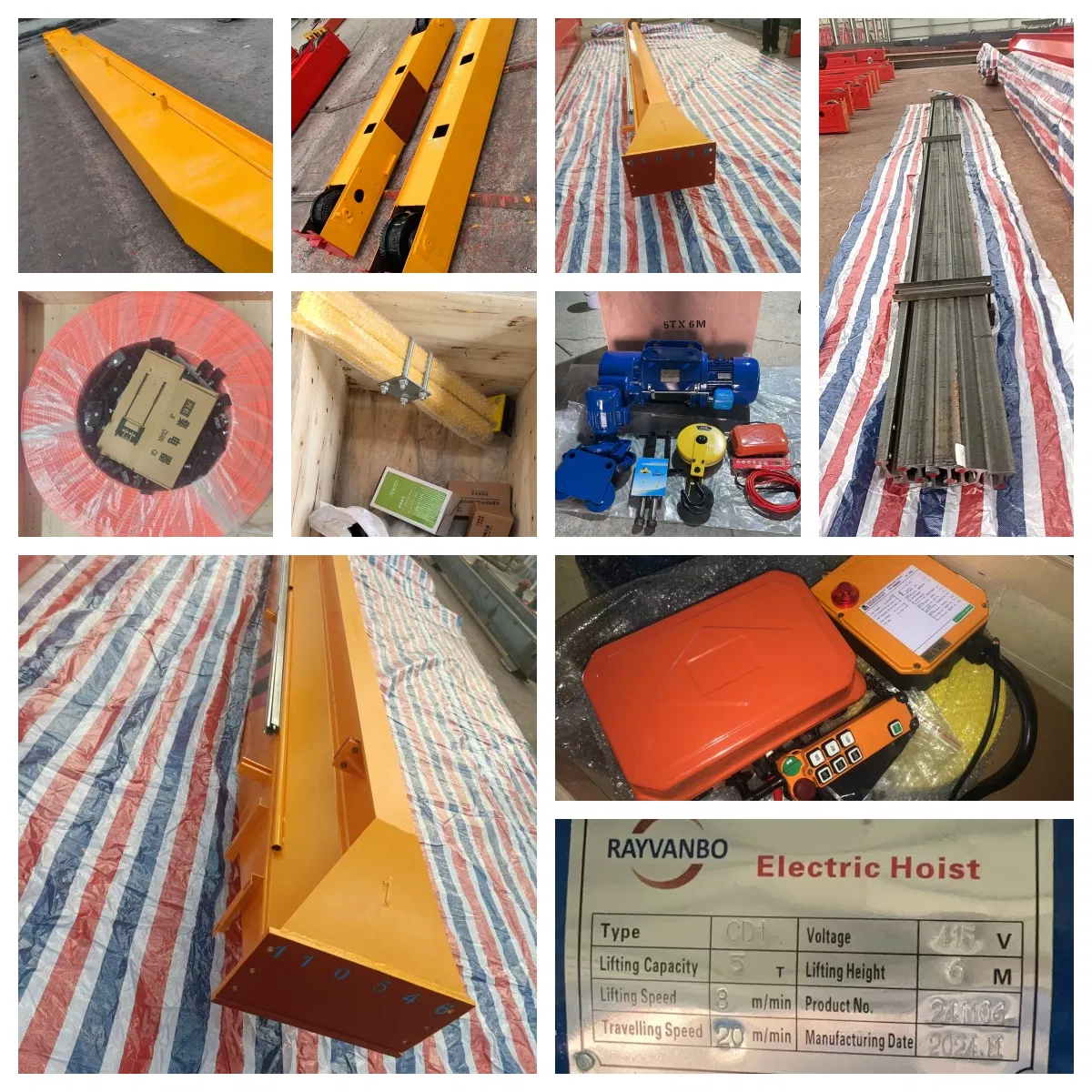

📦 Packaging & Shipping

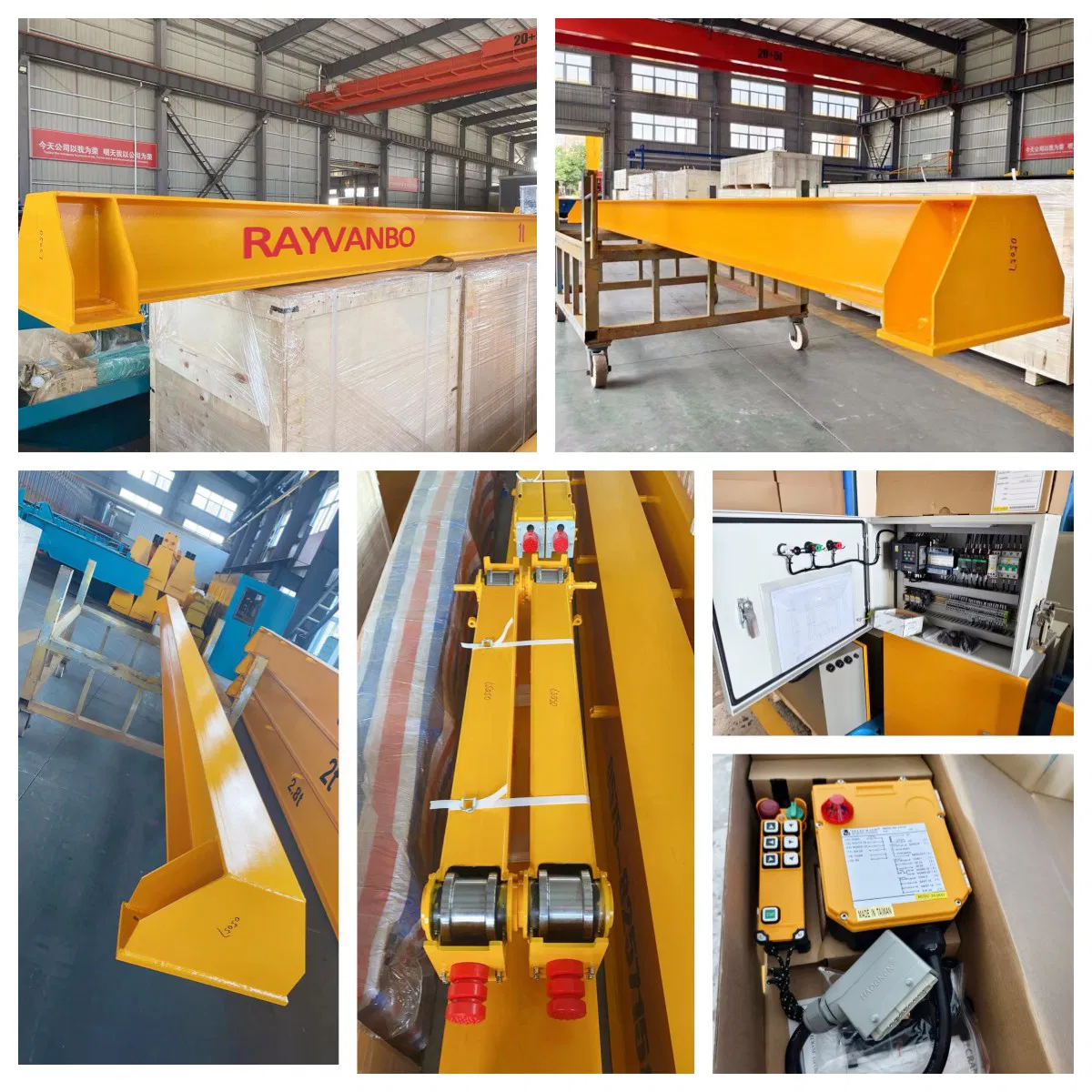

Packaging 1
Packaging 2
Packaging 3
❓ Frequently Asked Questions
1. What information should I provide to get a precise quote?
Please provide the lifting capacity (T), span (M), lifting height (M), power source, and the working environment for the crane.
2. How do you guarantee the quality of the cranes?
We perform a pre-production sample check before mass production and a final inspection before every shipment to ensure all specifications are met.
3. What products are available in your catalog?
We specialize in Chain Hoists, Wire Rope Hoists, Stage Hoists, Permanent Magnetic Lifters, Fall Arresters, and various types of Overhead Cranes.
4. Can your cranes be customized?
Yes, we provide both OEM and ODM services. The span, lifting height, and speed can be customized according to your specific warehouse or workshop requirements.
5. What after-sales services do you provide?
We offer comprehensive online technical support to assist with installation, maintenance, and troubleshooting.
6. What is the typical power supply for these cranes?
The standard power supply is 3 Phase AC 220-690V, 50Hz/60Hz, which can be adjusted based on your local electrical standards.
