It is used for transporting materials in a line, directly connecting loading and unloading points, such as out-back haul or circle haul systems. The single track offers flexible traveling directions, running arbitrarily from single lines to multiple or ring tracks, making it ideal for various industrial conveying links.

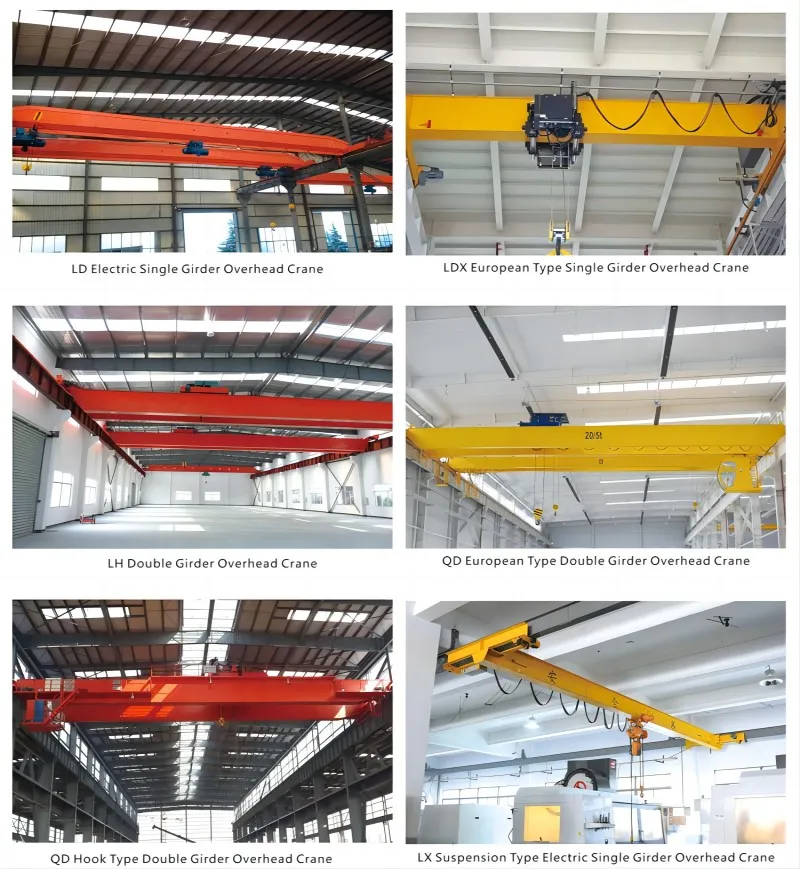

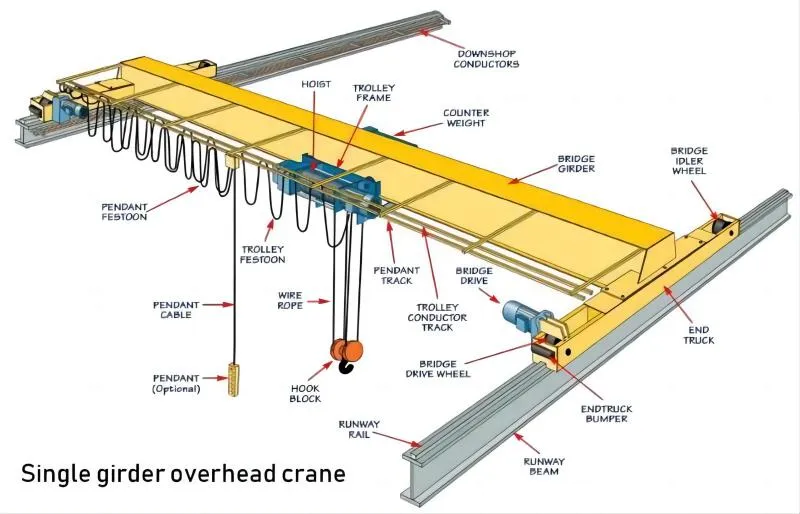

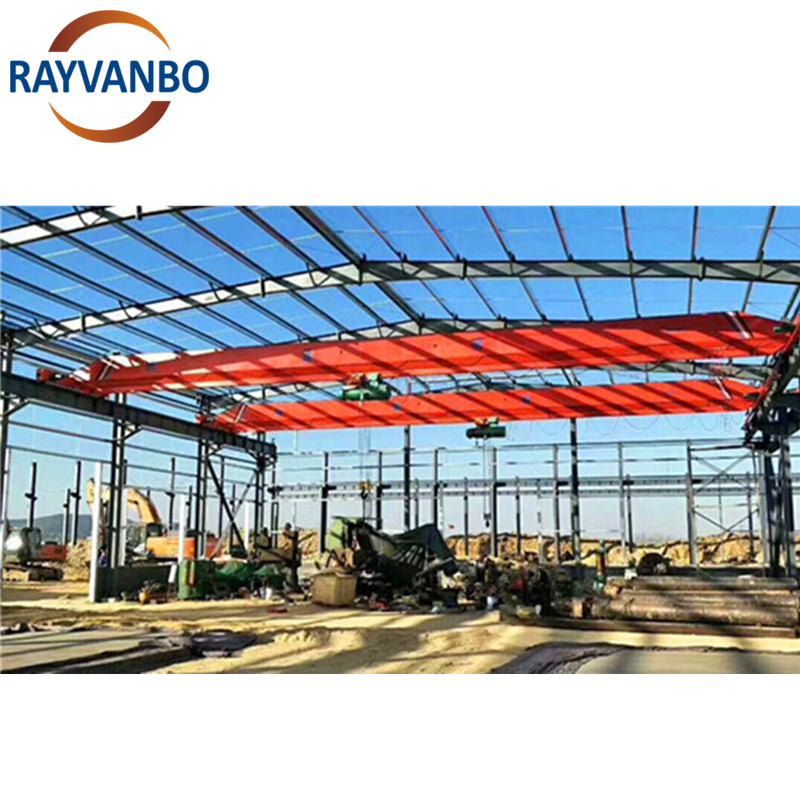

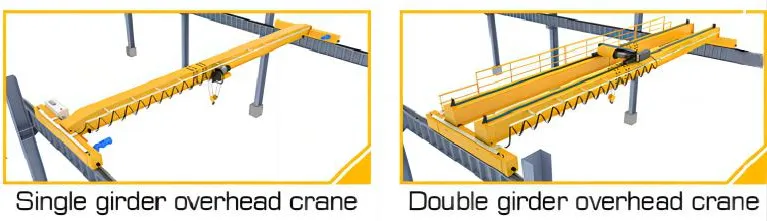

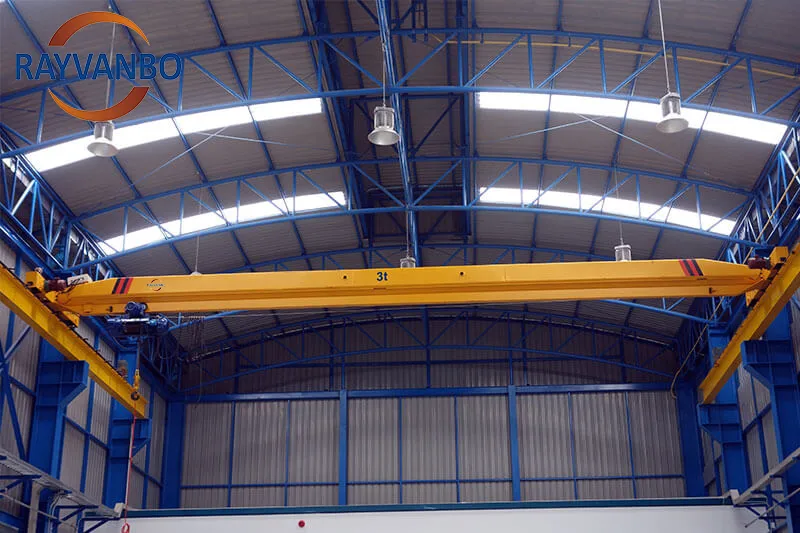

Features a single bridge girder with a hoist running along the bottom flange. Widely used in factories, warehouses, and workstations for efficient material handling.

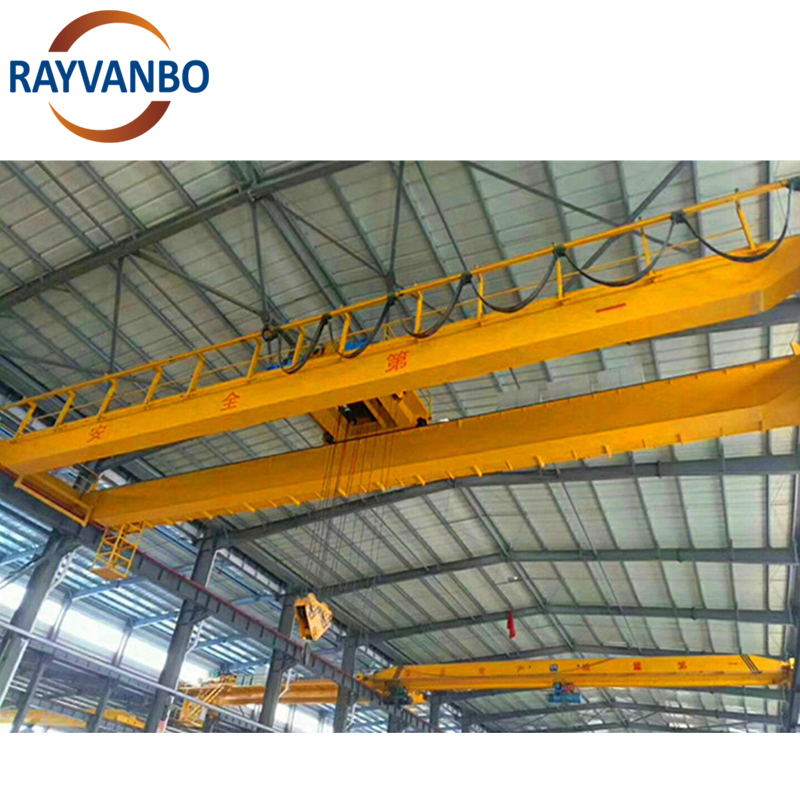

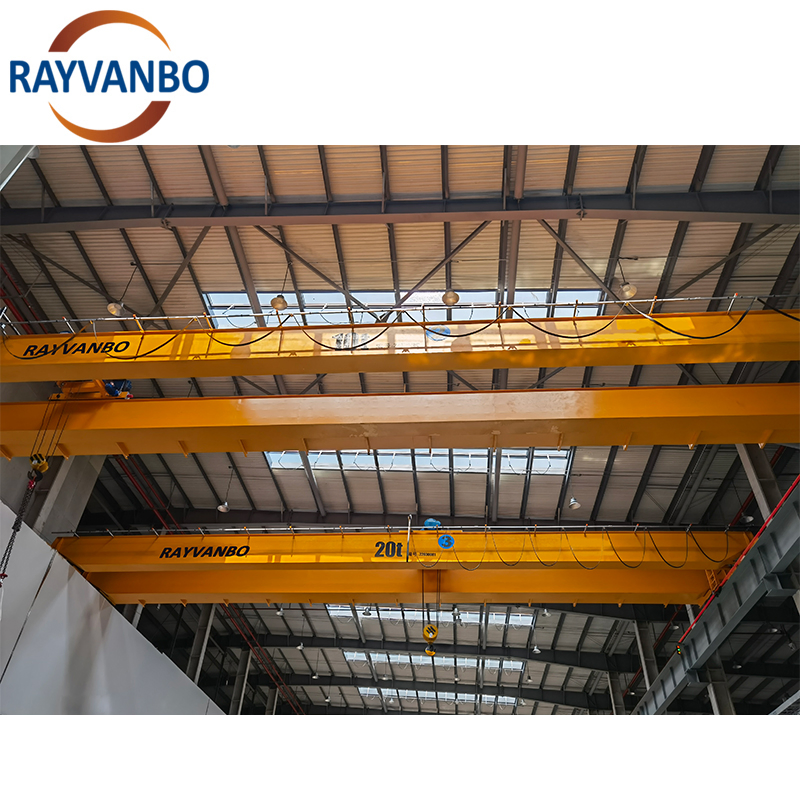

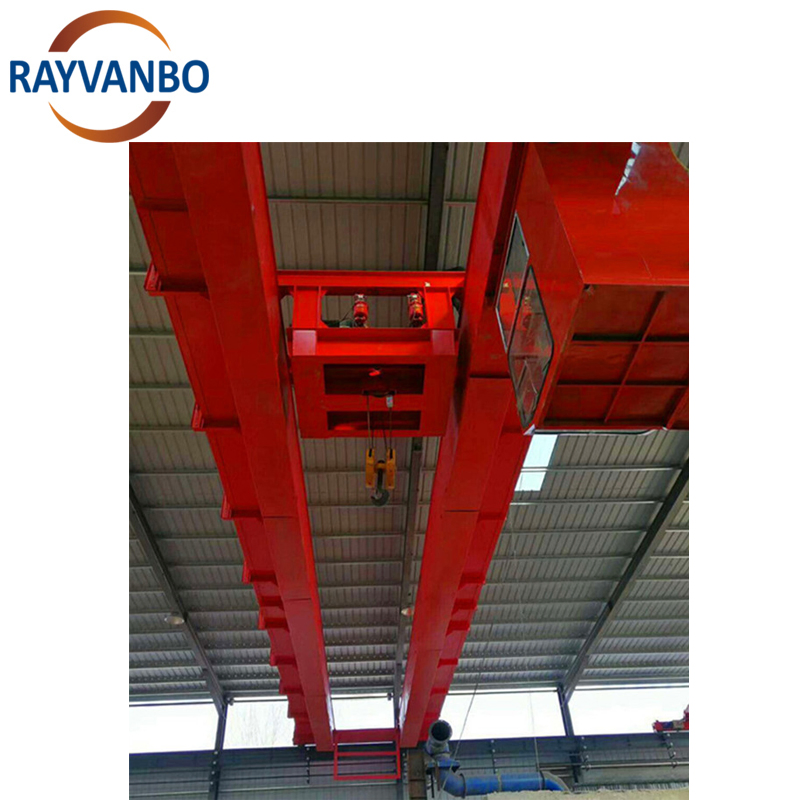

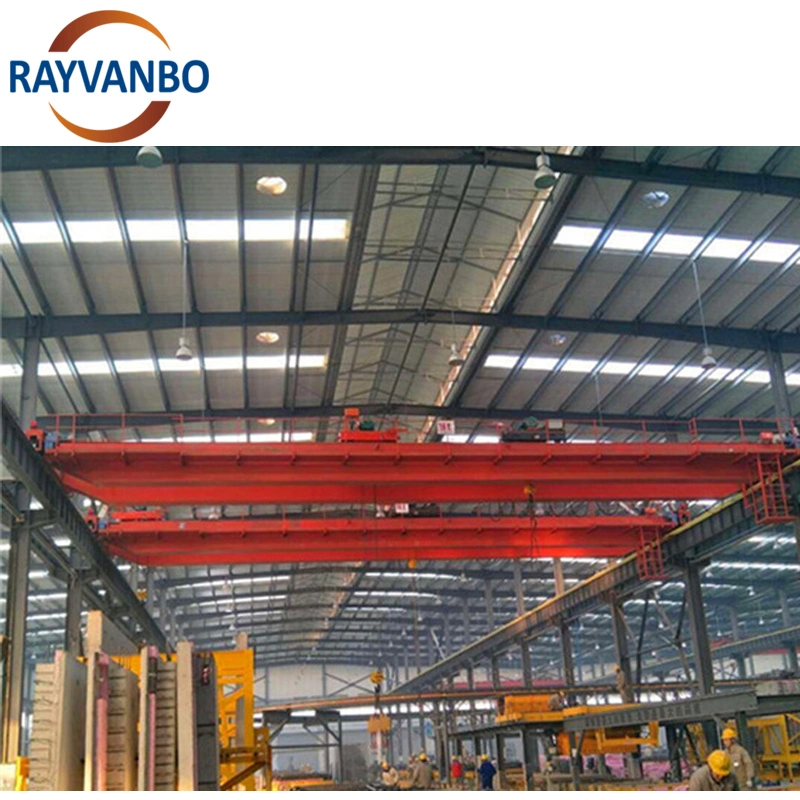

Consists of two bridge girders with the hoist traveling on top of rails. Best for heavy-duty installation and maintenance in power stations and large warehouses.

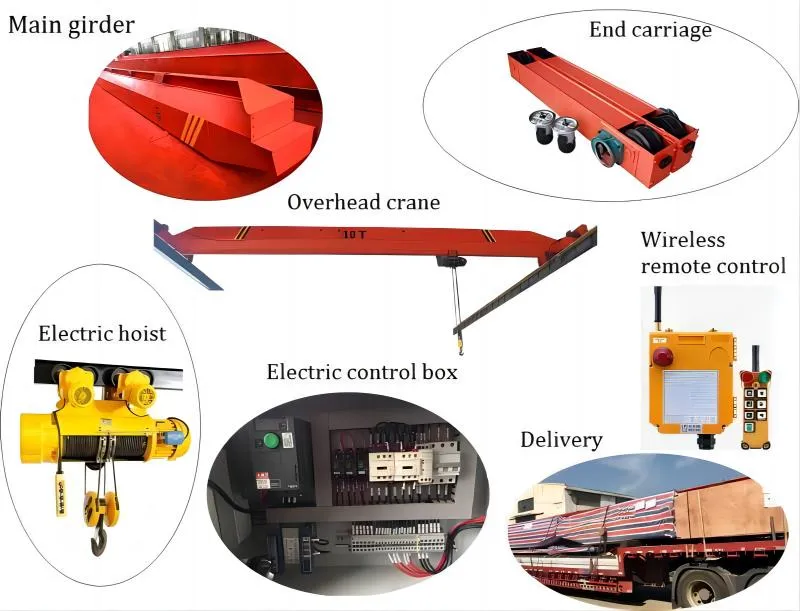

Main Girder Details:
1. Uses bias-rail box type structure with optimized light dead weight design.
2. High-quality steel material (Q235B / Q345B).
3. Surface rust removal via roller-way conveyor blasting before welding.
4. U-shaped welding assembly ensures vertical deflection is within H/200, effectively reducing web plate waves.
| Item | Specifications | |
|---|---|---|
| Lift capacity (T) | 1T ~ 100T | |
| Crane span (M) | 3m ~ 28m (Customizable) | |
| Lifting height (M) | 3m ~ 48m (Customizable) | |
| Crane traveling speed | 5~40 m/min | |
| Hoist Lifting Speed | European Type (5/0.8 m/min) | CD1/MD1 Type (8 m/min) |
| Trolley speed | 0-20 m/min | 20 m/min |
| Control Method | Remote Control / Pendant Control | |

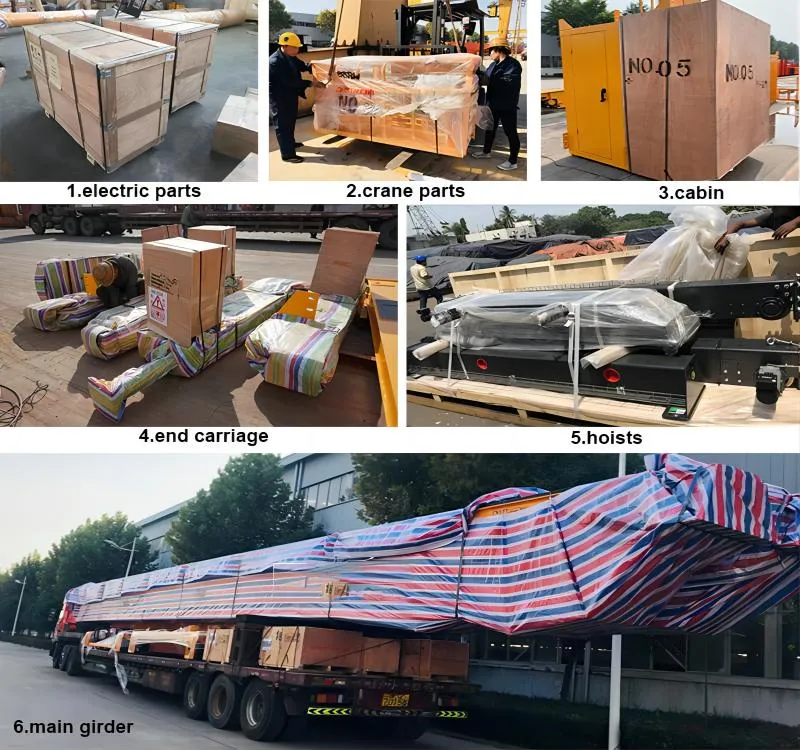

Electrical parts are packed in composite wooden crates, while the steel structure is protected with waterproof cloth to ensure safety during long-distance transportation.
