Pak Lift
1 / 5

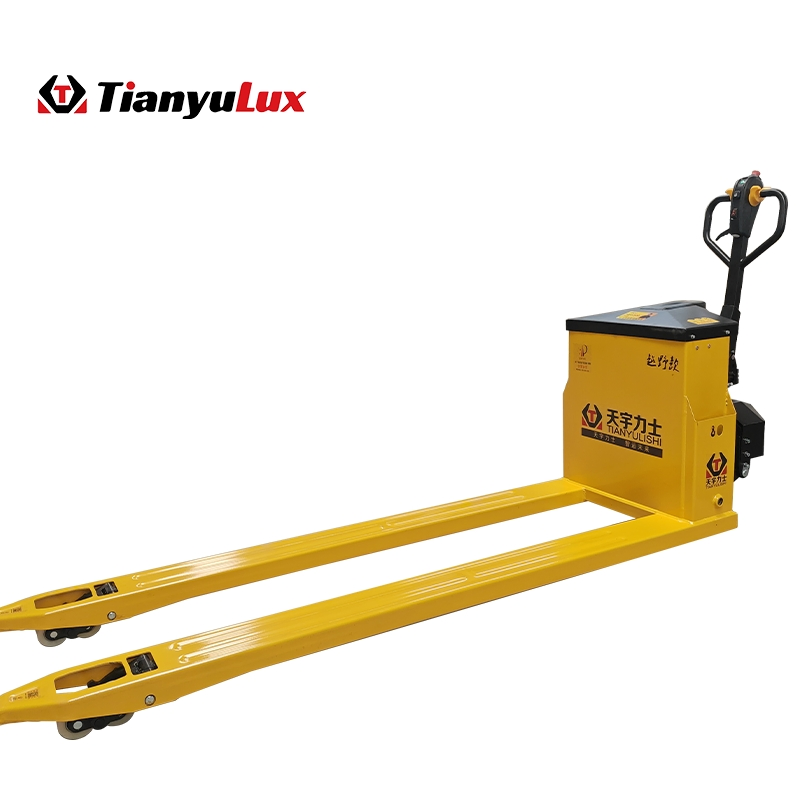

| Model NO. | TYA30 |
| Type | Powered Pallet Truck |
| Power | DC Motor / Electric |
| Load Capacity | 1T - 5T (Rated 3000kg) |
| Load Center | >500mm |
| Lift Height | 115mm (Max 200mm) |
| Minimum Fork Height | 85mm |
| Fork Length | 1600/1800/2000 mm |
| Running Speed | 4/4.5 Km/H |
| Battery Specification | 48V 32Ah |
| Brake Type | Electronic/Electromagnetic Brake |

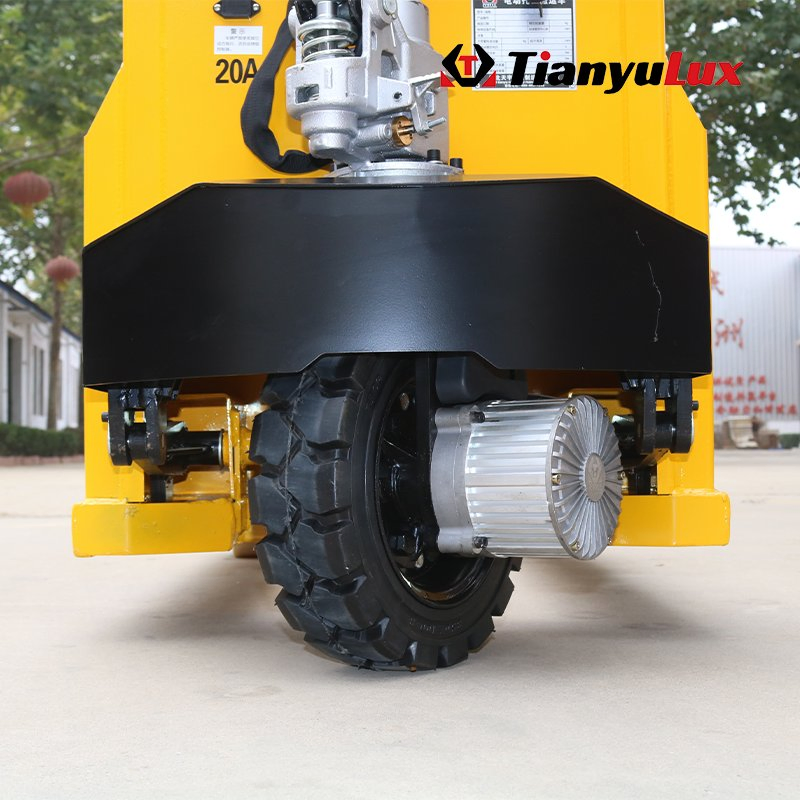

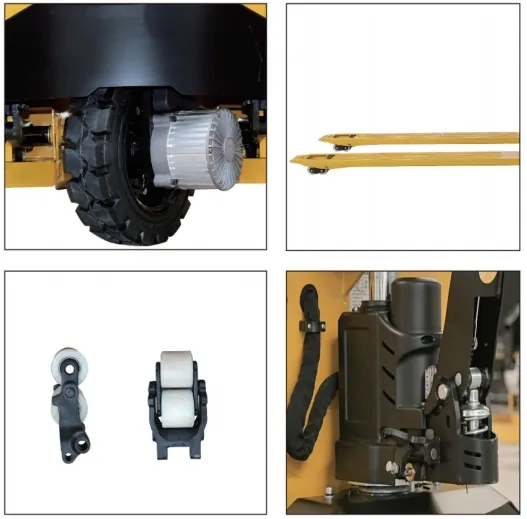

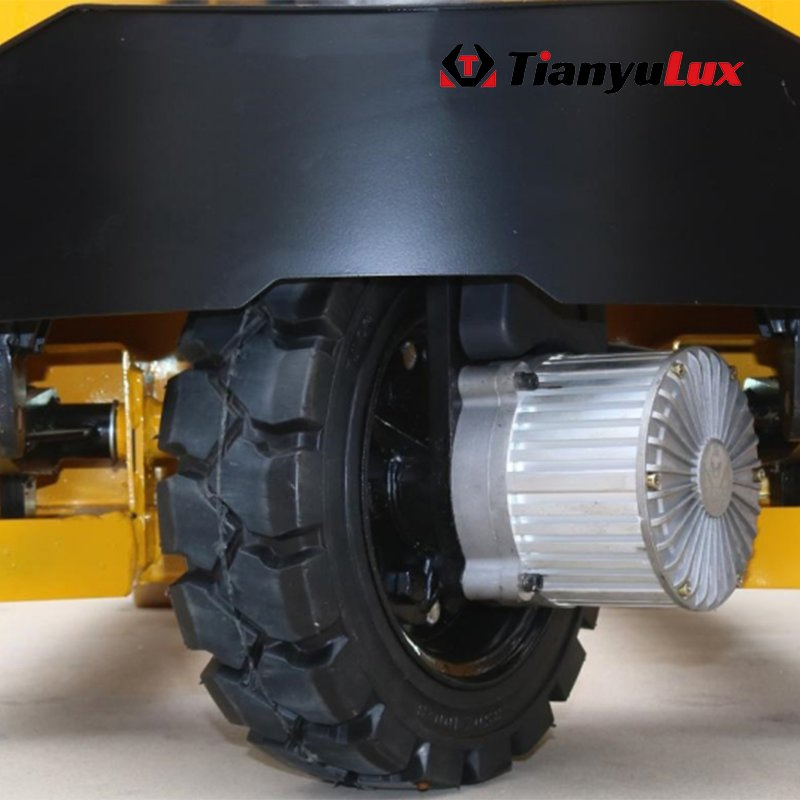

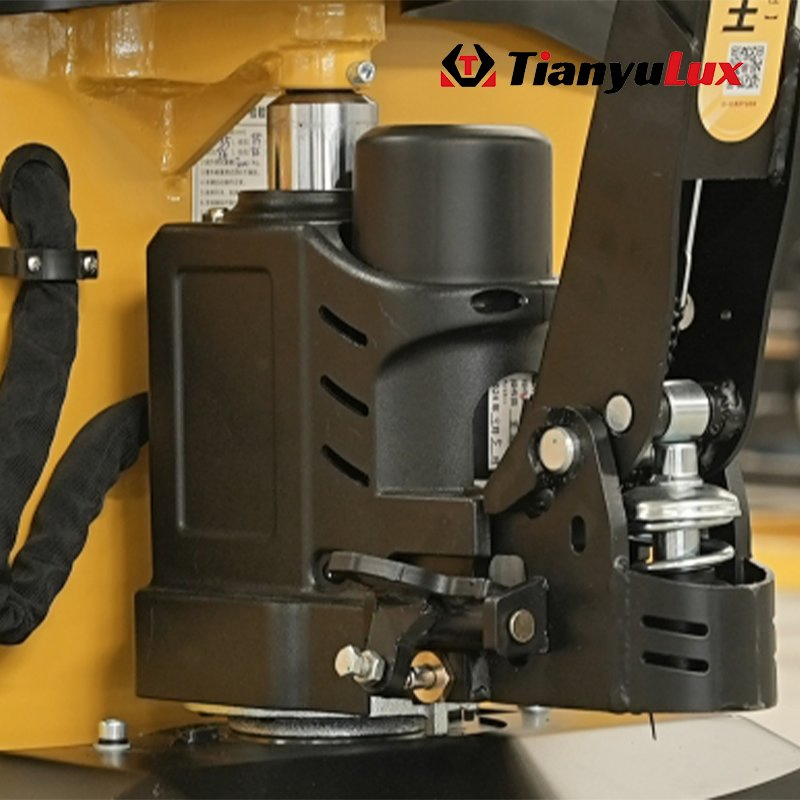

48V high torque motor enables powerful performance to climb steep slopes and conquer complex road conditions efficiently.

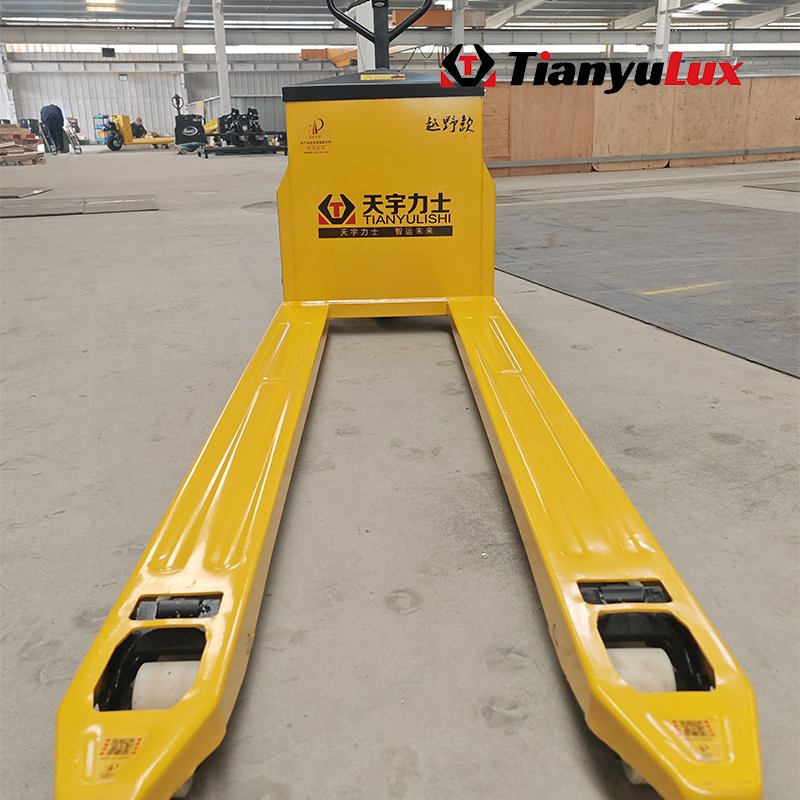

The extended fork is independently formed and stretched in one piece, providing higher strength and superior transmission performance.
High-frequency quenching load-bearing wheel frame with long-life nylon wheels. Features an innovative full-bearing design that is wear-resistant and durable.
Integrated oil cylinder with high strength and a thickened cylinder rod (50mm diameter) for a higher safety factor.
| Category | Parameter Item | Specification |
|---|---|---|
| Features | Model / Power | TYA30 / Electrical |
| Capacity | Rated Load | 3000 kg |
| Weight | Self weight with battery | 253/269/275 kg |
| Wheels | Driving wheel size | φ350×100 mm |
| Size | Fork outer distance | 685 mm |
| Size | Turning Radius | 2000/2200/2400 mm |
| Performance | Travel speed (unladen) | 4.5 km/h |
| Performance | Max Climbing grade | 8/16 % |
| Electrical | Drive Motor Power | 1.0 kw |
| Electrical | Battery Weight | 36 kg |
Our manufacturing process adheres to the international ISO 9001 quality system certification. With over 30 years of experience, we focus on innovative R&D and preventive quality control to ensure every pallet truck meets global industrial standards.
| Package Size | 185.00cm * 80.00cm * 95.00cm |
| Package Gross Weight | 570.000kg |
| Standard Package | Wooden Pallets |
We integrate scientific research, production, and service to provide high-quality, high-performance, and competitively priced equipment with comprehensive 24/7 after-sales support.
We offer both lead-acid and lithium batteries with different specifications. Customized battery solutions are also available based on customer requirements.
We provide a one-year warranty covering failures not caused by improper use or overloading. Note that wearing parts like wheels and fuses are not included.
Standard production takes 20-30 working days after advance payment. Standard stock items can be delivered immediately, while customized products may take longer.
Yes, all products comply with the ISO 9001 quality system standards and have full CE certification for international markets.
Yes, we can provide customized products according to specific client requirements, supporting both OEM and ODM partnerships.
