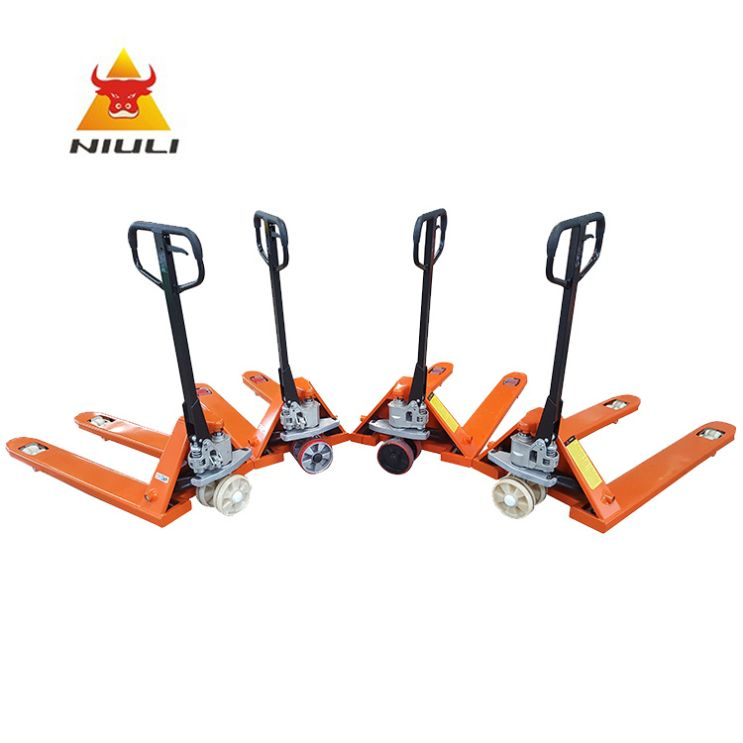

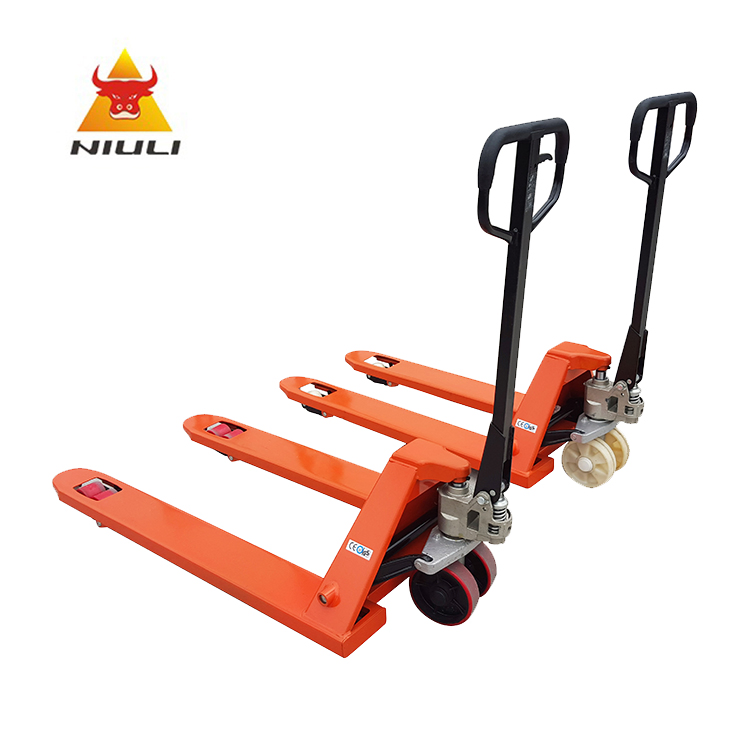

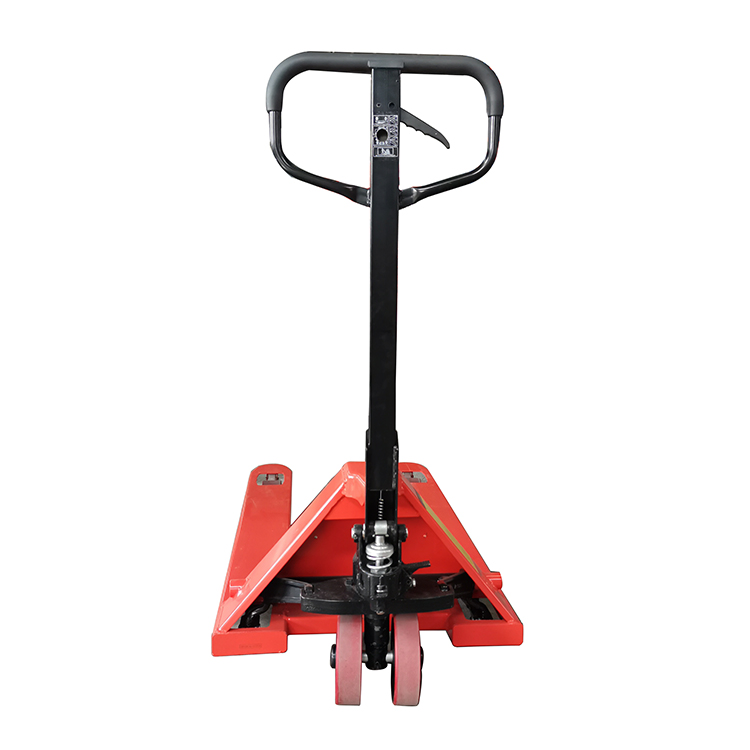

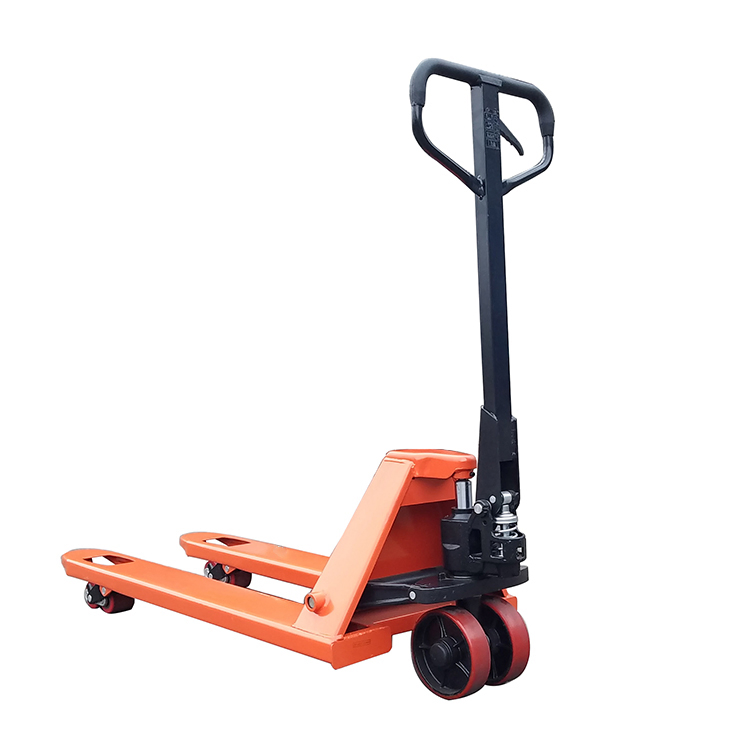

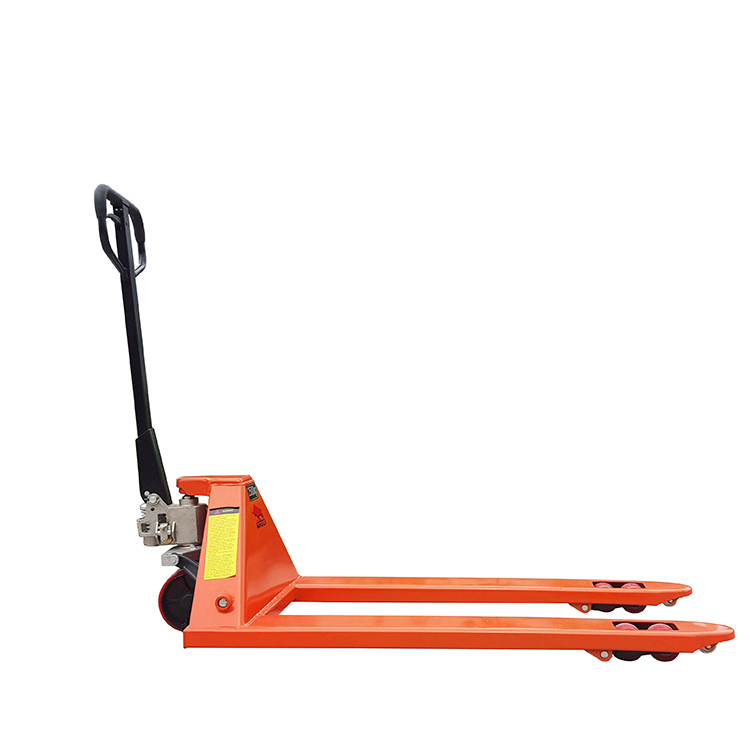

Hydraulic Manual Hand Pallet Truck

Packing Size:	2206070mm
Material:	Steel
Size:	1200mm*1000mm

Send Inquiry

Product Description

Basic Info

Model NO.

CBY-AC

Entry Type

4-Way

Insulation

Transport Package

Iron/Wooden Pallets

Specification

550/685mm

HS Code

8427900000

Production Capacity

Depends on Demand

Product Description

Our hydraulic hand pallet truck is engineered for professional material handling with the following high-end specifications:

Full Hydraulic System: Features a bullet connection between the steering shaft and pump piston for easy maintenance and rear wheel replacement.
Superior Maneuverability: Designed with a 210-degree turning radius for easy navigation in tight spaces.
Long Service Life: Integrated grease fittings at all pivotal points ensure smooth control and durability.
Advanced Safety Valves: Equipped with a special lowering valve to control descent rates and an overload by-pass valve.
Efficient Lifting: Only 10 pump strokes required for full lift, with 12mm lift height per stroke.
Leak-Proof Design: Reliable oil leak-proof hydraulic system for clean and safe operation.
Multiple Wheel Options: Choice of Nylon, Polyurethane (PU), or Rubber wheels with single or tandem fork rollers.

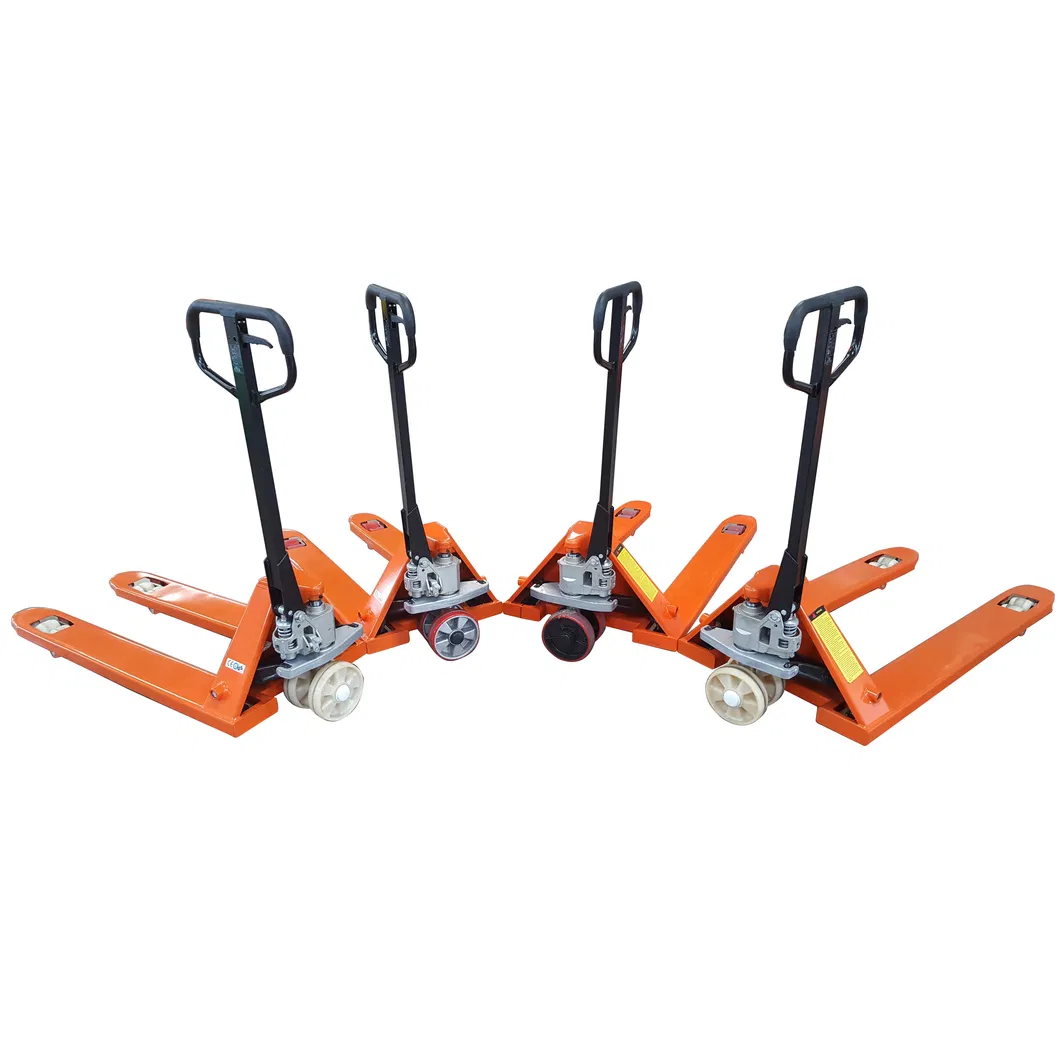

Hydraulic Manual Hand Pallet Truck Overview

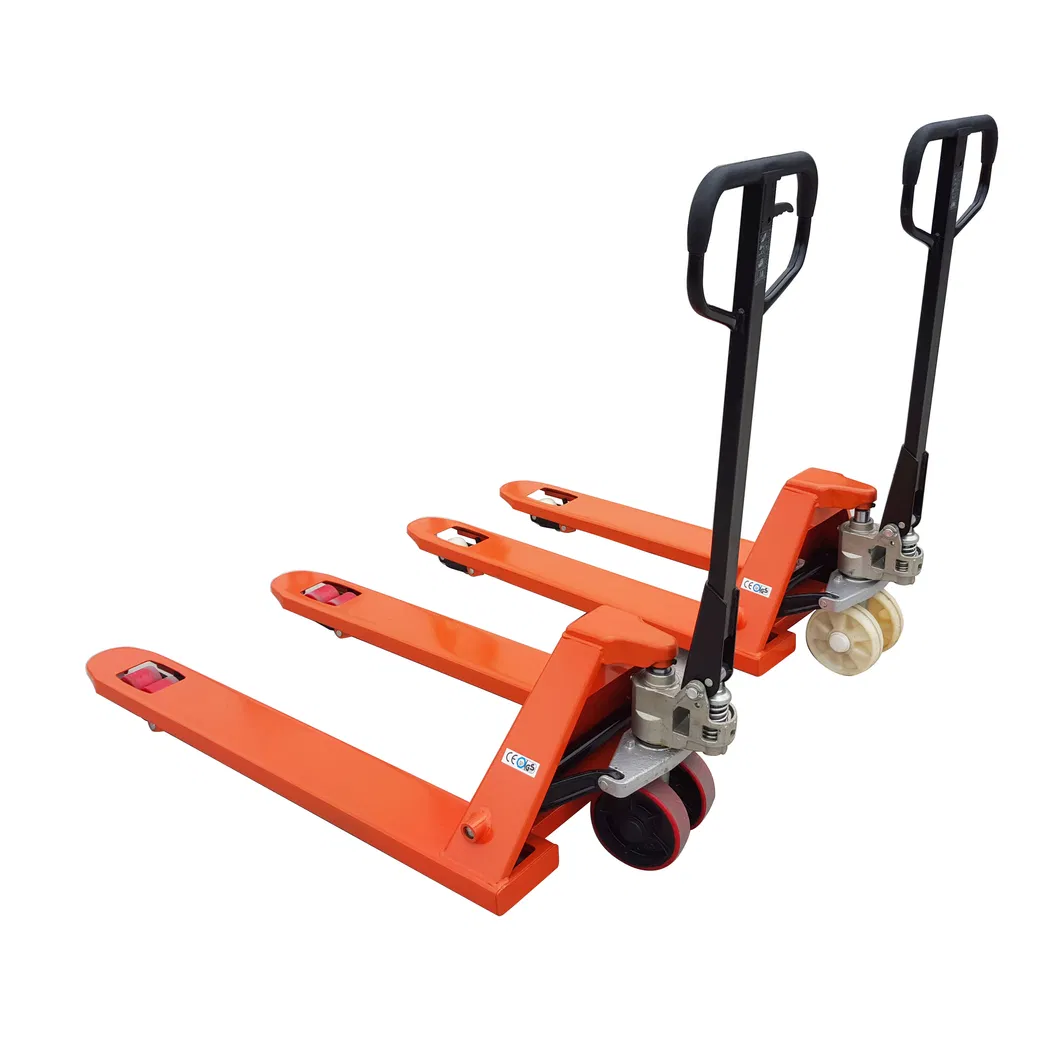

Hydraulic Manual Hand Pallet Truck Detail 1

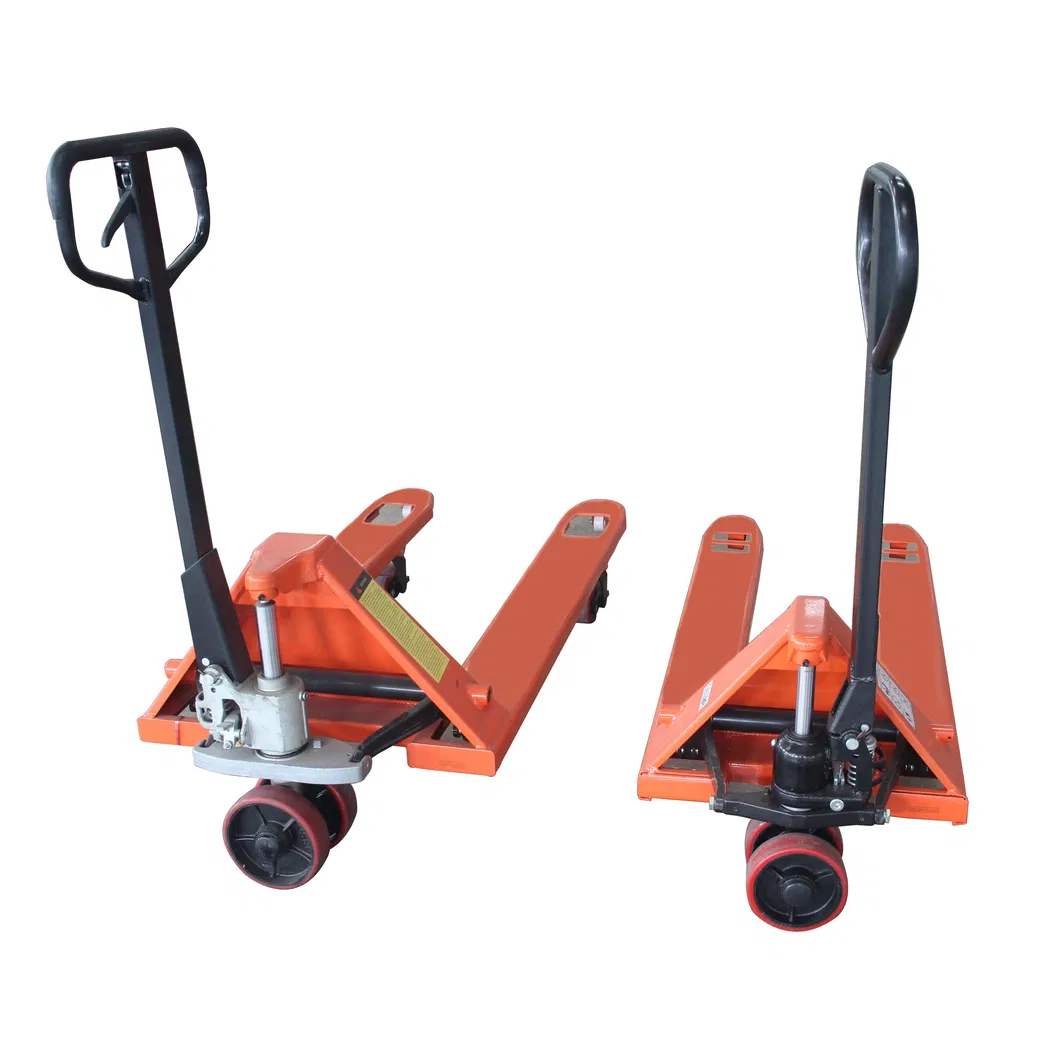

Hydraulic Manual Hand Pallet Truck Detail 2

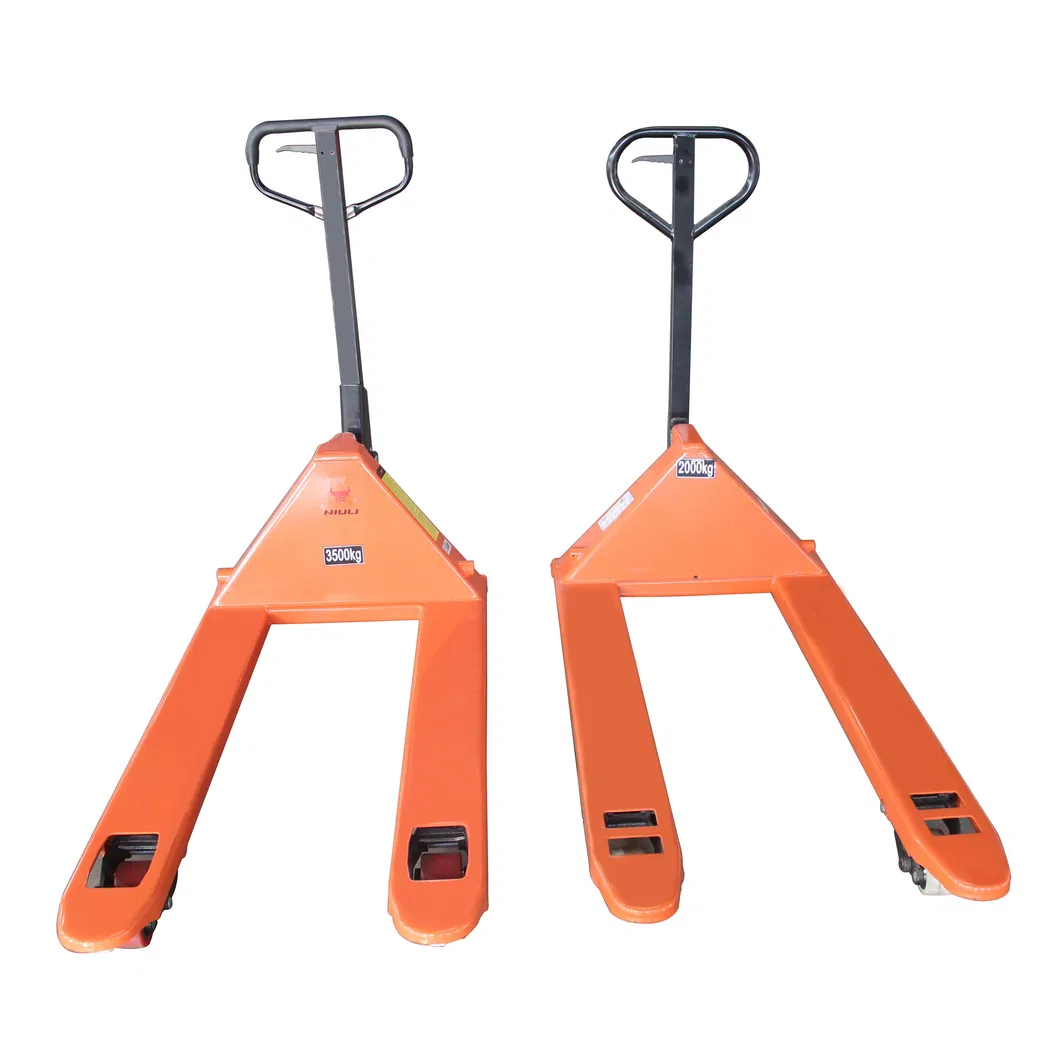

Hydraulic Manual Hand Pallet Truck Detail 3

Model	CBY-AC 2.5	CBY-AC 3.0
Capacity (kg)	2500	3000
Min. fork height (mm)	85/75	85/75
Max. fork height (mm)	195/185	195/185
Lifting height (mm)	110	110
Fork length (mm)	1150/1220	1150/1220
Single Fork width (mm)	160	160
Fork overall width (mm)	550/685	550/685
Fork wheel-single (mm)	Φ80X93/74X93	Φ80X93/74X93
Fork wheel-tandem (mm)	Φ80X70	Φ80X70
Steering Wheel (mm)	Φ180X50	Φ180X50
Self Weight (kg)	73-92	73-92
Qty/20 feet container (pcs)	180/144	180/144

Frequently Asked Questions

What is the turning radius of this hand pallet truck?

The truck is designed for high maneuverability with a 210-degree turning radius, making it ideal for navigating tight warehouse aisles.

How many pump strokes are required to reach maximum height?

The system is efficient, requiring only 10 pump strokes to reach the lifting height, with an average of 12mm lift per stroke.

What types of wheels are available for the CBY-AC model?

We offer several options including Nylon wheels for hard floors, Polyurethane (PU) wheels for quiet operation and floor protection, and Rubber wheels for better grip.

Is the hydraulic system protected against leaks?

Yes, the truck features a reliable oil leak-proof hydraulic system and includes a special lowering valve to maintain control during descent.

What are the load capacity options available?

This series includes two main models: the CBY-AC 2.5 with a capacity of 2500kg and the CBY-AC 3.0 with a capacity of 3000kg.

How is the durability of the truck ensured?

Durability is ensured through grease fittings at all pivotal points for smooth movement and an overload by-pass valve to prevent damage from excessive weight.
