Heavy-Duty Overhead Traveling Crane with Stable Performance
Heavy-Duty Overhead Traveling Crane with Stable Performance
Heavy-Duty Overhead Traveling Crane with Stable Performance
Heavy-Duty Overhead Traveling Crane with Stable Performance
Heavy-Duty Overhead Traveling Crane with Stable Performance
1 / 5
Heavy-Duty Overhead Traveling Crane with Stable Performance
Heavy-Duty Overhead Traveling Crane with Stable Performance
Heavy-Duty Overhead Traveling Crane with Stable Performance
Heavy-Duty Overhead Traveling Crane with Stable Performance
Heavy-Duty Overhead Traveling Crane with Stable Performance

Heavy-Duty Overhead Traveling Crane with Stable Performance

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

Technical Specifications & Basic Info
Model NO.
LX
Certification
GS, RoHS, CE, ISO9001
Condition
New
Operation Form
Pendent Button, Wireless Remote, Cabin
Max Lifting Height
6m - 30m
Max Lifting Weight
Up to 32ton
Main Girder Form
Single Girder
Span
5-40m or customized
Application
Workshop, Warehouse, Hoist
Power Source
Local Actual Condition
Lifting Mechanism
Electric Hoist
Main Electrical Parts
Delixi Siemens
Product Visual Display

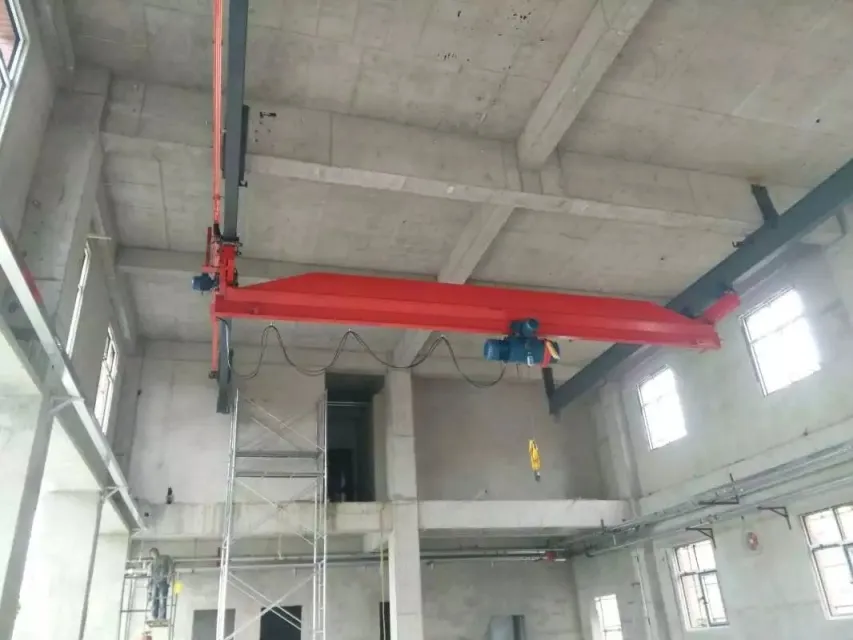

Overhead Bridge Crane
Product Description

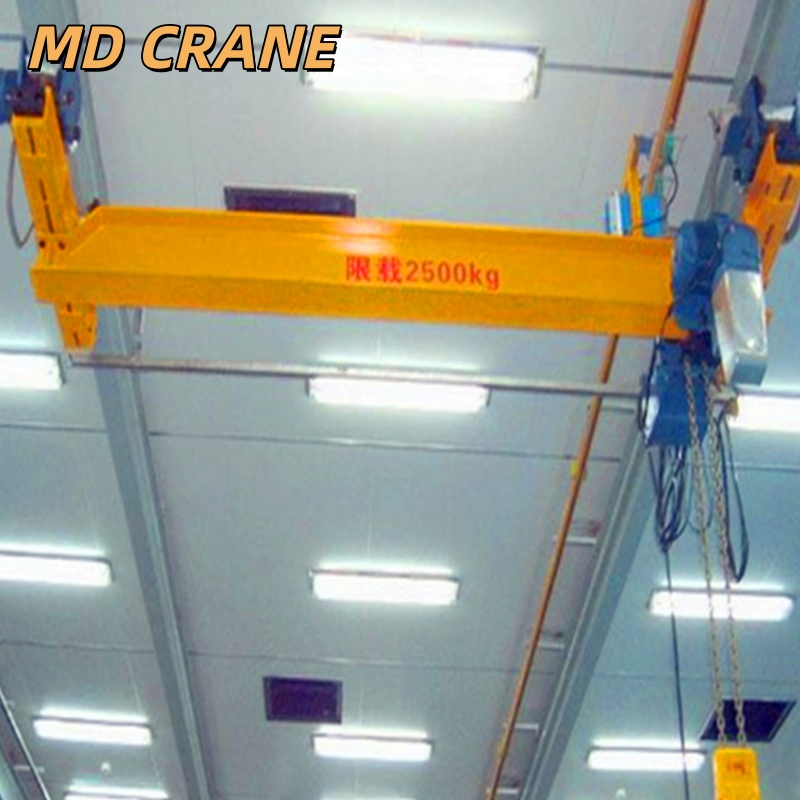

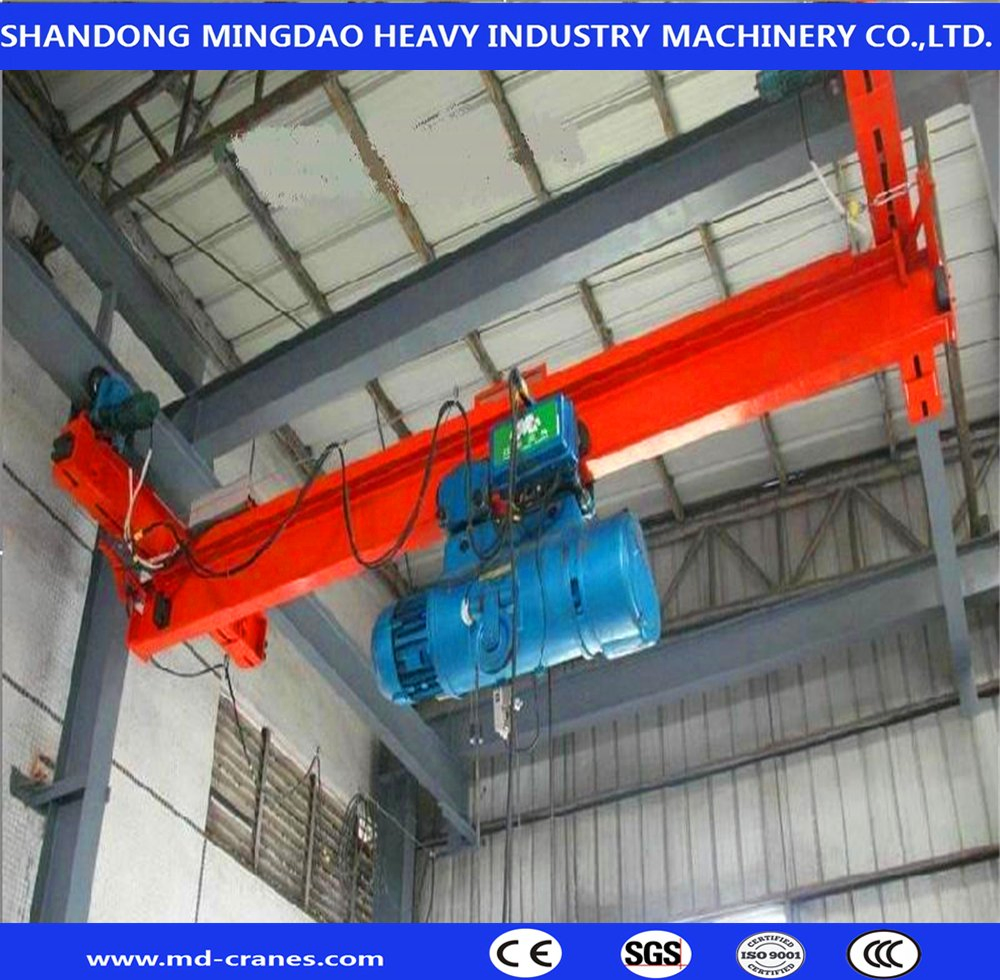

This under-hung single girder bridge crane is a premium light-duty lifting solution designed to operate under H-steel rails. Built with a reasonable structure and high-strength steel, it integrates seamlessly with CD1 and MD1 model electric hoists for capacities ranging from 0.5 ton to 20 ton.

Widely utilized in plants, warehouses, steel yards, and material stocks, this crane offers dual operational methods: ground-based (pendant/remote) or cabin control. We specialize in customized production to meet specific industrial requirements.

Technical Parameters
Capacity (t) 3 5 10 16 20
Operational Method Pendent line with press button / Cabin / Remote control
Hoisting Speed (m/min) 8, 8/0.8 8, 8/0.8 7, 7/0.7 3.5, 3.5/0.35 6, 6/0.6
Travelling of Crab (m/min) 20
Travelling of Crane (m/min) 20 (30)
Lifting Height (m) 6, 9, 12 6, 9, 12, 18 9, 12 9, 12 9, 12
Working Class A3 ~ A5
Power Supply 3-phase 50HZ 380V
Core Component Details

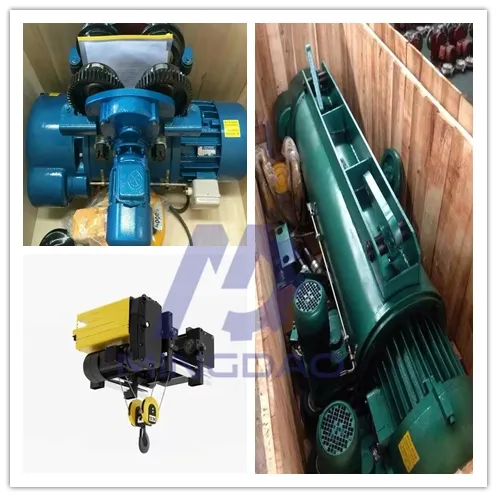

Lifting Mechanism
Lifting Mechanism

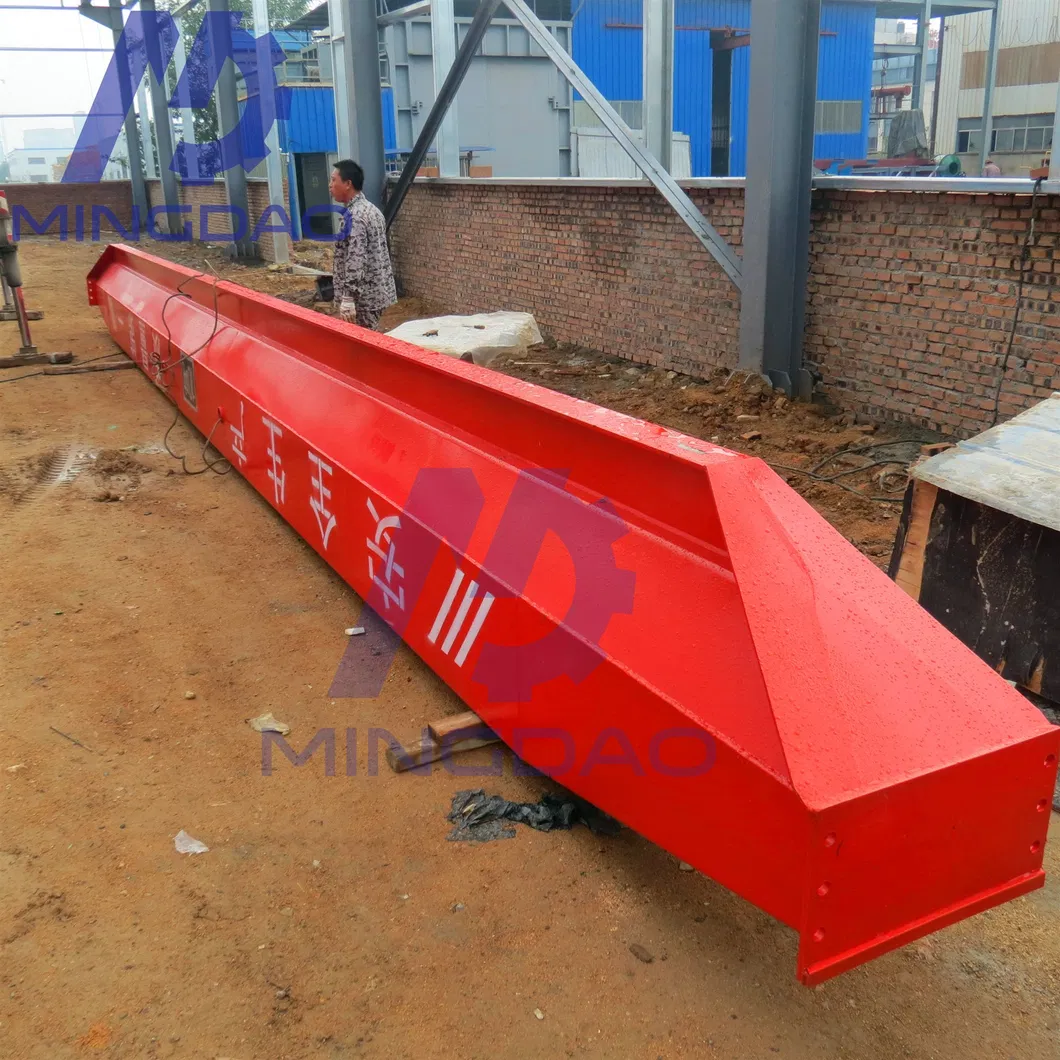

Main Girder
Main Girder / Beam
End Carriages
End Carriages

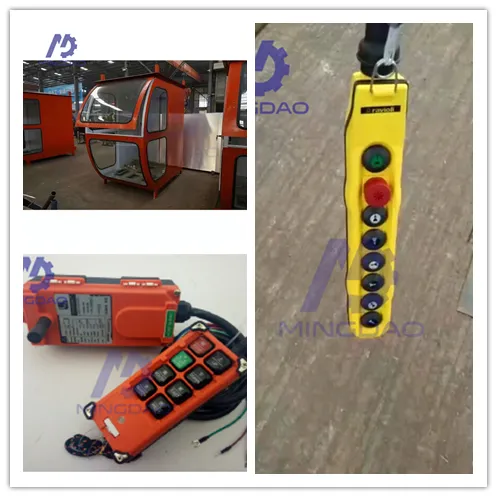

Control System
Control System
Key Advantages
  • Cost-Effective: Reduced freight costs and simplified installation due to modular single girder design.
  • Structural Efficiency: Lower deadweight reduces load on building foundations; often supported by existing roof structures.
  • Superior Approach: Better hook approach for both trolley and bridge travel in confined spaces.
  • Low Headroom: Ideal for facilities with limited overhead clearance.

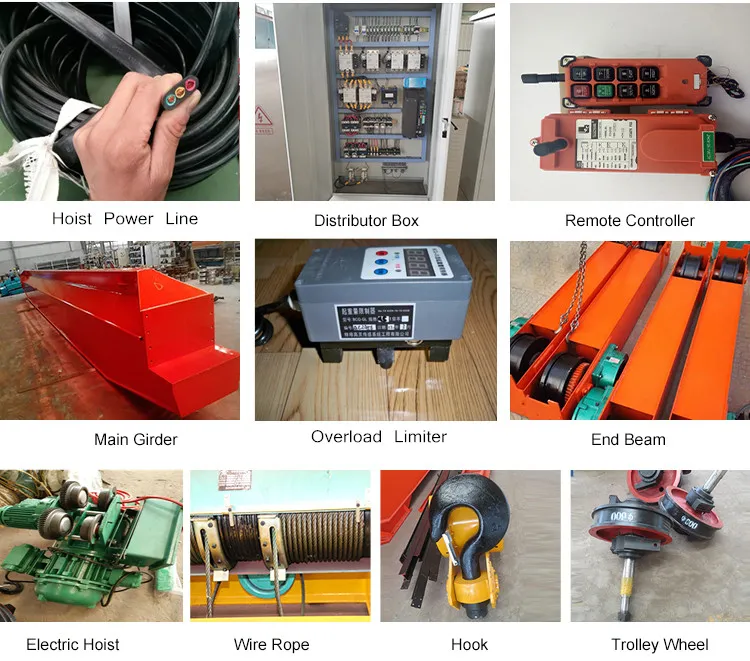

Integrated Safety Systems
1. Overload Limit Switch
2. Rubber Buffers
3. Electric Protective Devices
4. Emergency Stop System
5. Voltage Lower Protection
6. Current Overload Protection
7. Rail Anchoring
8. Lifting Height Limit Device
Safety Features Diagram
Application & Logistics

Perfectly suited for steel plants, warehouses, and manufacturing facilities. Our packing process ensures safety:

  • Electrical parts protected in high-quality plywood crates.
  • Main beams and trolleys wrapped in heavy-duty plastic woven cloth.
  • Optimized for container or bulk ship transport to minimize costs.
Crane Application

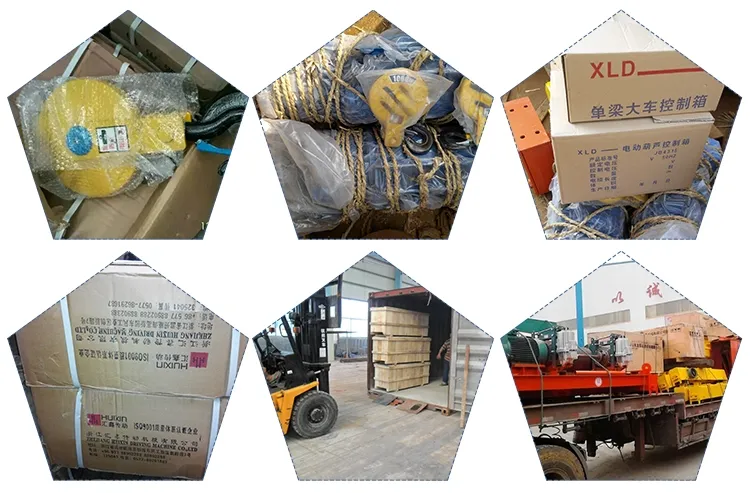

Packing and Delivery
Customer Use Cases

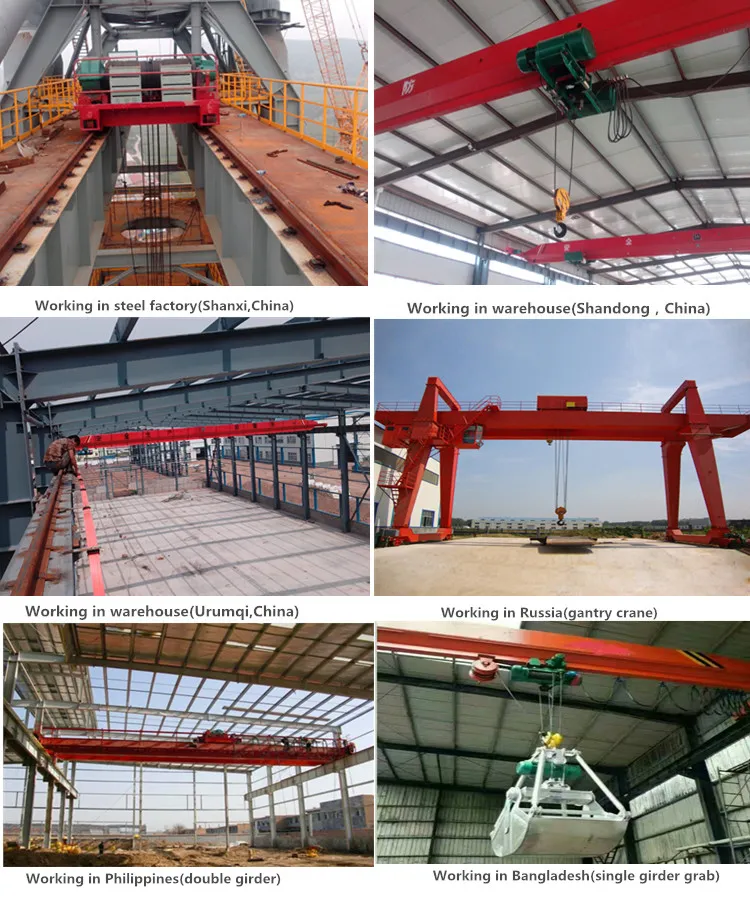

Crane Installation Case
Frequently Asked Questions
Q1: Can the cranes be customized?
Yes, every customer's working condition is unique. All of our products can be customized based on specific requirements, including lifting capacity, span, and height.
Q2: What operation methods are available?
We provide three main operation methods: pendent controller with push buttons, wireless radio remote control, or professional cabin control.
Q3: Is it possible to install a crane in a workshop with low headroom?
Absolutely. We offer specialized low headroom designs. Our engineers can provide a custom solution tailored to your workshop's dimensions.
Q4: Do you supply additional lifting tools?
Yes, we provide various lifting tools including hooks, electromagnetic lifters, grab buckets, and more to suit your material handling needs.
Q5: How are the crane components packaged for shipping?
Electrical parts are packed in high-quality plywood crates to prevent distortion. Large structures like beams are wrapped in plastic woven cloth to prevent abrasion during transit.
Q6: What information is needed for a design solution?
To provide the best design, we require the lifting capacity, span length (rail center to center), lifting height, power supply voltage, and details about the working environment.
