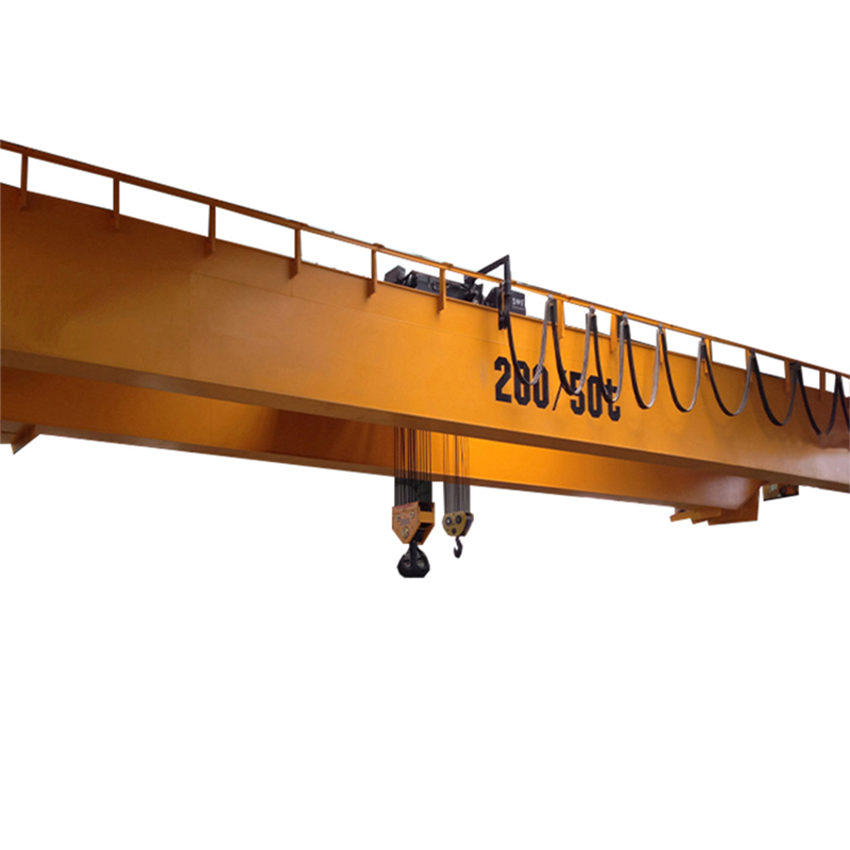

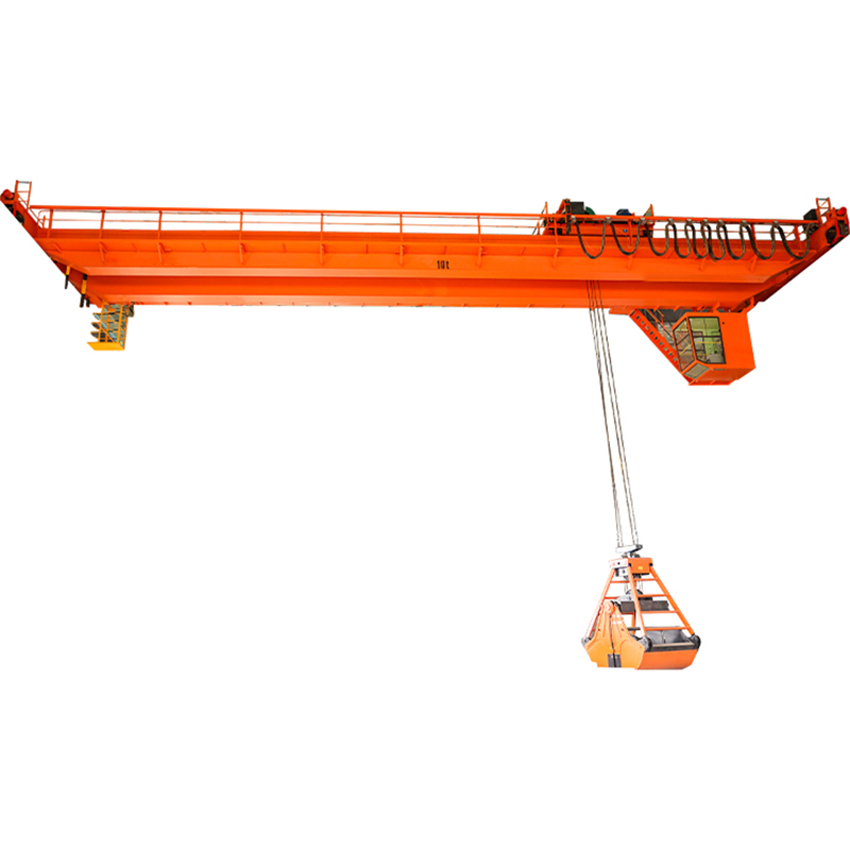

QD Type 5~50/10t Double Girder Overhead Crane is designed for open warehouses or rail sideways to conduct common loading, unloading, and material handling works. It is a heavy-duty type overhead crane that satisfies frequent usage requirements. According to different utilization classes and load states, it is categorized into A5 and A6 working classes.

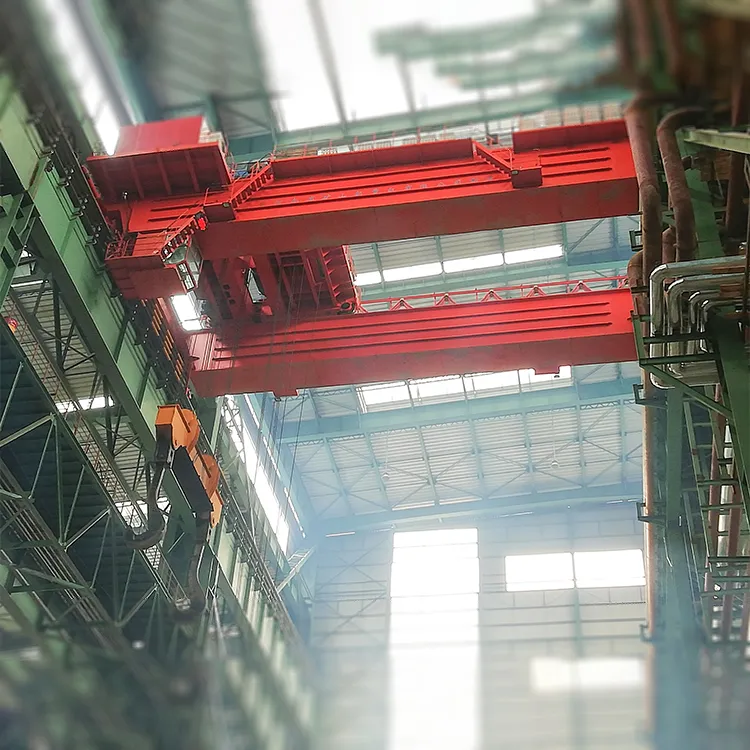

The crane is composed of a bridge, travelling mechanisms, trolley, and electric equipment. The bridge frame adopts a box-welded structure, and the crane travelling mechanism utilizes a separate drive with a motor and speed reducer. All mechanisms are controlled from the driver's cabin or via remote control.
| Item | Specifications |
|---|---|
| Loading Capacity | 5~450/80t |
| Hoisting Height | 1~15m |
| Span | 1~10m |
| Hoisting Mechanism | Hoist Trolley |
| Working Class | A5~A6 |
| Power Supply | 380V 50Hz 3Ph (Customizable) |

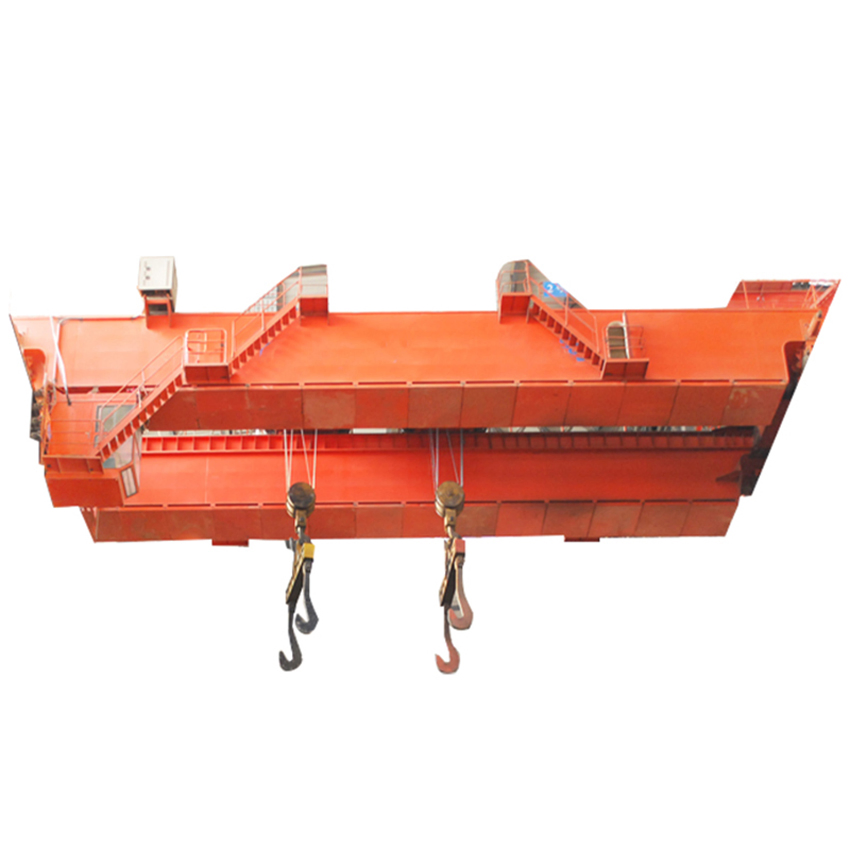

Strong box type with standard camber and reinforcement plates inside. Material: Q235B and Q345B carbon steel.

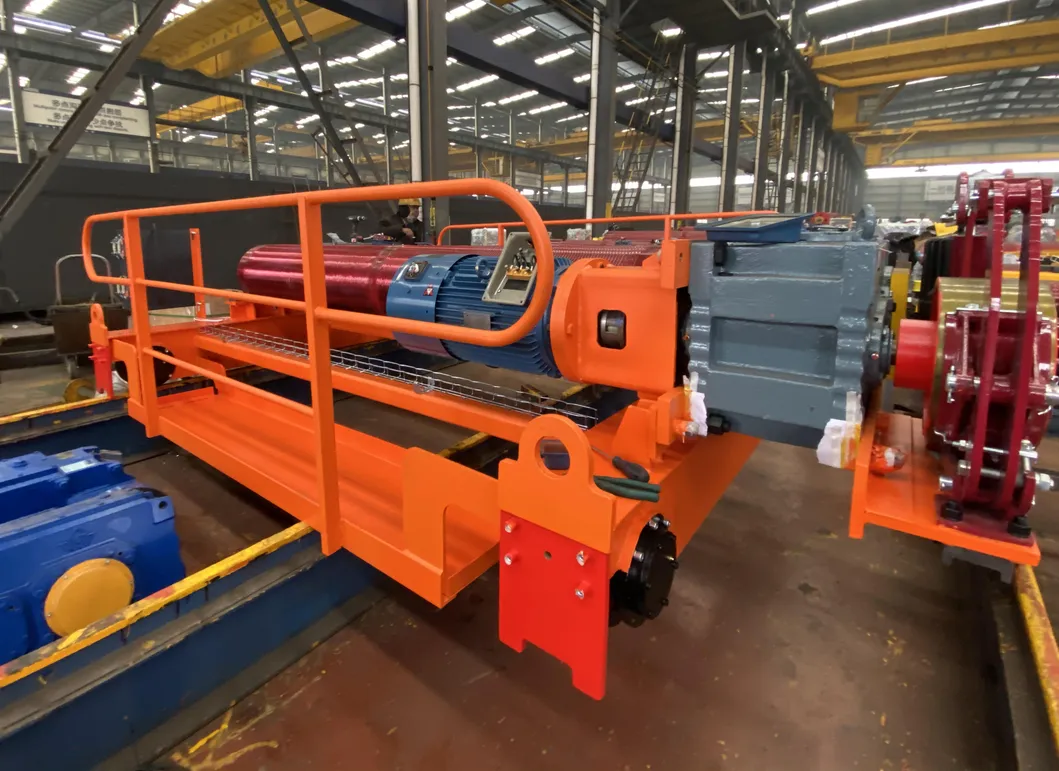

Developed for heavy capacity and high working classes, ensuring accurate and smooth movement.

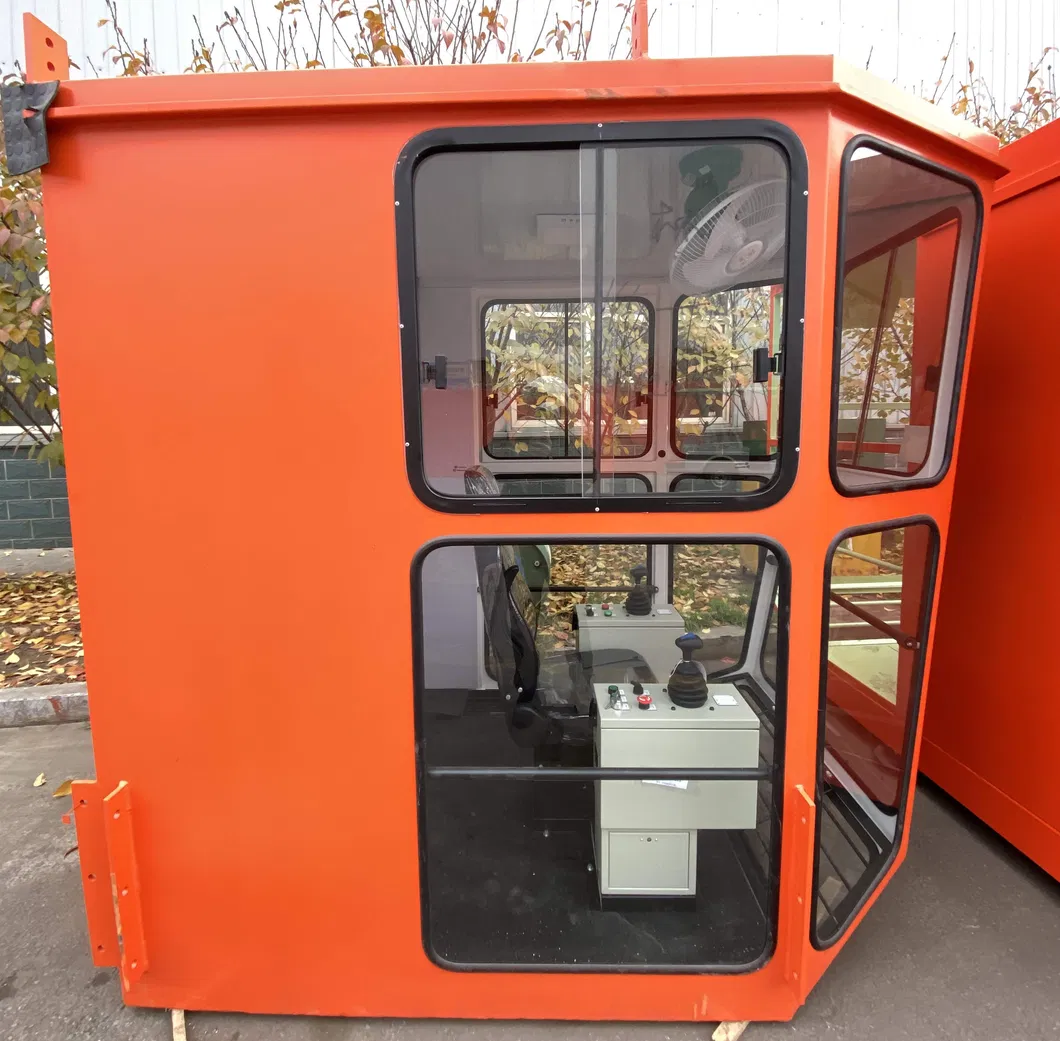

Available in open or closed models. Can be installed on the left or right side with sideway or end entrance.

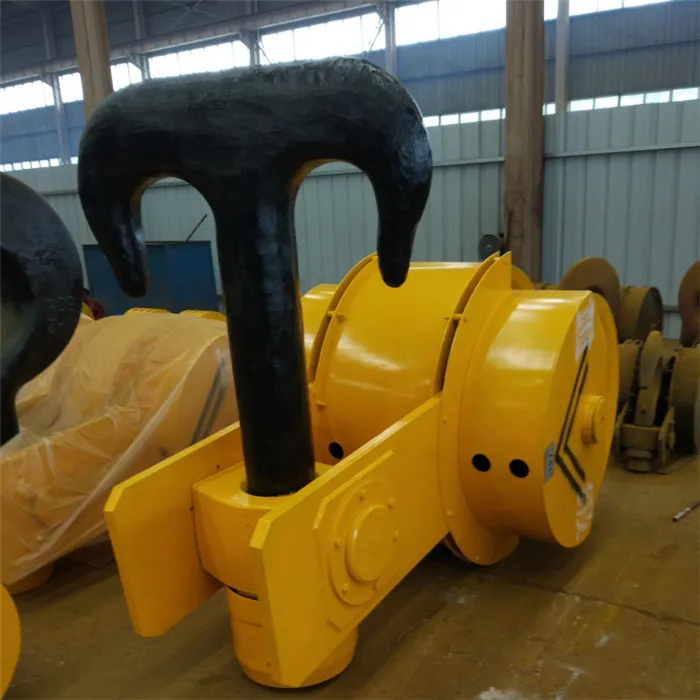

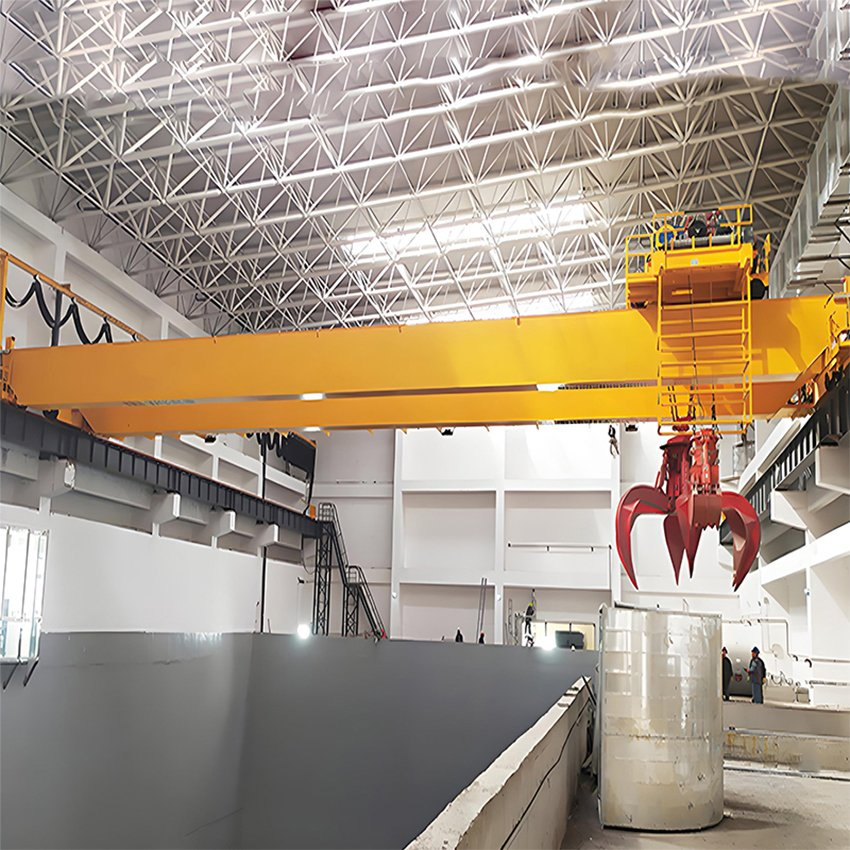

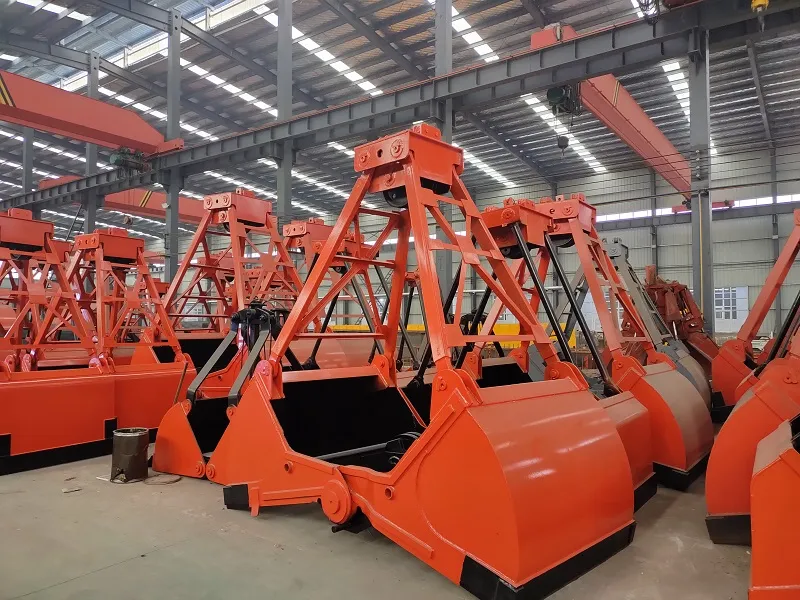

Forged or casting hooks available in single or double hook configurations. Grab buckets also supported.
