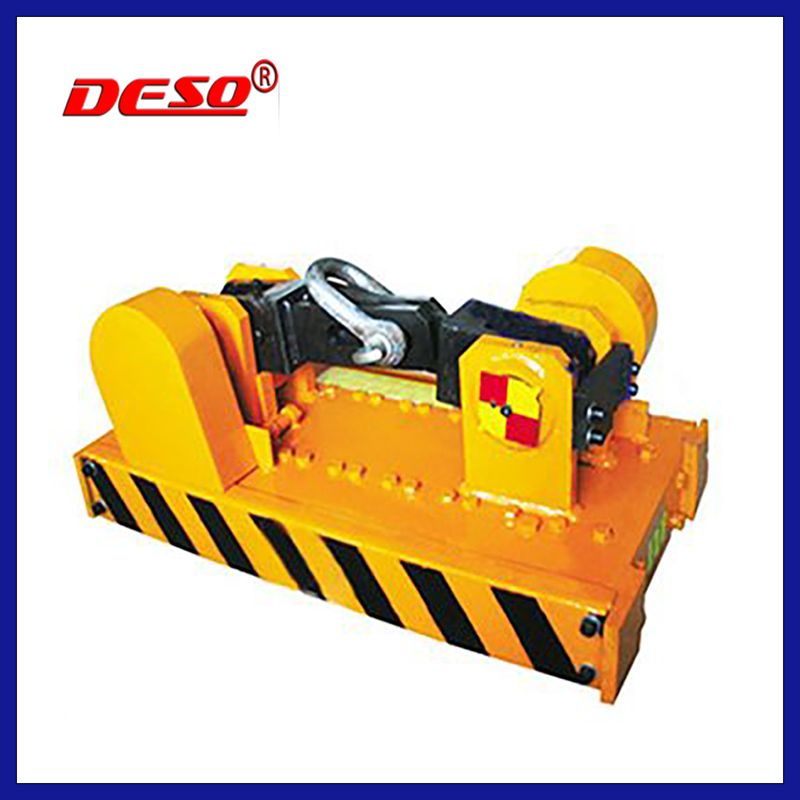

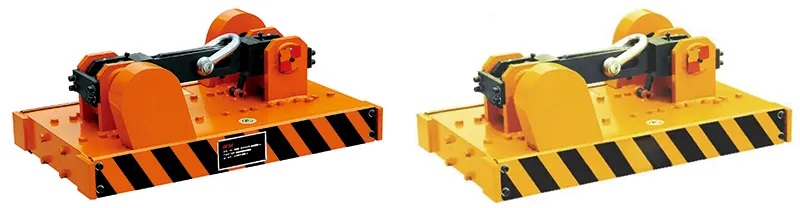

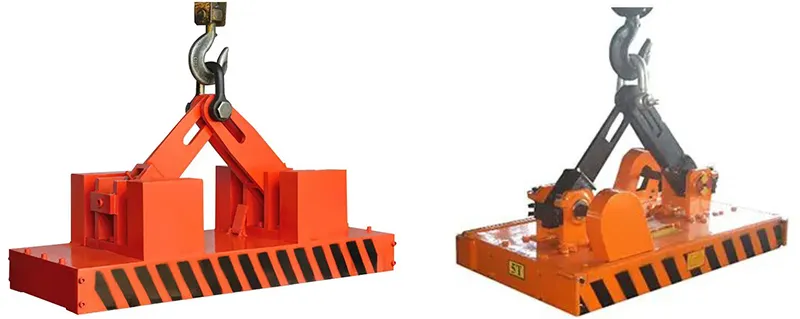

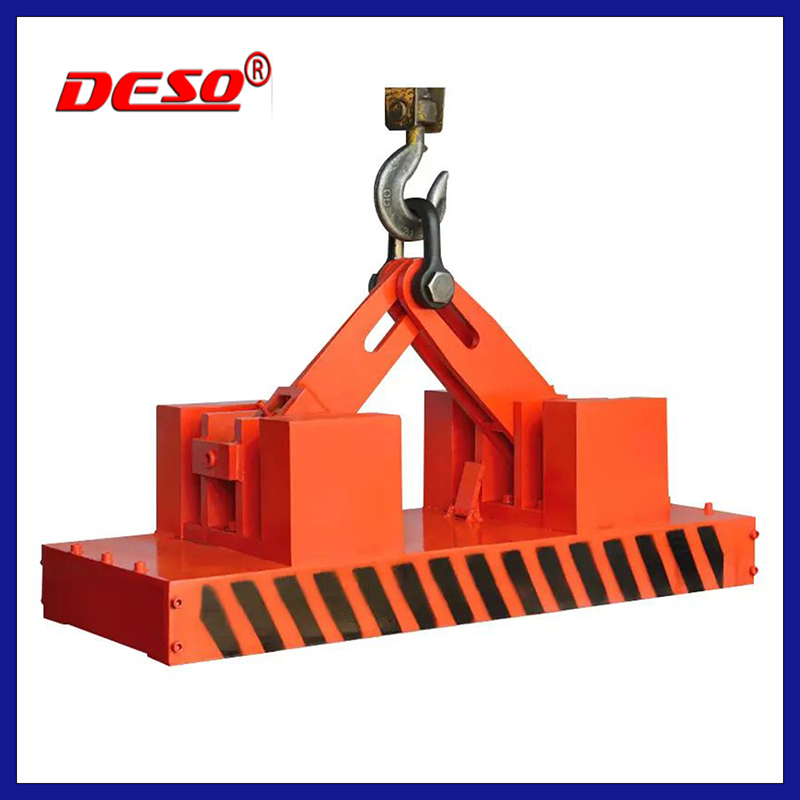

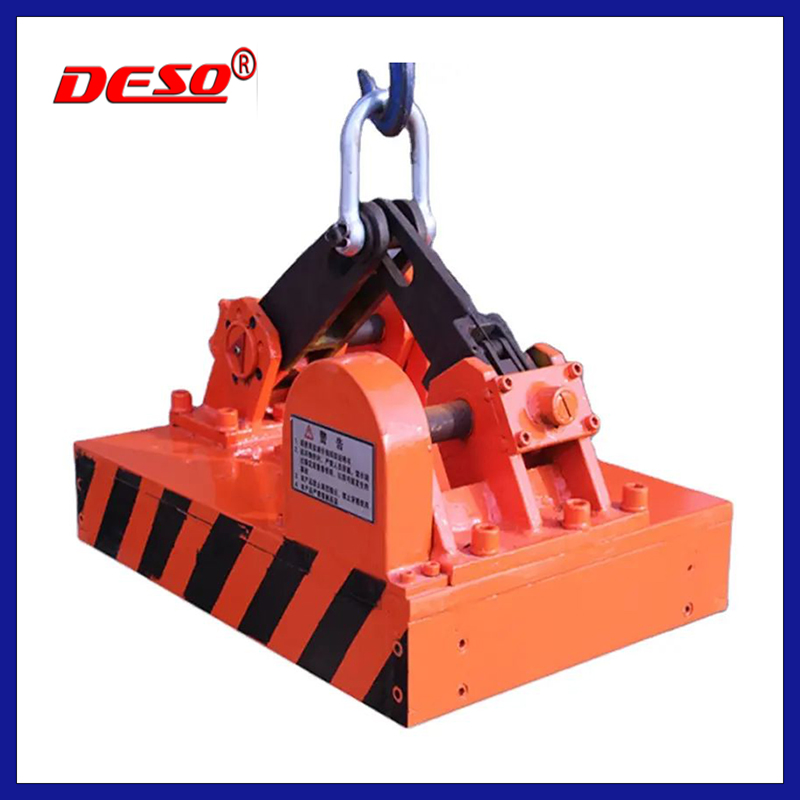

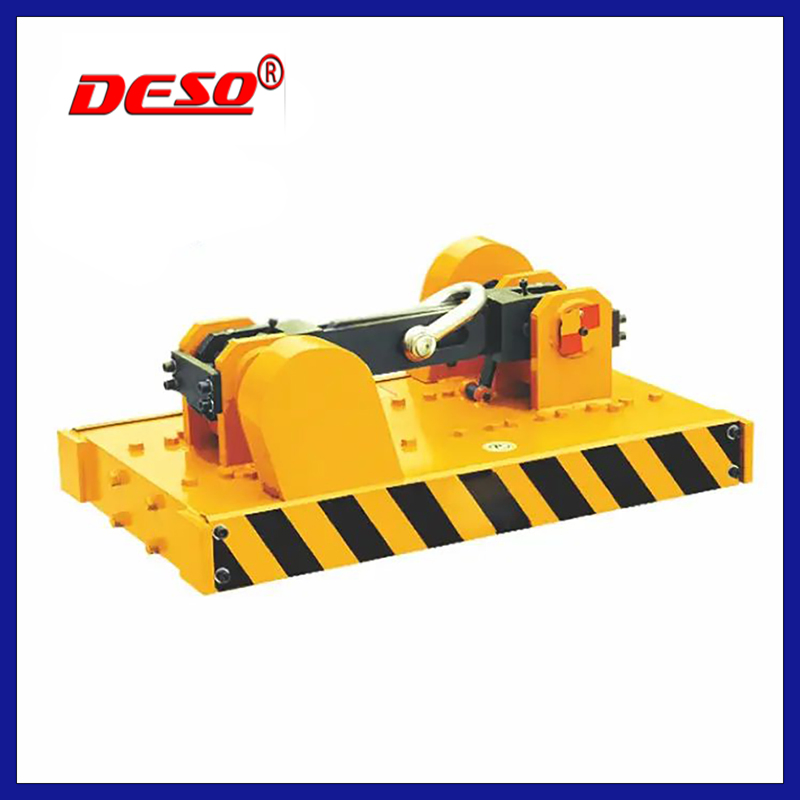

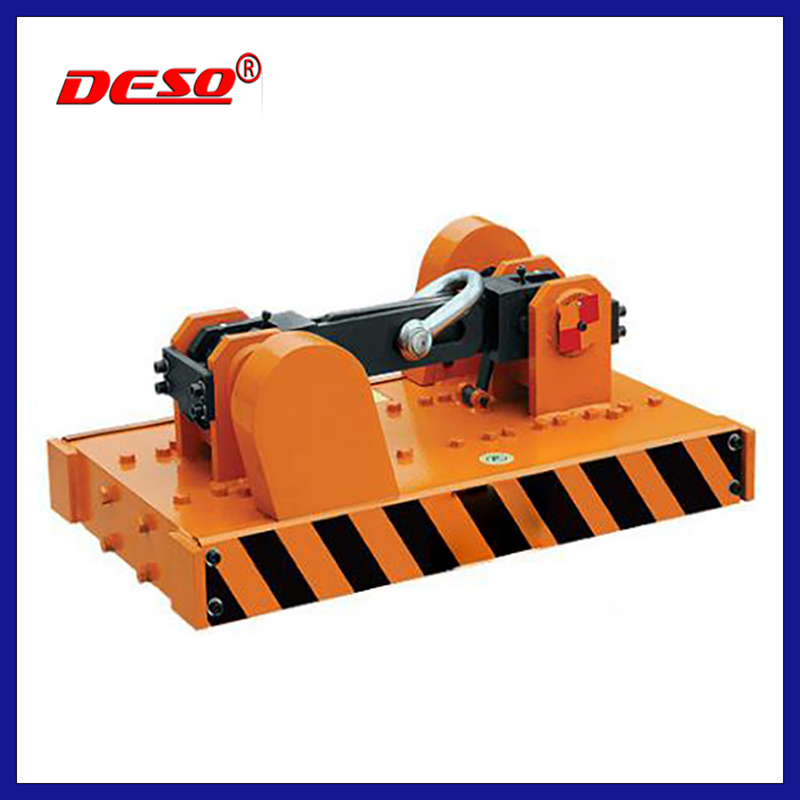

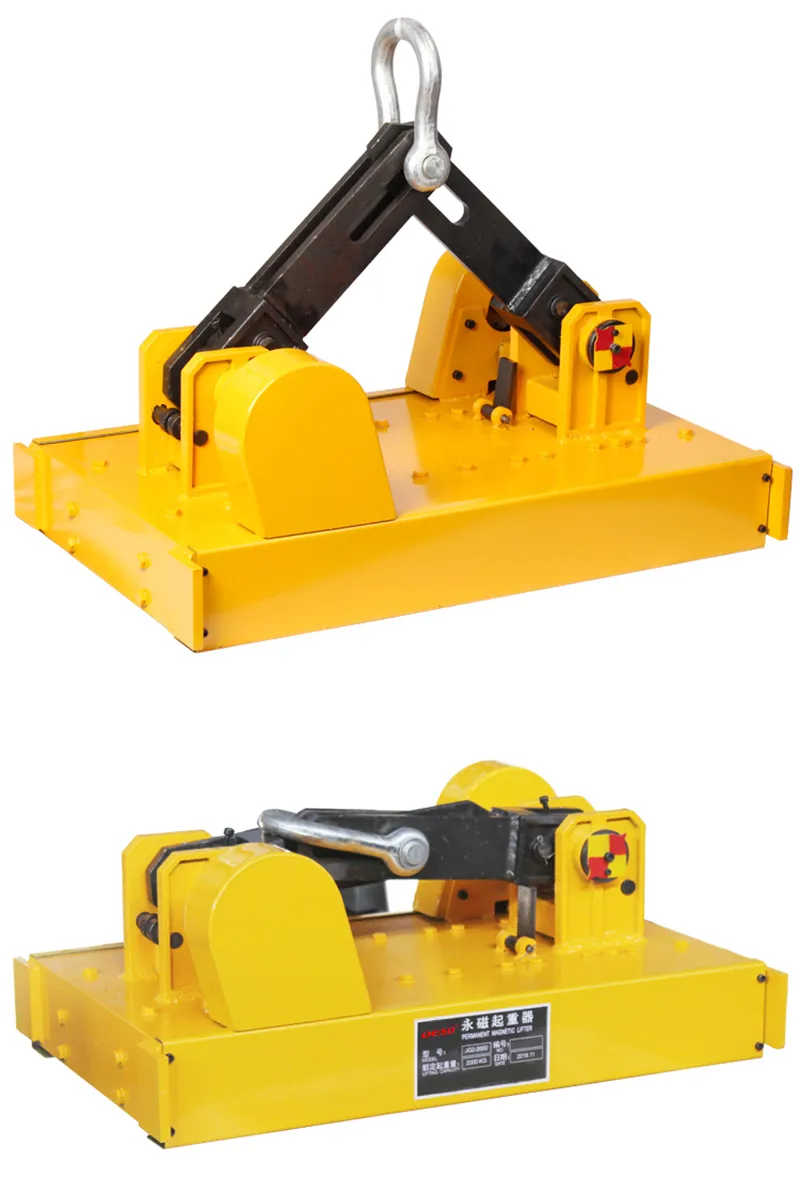

Automatic Permanent Magnetic Lifter
The permanent magnetic lifters are mainly used for lifting steel plates and round steel. Due to their light weight, ease of operation, and powerful suction, magnetic lifters are widely applied in ship engineering, warehousing, transportation, and machinery manufacturing.
It is made of high-energy magnetic materials and scientific magnetic circuit principles. It features large suction, compact structure, light weight, and safety. It is an ideal energy-saving lift, more convenient than electromagnetic lifts that require complex connection devices and backup power supplies.
| Product | Automatic Permanent Magnetic Lifter |
|---|---|
| Lifting Capacity | 600kg - 5t |
| Work Model | Pull push |
| Material | Permanent neodymium magnets |
| Safety factor | 3 : 1 |
| Application | Shipbuilding, engineering machinery, mould producing industry |

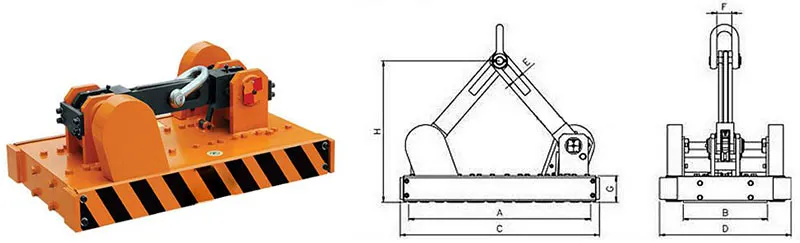

| Model | Rated capacity (kg) | Size A (mm) | Size B (mm) | Size H (mm) | Max Pull Force (kg) | Weight (kg) |
| QZ2-0.6 | 600 | 482.6 | 237 | 387 | 2100 | 145 |
| QZ2-1 | 1000 | 685.8 | 238 | 480.2 | 4000 | 195.8 |
| QZ2-2 | 2000 | 761.6 | 328 | 452.2 | 7000 | 270 |
| QZ2-3 | 3000 | 861.8 | 400 | 669 | 10500 | 430 |
| QZ2-5 | 5000 | 1121.4 | 400 | 700 | 15000 | 490 |

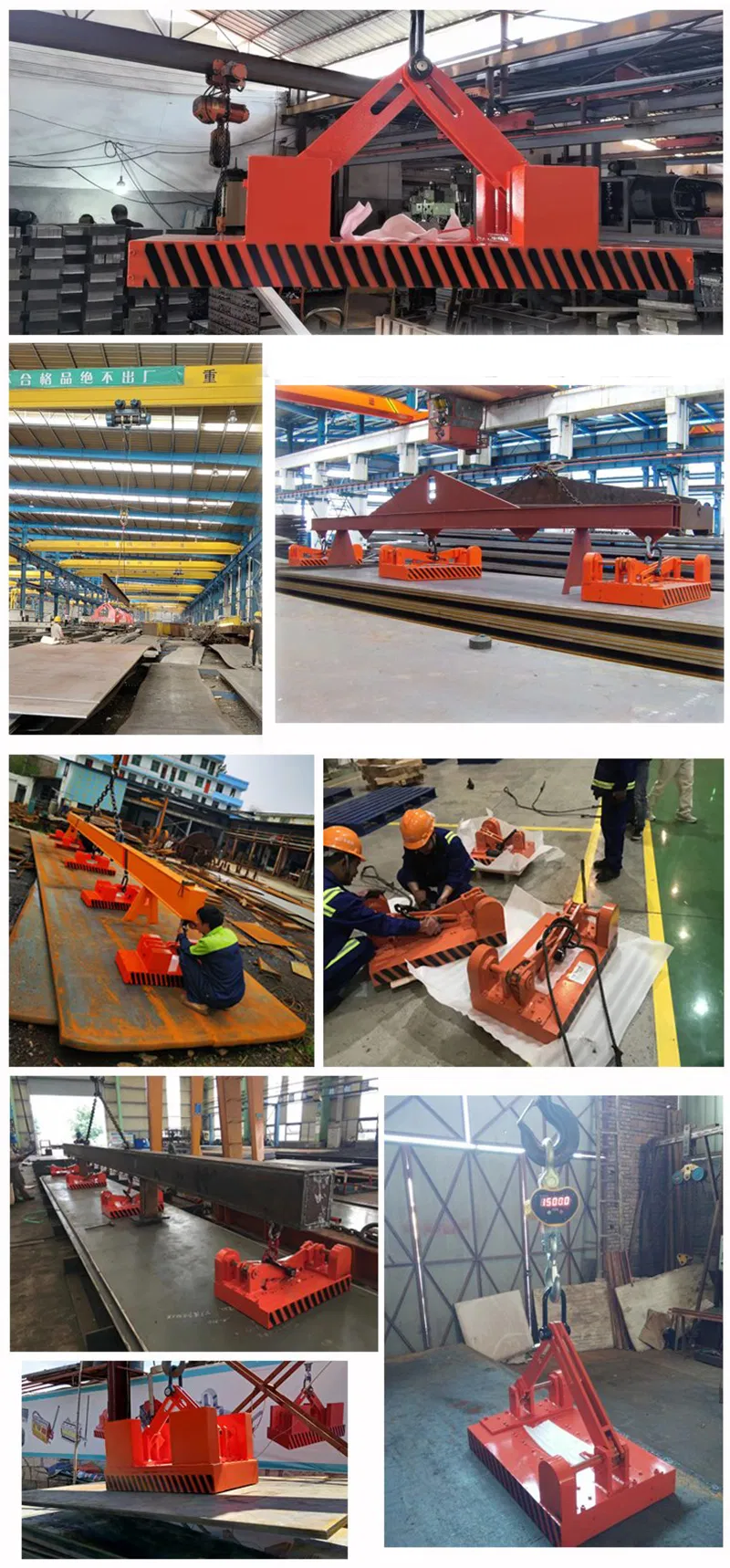

Widely used for lifting flat mechanical parts, steel, and other permeability magnetic materials in mechanical manufacturing, molding industries, and warehouses.
