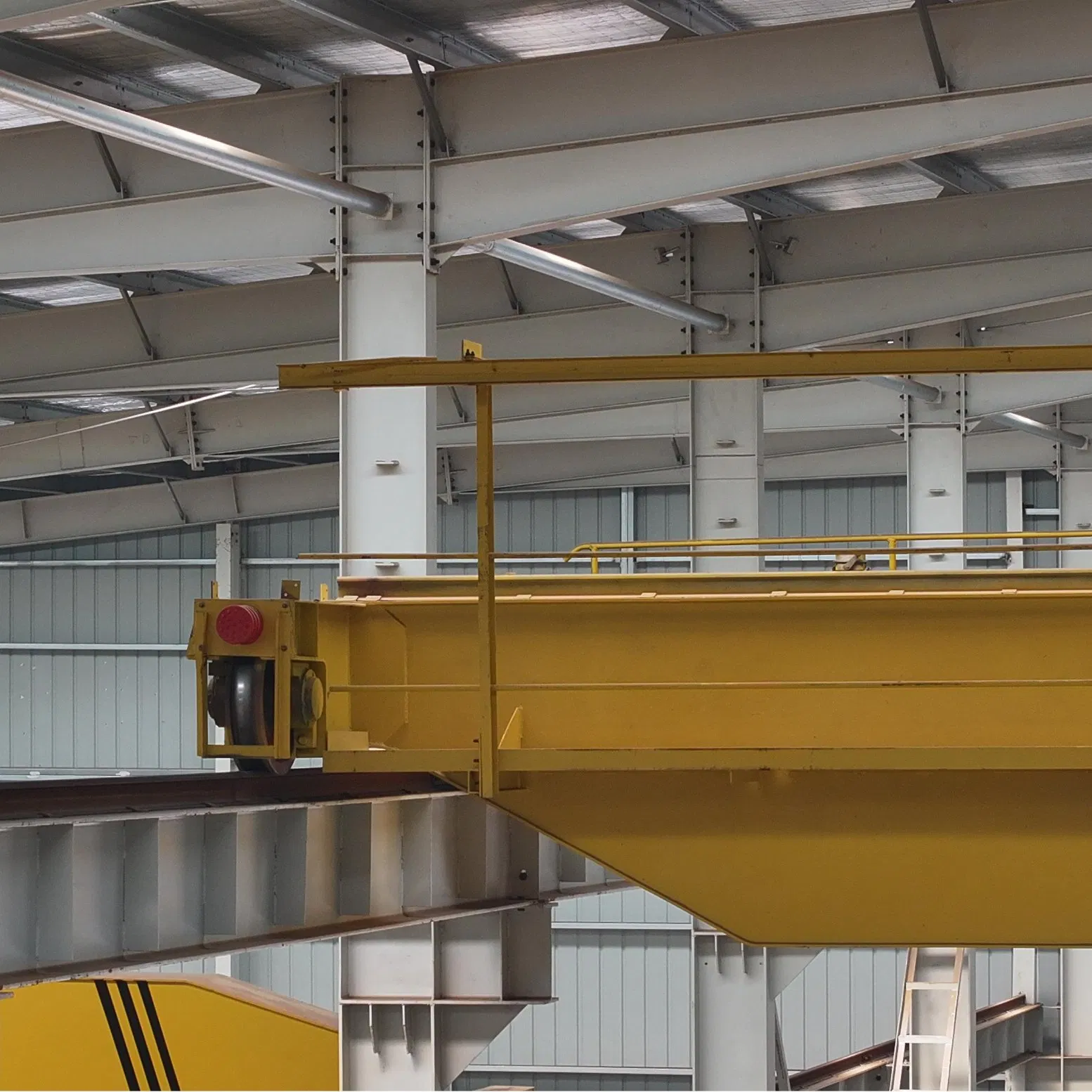

Medium Duty Construction Lifting Equipment - Double Girder Overhead Bridge Travelling Crane

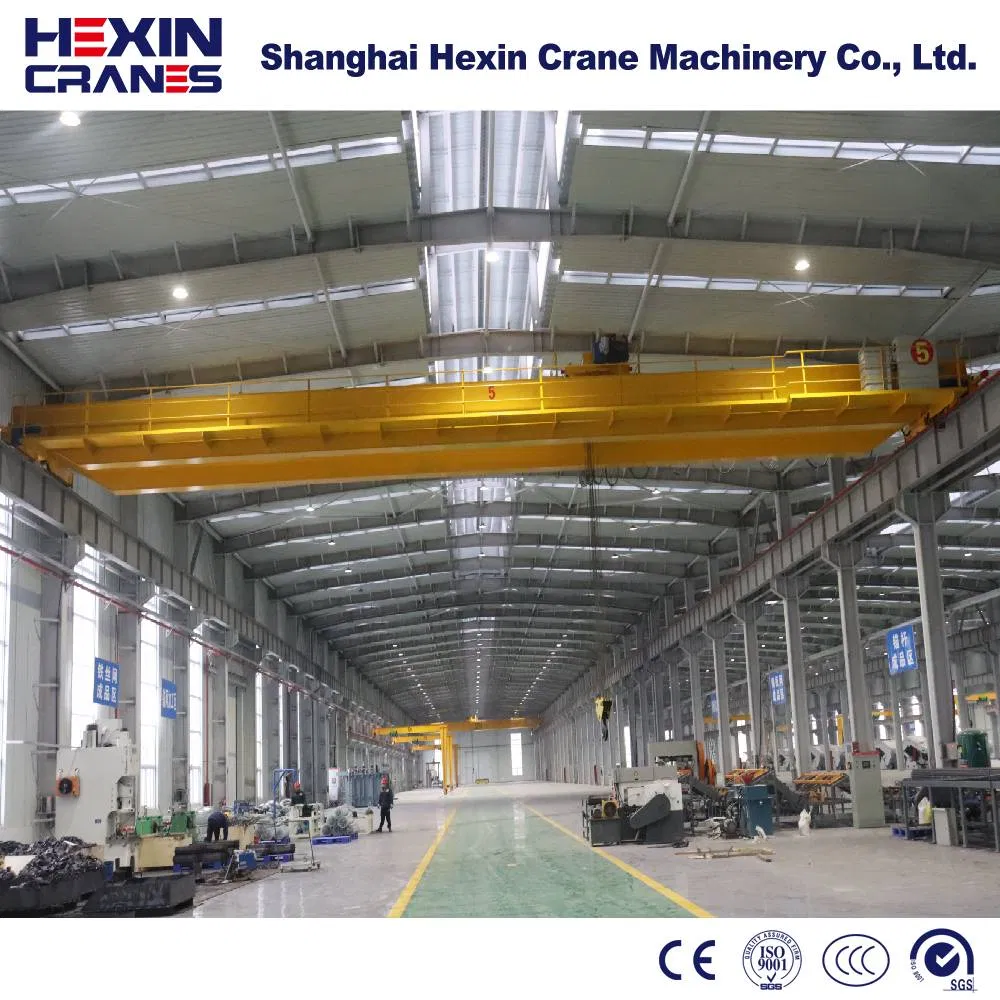

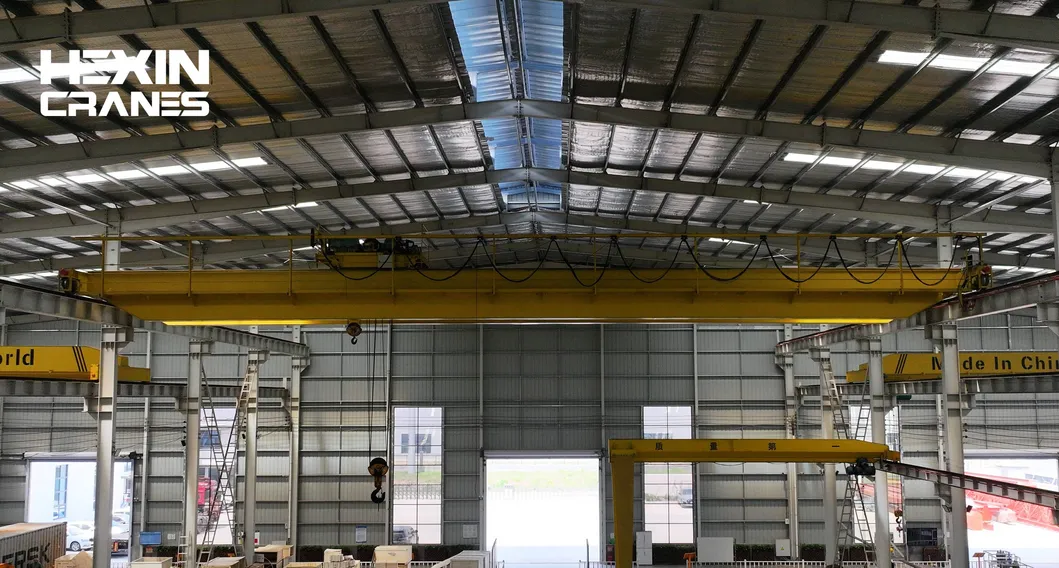

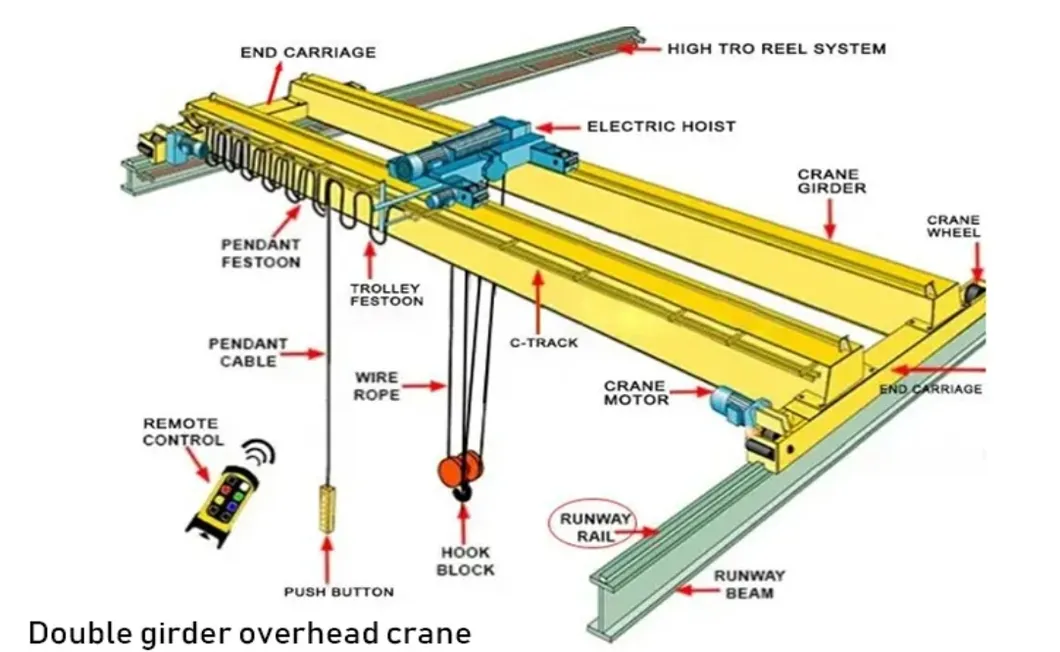

Double girder overhead crane configuration is made up of two bridge girders, two end carriages and a hoist with trolley. The hoist travels on top of rails that are mounted to the top of bridge girders. It is widely used for transferring material, goods equipment installation and maintenance in factory, power station, storeroom, warehouse etc.
|
Fabricated Box Construction
• Fabricated with Plate Steel• Improved Lateral and Torsional Stiffness • Up to 45 Meters Span • Dual Hoist / Tandem Lift Options • Up to 2 x 32 Ton Capacity |
|
Standard Equipment
• Sliding Push Button Pendant Controls• 2-Speed Bridge Travel • 2-Speed Trolley Travel • 2-Speed Hoisting Travel • Upper and Lower Travel Limit Switches • Bridge Travel Limit Switch |
Available Options

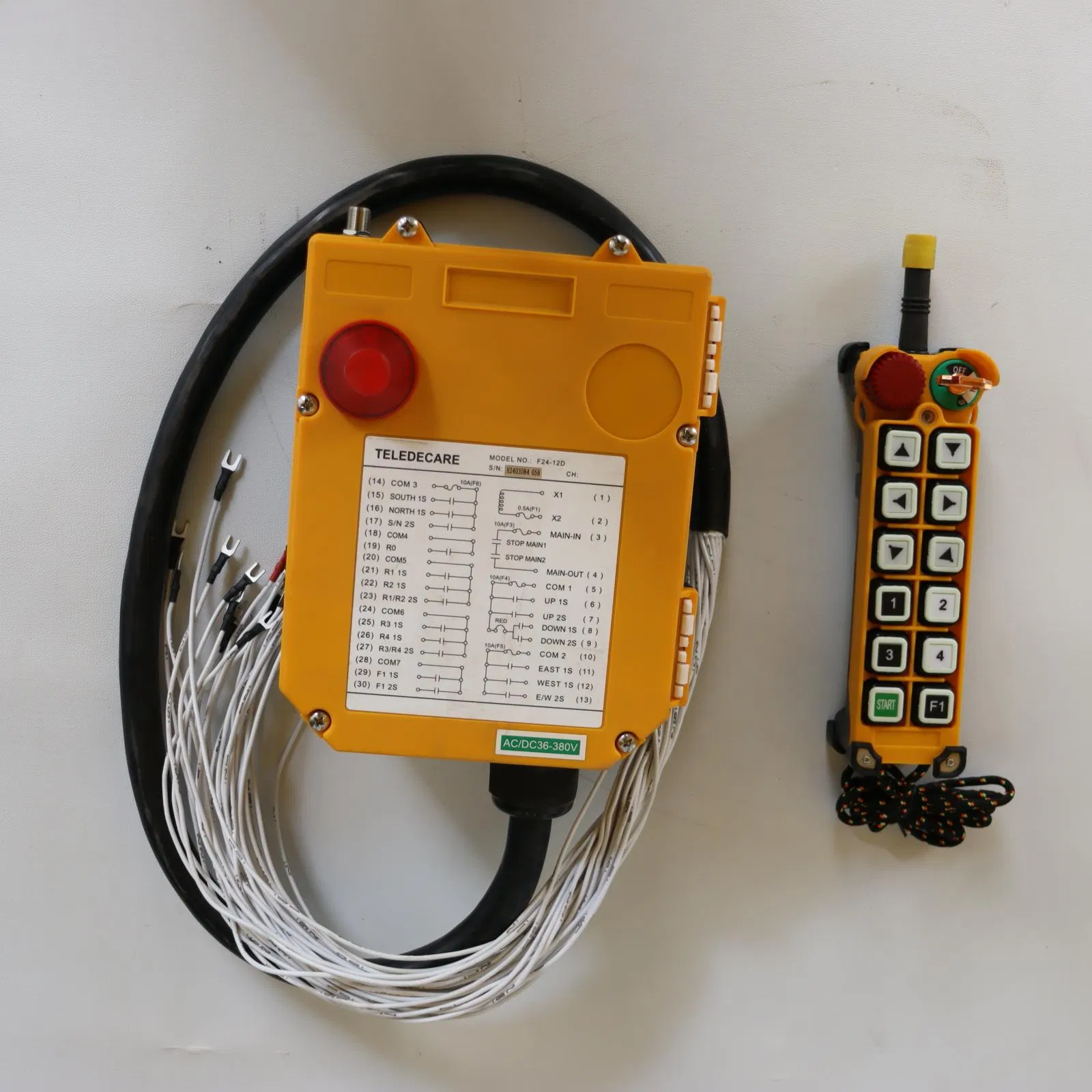

• Radio Remote Controls• Anti Collision Systems • Audible Horn • VFD Trolley/Bridge/Hoisting Travel • Explosion Proof Components • Spark Resistant Features |

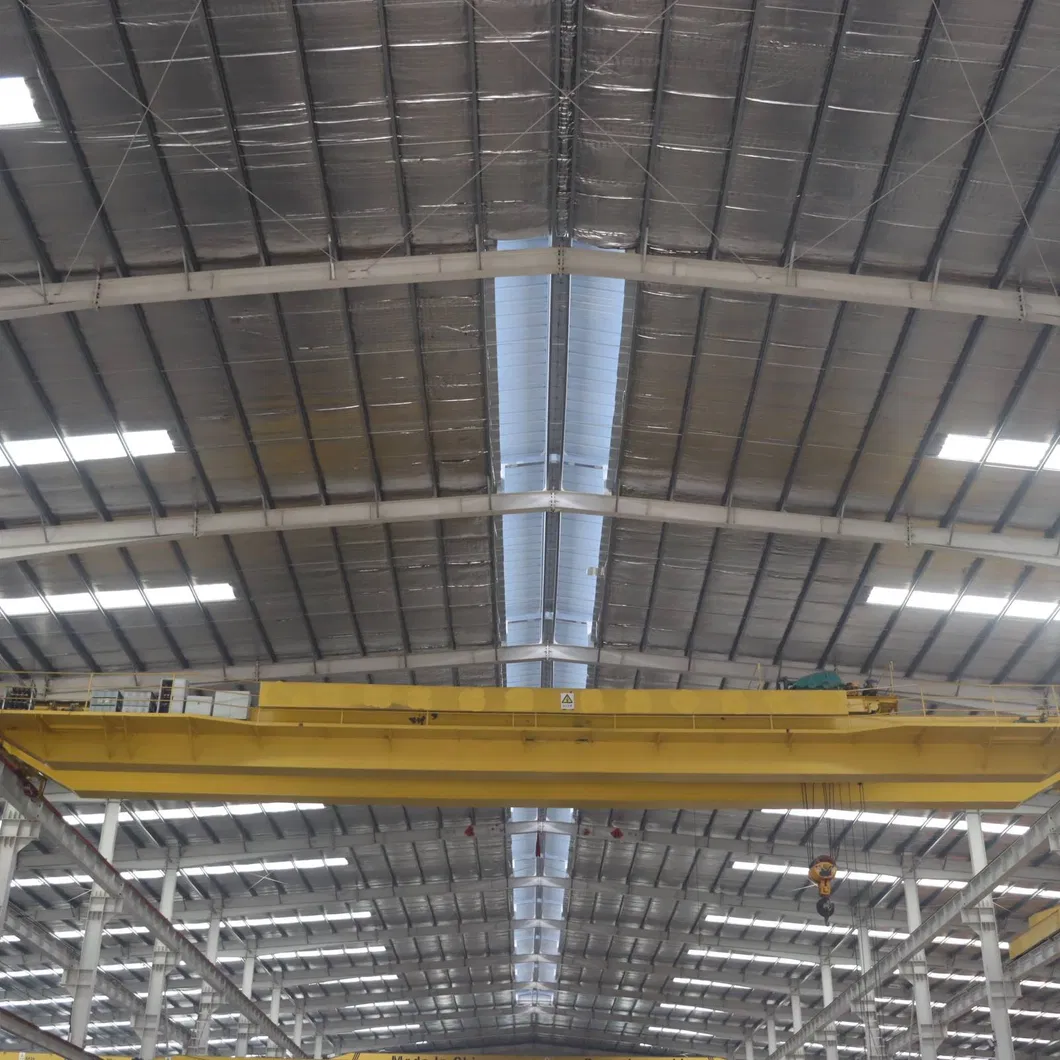

A load-bearing beam that runs the width of the building. This is the primary structural component that connects the runways and moves the hoist forward and backward using a trolley. Girders can be made of rolled steel or fabricated by welding beams into a steel box design.

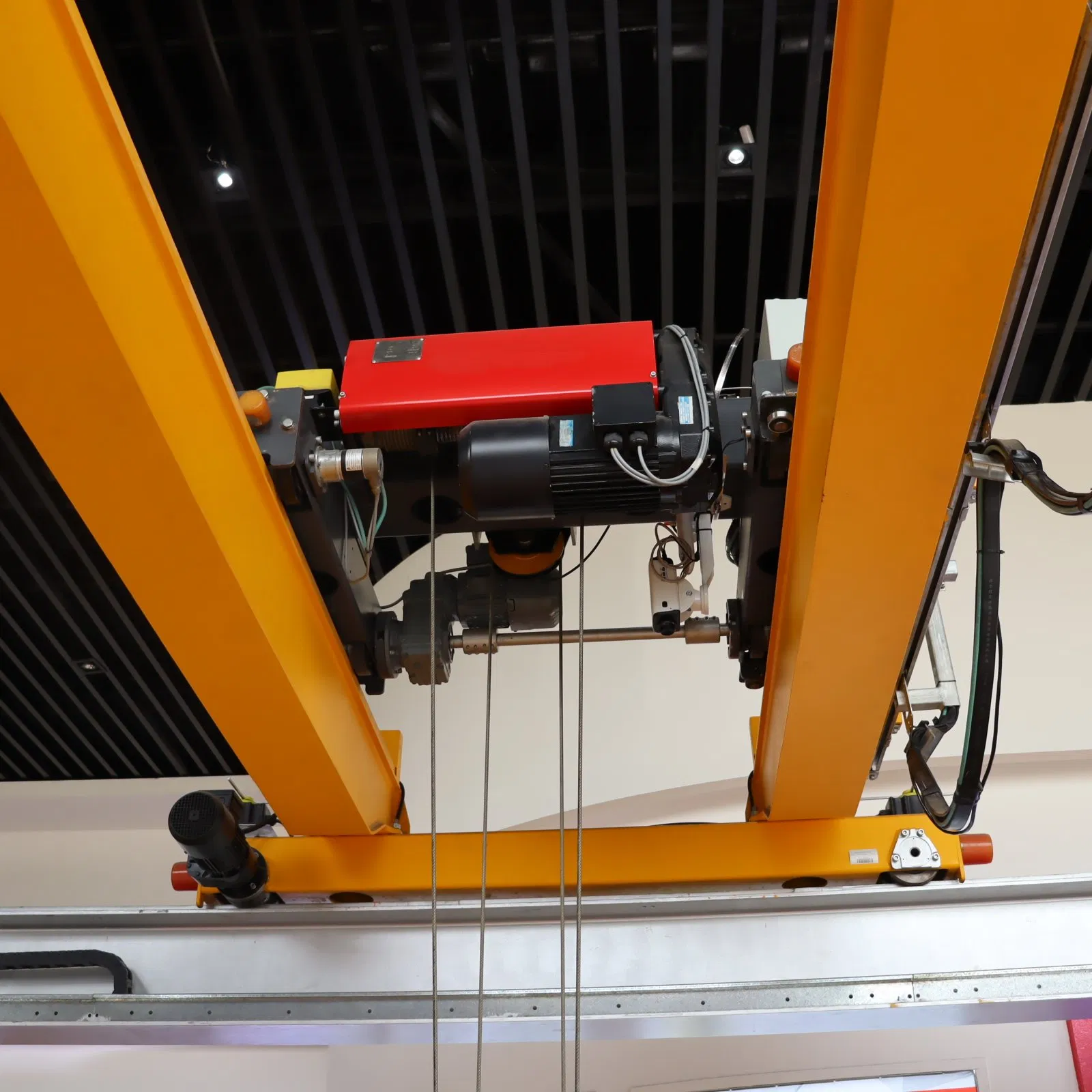

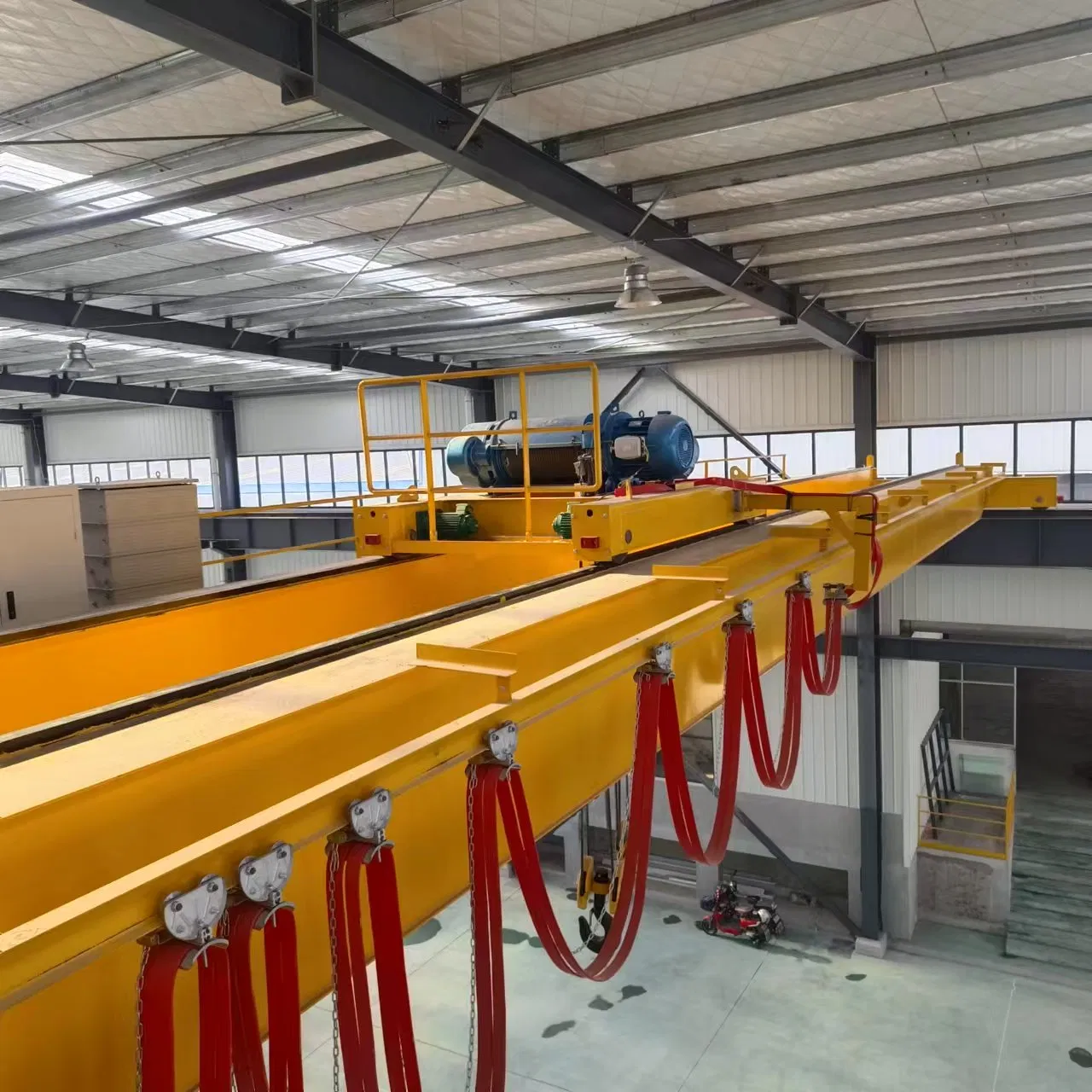

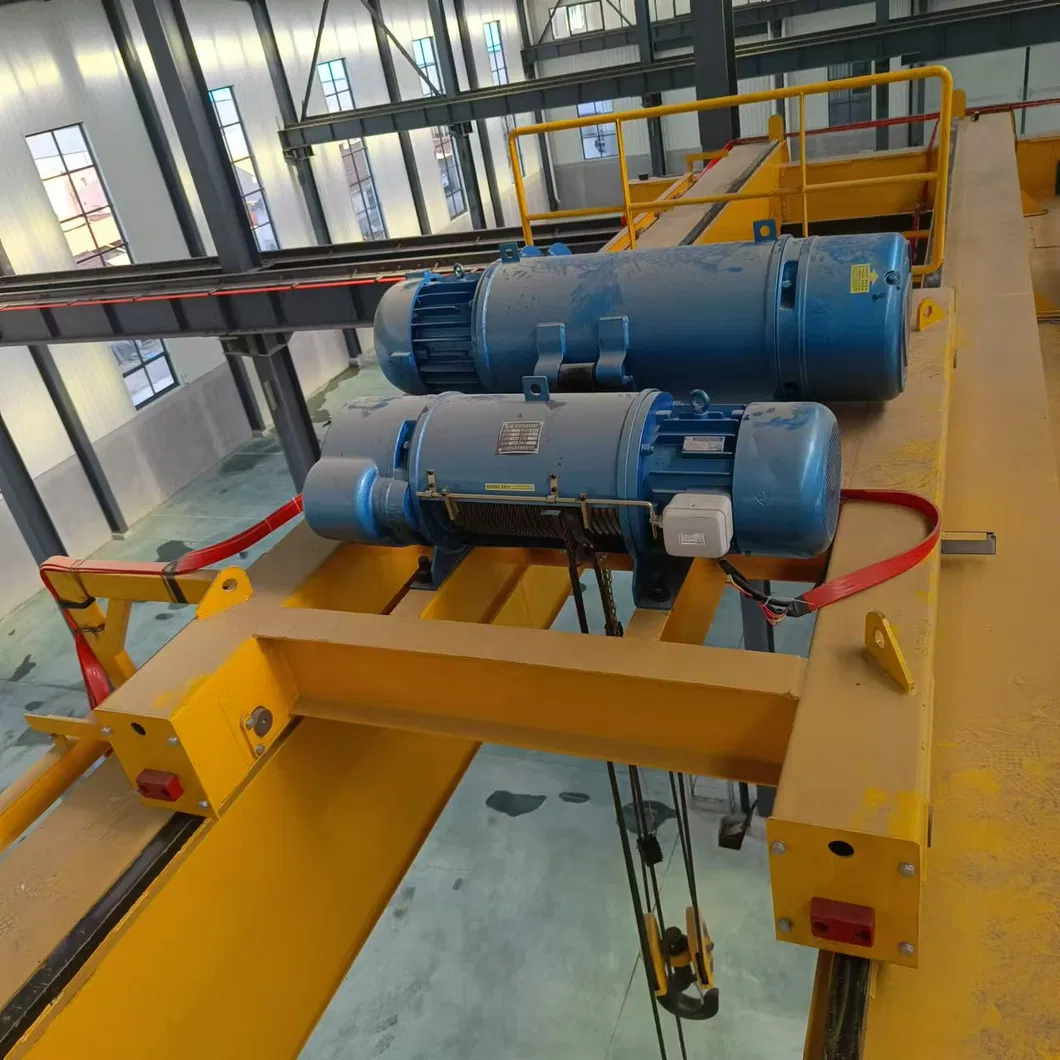

The trolley is a mobile platform housing the hoisting mechanism responsible for lifting and lowering loads. Includes high-tensile steel ropes, pulleys, and a motor-driven hoist drum. Powered by motors for precise horizontal positioning.

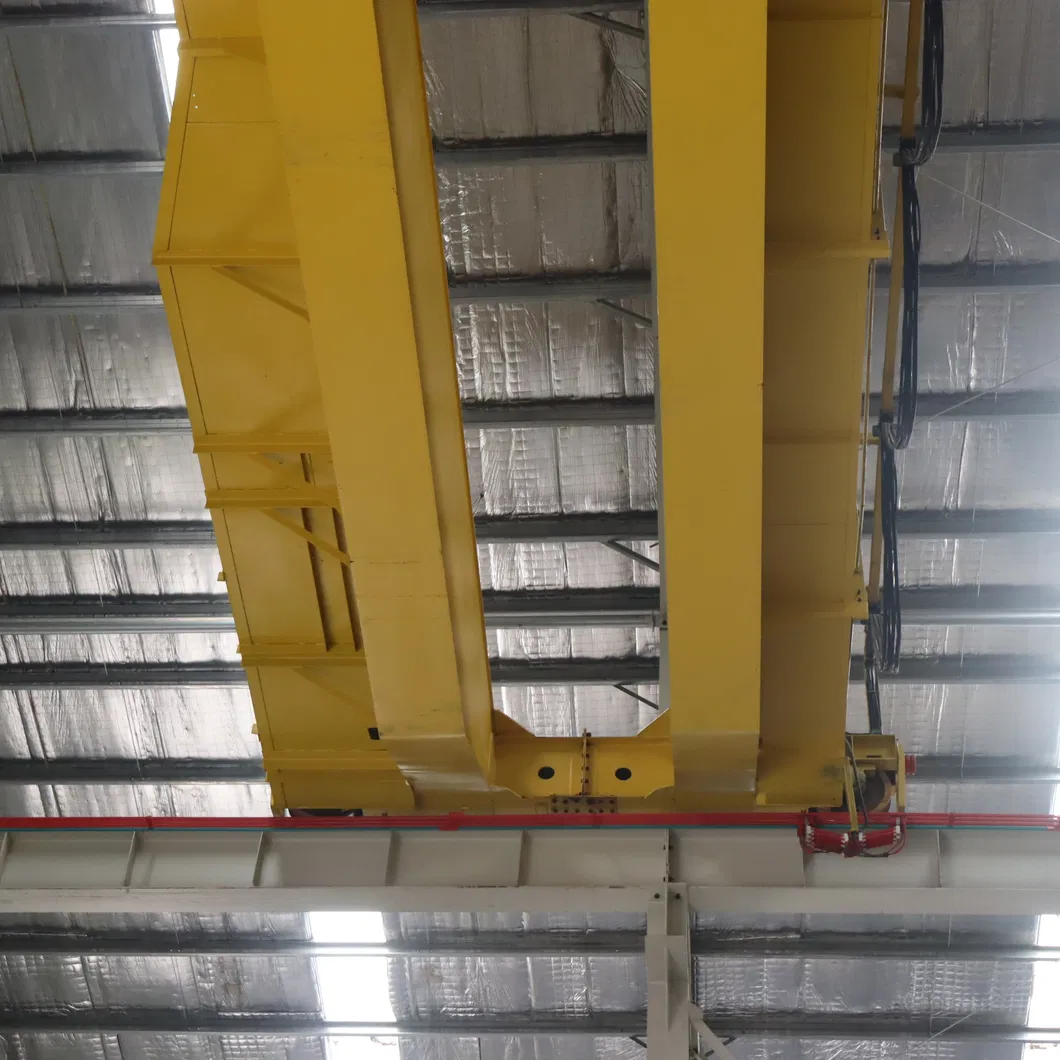

Located at each end of the crane, the end trucks enable the gantry crane to travel along rails. Depending on capacity, each truck is equipped with 2, 4, or 8 wheels for optimal stability.

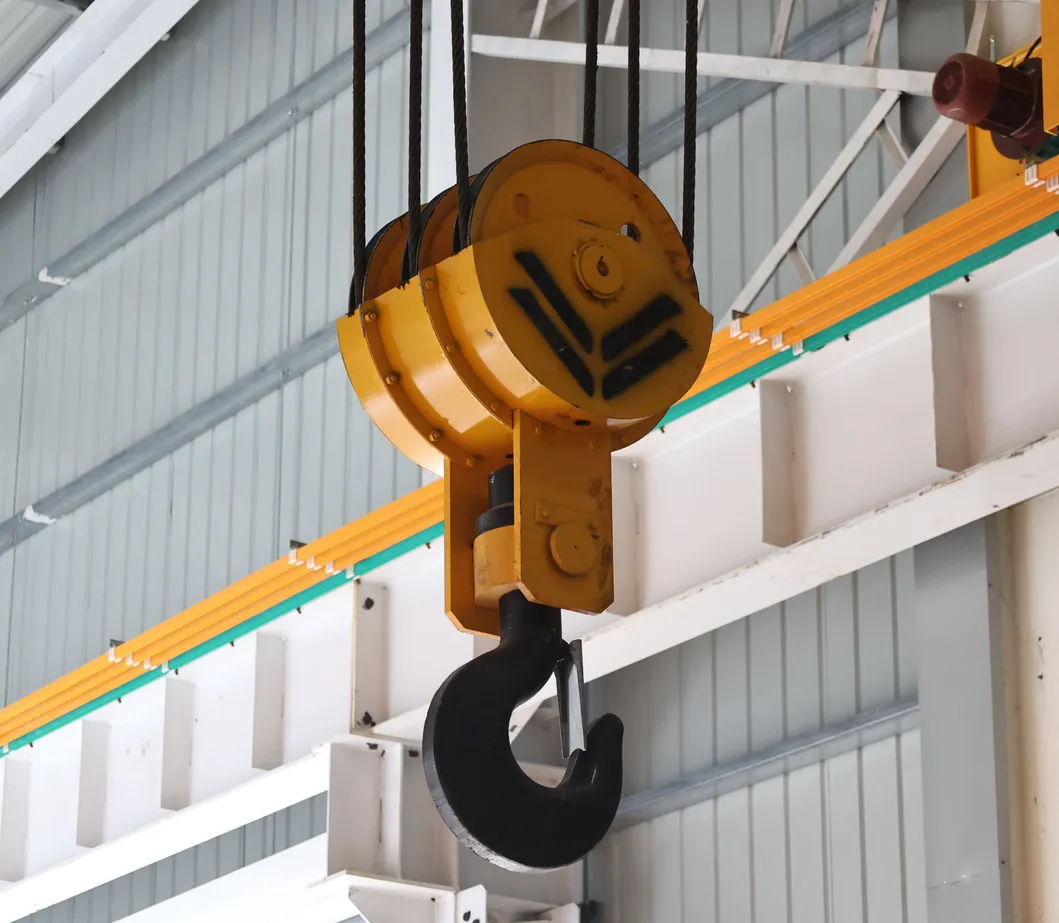

Our cranes are equipped with diverse tools: The hook for general lifting, the grab bucket for bulk materials, and other specialized tools tailored to meet specific operational needs.
We specialize in the design and production of both standardized and customized lifting machinery. With extensive expertise in overhead and gantry cranes, we provide tailored solutions for diverse material handling challenges. Our products are exported to over 20 countries worldwide, serving end-users, distributors, and industry peers with complete systems and OEM services.
