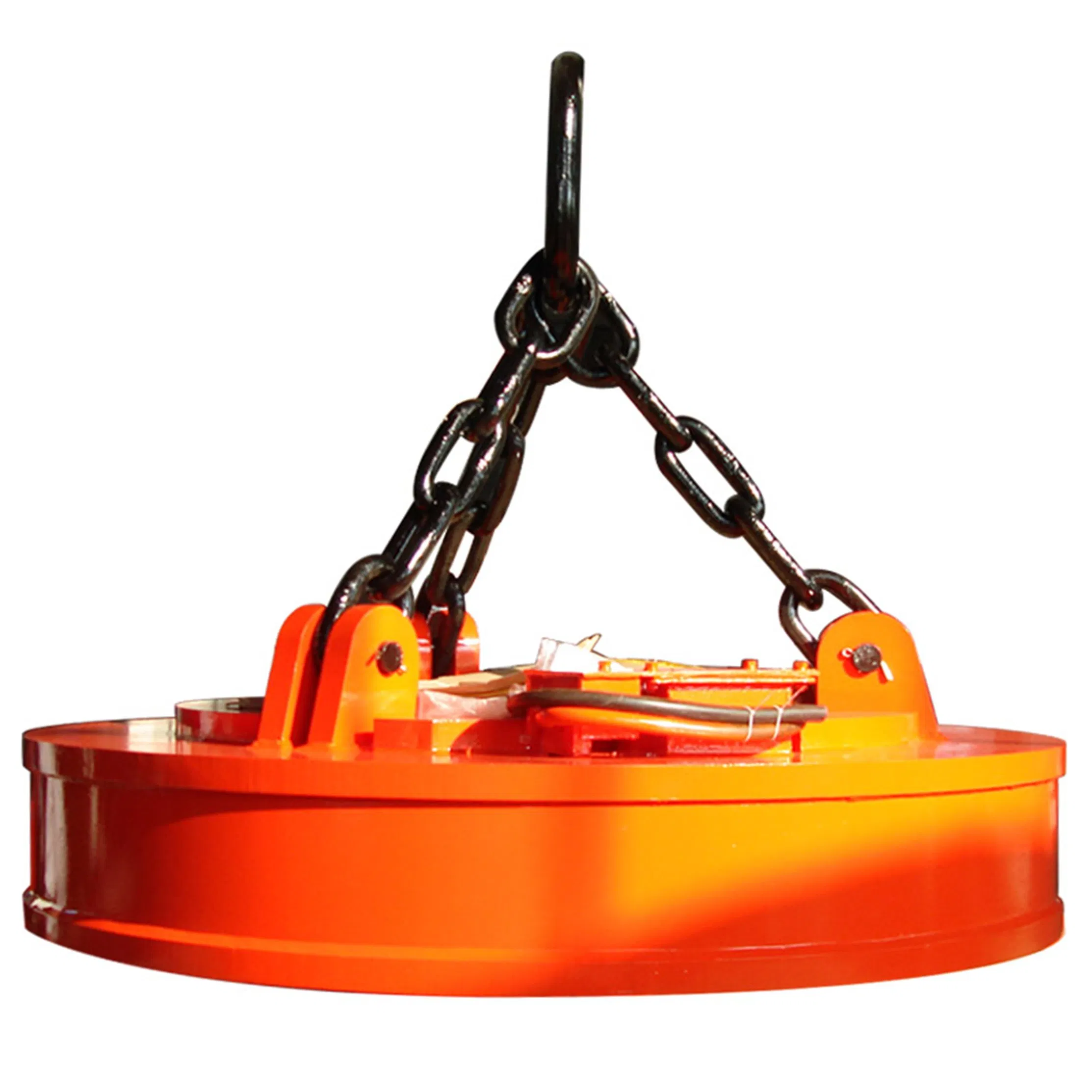

MW5 Steel Factory Electric Crane Magnetic Lifter for Lifting Scraps

1 / 5

MW5 Steel Factory Electric Crane Magnetic Lifter for Lifting Scraps

Customization:	Available
After-sales Service:	Provided
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

MW5-150L/1

Shape

Round

Color

Red, Yellow, Orange or Others

Rated Voltage

DC-220V

Duty Cycle

60%

Electric Current

71.2A

Cold-State Power

15.6kw

Weight

2830kg

Lifting Capacity (Cast Iron)

1900/1500kg

Lifting Capacity (Steel Ball)

11000kg

Coil Material

Aluminum or Copper

Application

Lifting Steel Scraps

Product Description

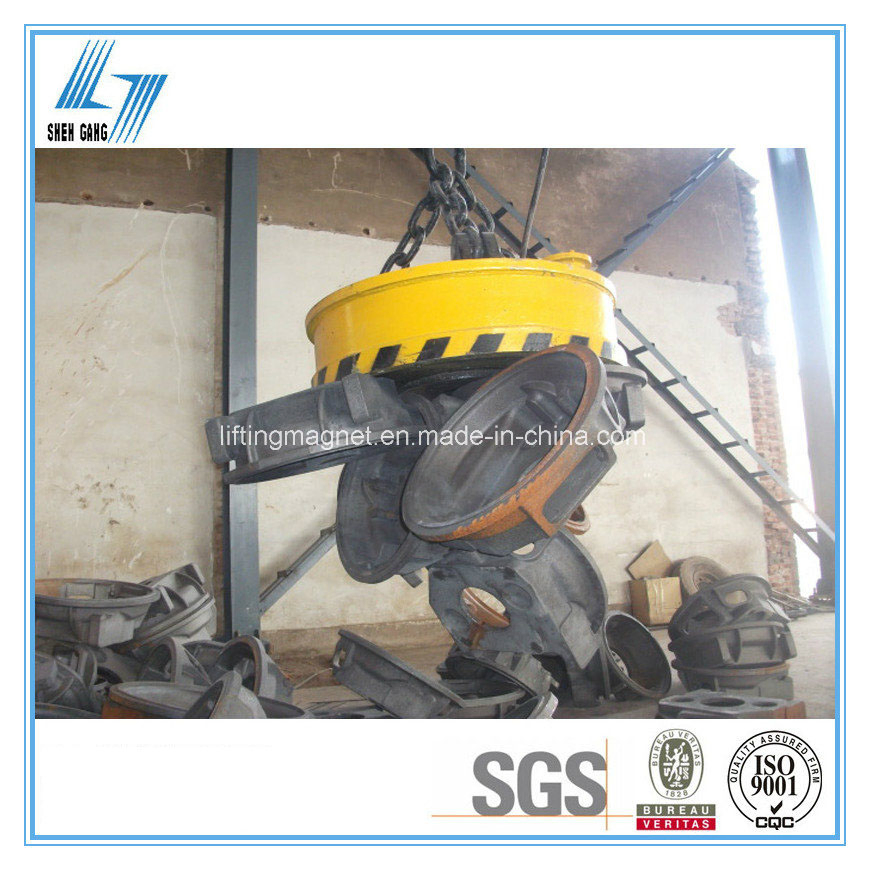

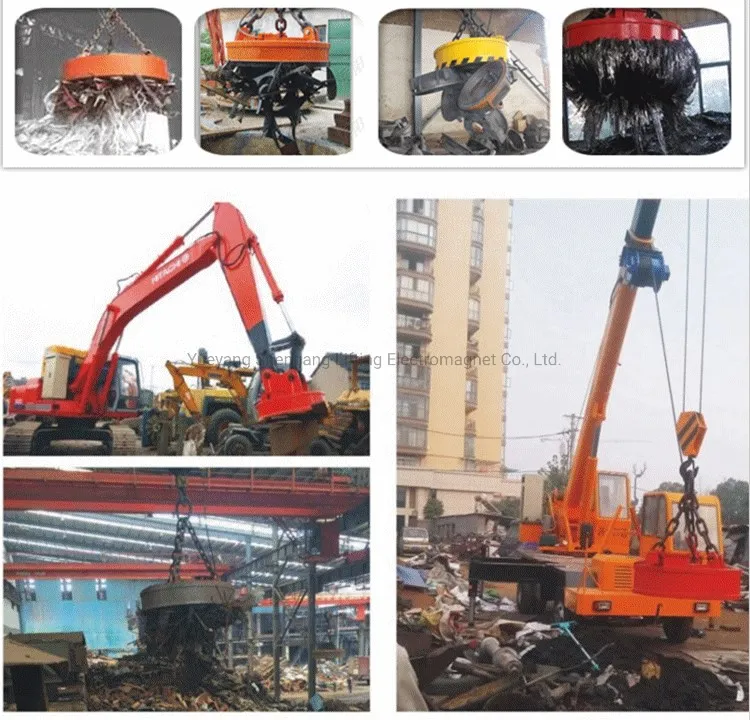

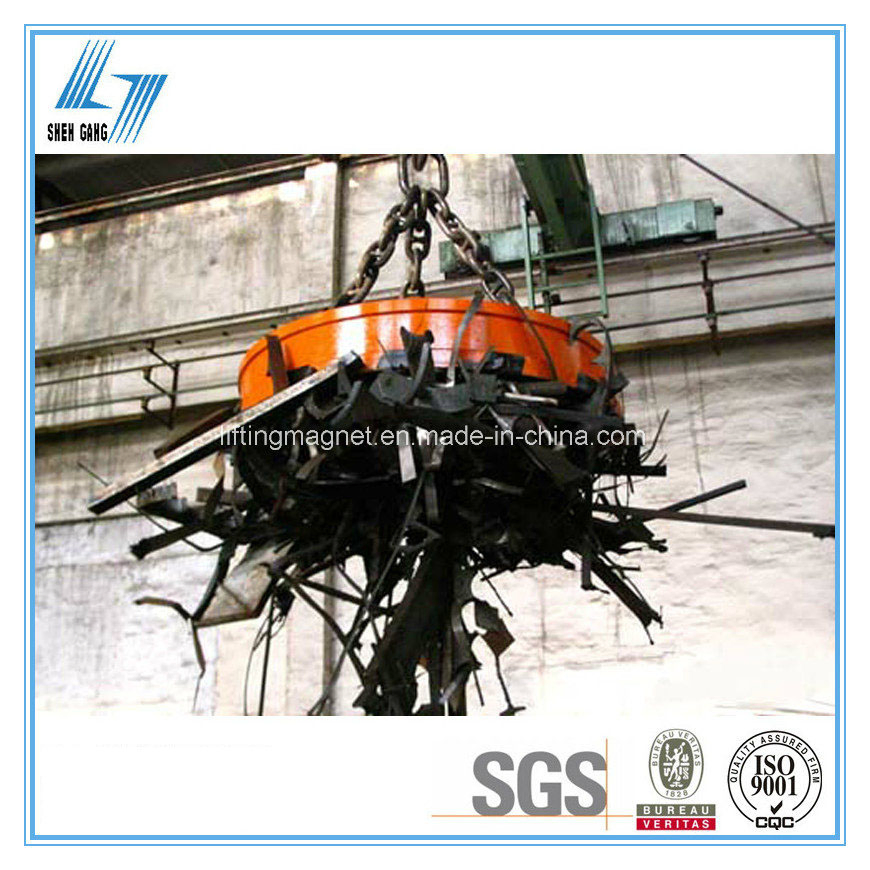

The magnetic lifter is expertly designed for transporting ingots, steel chips, slabs, steel plates, and various types of steel scraps. It is highly versatile and can be efficiently installed on excavators and cranes.

High Duty Cycle: 75% or 60%
All welded heavy-duty construction for durability
Cool operating design for extended service life
Class H insulation for high-temperature resistance
Powerful deep magnetic field design
Aluminum or Copper Coil options available
Voltages - 220V DC

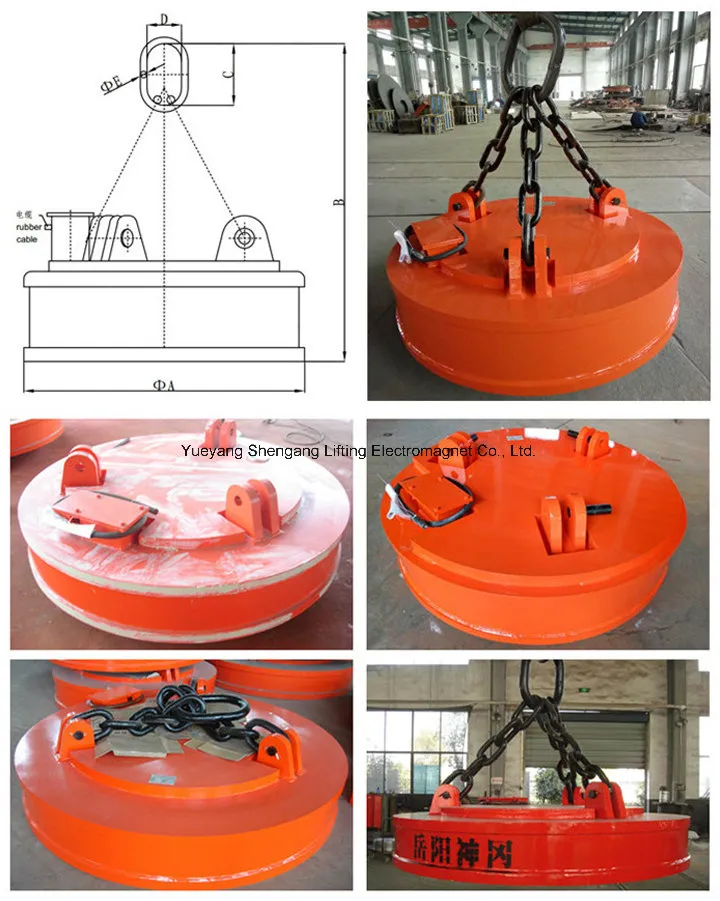

Technical Parameters

Model	Current (A)	Power (kw)	Steel Ball (kg)	Cast Iron (kg)	Steel Scrap (kg)	Mass (kg)	Dimension A/B (mm)
MW5-70L/1	15	3.3	2500	380/200	120/100	490	700/800
MW5-80L/1	18	3.96	3000	480/250	150/300	620	800/800
MW5-90L/1	26.6	5.9	4500	650/440	250/200	800	900/1090
MW5-110L/1	35	7.7	6500	1000/800	450/400	1350	1100/1140
MW5-130L/1	54	12	8500	1400/1100	700/600	2010	1300/1240
MW5-150L/1	71.2	15.6	11000	1900/1500	1100/900	2830	1500/1250

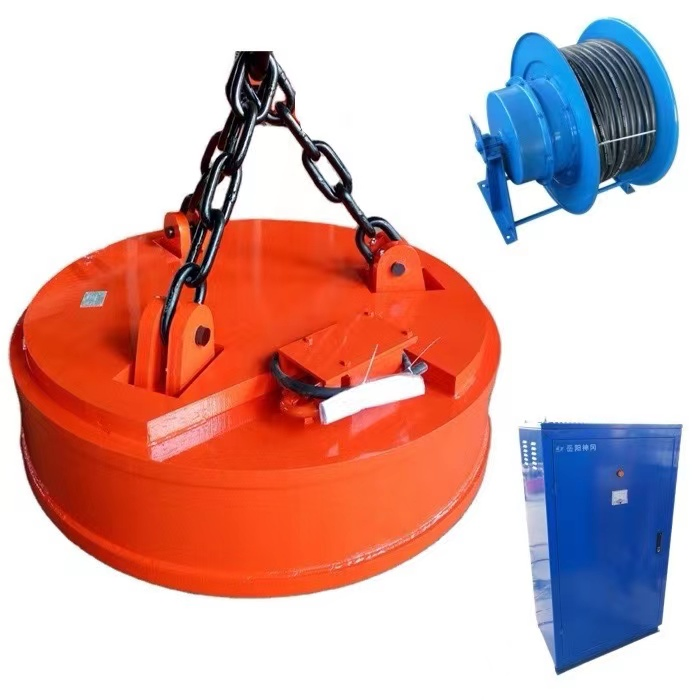

Product & Equipment Display

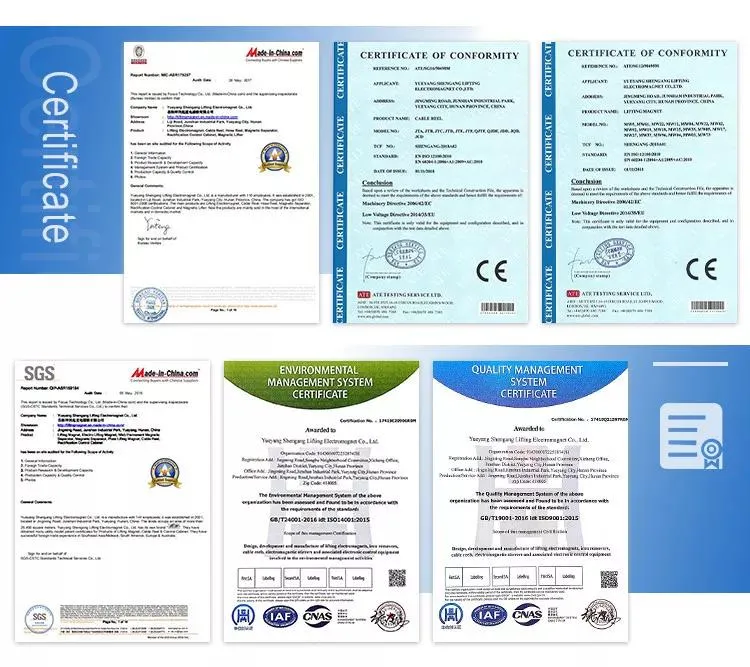

Packaging & Certifications

FAQ

What types of materials can this magnet lift?

It is designed for lifting and transporting steel scraps, ingots, steel chips, slabs, and steel plates in both indoor and outdoor environments.

What are the available coil options?

We offer both high-quality Aluminum Coils and Copper Coils to meet different budgetary and performance requirements.

What is the standard delivery time?

For standard models, delivery is typically within 10 workdays after confirmation. Customized models depend on specific production needs.

What kind of maintenance is required?

Due to our advanced renovation technology and heavy-duty construction, our products are designed to be virtually maintenance-free under normal operation.

What is the warranty period?

All products come with a 12-month warranty from the date of delivery. We also provide technical support for international markets.

Do you support custom designs?

Yes, we welcome OEM and ODM orders. Our engineers will provide a proposal based on your specific application requirements and overhead crane specifications.
