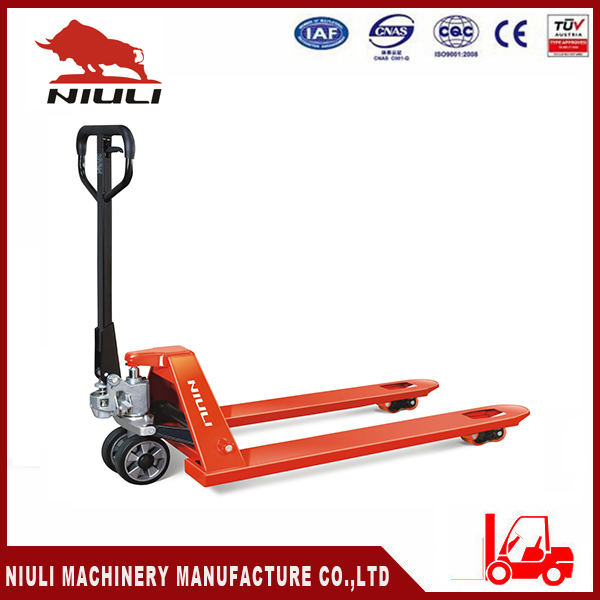

Niuli AC Hydraulic Hand Pallet Truck with Ce

1 / 5

Niuli AC Hydraulic Hand Pallet Truck with Ce

After-sales Service:	Online Service
Warranty:	1 Year
Cab Location:	Not Adjustable

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CBY-AC hand pallet truck

Type

Manual Pallet Truck

Power

Hand

Load Capacity

1T - 5T

Load center

>500mm

Lift height

195mm

Condition

New

Material

Steel

Size

550X1150mm

HS Code

8427900000

Capacity

50000PCS/Month

⚙️ Product Description

✔ Capacity: 2000kg, 2500kg, 3000kg, 5000kg

✔ Lowered Fork Height: 85mm, 75mm, 140mm

✔ Total Lift Height: 195mm / 185mm

✔ Fork Width: 1150mm / 1220mm

✔ Width Over The Forks: 550 / 685mm

✔ Steering Wheel: 180X50mm

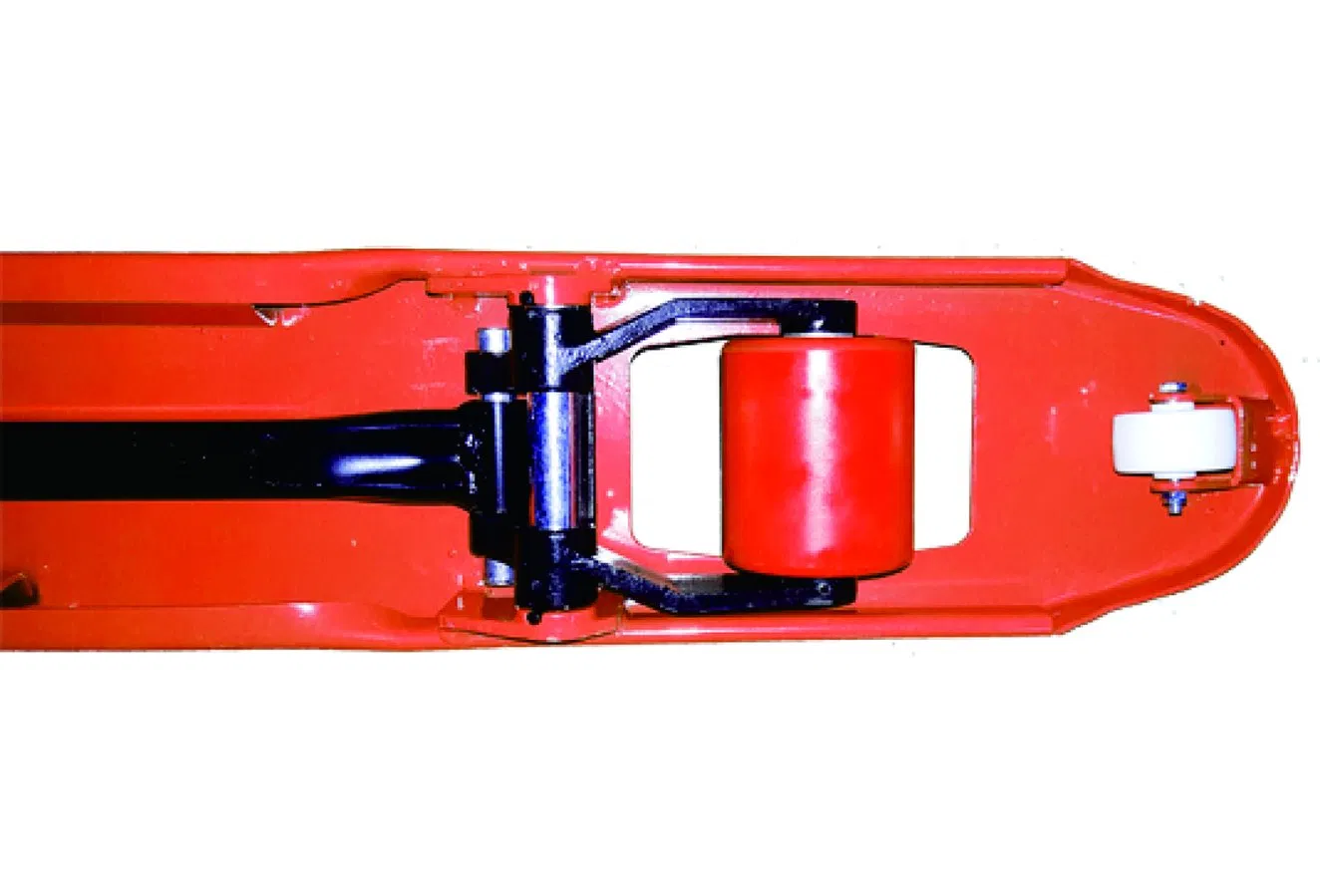

✔ Front Wheel: 80mm / 70mm

✔ Self Weight: 73-92kg

Model	CBY-AC2.5	CBY-AC3.0
Capacity (kg)	2500	3000
Min. Fork height (mm)	85/75	85/75
Max. Fork height (mm)	195/185	195/185
Lifting height (mm)	110	110
Fork length (mm)	1150/1220	1150/1220
Single fork width (mm)	160	160
Width overall forks (mm)	550/685	550/685
Fork wheel-single (mm)	80×93/74×93	80×93/74×93
Fork wheel-tandem (mm)	80×70	80×70
Steering wheel (mm)	180×50	180×50
Self weight (kg)	73-92
Qty/20 feet container (PCS)	180/144	180/144

❓ Frequently Asked Questions

1. What is the maximum load capacity of this hand pallet truck?

The CBY-AC series offers a versatile range of load capacities from 1 Ton up to 5 Tons (2000kg to 5000kg) to suit various industrial needs.

2. What are the standard fork dimensions?

The standard fork lengths are 1150mm or 1220mm, with overall widths available in 550mm or 685mm configurations.

3. What is the lift height range for the CBY-AC model?

The truck features a minimum fork height of 75mm/85mm and can reach a maximum lift height of 185mm/195mm.

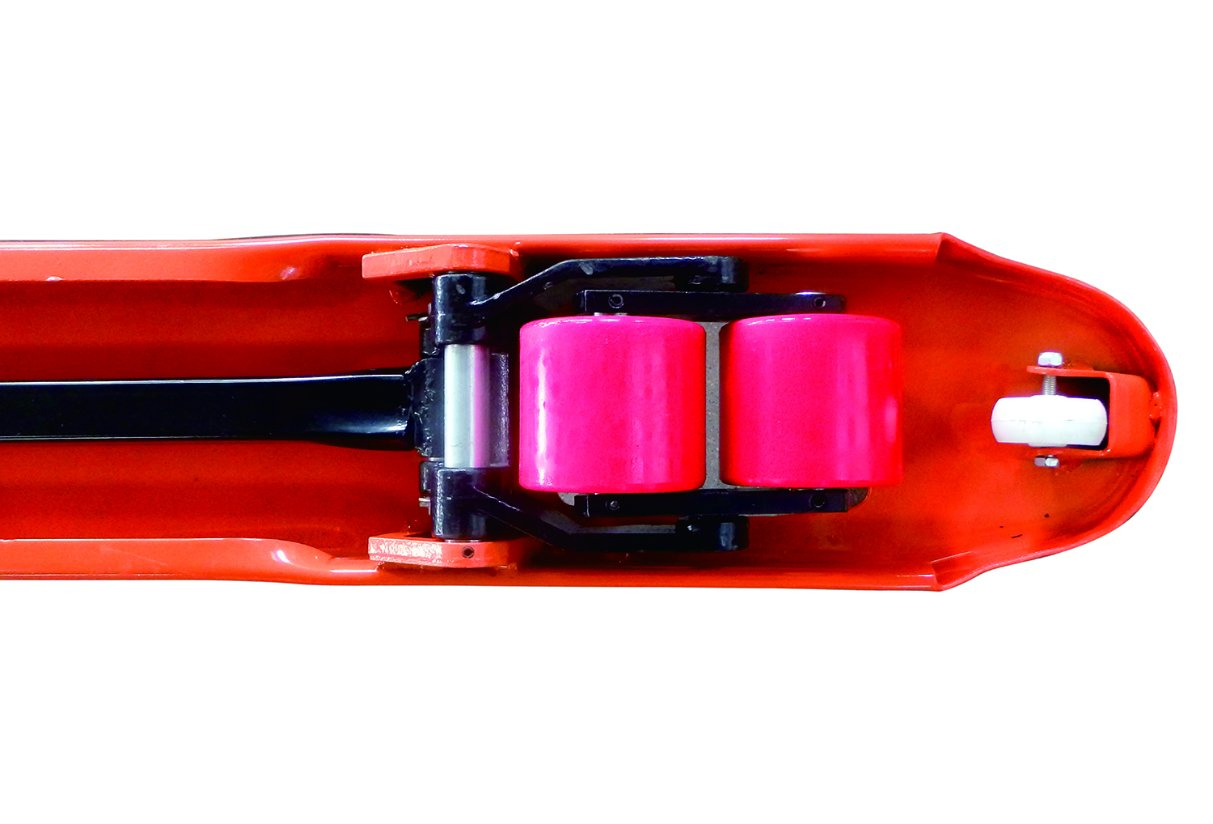

4. What type of wheels are used on this pallet truck?

It is equipped with a 180x50mm steering wheel and front wheels (80mm or 70mm) designed for smooth movement and durability.

5. How many units can be transported in a 20ft container?

Depending on the specific model and size, a 20-foot container can accommodate between 144 and 180 pieces.

6. Is the pallet truck suitable for heavy-duty use?

Yes, it is constructed from high-quality steel with a robust hydraulic system, making it ideal for professional material handling in warehouses and factories.
