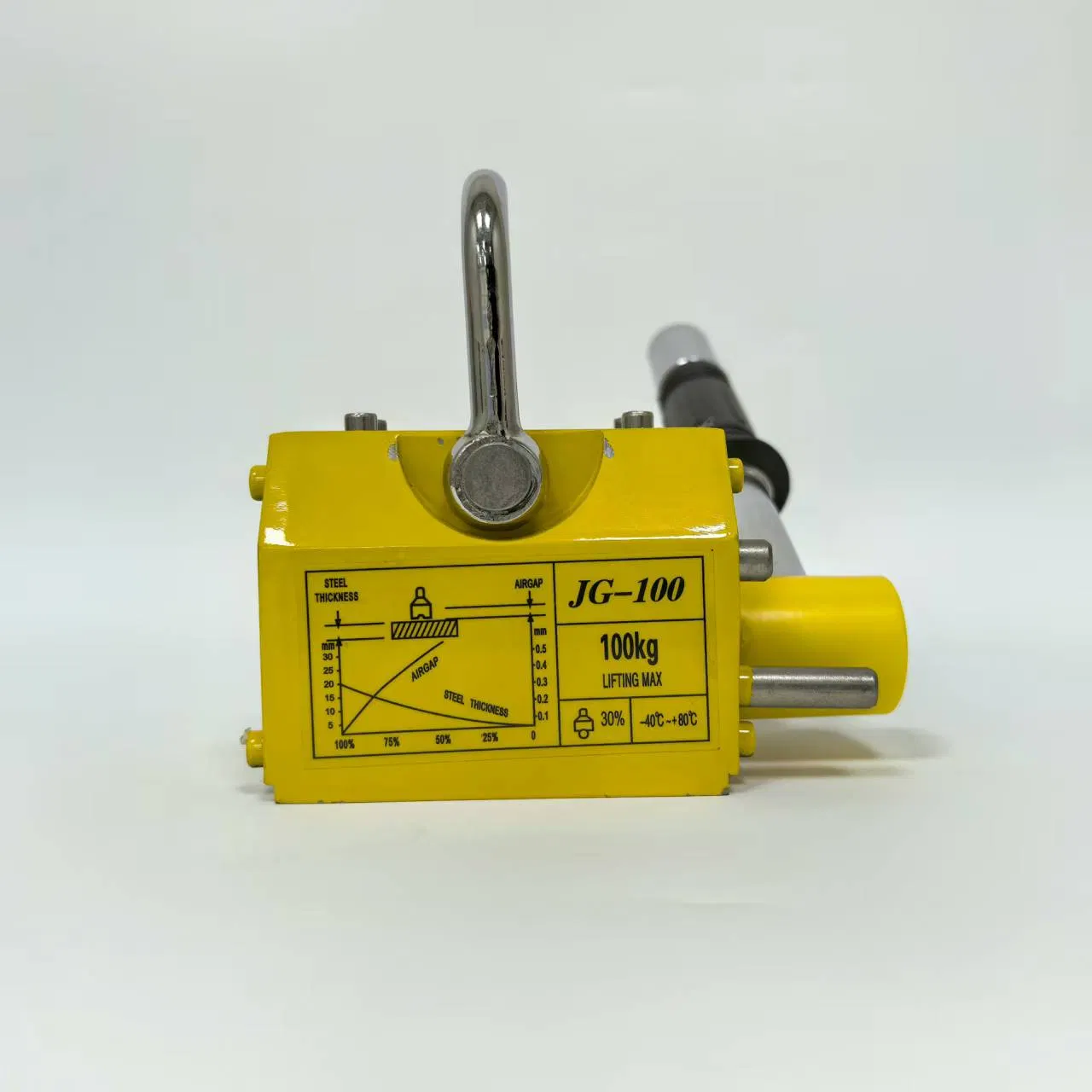

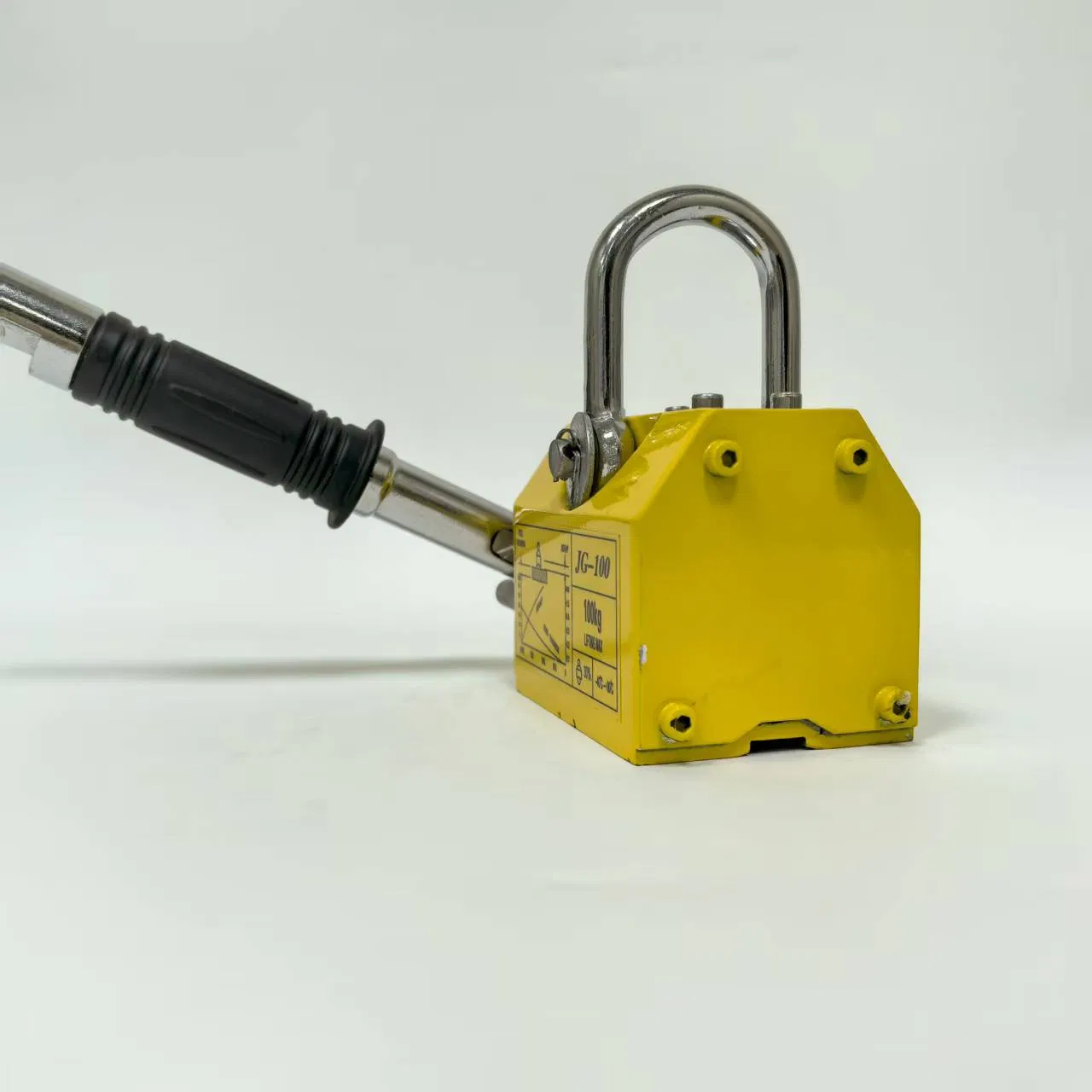

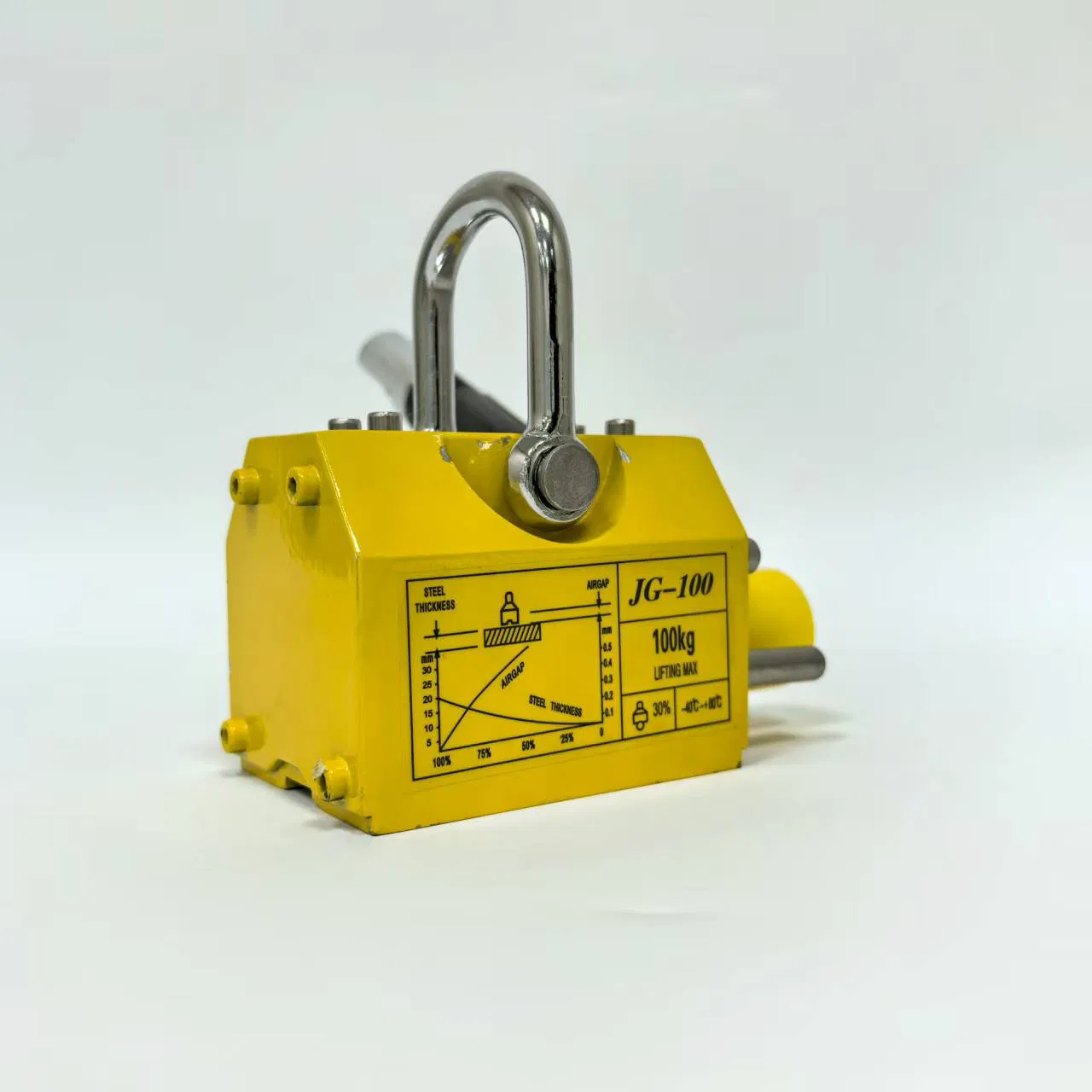

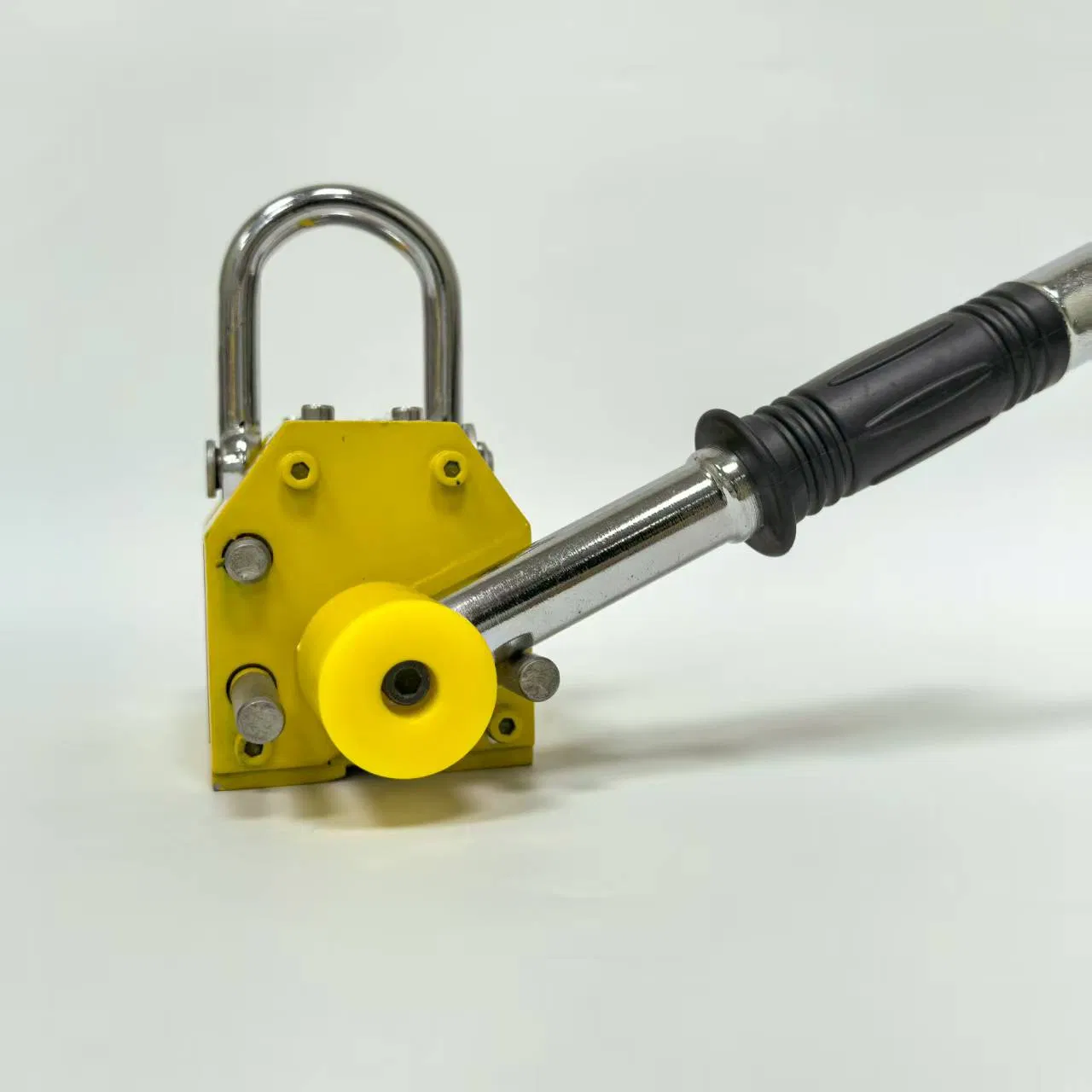

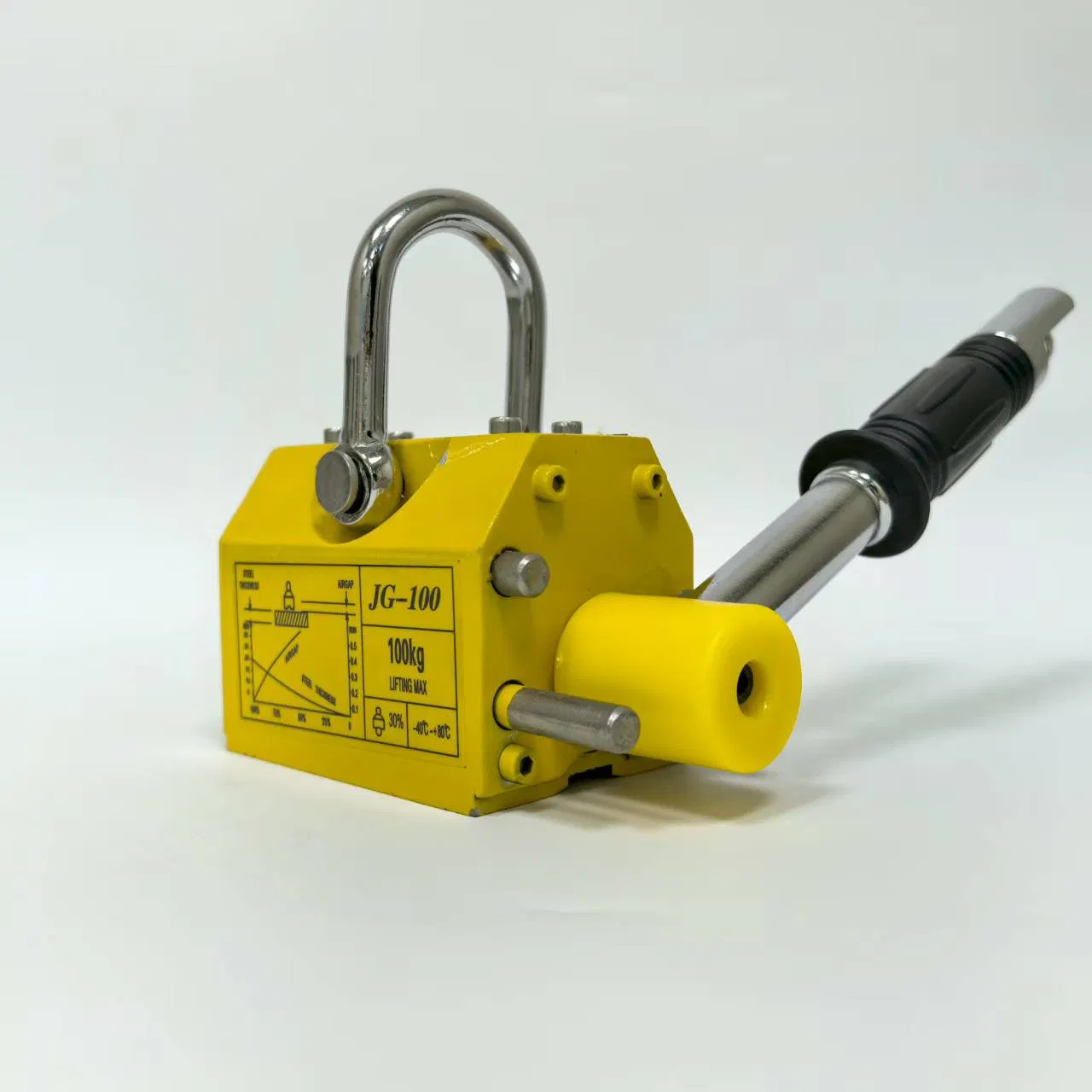

Permanent Magnetic Lifter 1, 000 Kg Working Load with 3X Safety Factor

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview
The manual permanent lifting magnet is a versatile and easy-to-use lifter designed for single-handed operation. Equipped with a handle switch featuring a safety lock, it eliminates the need for external power, ensuring safe and efficient handling.
Model NO.
PML-1
Shape
Square
Color
Red, Yellow
Safety Factor
2.5X/3X/3.5X
Specification
0.1t to 10t
HS Code
8505119000
MOQ
1
Origin
China
Features & Specification
  • V-shaped lifting surface designed for securely lifting cylindrical and flat materials
  • Made with high-performance Nd-Fe-B (neodymium-iron-boron) magnets for reliable lifting strength
  • Stainless steel/aluminum label materials ensure lasting clarity
  • Working load limit (WLL) of 0.1 tons to 10 tons, meeting various lifting requirements
  • CE-certified for safety and quality assurance
  • Available with 2x, 2.5x, 3x, or 3.5x safety factors for enhanced security
  • Each unit undergoes 100% static load testing before leaving the factory
  • Standard red and yellow color finishes, with customization options available

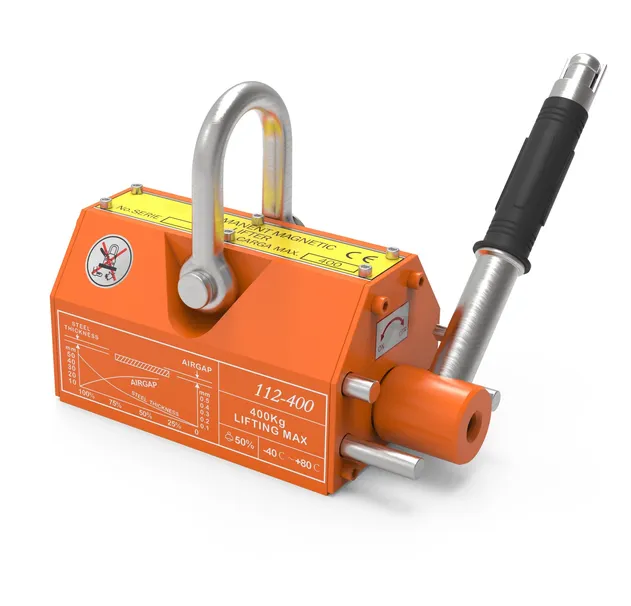

Permanent Magnetic Lifter Display 1

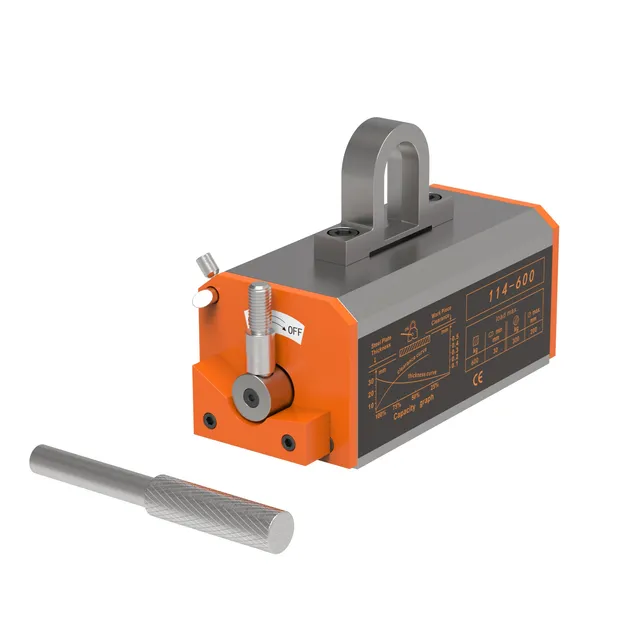

Permanent Magnetic Lifter Display 2
Permanent Magnetic Lifter Display 3
Operation Notes

• Permanent lifting magnets are exclusively designed for vertical lifting applications.

• For steel plates exceeding 3 meters in length, use multiple magnets in combination for stability.

• Optimal performance requires plate thickness of at least 15 mm.

• Lifting capacity is reduced to 30% when handling cylindrical steel.

Product Details

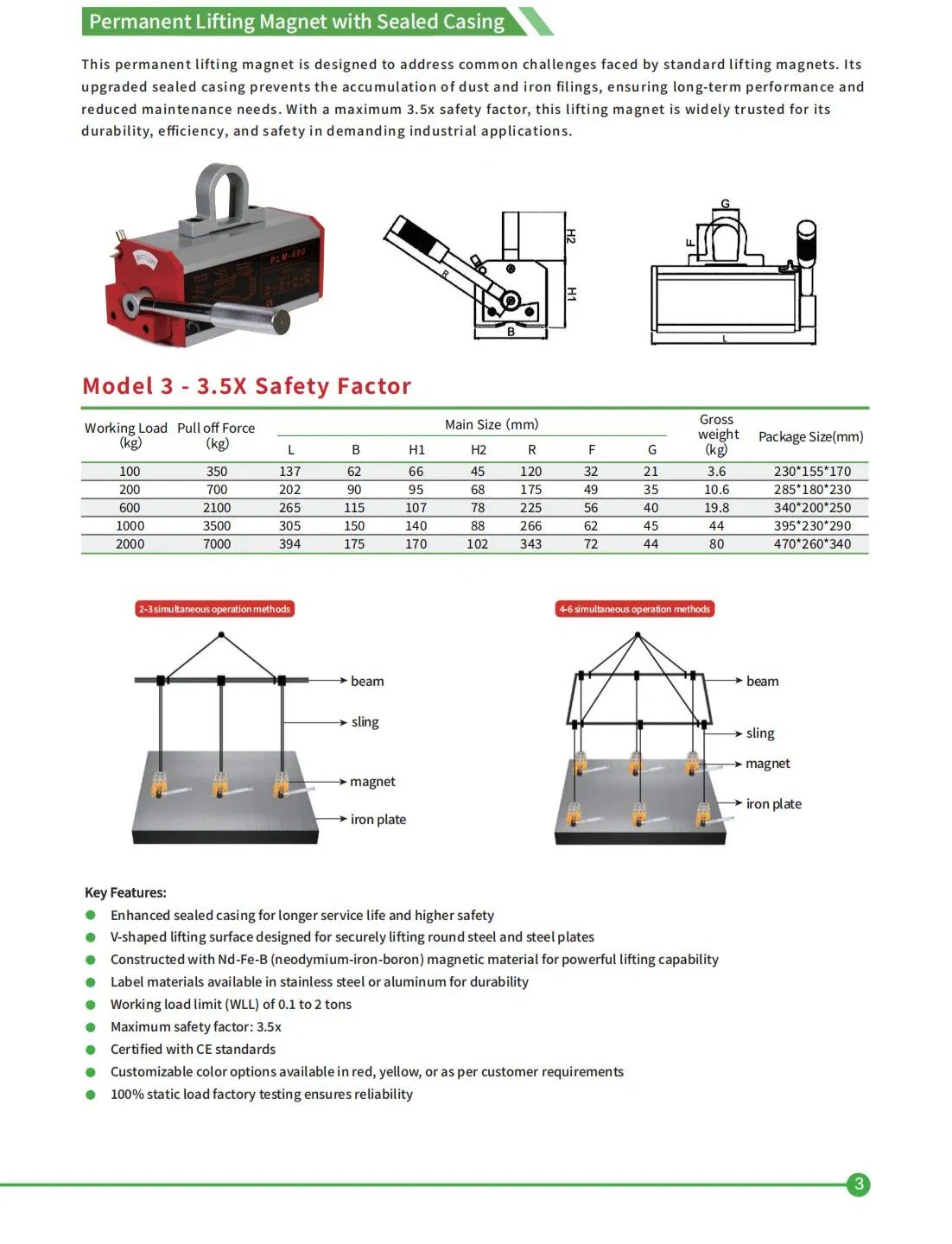

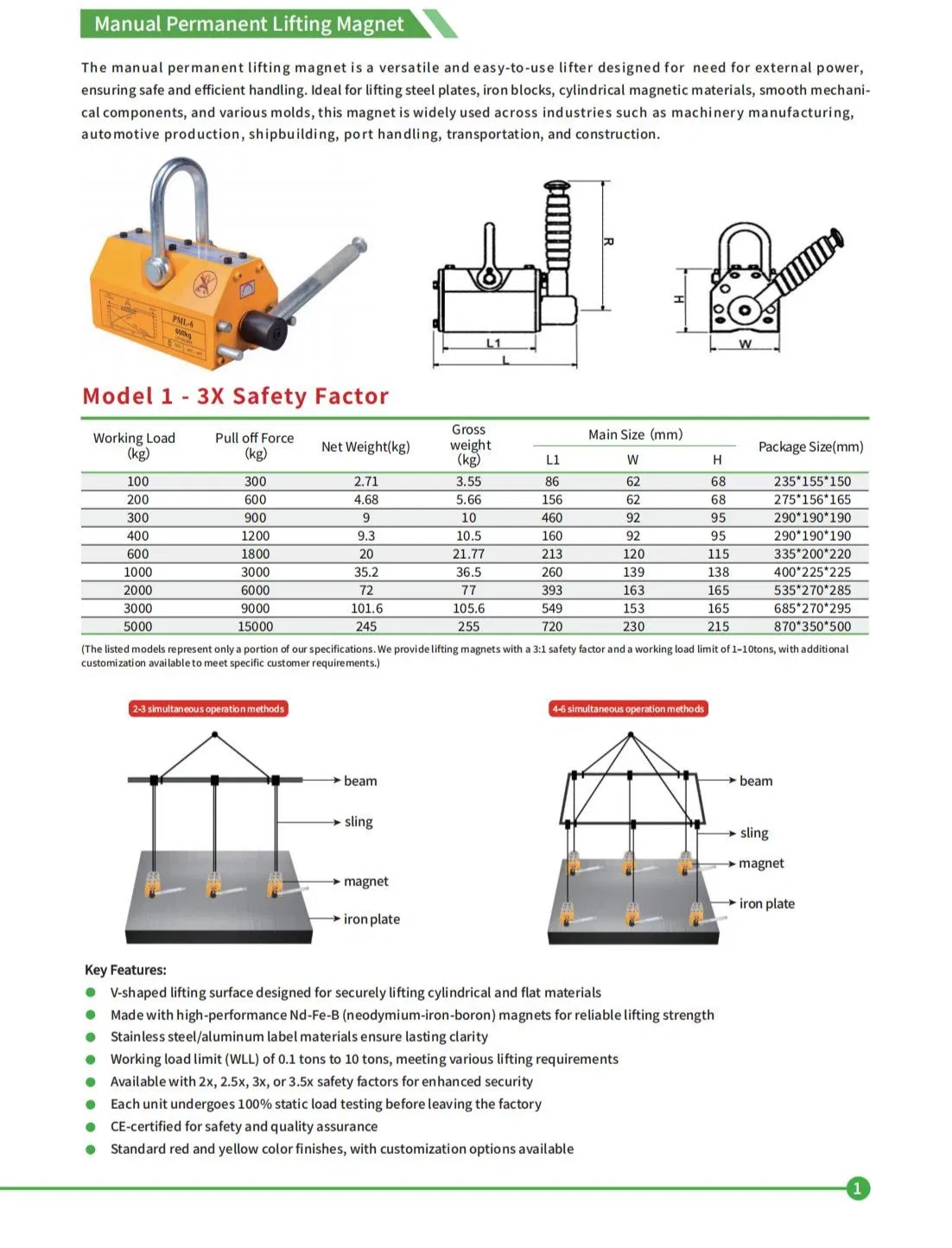

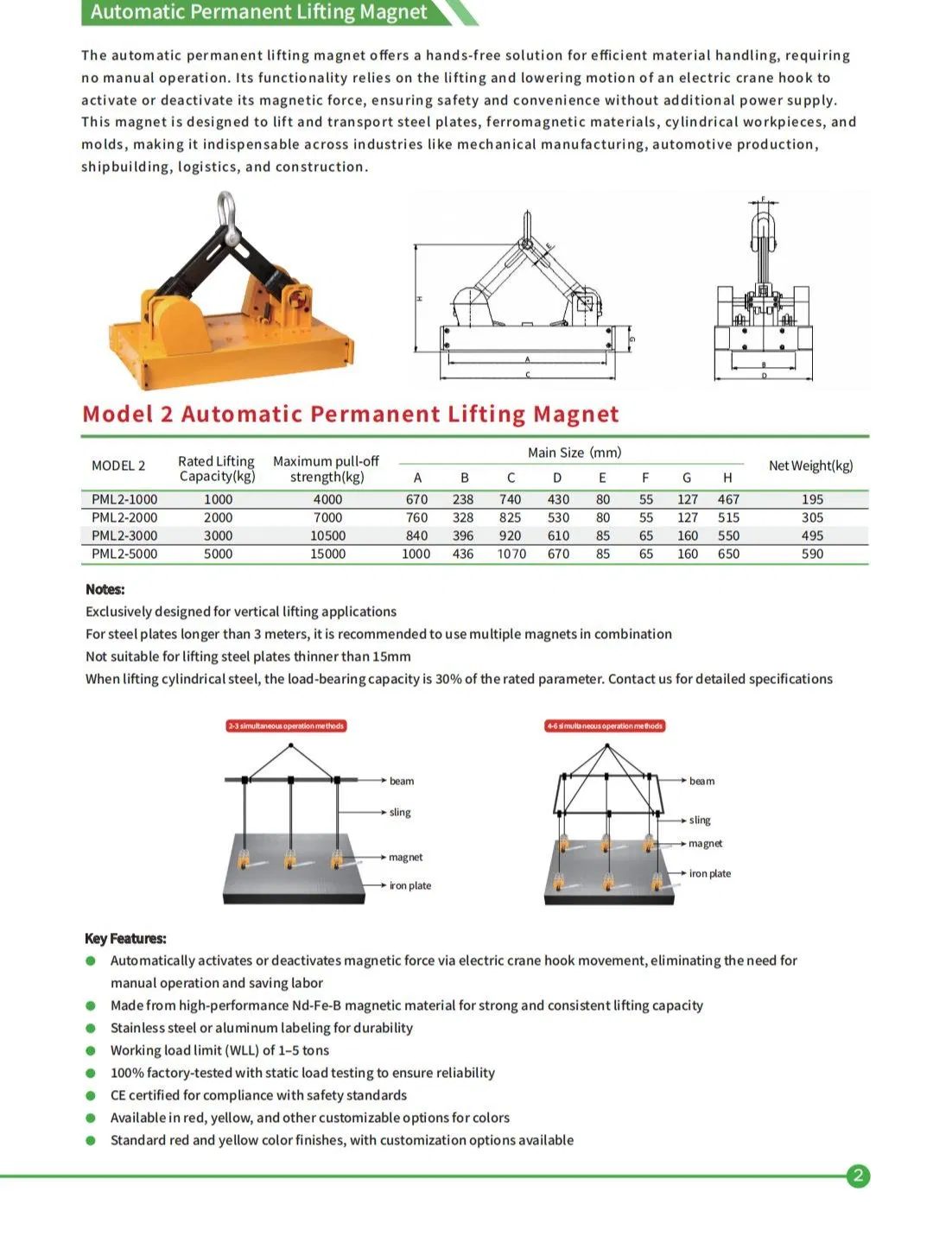

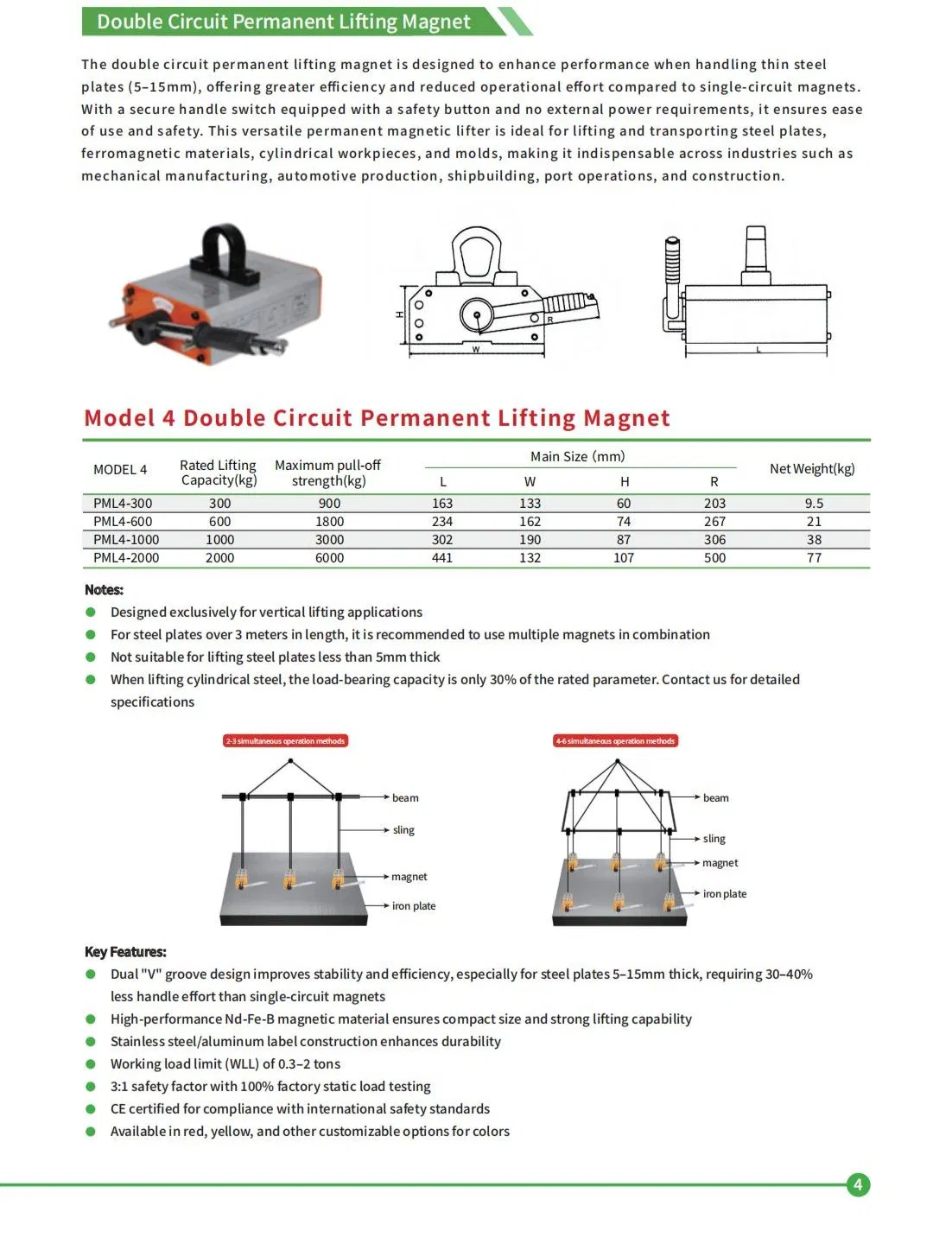

Product Detail 1 Product Detail 2 Product Detail 3 Product Detail 4
Packaging & After Sales
Packaging method
  • Packed in independent foam bags to prevent collision
  • Standard carton or Wood Carton packaging options
  • Customized packaging available according to user needs
Standard Warranty 12 months
Global Support 24/7 technical assistance and spare parts supply
Training On-site or remote operation/maintenance training
About Our Manufacturing
Banner

We are a comprehensive manufacturing enterprise focusing on the production of industrial equipment lifting points and slings. Managed in accordance with the ISO9001-2015 quality system procedures, our products have passed China Classification Society certification and EU CE certification.

Equipped with a dedicated forging factory, robot CNC finishing workshop, and professional testing facilities, we maintain strict quality control from raw material procurement to final sales. Our global network reaches over 60 countries, serving industries in equipment and mold manufacturing.

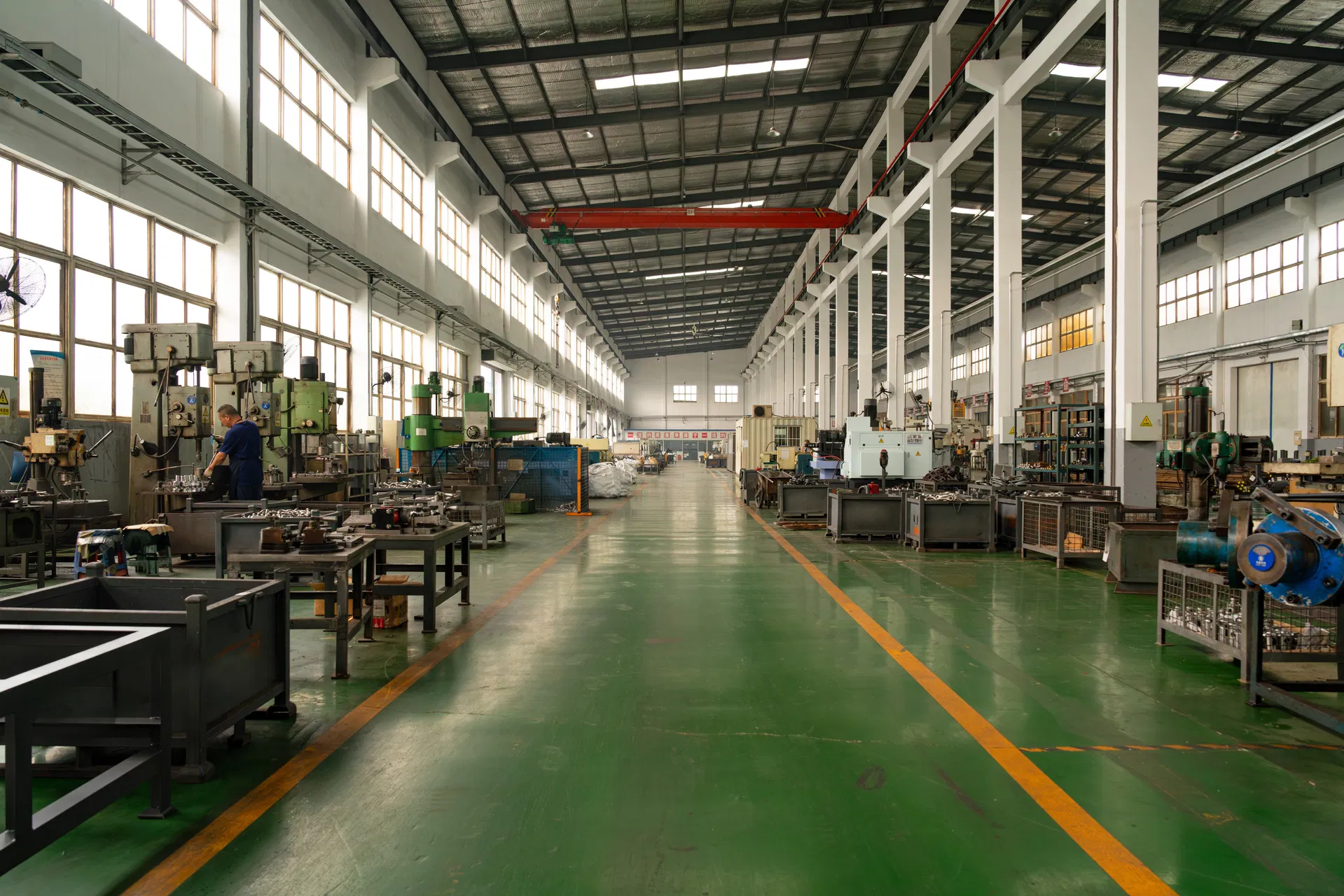

Production Facility
Frequently Asked Questions
What's the lead time for orders?
Standard models ship in 3-7 days; customized units require 15-25 days.
What documents do you provide for export?
Full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformance (COC).
How do I place an order?
Please contact us via the inquiry form or email for a formal quote, then confirm with a Purchase Order (PO).
Can these magnets be used for cylindrical objects?
Yes, the V-shaped bottom design allows for secure lifting of both flat plates and cylindrical steel loads.
Are the lifting magnets tested before shipping?
Yes, each unit undergoes 100% static load testing at our facility to ensure it meets the specified safety factors.
What safety factors are available?
We offer multiple safety factor options including 2.5X, 3X, and 3.5X to meet different regional safety standards and application requirements.
