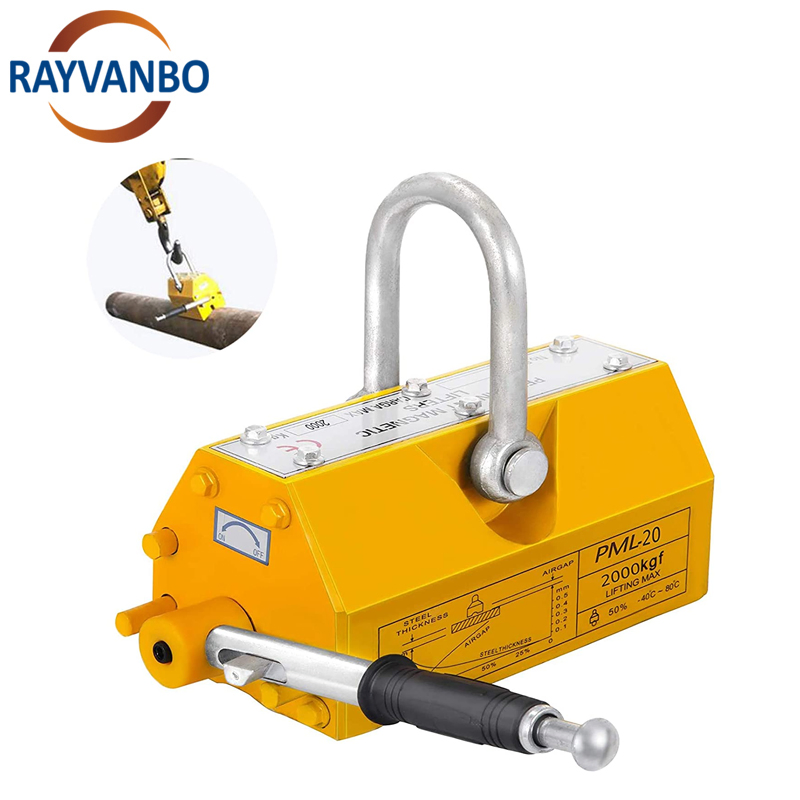

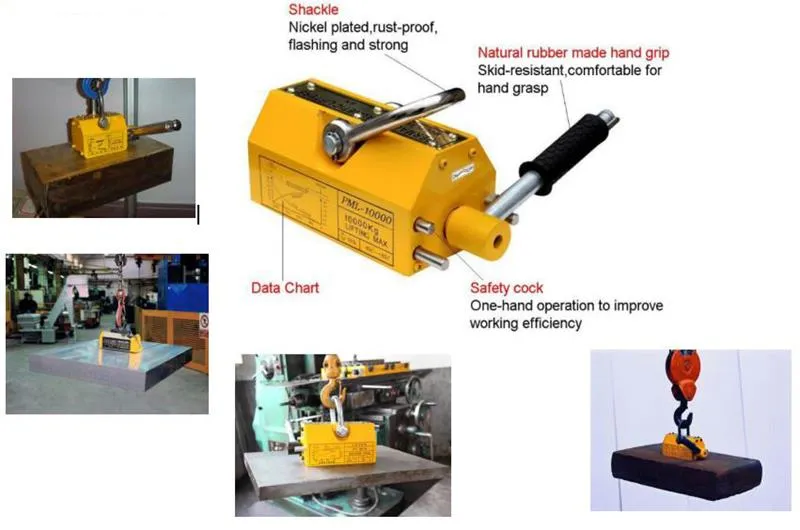

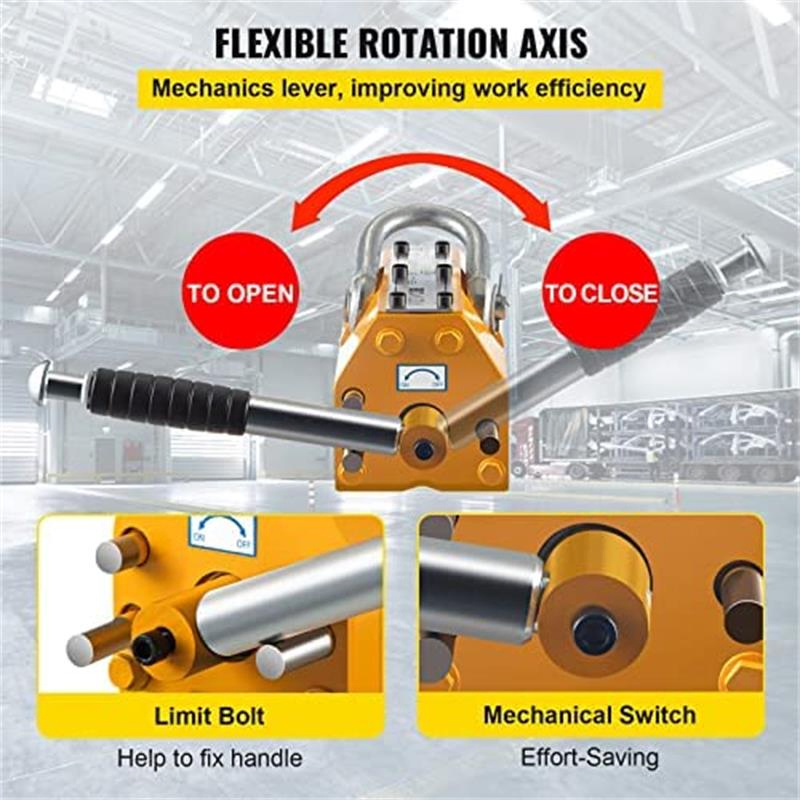

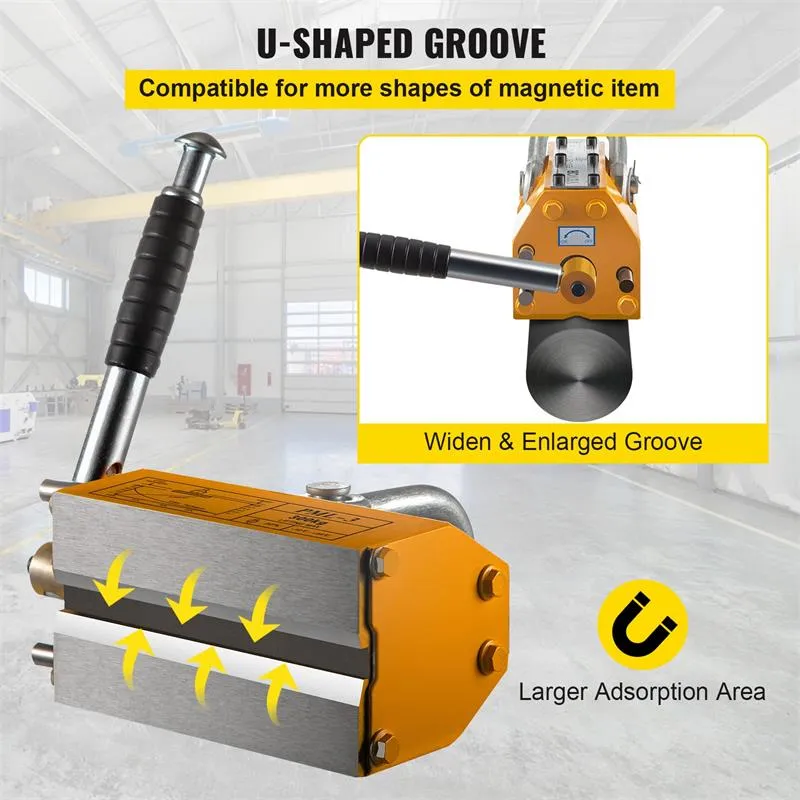

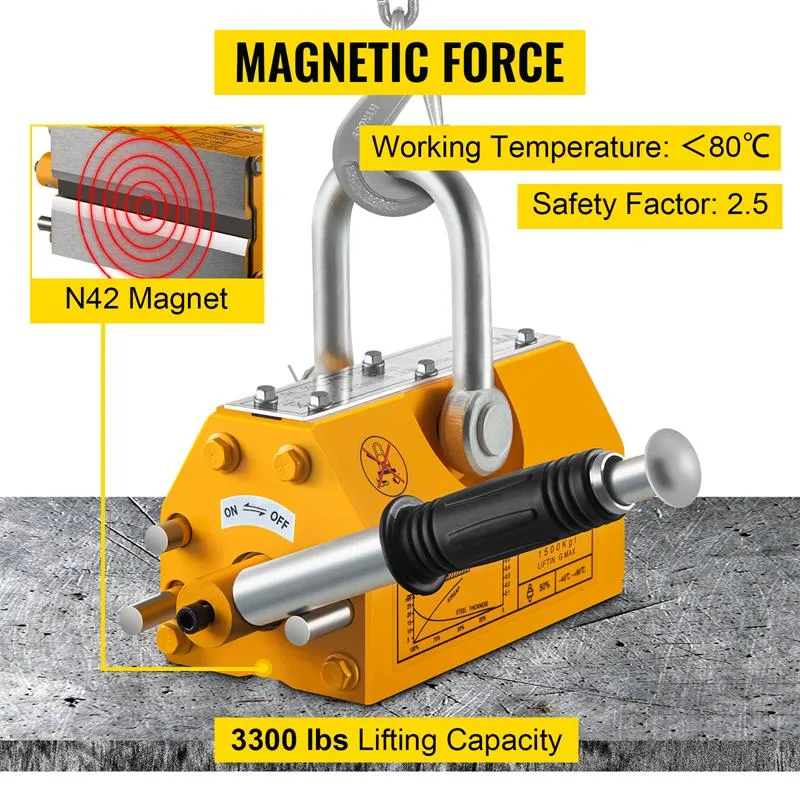

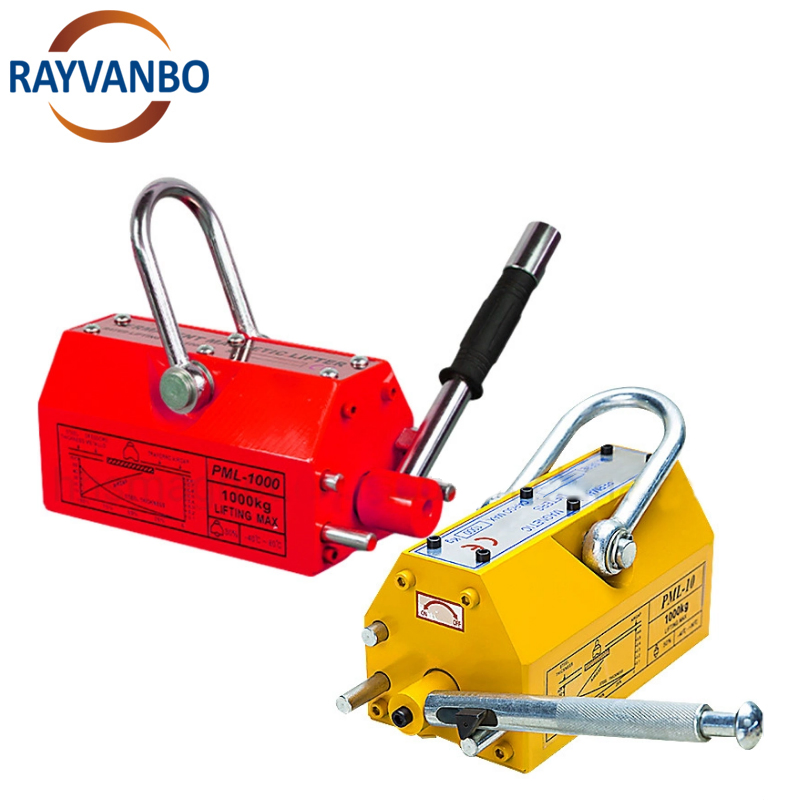

The Permanent Magnetic Lifter is constructed with high-performance rare earth material NdFeB as the core. By manually rotating the handle, the magnetic system inside is altered to either hold or release the workpiece. It is a widely used magnetic fixture in machinery factories, mold factories, and other machining fields.

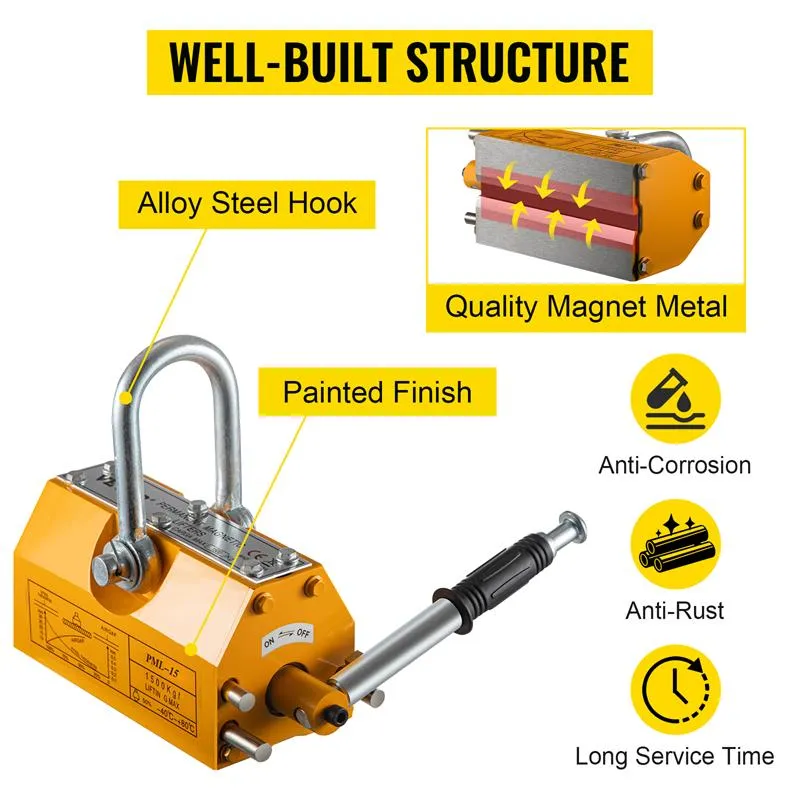

These lifters feature strong magnetic paths providing permanent power without the need for an external electricity supply. They are characterized by their compact volume, light weight, powerful lifting capacity, and ease of operation.
| Model | Lifting Capacity (kg) | Dimension (mm) | Net Weight (kg) | ||||
|---|---|---|---|---|---|---|---|
| Steel Plate | Cylindrical | Length | Width | Height | Handle | ||
| PML-100 | 100 | 50 | 92 | 62 | 69 | 155 | 3.2 |
| PML-200 | 200 | 100 | 130 | 65 | 69 | 155 | 5.4 |
| PML-400 | 400 | 200 | 160 | 95 | 95 | 200 | 11 |
| PML-600 | 600 | 300 | 210 | 120 | 120 | 230 | 20 |

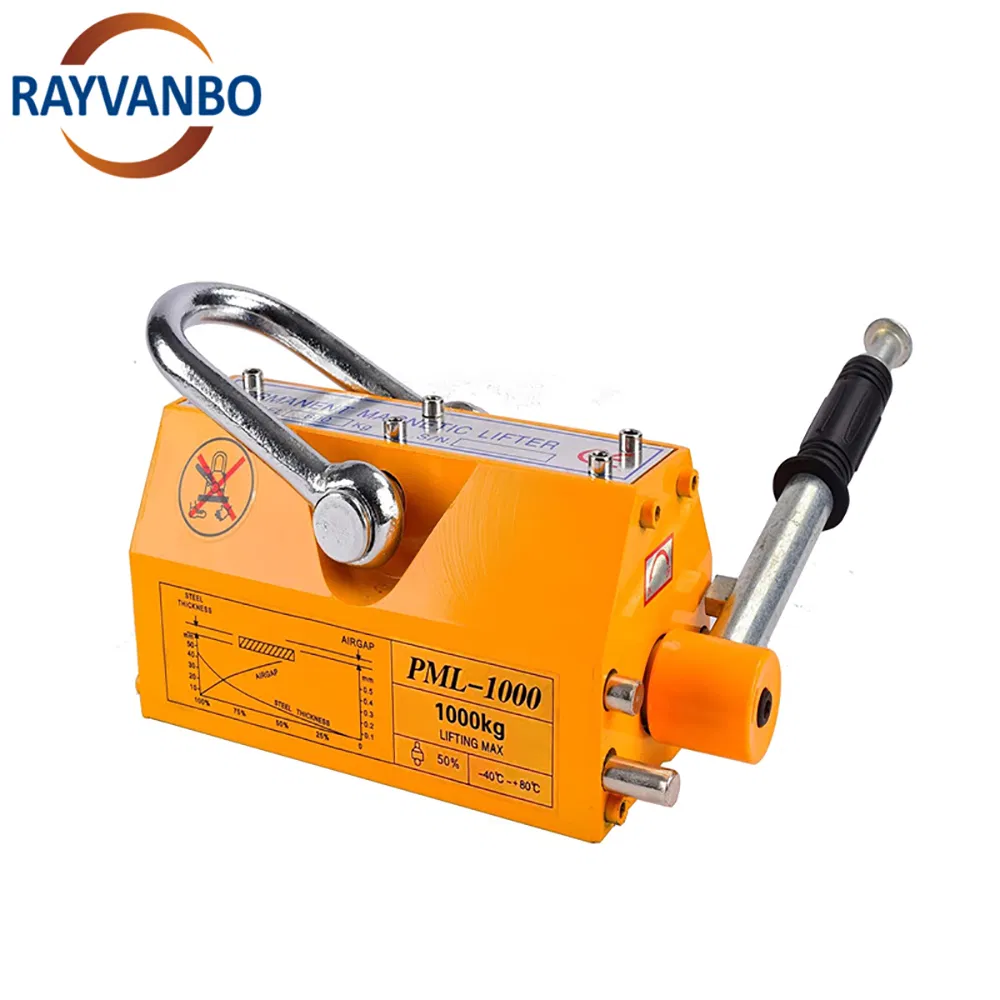

| PML-1000 | 1000 | 500 | 260 | 150 | 140 | 255 | 40 |
| PML-2000 | 2000 | 1000 | 400 | 170 | 170 | 320 | 74 |
| PML-3000 | 3000 | 1500 | 440 | 170 | 170 | 380 | 105 |
| PML-5000 | 5000 | 2500 | 600 | 230 | 215 | 600 | 248 |
